Product Introduction

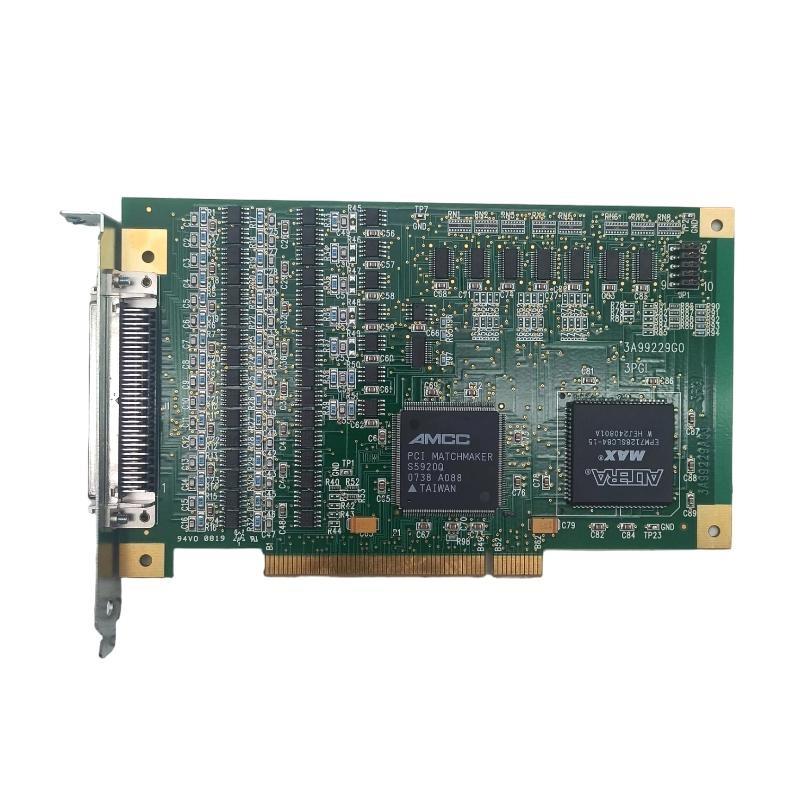

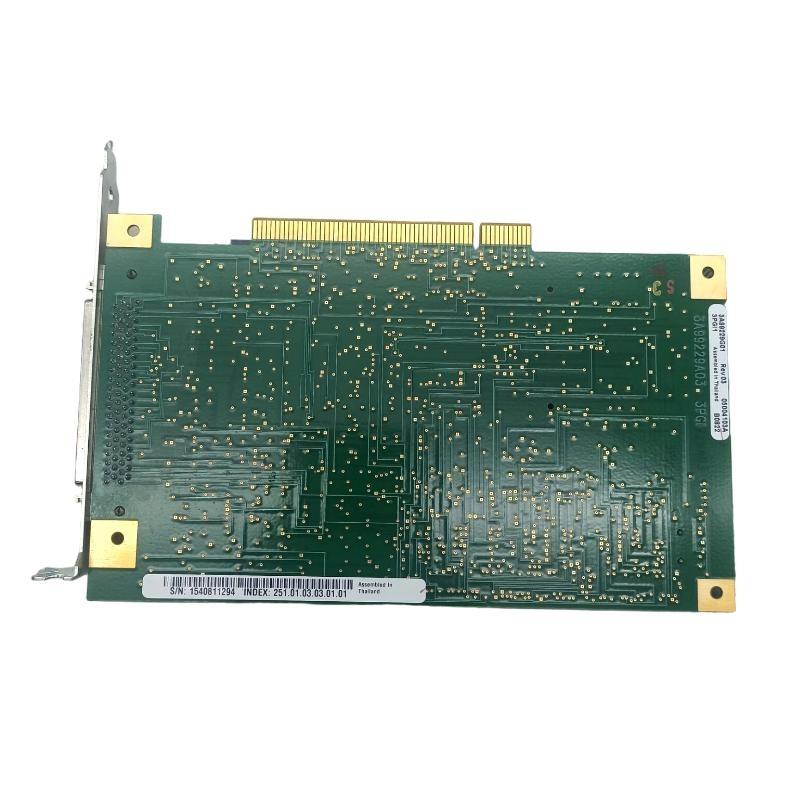

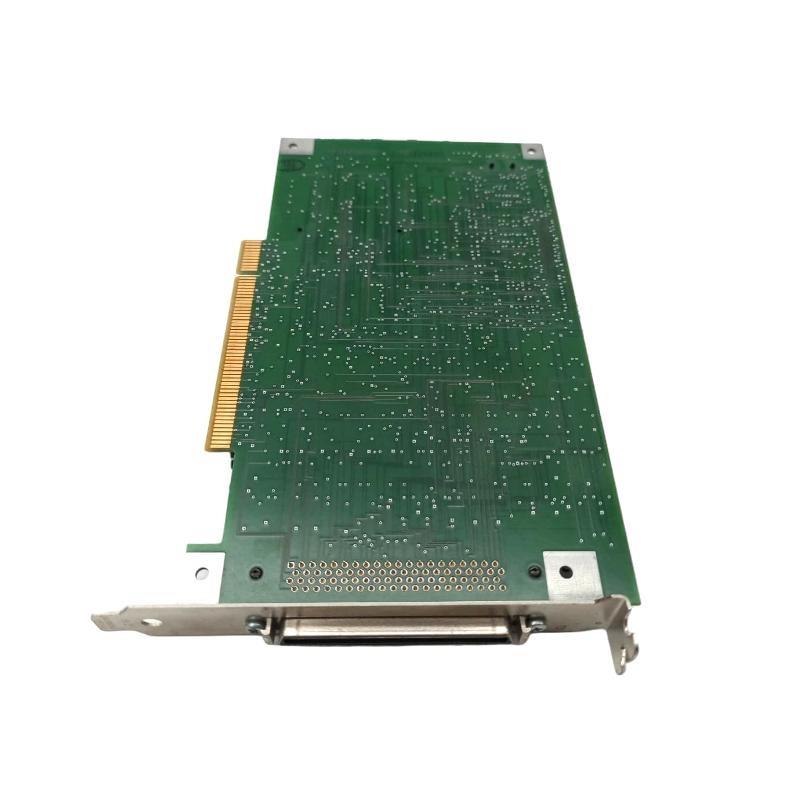

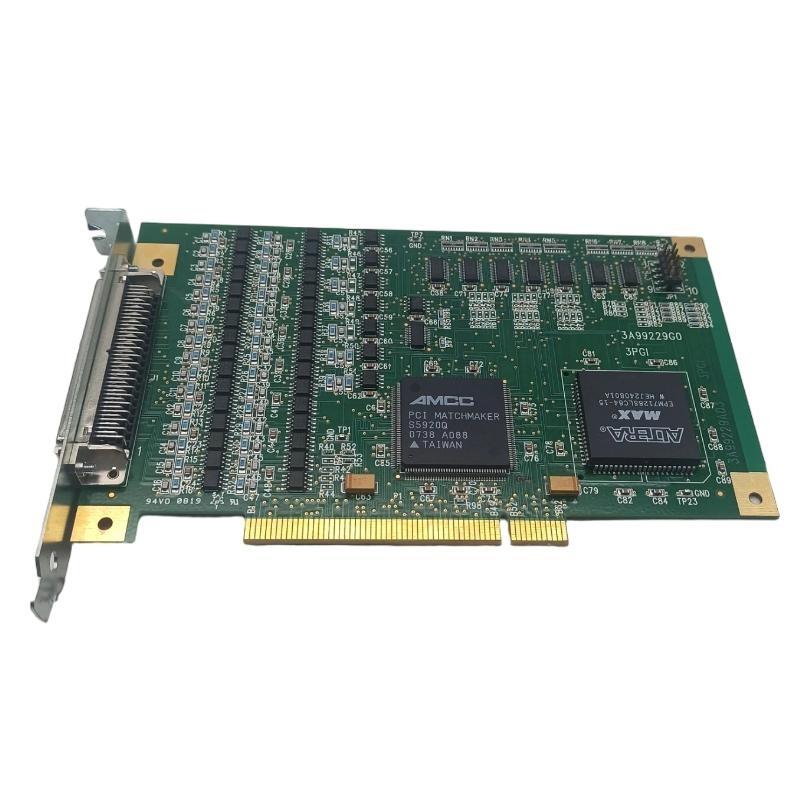

The Ovation 3A99229G01 Printed Circuit Board (PCB) is an integral part of the Ovation Distributed Control System (DCS). It is designed to manage data acquisition, control signal routing, and communication between critical system modules. With precise engineering, the board ensures stable operation, fast data processing, and reliable interconnection in industrial automation networks.
This PCB serves as a foundation for high-performance control systems, enabling stable operation in power plants, chemical facilities, and other heavy industrial environments. Its rugged construction and advanced electrical design allow it to withstand challenging operating conditions while maintaining accuracy and efficiency.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3A99229G01 |
| Type | Printed Circuit Board (PCB) |
| System Compatibility | Ovation DCS Modules and Controllers |
| Input Voltage | 5V DC / 12V DC via system power supply |
| Data Interface | Multibus-compatible, high-speed data channels |
| Processing Capability | Supports real-time signal routing and control |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Relative Humidity | 5% – 95%, non-condensing |
| Fault Protection | Overcurrent and signal isolation protection |
| Mounting Type | Rack-mounted plug-in module |
| Dimensions (HxWxD) | 280 x 180 x 25 mm |
| Weight | 0.3 kg |
Product Applications
The 3A99229G01 Printed Circuit Board is applied in various industrial and automation fields where stable control and precise communication are essential. Applications include:
-
Power generation plants for turbine and boiler automation
-
Chemical and petrochemical process control systems
-
Water and wastewater treatment facilities for supervisory control
-
Manufacturing automation systems requiring reliable process monitoring
-
Energy management systems with distributed control networks
-
Industrial safety and monitoring subsystems in Ovation environments
Product Advantages
The 3A99229G01 PCB delivers several technical and operational advantages:
-
Stable Operation: Provides reliable power distribution and signal routing across multiple system modules.
-
High Data Integrity: Maintains signal accuracy with robust electrical design, even in noisy environments.
-
Fault Tolerance: Integrated overcurrent and isolation protections enhance system resilience.
-
Seamless Integration: Fully compatible with Ovation controllers, I/O modules, and communication interfaces.
-
Compact and Lightweight: Designed for rack-mounted use while minimizing space requirements.
-
Maintenance Efficiency: Plug-in design enables fast replacement or upgrades without full system shutdown.
Frequently Asked Questions (FAQ)
-
What type of modules can the 3A99229G01 PCB support?
It supports Ovation DCS controller and I/O modules using a Multibus-compatible interface. -
Does the PCB provide power distribution to other modules?
Yes, it distributes 5V and 12V regulated power supplied through the system rack. -
Is the PCB capable of high-speed communication?
Yes, it is designed for high-speed parallel data exchange within Ovation DCS. -
Does the board include fault protection mechanisms?
Yes, it includes overcurrent and signal isolation protections to safeguard modules. -
Can the board operate reliably in industrial environments with electrical noise?
Yes, it is designed with noise-resistant architecture for stable performance. -
Is the board compatible with legacy Ovation systems?
Yes, it is backward-compatible with most Ovation legacy modules. -
Does the PCB support redundant system configurations?
Yes, it can be integrated into redundant control systems for fault tolerance. -
What is the operating temperature range of the board?
It operates reliably from 0°C to 60°C. -
Can this board be hot-swapped during operation?
Yes, the plug-in rack design allows module replacement without full system shutdown. -
Does the PCB support real-time control functions?
Yes, it is capable of handling real-time signal routing and process control functions.
Related or Series Models
| Model Number | Description |
|---|---|
| 3A99230G01 | Printed Circuit Board with extended I/O capacity |
| 3A99231G01 | High-speed communication PCB |
| 3A99232G01 | Fault-tolerant control PCB |
| 3A99233G01 | PCB with integrated diagnostic features |
| 3A99234G01 | Advanced Ovation process control PCB |
| 3A99235G01 | Multibus interface printed circuit board |
Popular Models from the Same Brand
| Model Number | Description |
|---|---|
| 3A99180G01 | Standard control PCB for Ovation DCS |
| 3A99181G01 | High-reliability power distribution board |
| 3A99182G01 | Multibus-compatible communication board |
| 3A99183G01 | Redundant controller support PCB |
| 3A99184G01 | Diagnostic-enhanced PCB for industrial use |
| 3A99185G01 | Control interface PCB with extended signals |
