Product Introduction

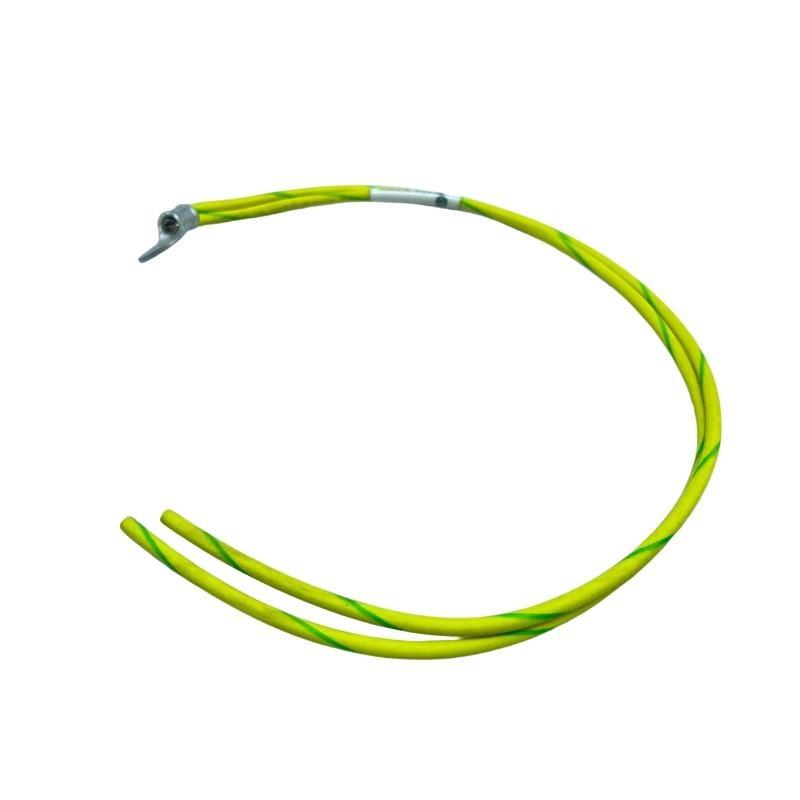

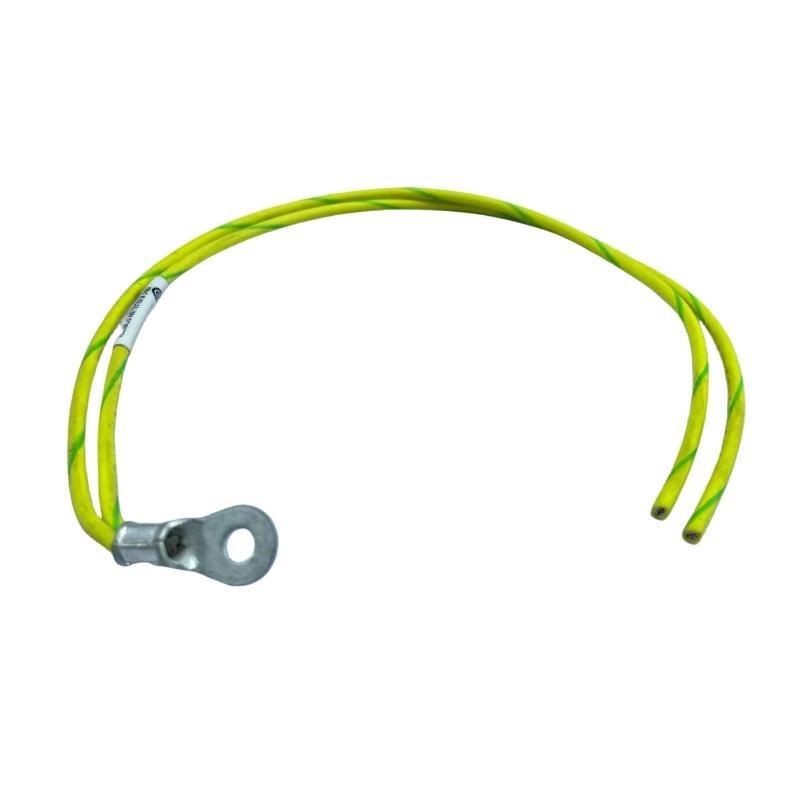

The Ovation 1X00294G02 Ground Cable Assembly is a high-quality grounding solution designed for Emerson Ovation Distributed Control System (DCS) installations. This assembly provides reliable electrical grounding between control modules, racks, and field devices, ensuring system stability, electrical safety, and protection against transient voltages or electrical interference. Constructed for industrial-grade durability, the ground cable assembly supports critical applications in power generation, water treatment, petrochemical plants, and complex automation systems. Its robust design allows it to maintain consistent conductivity and safety under harsh environmental conditions.
Product Specifications
| Parameter | Description |
|---|---|

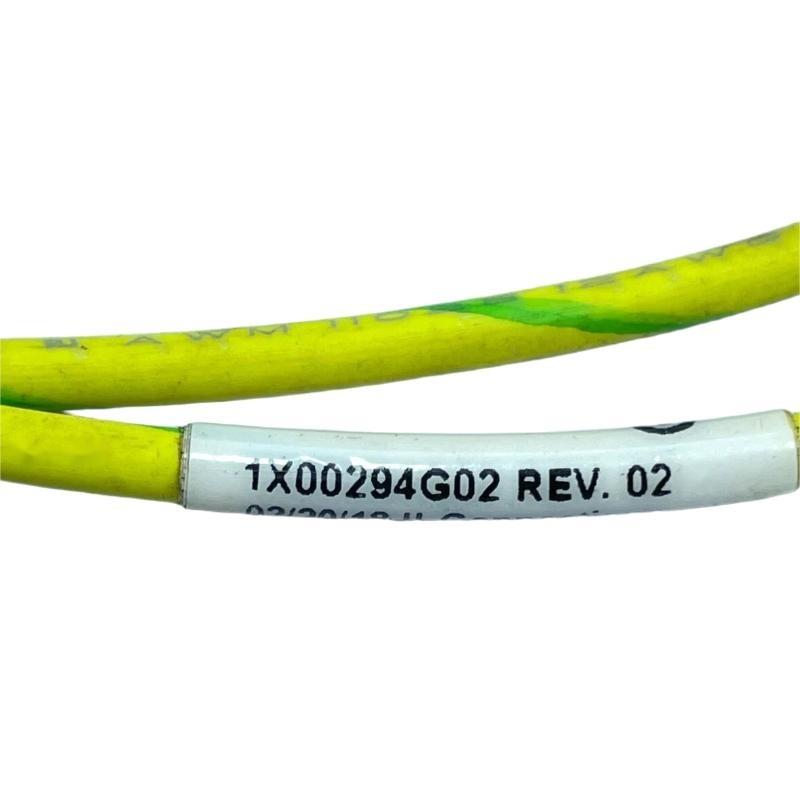

| Model Number | 1X00294G02 |
| Product Type | Ground Cable Assembly |
| Material | High-conductivity copper conductors with protective insulation |
| Cable Type | Flexible multi-strand wire with industrial-grade jacket |
| Rated Voltage | Up to 600 VAC |
| Rated Current | Up to 50 A |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Environmental Rating | IP20 for standard industrial use |
| Mounting | Bolt or lug connections at both ends |
| Certifications | UL, CSA, CE compliant |
| Cable Length | Optional (customizable per installation) |
| Shipping Weight | 3 kg |
Applications
-
Power Generation: Provides secure grounding for turbines, generators, and auxiliary control equipment.
-
Water & Wastewater Treatment: Ensures safe operation of pumps, sensors, and automation equipment.
-
Petrochemical Facilities: Grounds control cabinets and field devices in high-risk areas to prevent electrical hazards.
-
Industrial Automation: Supports stable grounding for control panels, I/O racks, and digital or analog modules.
-
Renewable Energy Plants: Maintains electrical safety and system stability in solar, wind, and hybrid energy installations.
-
Transportation and Infrastructure: Protects signal and communication equipment in rail, metro, and utility systems.
Advantages
-
High Conductivity: Copper conductors provide low-resistance grounding, ensuring efficient dissipation of electrical faults.
-
Durable Construction: Industrial-grade insulation and flexible multi-strand design allow bending, routing, and vibration resistance.
-
Safety Compliance: Meets UL, CSA, and CE standards for industrial grounding and electrical protection.
-
Customizable Length: Cable lengths can be tailored to specific installation requirements.
-
Simple Installation: Lug or bolt terminations allow secure and fast connections to grounding points.
-
Environmental Resistance: Resistant to temperature extremes, moisture, and industrial contaminants.
-
System Stability: Reduces EMI/RFI interference and protects sensitive control equipment.
FAQ
-
What is the maximum voltage the 1X00294G02 Ground Cable Assembly can safely handle?
The assembly is rated up to 600 VAC, ensuring protection against standard industrial electrical faults. -
What is the maximum continuous current capacity of this ground cable assembly?
It can safely carry up to 50 A, suitable for grounding multiple control modules or I/O racks. -
What type of conductor material is used, and how does it enhance performance?
High-conductivity copper is used to minimize resistance and provide reliable grounding across the system. -
How does the insulation protect the cable in industrial environments?
The industrial-grade jacket provides mechanical protection, chemical resistance, and dielectric insulation. -
Can this ground cable be customized in length for specific installations?
Yes, cable length is optional and can be tailored to site requirements. -
What mounting or connection options are available for this assembly?
The cable comes with lug or bolt terminations for secure and reliable grounding connections. -
Is the cable suitable for high-vibration or outdoor environments?
Yes, the flexible multi-strand design and robust insulation provide durability in harsh conditions. -
Does the cable reduce electrical noise or interference in control systems?
Yes, it provides low-resistance grounding, minimizing EMI and RFI impact on sensitive equipment. -
What safety certifications does this cable assembly have?
It is UL, CSA, and CE compliant, meeting industrial electrical safety standards. -
Can the cable assembly be used with other Ovation or third-party control modules?
Yes, it is compatible with all Ovation DCS modules and can be used with other systems that require secure grounding.
