Product Introduction

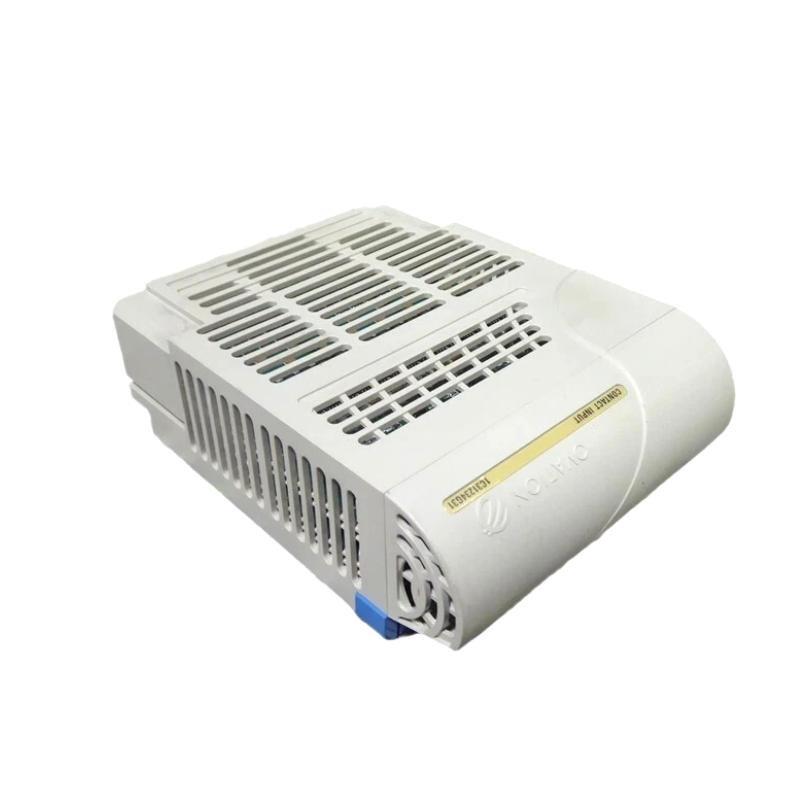

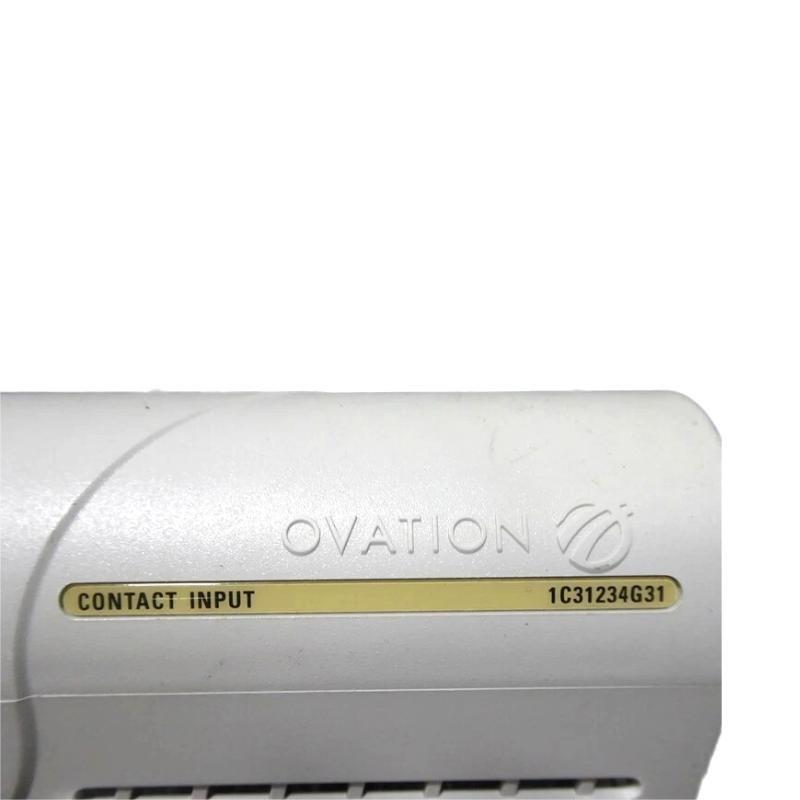

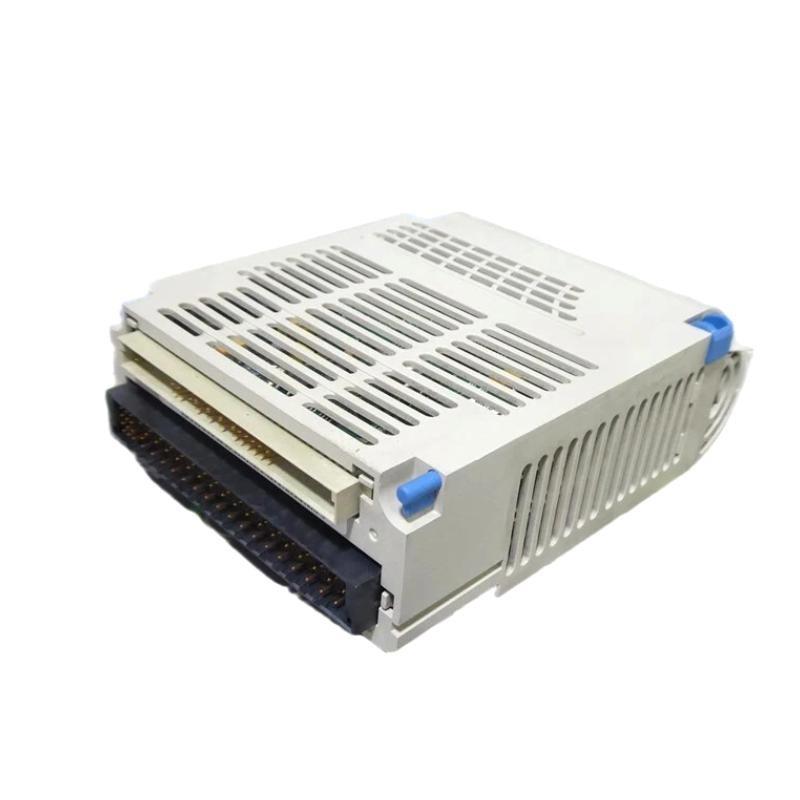

The Ovation 1C31234G31 Contact Input Module is a high-performance, reliable input module used within the Ovation Distributed Control System (DCS). It is specifically designed for managing and processing digital contact input signals from field devices. This module offers seamless integration into industrial automation systems, providing the necessary interface to control and monitor discrete inputs in real-time.
The 1C31234G31 Contact Input Module is ideal for use in critical applications across industries like power generation, oil & gas, water treatment, and industrial manufacturing. The module is designed to provide accurate signal monitoring and reliable performance, making it suitable for both standard and hazardous environments.
With its robust design and flexible configuration options, the Ovation 1C31234G31 ensures high reliability and operational efficiency. It provides continuous monitoring and control over the digital signals from various field devices, contributing to optimized system performance.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | Ovation 1C31234G31 Contact Input Module |
| Input Channels | Up to 32 contact input channels per module |
| Signal Type | Digital (Discrete) Contact Inputs |
| Input Voltage | 24V DC, compatible with standard industrial sensors and switches |
| Response Time | < 10 ms |
| Operating Temperature | -40°C to +70°C |
| Dimensions (L x W x H) | 120 × 80 × 35 mm |
| Weight | 0.45 kg |
| Mounting Type | DIN Rail Mountable |
| Communication Interface | Modbus, Ethernet, RS-485 (depending on configuration) |
| Power Supply | 24V DC ±20% |
| Compliance | CE, UL, RoHS certified |
| Protection Class | IP20 (Indoor use) |
| Redundancy Support | No, depends on system configuration |
| Installation Type | Suitable for industrial control panels and field cabinets |
Applications
The Ovation 1C31234G31 Contact Input Module is used extensively in various applications that require reliable monitoring and control of discrete inputs from industrial field devices. Its primary uses include:
-
Power Generation: Managing digital signals from relays, switches, and other control devices in power plants for efficient plant operations.
-
Oil & Gas: Monitoring equipment such as pumps, valves, and switches on offshore rigs and refineries.
-
Water Treatment: Ensuring continuous operation and safe monitoring of field devices like flow meters, pumps, and pressure switches in water and wastewater treatment plants.
-
Industrial Automation: Integrating discrete signals from machinery, sensors, and alarms in manufacturing facilities to ensure safety and production efficiency.
-
Building Management: Controlling and monitoring devices like door switches, fire alarms, and security systems in commercial buildings.
-
Chemical Processing: Providing control for hazardous processes that require reliable monitoring of on/off signals from various devices.
Advantages
-
High Reliability: The 1C31234G31 Contact Input Module ensures robust signal processing for critical industrial applications, providing accurate real-time data monitoring.
-
Wide Input Voltage Range: The module is designed to work with 24V DC input signals, offering compatibility with a wide variety of field devices.
-
Compact and Efficient: With a small form factor (120 × 80 × 35 mm), it is easy to install in space-constrained environments, optimizing control panels and industrial racks.
-
Easy Integration: The Ovation 1C31234G31 integrates seamlessly with other Ovation DCS components, offering smooth communication via protocols like Modbus and RS-485.
-
Flexible Configuration: Supports up to 32 discrete contact inputs, providing scalable solutions for systems of various sizes.
-
Durability: Designed to operate in harsh environments, the module can withstand temperatures ranging from -40°C to +70°C, making it suitable for a wide range of industrial settings.
-
Cost-Effective: Offers excellent value for money by delivering reliable performance with a reasonable price tag, especially for large-scale automation projects.
-
Compliance: Meets global industrial standards such as CE, UL, and RoHS certifications, ensuring safe and reliable operation.
-
Minimal Power Consumption: With a low power requirement of 24V DC ±20%, it minimizes operational costs while maintaining high performance.
-
Redundancy Capability: Though redundancy is not built-in, it can be configured within the overall DCS for system failover and backup.
Frequently Asked Questions (FAQs)
1. What is the purpose of the Ovation 1C31234G31 Contact Input Module?
The module is used to monitor digital contact inputs from field devices like switches, relays, and alarms, providing control and signal processing within the Ovation DCS.
2. How many input channels does the 1C31234G31 support?
The module can support up to 32 contact input channels, allowing for efficient data collection from various devices.
3. What is the input voltage for the Ovation 1C31234G31?
It supports a 24V DC input, making it compatible with a wide range of industrial sensors and devices.
4. What are the communication options for this module?
The module supports Modbus, Ethernet, and RS-485 communication, depending on system configuration.
5. What is the operating temperature range of the module?
The module can operate in temperatures ranging from -40°C to +70°C, suitable for harsh industrial environments.
6. How is the Ovation 1C31234G31 mounted?
It is designed for DIN rail mounting, making installation quick and easy in industrial control panels.
7. What is the weight of the module?
The weight of the Ovation 1C31234G31 is 0.45 kg.
8. Does the Ovation 1C31234G31 module support redundancy?
Redundancy is not built into the module, but it can be configured within a larger Ovation system setup.
9. What industries typically use the 1C31234G31 module?
It is used across industries like power generation, oil & gas, water treatment, and industrial automation for reliable control and monitoring of field devices.
10. What is the main advantage of using this module in an Ovation DCS?
It provides a reliable, scalable, and flexible solution for handling discrete contact inputs, integrating seamlessly with other Ovation DCS components.
Related Models from the Same Series
| Model Number | Description | Input Channels | Voltage Rating | Weight |
|---|---|---|---|---|
| Ovation 1C31234G32 | Contact Input Module with Enhanced Features | 32 channels | 24V DC | 1.3 kg |
| Ovation 1C31234G33 | Advanced Contact Input Module | 16 channels | 24V DC | 1.4 kg |
| Ovation 1C31234G34 | Remote Contact Input Module | 16 channels | 24V DC | 1.2 kg |
| Ovation 1C31234G35 | High-Speed Digital Input Module | 32 channels | 24V DC | 1.5 kg |
| Ovation 1C31234G36 | Explosion-Proof Contact Input Module | 16 channels | 24V DC | 1.6 kg |
| Ovation 1C31234G37 | Digital Input Module with Modbus Interface | 32 channels | 24V DC | 1.7 kg |
