Product Introduction

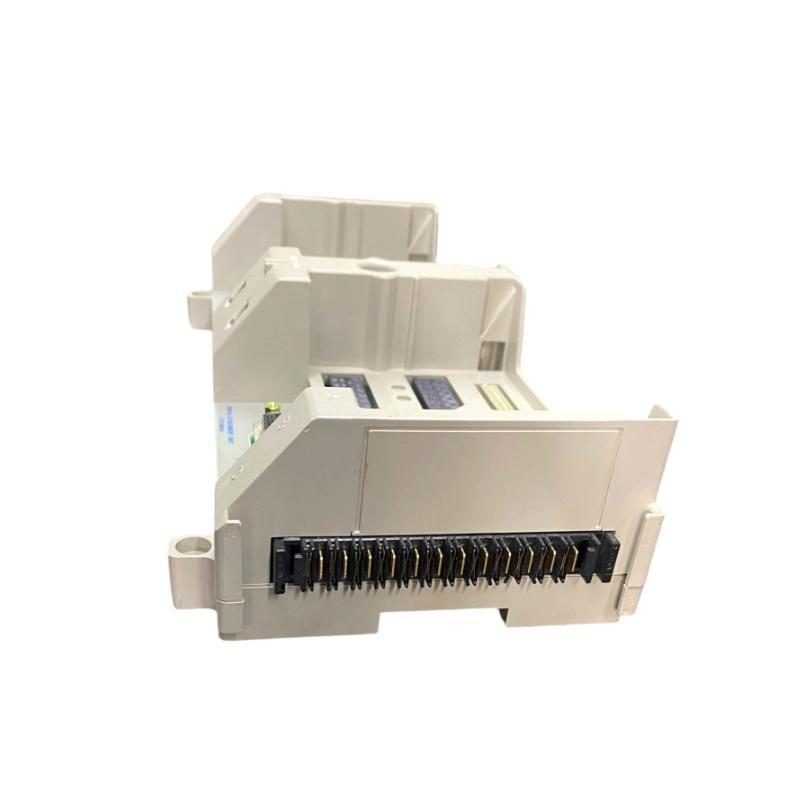

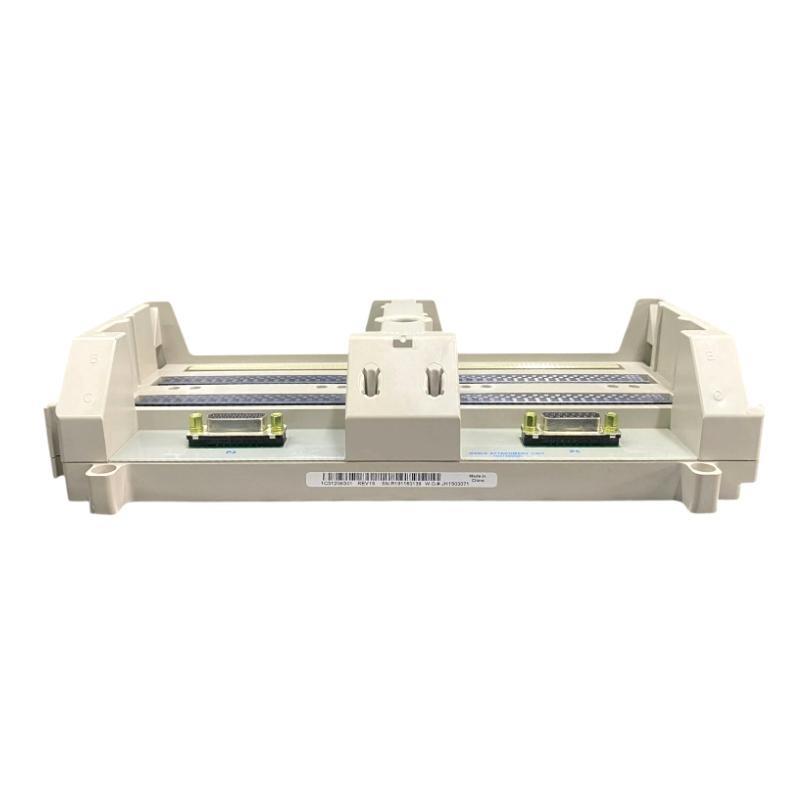

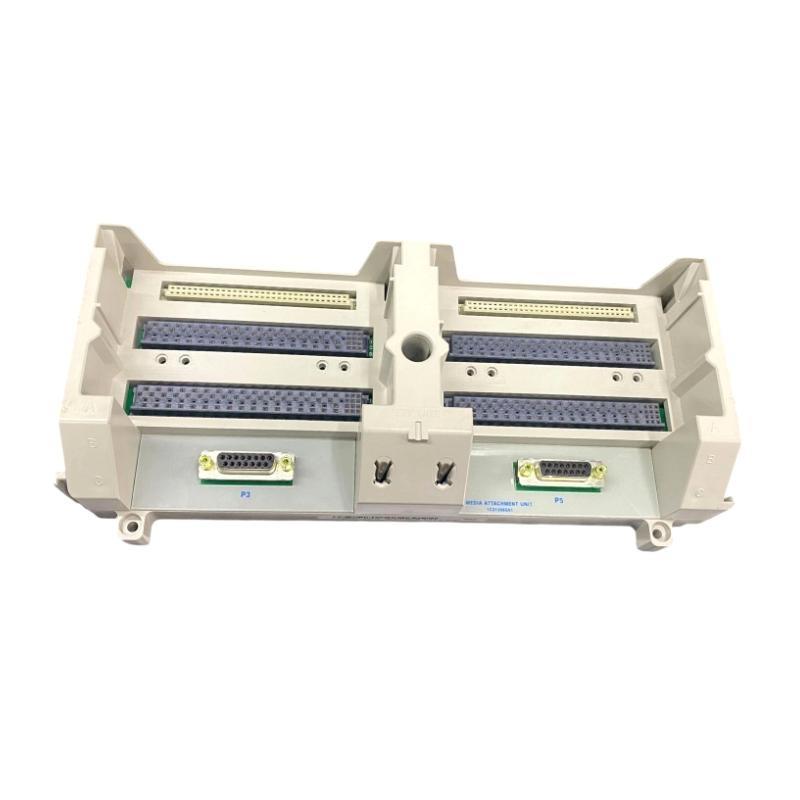

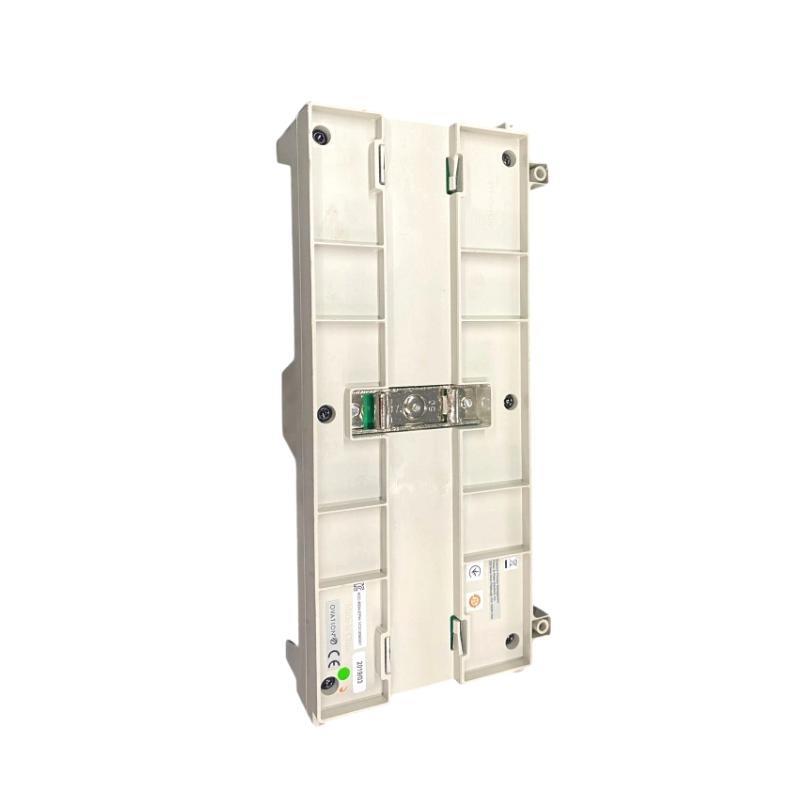

The Ovation 1C31206G01 is a robust and compact 4-slot rack module base assembly developed by Emerson for the Ovation Distributed Control System (DCS). As a critical part of Ovation’s modular I/O system architecture, this base assembly provides structural and electrical support for installing various I/O modules such as analog input/output, digital input/output, servo drivers, and control modules.
Designed for flexibility and reliability, the 1C31206G01 rack houses up to four plug-in modules, which connect via a secure backplane interface. It features integrated signal distribution pathways, power delivery, and backplane communication lines. With its industrial-grade construction and simple plug-and-play module accommodation, this rack base is ideal for both new installations and system expansions in harsh industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31206G01 |
| Product Type | 4-Slot Rack Module Base Assembly |
| System Platform | Emerson Ovation DCS |
| Slot Capacity | 4 module slots (supports I/O and specialty modules) |
| Backplane Type | Passive, internal signal and power distribution |
| Supported Modules | Analog I/O, Digital I/O, Valve Positioners, Servo Drivers, etc. |
| Connector Type | Edge card connectors, keyed for module type |
| Power Supply Interface | Integrated 24VDC power bus from system power module |
| Grounding | Chassis ground connection point provided |
| Mounting Style | Panel or rack mounting via standard bracket holes |
| Material | Industrial-grade aluminum or coated steel chassis |
| Protection Features | Reverse module protection, EMI shielding |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | 195 × 175 × 130 mm |
| Weight | 0.6 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
The 1C31206G01 is used wherever compact I/O rack systems are needed within the Ovation DCS platform. It supports both field control and central control cabinet applications, and is commonly found in:
-
Power Plants (Thermal, Nuclear, Hydro)
Used for organizing I/O modules related to turbine controls, boiler systems, and generator monitoring. -
Chemical and Petrochemical Industries
Ideal for control panels managing process signals, field devices, and safety interlocks. -
Oil & Gas Facilities
Supports wellhead control, compressor systems, and pressure/temperature monitoring modules. -
Water & Wastewater Treatment Plants
Enables modular installation of valve control, sensor acquisition, and actuator output modules. -
Steel, Mining, and Pulp & Paper Plants
Houses discrete and analog I/O modules for machinery control, chemical dosing, and automation sequences. -
System Expansion Projects
Deployed for adding new I/O capacity without the need for a full cabinet overhaul.
Product Advantages
-
Compact 4-Slot Design
Provides space-efficient I/O expansion, ideal for small panels or distributed field enclosures. -
Wide Compatibility
Supports a broad range of Ovation I/O modules, offering flexibility for mixed-signal applications. -
Easy Installation and Wiring
Modular layout and labeled slots simplify assembly and future maintenance operations. -
Rugged Industrial Build
Withstands vibration, EMI, and temperature extremes common in power and process industries. -
Integrated Signal Distribution
Includes backplane for seamless signal, power, and communication routing between controller and I/O modules. -
Standardized Form Factor
Compatible with other Ovation components, reducing engineering and installation complexity.
Frequently Asked Questions (FAQ)
1. What types of modules can be installed in the 1C31206G01 rack?
The rack supports a wide range of Ovation I/O modules, including analog input/output, digital input/output, servo drivers, valve positioners, and specialty modules.
2. Does the rack include a power supply module?
No. Power is delivered from a centralized Ovation power module via the backplane interface. The rack itself does not generate power.
3. Is it possible to mix different types of modules in one rack?
Yes. Any combination of supported I/O and function modules can be installed in the four available slots, as long as power and system capacity allow.
4. How is the rack mounted in a control cabinet?
The chassis features standard mounting holes for either back-panel or DIN rail mounting, depending on system requirements.
5. Are the slots keyed to prevent incorrect module installation?
Yes. Each slot uses edge card connectors that are keyed to match specific module types, preventing mismatches.
6. Can modules be hot-swapped in the 1C31206G01 rack?
No. Modules should only be inserted or removed when the system is powered down to avoid damage or signal errors.
7. Is this rack compatible with both legacy and current Ovation modules?
Yes. It maintains backward compatibility with earlier generation modules and supports modern Ovation releases.
8. How do I ground the rack during installation?
A dedicated grounding point is provided on the chassis, which should be connected to the control cabinet’s common ground.
9. Does the rack provide any shielding against EMI or electrical noise?
Yes. The metal enclosure and internal design help shield sensitive signals from electromagnetic interference.
10. Can this rack be used in both centralized control panels and remote I/O stations?
Absolutely. Its compact form factor makes it suitable for central cabinets as well as distributed control points closer to the field devices.
Related Models from the Same Series
| Model | Description | Slot Count | Application | Weight |
|---|---|---|---|---|
| 1C31207G01 | 8-Slot Rack Module Base Assembly | 8 | Large I/O cabinet installations | 2.8 kg |
| 1C31208G01 | 16-Slot Rack Module Base Assembly | 16 | Centralized control systems | 4.2 kg |
| 1C31233G01 | 4-Slot Isolated I/O Base Assembly | 4 | Sensitive signal areas | 1.7 kg |
| 1C31116G01 | 2-Slot Mini Rack Module Base | 2 | Small remote panels | 1.1 kg |
| 1C31203G01 | CPU Rack Base with Dual Redundancy Support | 4 | Controller installation | 2.2 kg |
| 1C31230G01 | 6-Slot Signal Conditioning Rack Base | 6 | AI/AO filtering and signal prep | 2.0 kg |
Popular Emerson Ovation Models (Different Categories)
| Model | Category | Description | Primary Function |
|---|---|---|---|
| 5X00106G01 | Controller CPU | Central processor for Ovation DCS | Core logic and control |
| 1C31194G01 | Analog Output Module | 2-channel 4–20 mA output | Continuous actuator control |
| 1C31197G04 | Valve Positioner Module | Analog output + feedback for valve control | Precise valve actuation |
| 1C31125G01 | Digital Input Module | 16-channel 24V DC digital input | Status monitoring |
| 1C31224G01 | HART Analog Output Module | 2-channel with HART protocol support | Smart valve and field device control |
| 1C31238G01 | Ethernet Interface Module | Communication interface for Ovation networks | DCS connectivity |
