Product Overview

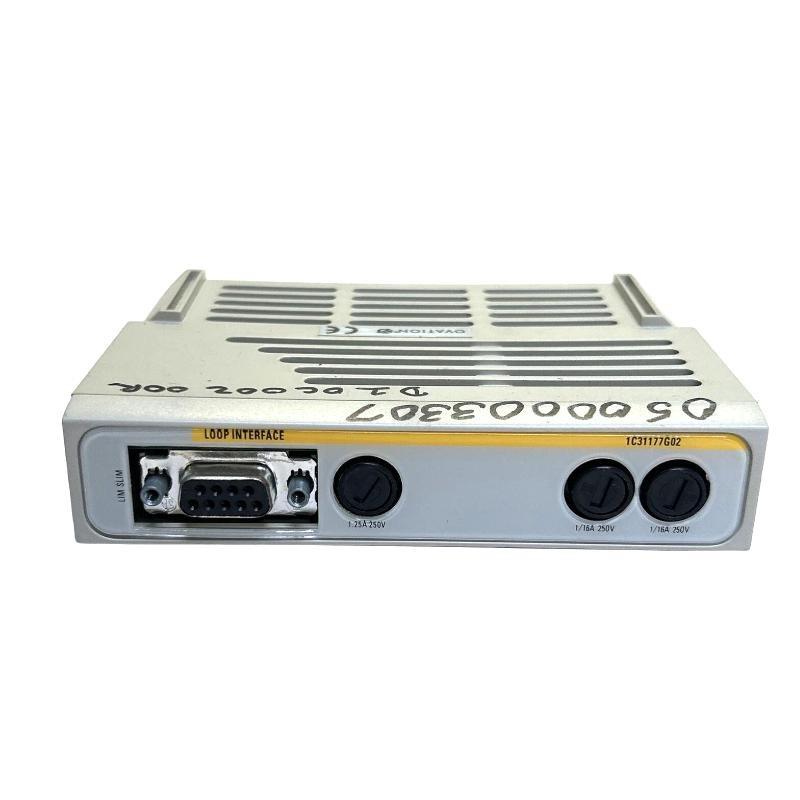

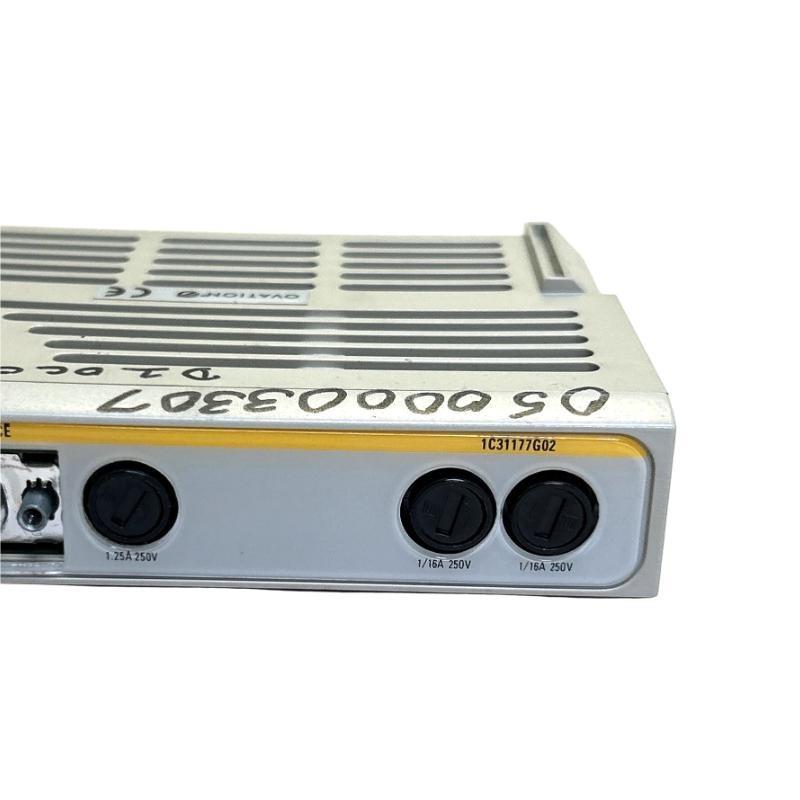

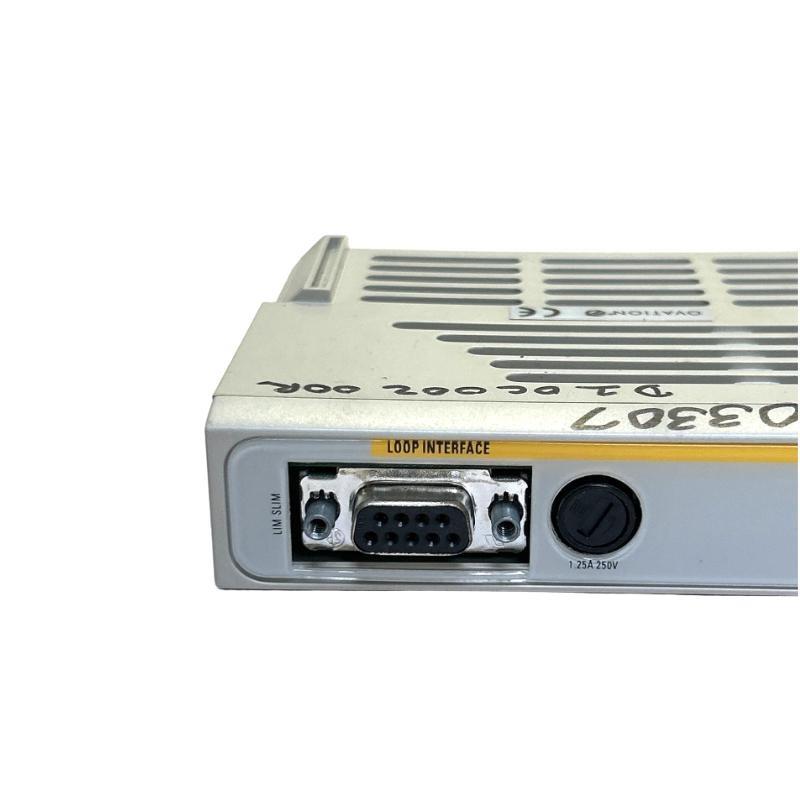

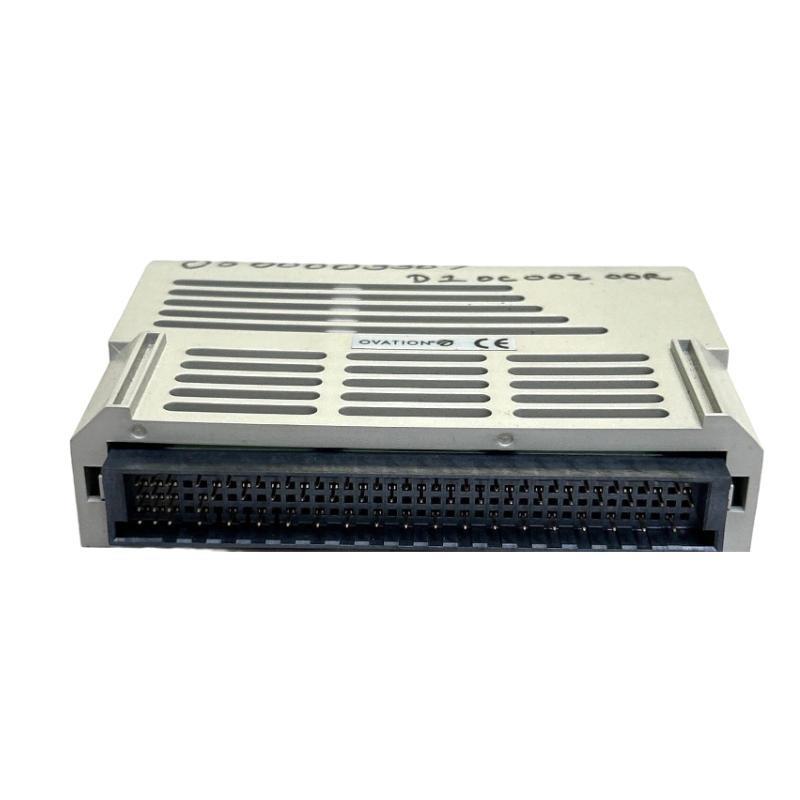

The Ovation 1C31177G02 Loop Interface Module serves as a bridge between field instruments, such as sensors and actuators, and the Ovation control system. By providing reliable signal input and output, the module allows operators to monitor process variables and send control signals effectively. Whether for controlling temperature, pressure, flow, or other critical process parameters, this module enables real-time data exchange and precise adjustments, ensuring optimal performance and reliability.
Built to withstand challenging environments, the Ovation series is ideal for industries such as power generation, chemical processing, water treatment, and manufacturing, where uninterrupted process control is crucial.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31177G02 |
| Input/Output Type | Analog, Digital, Discrete |
| Number of Channels | 16 Channels |
| Signal Type | 4-20mA, 0-10V, Digital |
| Power Supply | 24V DC |
| Dimensions (H x W x D) | 140 x 150 x 35 mm |
| Weight | 0.5 kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Mounting Type | DIN Rail |
| Compliance | CE, UL Certified |
| Max. Current per Channel | 20mA |
| Communication Protocol | Modbus, Ethernet/IP |
Applications
The Ovation 1C31177G02 Loop Interface Module is designed for use in various industries where precision and reliable control are essential. Some of the key applications include:
-
Power Generation: Integrates with turbines, generators, and control panels to regulate power generation processes.
-
Chemical Processing: Monitors chemical reactions, temperature, and pressure in real-time, ensuring the safety and efficiency of chemical plants.
-
Water Treatment: Controls pumps, filtration, and chemical dosing systems to ensure the quality of water being processed.
-
Oil & Gas: Ensures reliable operation of drilling, refining, and transportation systems by monitoring pressure, temperature, and flow rates.
-
Manufacturing: Facilitates the automation of production lines, regulating variables such as temperature, speed, and material flow.
-
HVAC Systems: Used in large-scale HVAC systems to control temperature, humidity, and air quality in commercial buildings.
Advantages
-
High Versatility: Supports a wide range of signals, including analog (4-20mA, 0-10V), digital, and discrete inputs/outputs, making it suitable for various industrial applications.
-
Compact Design: Its compact size and DIN rail mounting feature make it easy to integrate into existing control panels, even in limited space.
-
Long-Term Reliability: The robust design ensures high reliability in demanding environments, from -20°C to 60°C, ensuring continuous operation.
-
Easy Integration: Seamlessly integrates with the Ovation control system, simplifying setup and data exchange between devices.
-
Scalability: The module is easily scalable, allowing for future system expansion as control needs grow.
-
Energy Efficient: With a low power requirement of 24V DC, the module is designed to minimize energy consumption while maintaining performance.
-
Compliance: Certified by CE and UL, ensuring that the module meets international standards for safety and quality.
-
Enhanced Communication: Supports Modbus and Ethernet/IP communication protocols for fast, reliable data transfer.
FAQ
-
What is the main purpose of the Ovation 1C31177G02 Loop Interface Module?
-
The module connects field devices, such as sensors and actuators, to the Ovation control system, allowing for real-time data monitoring and precise control of industrial processes.
-
-
Which types of signals does this module support?
-
The module supports analog signals (4-20mA, 0-10V), digital signals, and discrete inputs/outputs.
-
-
What is the maximum number of channels provided by the Ovation 1C31177G02?
-
The module provides 16 channels for input and output.
-
-
Can the Ovation 1C31177G02 be used in outdoor applications?
-
While the module is designed for industrial environments, it should be installed in a protective enclosure to shield it from direct exposure to harsh outdoor conditions.
-
-
What is the power requirement for this module?
-
The Ovation 1C31177G02 operates on a 24V DC power supply.
-
-
What is the operating temperature range for the module?
-
The module operates in a temperature range of -20°C to 60°C, ensuring reliability in a variety of environments.
-
-
How is the Ovation 1C31177G02 mounted?
-
The module is designed for DIN rail mounting, making installation simple and secure.
-
-
Which communication protocols are supported by the module?
-
The module supports Modbus and Ethernet/IP protocols, enabling easy integration into modern control systems.
-
-
Is the Ovation 1C31177G02 certified?
-
Yes, it is CE and UL certified, ensuring it meets international safety and performance standards.
-
-
What industries benefit from using the Ovation 1C31177G02 Loop Interface Module?
-
The module is ideal for industries like power generation, chemical processing, oil & gas, water treatment, manufacturing, and HVAC systems.
-
Related Models from the Ovation Series
| Model Number | Description | Key Feature |
|---|---|---|
| Ovation 1C31177G01 | Loop Interface Module (16 Channel) | Supports 4-20mA, 0-10V signals |
| Ovation 1C31177G03 | Analog Output Module | Provides multiple output signals |
| Ovation 1C31177G04 | Analog Input Module | High-precision analog inputs |
| Ovation 1C31177G05 | Discrete Input Module | Supports various digital signals |
| Ovation 1C31177G06 | Power Supply Module | Provides power to Ovation systems |
| Ovation 1C31177G07 | Communication Interface Module | Facilitates data communication |
Popular Models from the Ovation Brand
| Model Number | Description | Key Feature |
|---|---|---|
| Ovation 1C31175G01 | Power Supply Module | Compact and efficient power supply |
| Ovation 1C31222G01 | Input/Output Expansion Module | Supports additional devices |
| Ovation 1C31173G01 | Temperature Control Module | Real-time temperature monitoring |
| Ovation 1C31179G01 | Valve Control Module | Optimized for valve regulation |
| Ovation 1C31188G01 | Remote Monitoring Module | Enables remote system monitoring |
| Ovation 1C31182G01 | Fieldbus Interface Module | Connects fieldbus devices to control systems |
