Product Introduction

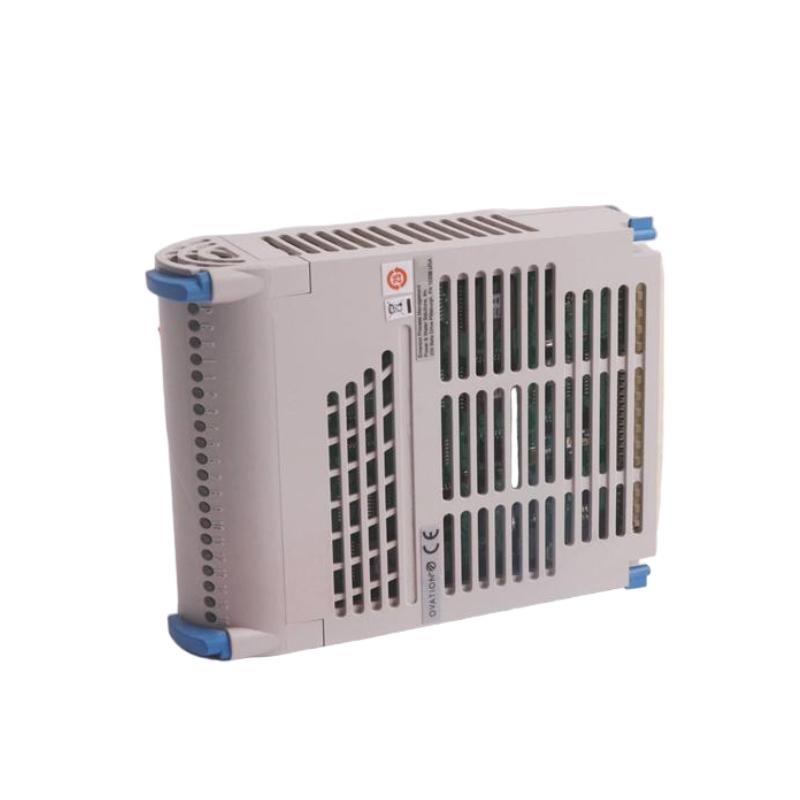

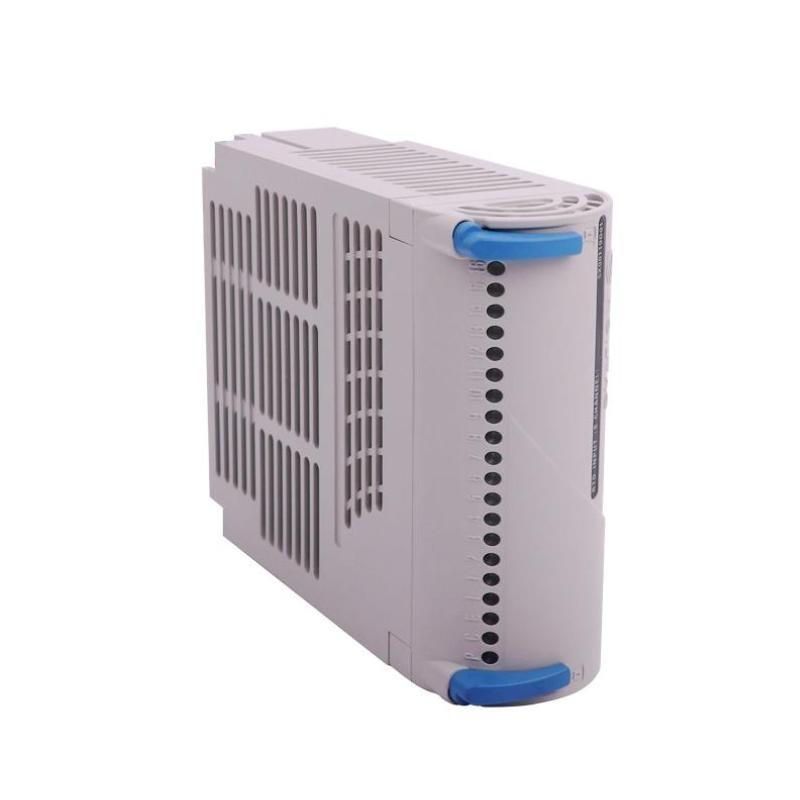

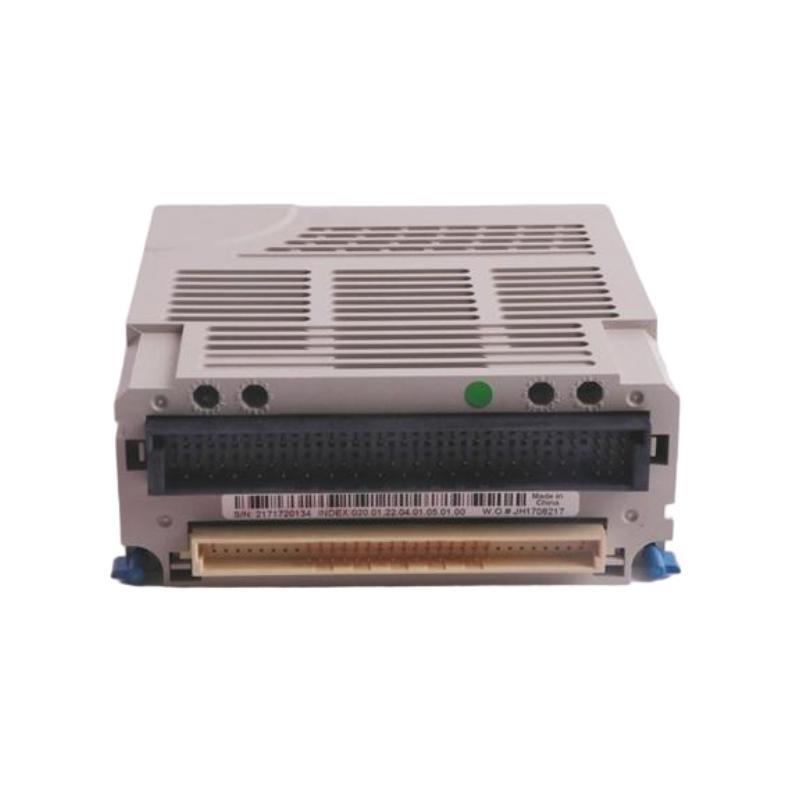

The OVATION 1C31169G01 is a high-performance communication interface module developed by Emerson Process Management, specifically designed for integration within the Ovation Distributed Control System (DCS) architecture. This module functions as a critical data exchange link between control systems and external devices, ensuring secure, real-time communication in mission-critical industrial environments. It is widely used in power plants, water treatment facilities, and other infrastructure requiring robust automation and control.
Built with Emerson’s stringent reliability standards, the 1C31169G01 offers exceptional communication stability and supports seamless integration with Ovation I/O hardware and legacy systems. The module’s durability and precision make it suitable for applications with long operation cycles and demanding environmental conditions.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | OVATION 1C31169G01 |
| Function | Communication Interface Module |
| System Compatibility | Emerson Ovation DCS |
| Communication Protocols | Proprietary Ovation Protocols / Serial I/O |
| Slot Type | Standard DCS Rack Module Slot |
| Operating Voltage | 5 VDC (supplied from rack) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 275 mm (H) × 25 mm (W) × 235 mm (D) |
| Weight | Approx. 0.65 kg (1.43 lbs) |
| Installation | Rack-mounted with front panel access |
| Status Indicators | LED indicators for module and channel status |
| Agency Approvals | CE, UL, CSA (based on system certification) |
Product Advantages
-
High Communication Reliability: Designed for stable communication between Ovation systems and external devices over extended periods.
-
Robust Industrial Design: Built with durable materials for demanding operational environments such as power generation and utilities.
-
Modular Architecture: Allows for quick replacement and upgrading with minimal downtime.
-
Compatibility: Fully integrates with legacy Ovation modules and existing DCS configurations.
-
Diagnostic LEDs: Onboard indicators assist with real-time diagnostics and module health monitoring.
-
Long Service Life: Proven field performance with low failure rates over extended lifecycle periods.
Product Applications
-
Power Generation Facilities: For data acquisition, process control, and communication in thermal, nuclear, and renewable plants.
-
Water and Wastewater Treatment Plants: Used for SCADA communication and regulatory control systems.
-
Petrochemical and Refining Plants: Interfaces with instrumentation for pressure, temperature, and flow control.
-
Industrial Automation Systems: As a communication node within complex distributed control networks.
-
Utility Grid Systems: Facilitates interaction between power plant control systems and grid supervisory systems.
10 Frequently Asked Questions (FAQs)
Q1: What is the primary function of the 1C31169G01 module?
A1: It serves as a communication interface module, enabling real-time data exchange between Ovation DCS systems and external devices.
Q2: Is this module hot-swappable?
A2: No, for safety and system integrity, it should only be replaced during scheduled maintenance with system power down.
Q3: Can it be used with non-Ovation systems?
A3: It is specifically designed for Ovation systems and may not be compatible with other DCS platforms.
Q4: What are the visual indicators on the module for?
A4: The LEDs indicate power status, communication activity, and fault diagnostics.
Q5: Does the 1C31169G01 require special software?
A5: No separate software is required; configuration is done via Ovation system tools.
Q6: How is it installed in the system rack?
A6: The module slides into a designated slot in the Ovation DCS rack and connects via standard backplane.
Q7: What is its power consumption?
A7: It typically operates at 5 VDC with very low power draw, sourced directly from the rack.
Q8: Can the module withstand high-humidity environments?
A8: Yes, it operates reliably in environments with 5–95% non-condensing humidity.
Q9: How often does this module require maintenance?
A9: Maintenance is minimal; inspection is typically recommended during annual system checks.
Q10: What happens if the module fails during operation?
A10: The system will trigger an alarm; redundancy strategies are often implemented to ensure continued operation.
Related or Same Series Models (6 Units)
| Model | Function Description |
|---|---|
| 1C31166G01 | Ovation Controller Module |
| 1C31166G02 | Enhanced Processor Module |
| 1C31165G02 | Analog Input Module |
| 1C31157G01 | Digital Output Module |
| 1C31227G01 | Power Supply Interface Module |
| 1C31147G01 | Serial Communication Interface Module |
Popular Models from the Same Brand (6 Units)
| Model | Function | Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 1C31234G01 | Analog Output Module | 24 VDC | 260 × 25 × 230 | 0.58 |
| 1C31150G01 | Digital Input Module | 24 VDC | 265 × 25 × 235 | 0.62 |
| 1C31232G01 | Redundant Power Interface Module | 5 VDC | 270 × 25 × 230 | 0.63 |
| 1C31194G01 | Field Terminal Panel | N/A | 280 × 30 × 240 | 1.00 |
| 1C31125G02 | Network Interface Controller | 5 VDC | 275 × 25 × 235 | 0.65 |
| 1C31129G03 | Fiber Optic Interface Module | 5 VDC | 270 × 25 × 230 | 0.68 |
