Product Introduction

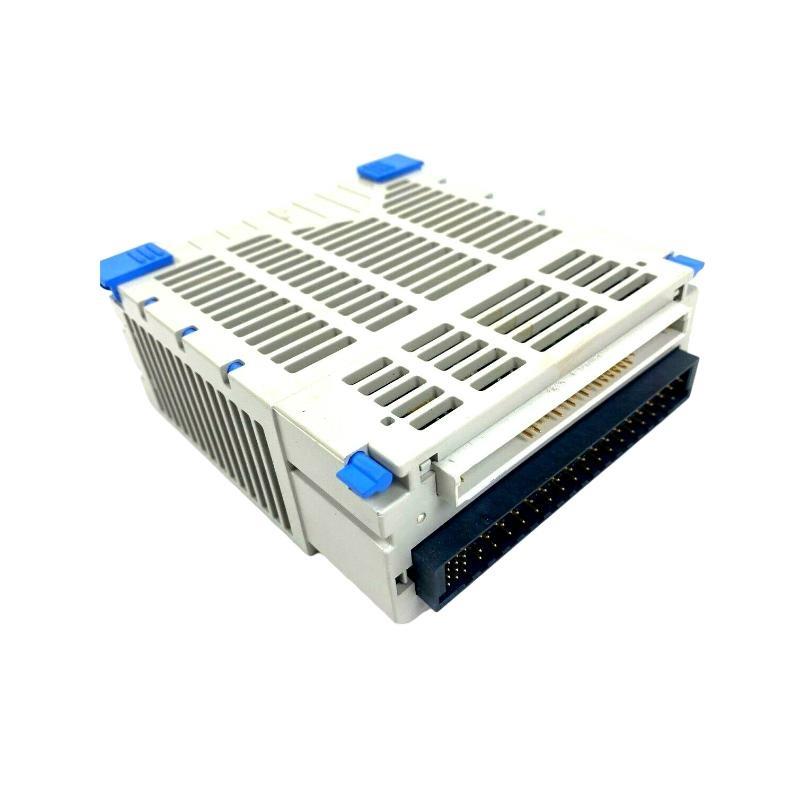

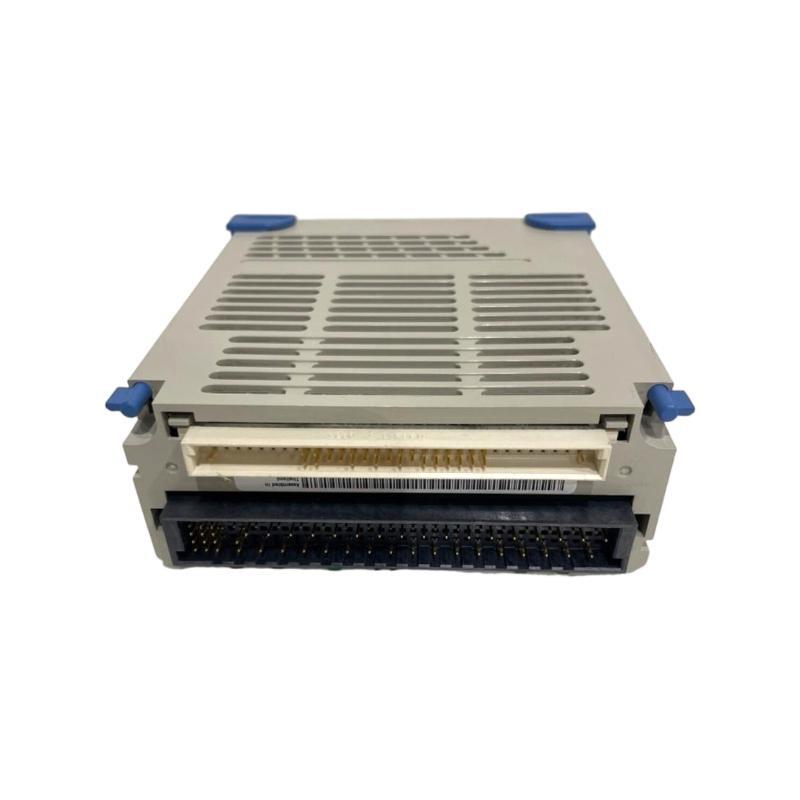

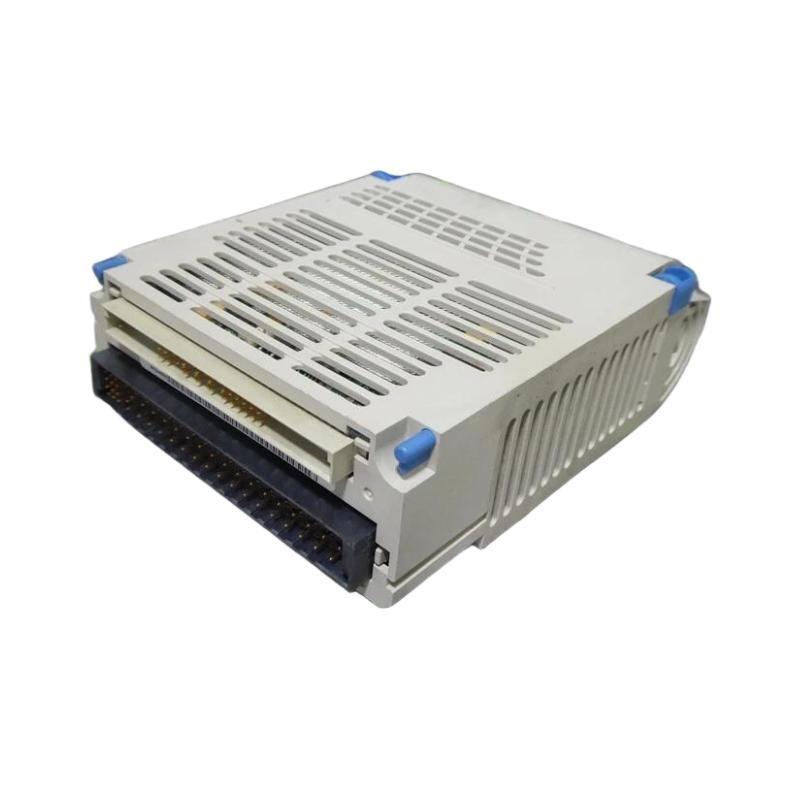

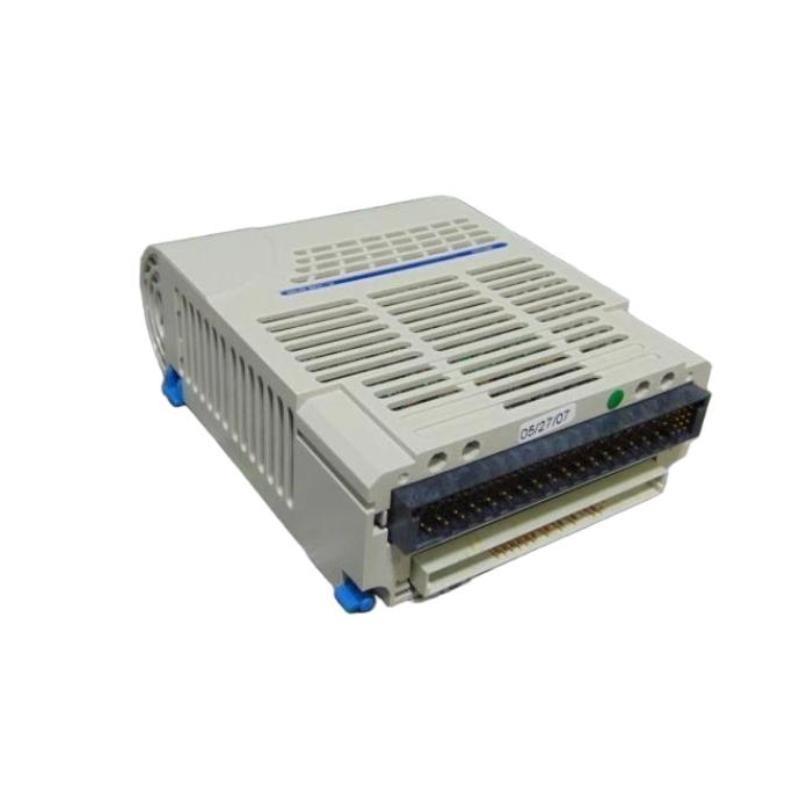

The Ovation 1C31129G31 is a sophisticated loop interface module developed by Emerson as part of its Ovation™ Series. Designed for seamless integration into industrial automation systems, this module facilitates smooth and efficient communication between analog and digital control loops. It plays a crucial role in linking control devices, such as sensors, actuators, and controllers, to industrial networks for data transmission and feedback monitoring.
With its compact size of 41 x 159 x 108 mm and a weight of 0.6 kg, the 1C31129G31 is built to fit into tight control panels or automation racks, optimizing space without compromising performance. It is engineered to handle a variety of loop interface functions, ensuring precise signal conversion and robust communication for mission-critical industrial processes.
The module supports 24V DC loop systems and provides excellent protection against electrical faults with built-in over-voltage and over-current protections. This makes it ideal for industrial environments where reliable and uninterrupted loop control is essential.
The 1C31129G31 is suitable for industries requiring high-precision loop control, such as chemical processing, utilities, and automation, where maintaining constant feedback loops is vital for system efficiency.
Product Specifications
| Feature | Details |
|---|---|
| Dimensions | 41 x 159 x 108 mm |
| Weight | 0.6 kg |
| Input Voltage | 100-240 V AC |
| Output Voltage | 24 V DC |
| Current Input | 0-20 mA |
| Current Output | 0-20 mA |
| Signal Type | Analog and Digital Loop Signals |
| Mounting Type | DIN rail mounting |
| Protection | Over-voltage, Over-current |
| Environmental Rating | IP20 |
| Operating Temperature | -10°C to +60°C |
| Ripple & Noise | < 50 mV |
| Power Factor | 0.98 |
Product Applications
The Ovation 1C31129G31 loop interface module is designed for a variety of industrial applications that require reliable communication and signal conversion in control loops. Below are some of its key applications:
-
Industrial Automation Systems
The 1C31129G31 is a critical component in industrial automation systems, enabling precise signal conversion and efficient communication between controllers, sensors, and actuators. Its seamless integration into these systems ensures optimal performance and automation of industrial processes. -
Process Control Systems
In process control industries like chemical processing, oil and gas, and power generation, the 1C31129G31 interfaces with sensors and controllers to manage continuous feedback loops, ensuring that processes are controlled and optimized effectively. -
Machine and Equipment Monitoring
Used in machine control and equipment monitoring, the module helps track operational parameters like pressure, flow, and temperature, facilitating predictive maintenance and ensuring that equipment runs at peak performance levels. -
Data Acquisition Systems
The 1C31129G31 is widely used in data acquisition systems, enabling accurate signal collection from various sensors. It is especially useful in systems where high precision and fast response times are critical. -
Renewable Energy Control Systems
In renewable energy systems, such as wind turbines or solar panels, the module is essential for managing the data and control signals related to energy production, distribution, and storage, providing seamless communication and signal accuracy. -
Environmental Monitoring
For environmental monitoring, this loop interface module interfaces with temperature, pressure, and humidity sensors. It ensures real-time monitoring and control in critical environmental conditions, helping industries maintain optimal conditions for production and safety.
Product Advantages
-
Versatile Signal Processing
The Ovation 1C31129G31 supports both analog and digital loop signals, making it a versatile solution for various industrial applications where different control systems need to be integrated. -
Compact and Space-Efficient
Designed with a compact footprint of 41 x 159 x 108 mm, the module fits easily into DIN rail mounted control panels, making it ideal for environments with limited space. -
Enhanced Protection Features
The 1C31129G31 includes built-in over-voltage and over-current protection, ensuring the module and connected devices are safeguarded from electrical faults that could compromise system stability. -
Reliability and Durability
With its rugged design and IP20 environmental protection, this module is built to endure harsh conditions and operate reliably even in demanding industrial environments. -
Efficient Power Usage
The module operates with a power factor of 0.98, ensuring high energy efficiency and reduced power loss, making it suitable for applications that require minimal energy consumption. -
Wide Operating Temperature Range
The 1C31129G31 can operate within a temperature range of -10°C to +60°C, ensuring reliable performance in both cold and hot environments.
FAQ
-
What types of signals can the Ovation 1C31129G31 handle?
The 1C31129G31 supports both analog and digital loop signals, making it suitable for a wide range of industrial control systems. -
What is the input voltage range of the Ovation 1C31129G31?
The module operates with an input voltage range of 100-240 V AC, making it compatible with global power standards. -
What is the output voltage provided by the Ovation 1C31129G31?
The 1C31129G31 provides a stable 24 V DC output, which is ideal for powering control devices, sensors, and actuators. -
What is the current input and output of the Ovation 1C31129G31?
The module supports a current range of 0-20 mA for both input and output, providing precise control and feedback. -
What protection features are built into the Ovation 1C31129G31?
The 1C31129G31 includes over-voltage and over-current protection, safeguarding both the module and connected equipment from electrical faults. -
What is the power factor of the Ovation 1C31129G31?
The power factor of the 1C31129G31 is 0.98, ensuring energy efficiency and minimal power losses during operation. -
Can the Ovation 1C31129G31 be mounted on a DIN rail?
Yes, the 1C31129G31 is designed for DIN rail mounting, allowing for easy and secure installation in control panels. -
What is the environmental rating of the Ovation 1C31129G31?
The module has an IP20 environmental rating, providing protection against dust and small foreign objects. -
What is the operating temperature range of the Ovation 1C31129G31?
The module operates in a temperature range of -10°C to +60°C, ensuring reliability in diverse environmental conditions. -
What is the ripple and noise level of the Ovation 1C31129G31?
The ripple and noise level is less than 50 mV, ensuring stable and clean signal conversion for sensitive equipment.
Recommended Related Models
Here are six related models from the Ovation, along with six popular models from Ovation:
Related Models from the Ovation Series
| Model | Description |
|---|---|
| 1C31129G32 | Advanced loop interface module with enhanced signal processing capabilities |
| 1C31129G30 | Compact loop interface module for smaller systems |
| 1C31129G28 | Industrial loop interface module with high isolation |
| 1C31129G29 | Modular loop interface solution with enhanced communication features |
| 1C31129G34 | Robust loop interface module for extreme conditions |
| 1C31129G33 | High-performance loop interface with extended data logging features |
Popular Models from Ovation
| Model | Description |
|---|---|
| 1C31128G19 | Efficient power supply for industrial automation systems |
| 1C31128G18 | Reliable loop controller with real-time monitoring capabilities |
| 1C31128G21 | Compact power supply for space-limited environments |
| 1C31128G12 | Multi-functional loop controller for process control |
| 1C31128G15 | Power supply with enhanced protection features for sensitive devices |
| 1C31128G14 | Highly durable power module for heavy-duty industrial applications |
