Product Introduction

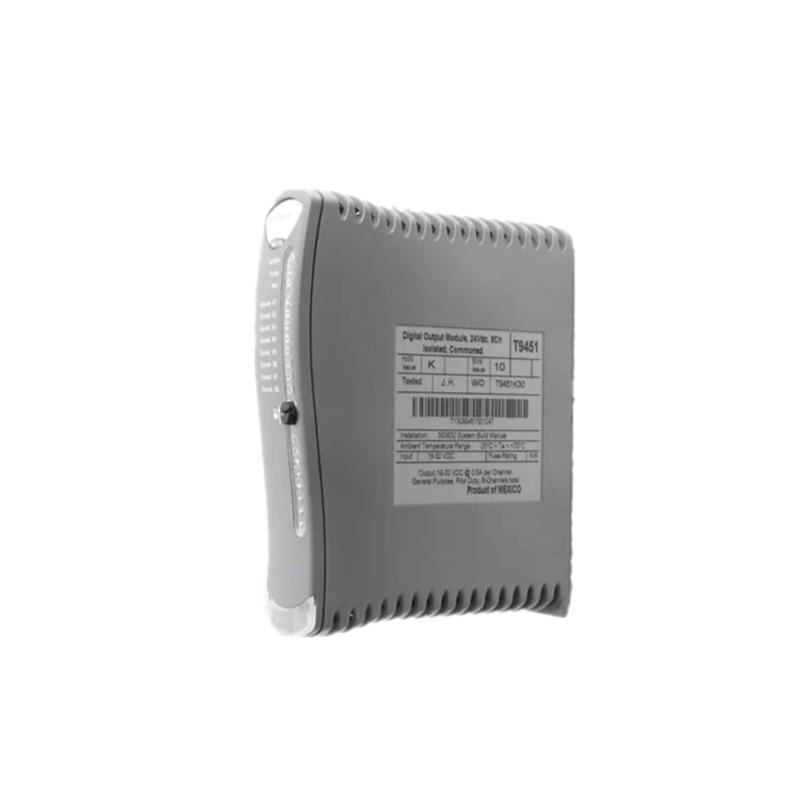

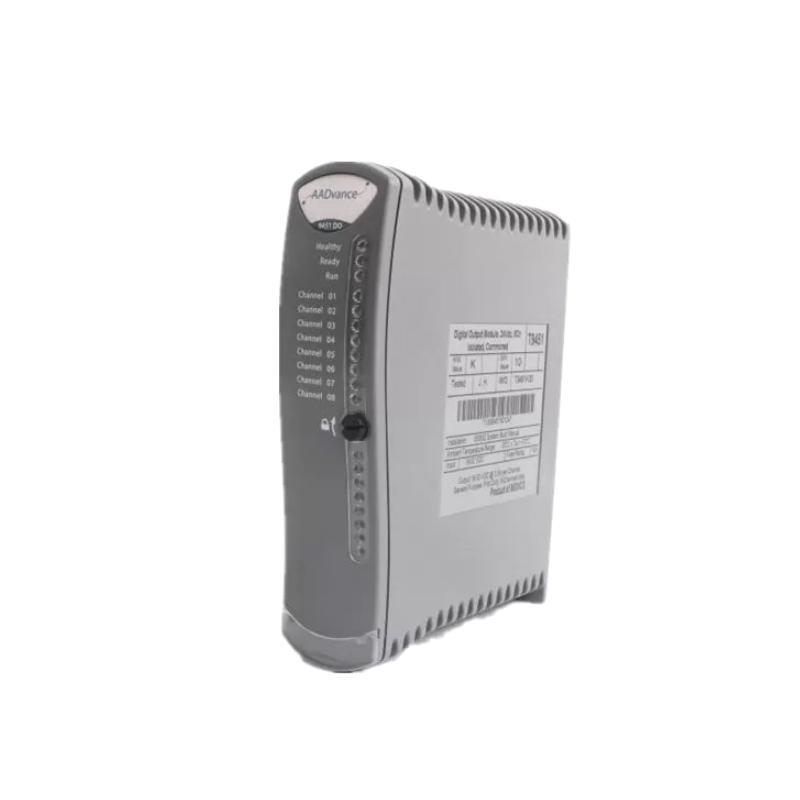

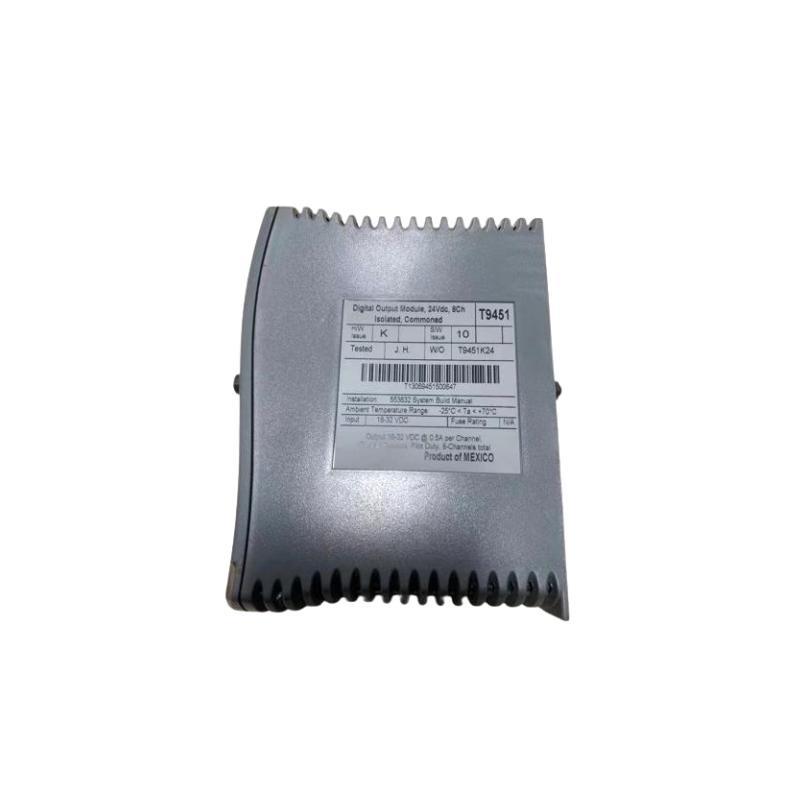

The ICS Triplex T9451 Digital Output Module is a high-reliability industrial automation component designed for critical control applications. It is part of the Trusted™ system, ensuring fault-tolerant operation in environments requiring high safety and availability. This module is commonly used in industries such as oil & gas, power generation, and chemical processing, where system failures can lead to severe consequences. With robust hardware and advanced diagnostics, the T9451 ensures continuous and reliable operation, making it an essential part of safety and process control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ICS Triplex |
| Model | T9451 |
| Product Type | Digital Output Module |
| Output Type | Isolated Digital Outputs |
| Number of Outputs | 32 |
| Voltage Rating | 24V DC |
| Output Current | 0.5A per channel |
| Response Time | <1ms |
| Power Consumption | 5W |
| Communication Interface | Trusted™ TMR System |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting Type | Rack Mount |
| Dimensions (W x H x D) | 166 x 42 x 118 mm |
| Weight | 0.34 kg |
| Certifications | SIL 3, CE, UL, CSA |
| Compatibility | Trusted™ Safety System |
Applications
- Oil & Gas Industry: Ensures reliable process control in drilling, refining, and transportation.
- Power Generation: Used in nuclear, hydro, and thermal power plants for critical control.
- Chemical Processing: Provides safety automation in hazardous environments.
- Manufacturing: Controls automated production lines with high precision.
- Water Treatment Plants: Enhances reliability in municipal and industrial water processing systems.
Key Advantages
- Fault-Tolerant Design: Ensures high availability and reliability in critical systems.
- Triple Modular Redundancy (TMR): Provides robust protection against failures.
- Fast Response Time: Enhances performance in high-speed automation applications.
- High Compatibility: Seamlessly integrates with Trusted™ safety systems.
- Easy Maintenance: Features advanced diagnostics for rapid fault detection and correction.
Latest News Headlines
- “ICS Triplex T9451: Enhancing Safety in Critical Control Applications”
- “How TMR Technology in T9451 Prevents System Failures”
- “ICS Triplex Expands Trusted™ Line with High-Reliability Digital Output Modules”
- “Case Study: T9451 Ensures Stability in a Major Oil Refinery”
- “Future of Industrial Automation: ICS Triplex T9451 in Focus”
Frequently Asked Questions (FAQ)
- What is the main function of the ICS Triplex T9451 module?
- It is a digital output module designed to control industrial automation processes with high reliability.
- What industries commonly use the T9451?
- It is widely used in oil & gas, power generation, chemical processing, and manufacturing.
- What voltage does the module operate on?
- It operates at 24V DC.
- How many output channels does the T9451 have?
- It has 32 isolated digital output channels.
- What is the maximum current per channel?
- Each channel supports up to 0.5A.
- Does the T9451 support redundancy?
- Yes, it utilizes Triple Modular Redundancy (TMR) for fault tolerance.
- What type of mounting is required for the module?
- It is designed for rack mounting within a Trusted™ safety system.
- What certifications does this module have?
- It is certified for SIL 3, CE, UL, and CSA standards.
- Can this module be used in hazardous environments?
- Yes, but additional protective measures may be required.
- What is the expected lifespan of the T9451 module?
- It is designed for long-term operation with minimal maintenance, typically over 10 years.
