Product Introduction

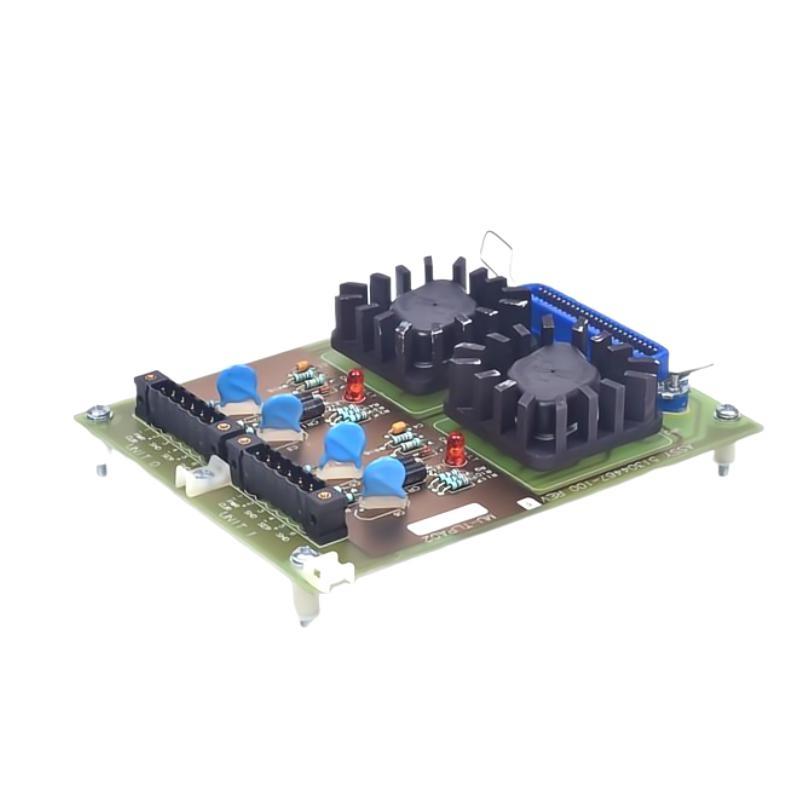

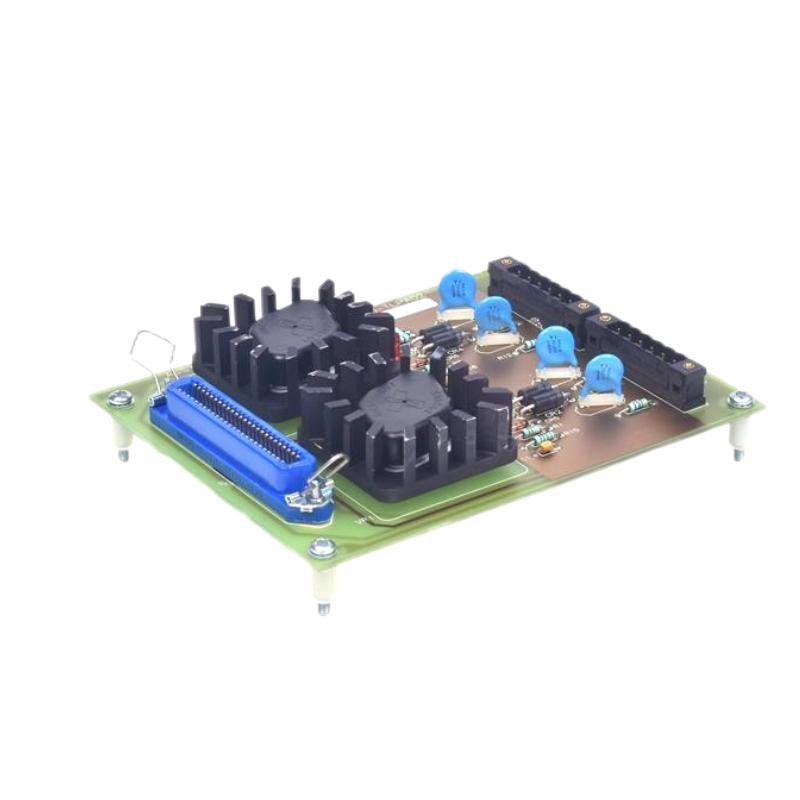

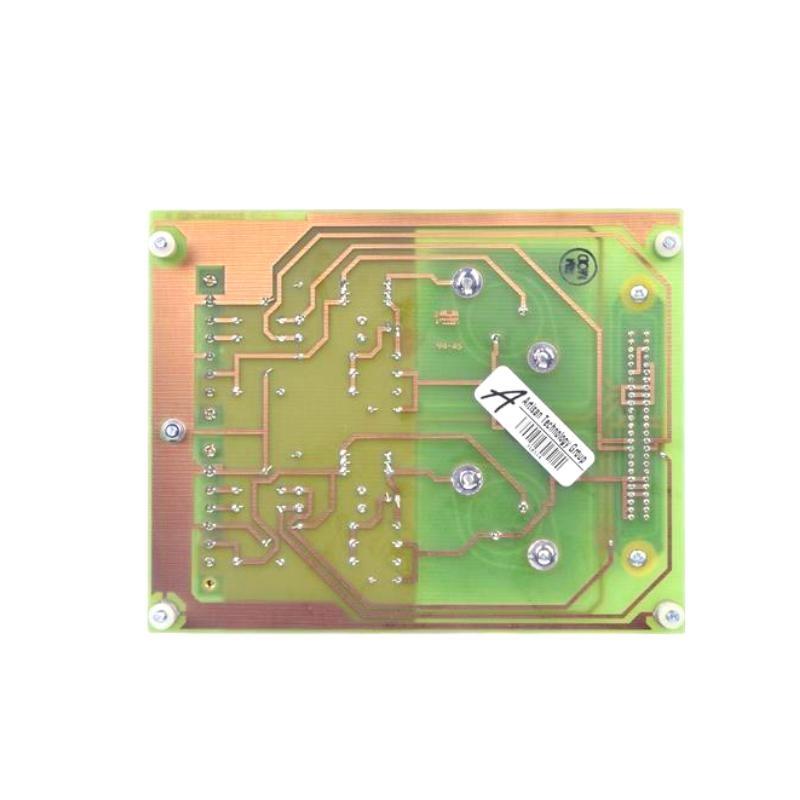

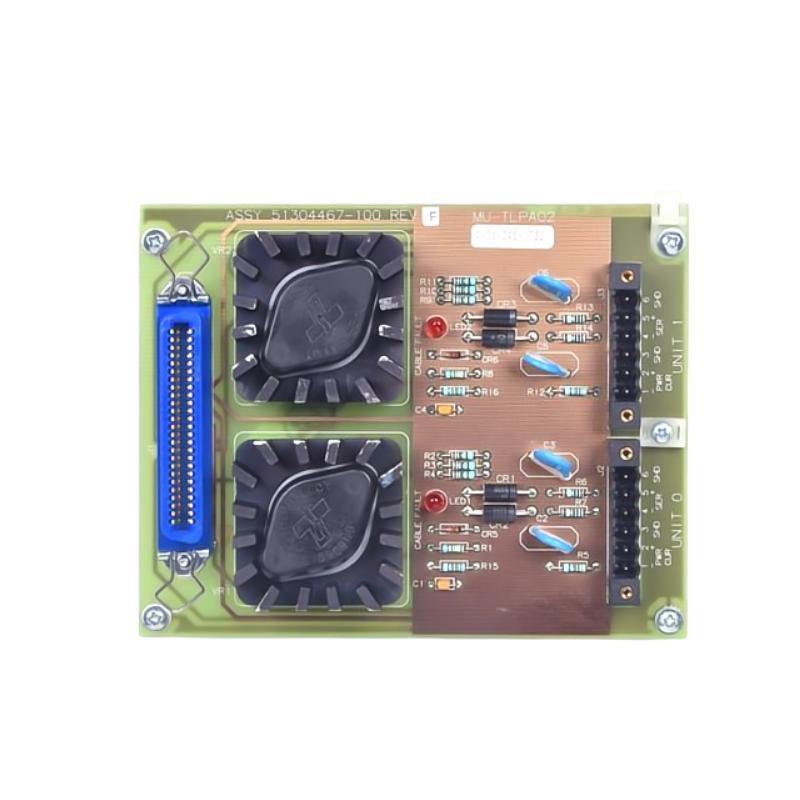

The Honeywell MU-TLPA02 51304467-100 is a robust and highly reliable power adapter designed for industrial control systems, specifically tailored to meet the rigorous requirements of Honeywell’s TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module is part of the Universal I/O (IOTA) subsystem, which plays a critical role in ensuring stable and regulated power delivery to control modules and I/O interfaces.
The MU-TLPA02 provides consistent DC power output to other modules and ensures uninterrupted operation in complex control environments. Known for its high efficiency, thermal stability, and compatibility, this unit is widely used across various critical industries including oil & gas, chemical processing, power generation, and manufacturing.
Engineered with Honeywell’s long-standing commitment to durability and performance, the MU-TLPA02 is designed to withstand harsh industrial conditions, ensuring long operational life and minimal maintenance requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MU-TLPA02 |
| Part Number | 51304467-100 |
| Product Type | Power Adapter / Power Supply Module |
| Input Voltage | 24 VDC (nominal) |
| Output Voltage | 5 VDC / 12 VDC (dependent on load configuration) |
| Power Output Capacity | Up to 75W (typical) |
| Efficiency | ≥ 85% |
| Ripple & Noise | ≤ 50 mV |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Cooling Method | Natural convection |
| Mounting Type | Rack-mounted / DIN rail (depending on system) |
| Certifications | CE, UL, CSA, RoHS compliant |
| Compatibility | Honeywell TDC3000, Experion PKS |
| Dimensions (L x W x H) | 130 x 75 x 40 mm |
| Weight | 0.358 kg |
| Case Material | Industrial-grade Aluminum Alloy |
Product Applications
The Honeywell MU-TLPA02 51304467-100 is designed for applications that require highly stable and secure power delivery in distributed control systems (DCS). Below are the typical applications:
-
Industrial Automation Systems: Supplies power to input/output modules in process control units.
-
Power Generation Plants: Used in turbine control, fuel handling systems, and grid synchronization.
-
Oil & Gas Refineries: Supports mission-critical operations for safety interlocks and instrumentation.
-
Chemical and Petrochemical Facilities: Powers the DCS equipment controlling pressure, temperature, and flow.
-
Pharmaceutical Manufacturing: Provides reliable voltage to systems that require precise control environments.
-
Pulp and Paper Industry: Integral to distributed systems controlling boilers, conveyors, and mixers.
Product Advantages
-
High Reliability: Designed to operate continuously in mission-critical environments with minimal failure rates.
-
Stable Output: Delivers regulated power, minimizing electrical noise and voltage fluctuations.
-
Compact Form Factor: Allows easy integration into tight control panels or cabinets.
-
Plug-and-Play Compatibility: Seamless integration with Honeywell’s TDC 3000 and Experion PKS systems.
-
Thermal Efficiency: Effective heat dissipation reduces the risk of thermal shutdowns or overheating.
-
Minimal Maintenance: Durable construction and consistent performance result in low lifecycle costs.
-
Compliance & Certification: Fully certified to meet global industrial standards for electrical safety and emissions.
-
Long Product Life: Built using high-grade components ensuring years of dependable service.
-
Flexible Mounting Options: Suitable for different rack and DIN rail configurations.
-
Protection Features: Includes over-voltage, over-current, and short-circuit protection mechanisms.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the MU-TLPA02 51304467-100 power adapter?
A: It supplies regulated power to Honeywell DCS modules, ensuring stable and continuous operation. -
Q: Is the MU-TLPA02 compatible with non-Honeywell systems?
A: It is specifically optimized for Honeywell TDC3000 and Experion PKS, and not guaranteed to work with third-party systems. -
Q: Can the power adapter be hot-swapped?
A: No, for safety and reliability, the system should be powered down before replacing the module. -
Q: Does this module support redundant power configurations?
A: Yes, it can be configured in redundant setups to enhance system availability. -
Q: What certifications does the MU-TLPA02 have?
A: It is CE, UL, CSA, and RoHS certified, meeting global safety and environmental standards. -
Q: What are the environmental conditions it can operate in?
A: Operating temperature from 0°C to +60°C, humidity up to 95% non-condensing. -
Q: How is this module cooled during operation?
A: It uses natural convection cooling and does not require a fan. -
Q: Can the MU-TLPA02 be repaired if it fails?
A: It is recommended to replace the module rather than repair it, to maintain system integrity. -
Q: What is the expected lifespan of the MU-TLPA02?
A: Typically, 10+ years under normal operating conditions. -
Q: Is technical support available from Honeywell for this model?
A: Yes, Honeywell offers full technical support and documentation for integration and maintenance.
Related Models (Same Series or Functionality)
| Model | Description | Output Voltage | Application |
|---|---|---|---|
| MU-TDIO02 | Digital Input/Output Module | N/A | Discrete signal processing |
| MU-PAIH03 | Analog Input Module | N/A | Analog sensor signal input |
| MU-PAOH03 | Analog Output Module | N/A | Analog actuator control |
| MU-TPIX02 | Pulse Input Module | N/A | Pulse frequency input |
| MU-TDOD02 | Digital Output Driver Module | N/A | Digital output control |
| MU-TAIH02 | Isolated Analog Input Module | N/A | Noise-sensitive environments |
Popular Models from Honeywell (Same Brand)
| Model | Description | Main Use | System Compatibility |
|---|---|---|---|
| CC-PDOB01 | Digital Output Module | Binary output for actuators | Experion/TDC3000 |
| CC-TDIL01 | Digital Input Module | Binary signal acquisition | Experion/TDC3000 |
| CC-TAIX01 | Analog Input Module | Sensor input for temperature | Experion PKS |
| CC-TAOX01 | Analog Output Module | Current/voltage control outputs | Experion PKS |
| 51199929-100 | Power Supply Module | System power distribution | TDC 3000 |
| 51410069-175 | Processor Module | System CPU for control processing | Experion PKS |
