Product Introduction

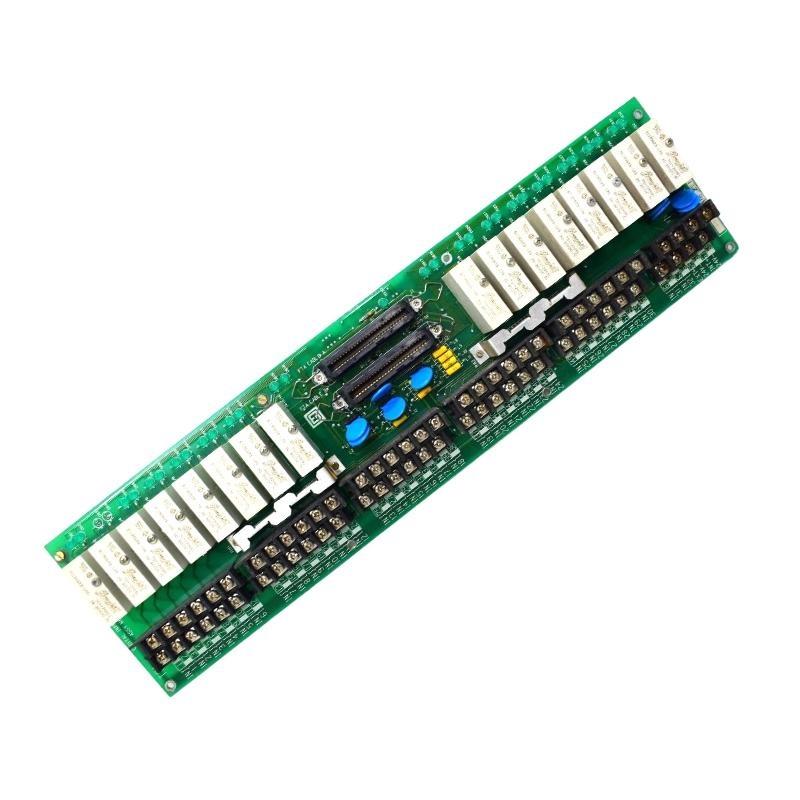

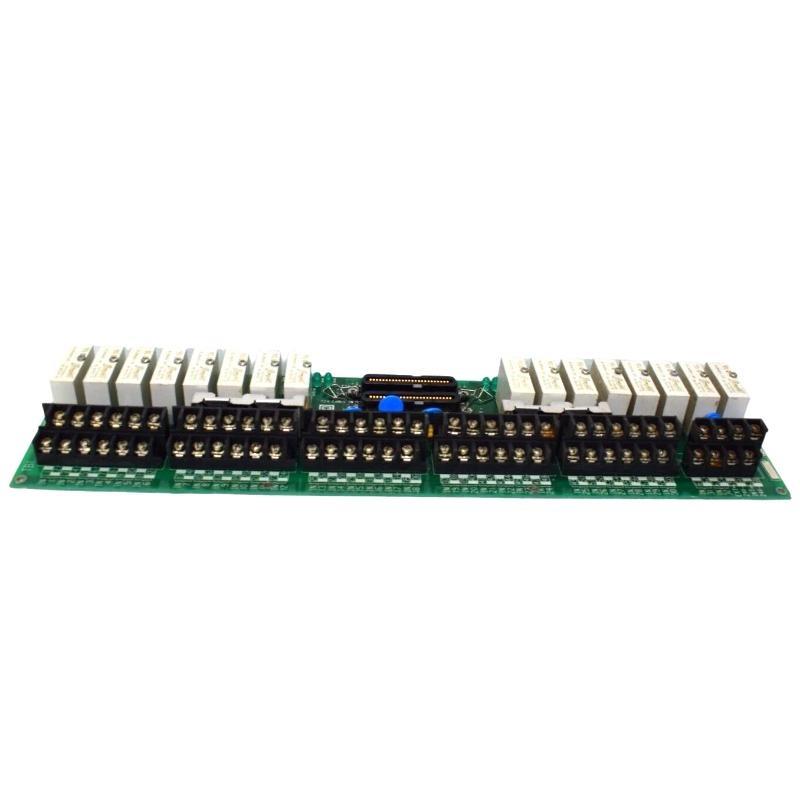

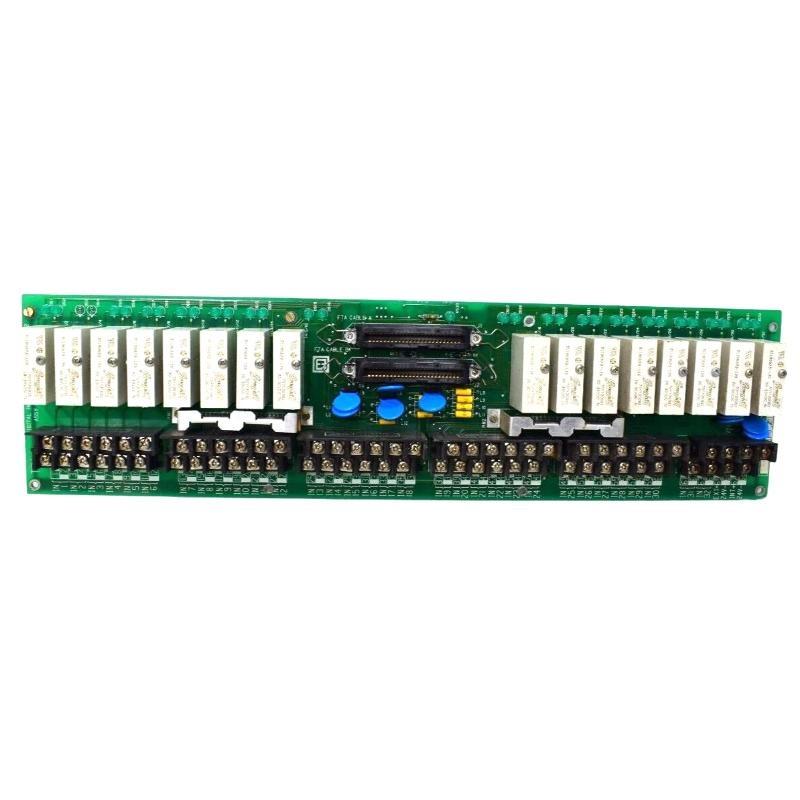

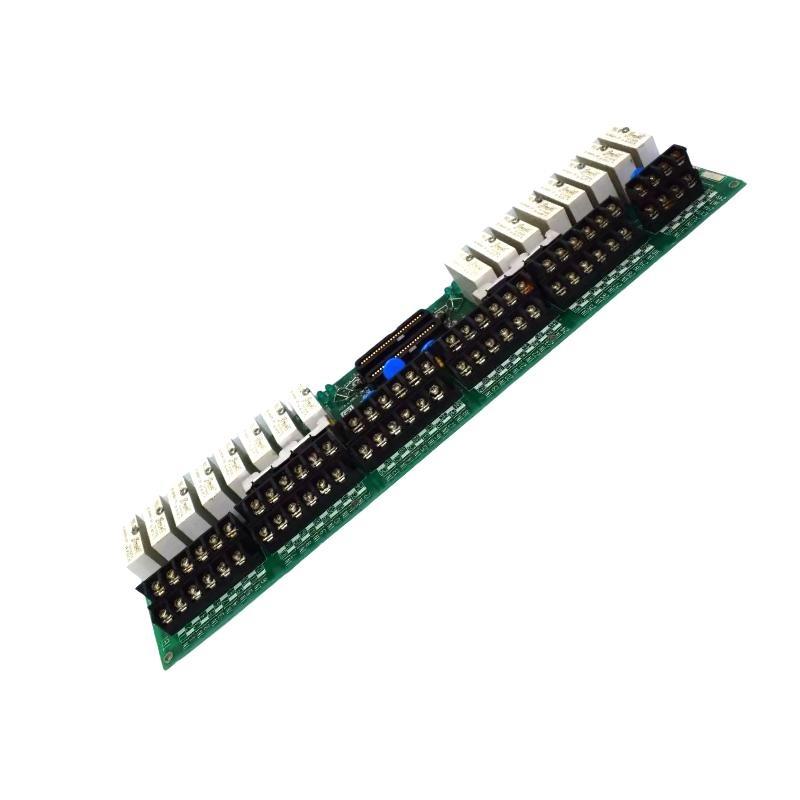

The Honeywell MU-TDID52 51304441-200 Digital Input Module is an advanced and versatile input module designed to interface with digital devices in industrial automation systems. This module is part of Honeywell’s reliable and high-performance automation solutions, providing seamless integration into complex control systems. The MU-TDID52 is built to handle digital signals from a variety of input devices, making it an essential component for monitoring, controlling, and automating processes in demanding industrial environments.
This input module is specifically engineered to support up to 32 digital input channels, making it suitable for applications that require the monitoring of multiple on/off signals. The module is designed to be highly reliable, with the ability to operate efficiently in harsh conditions, ensuring minimal downtime and maintaining optimal system performance.
With a focus on safety, flexibility, and ease of use, the MU-TDID52 is ideal for use in industrial control panels, PLC systems, and various types of process control systems. It provides a high level of integration, reducing wiring complexity and enabling easy connection to other system components, including sensors, actuators, and alarms.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | MU-TDID52 51304441-200 |
| Input Channels | 32 Digital Inputs |
| Input Voltage Range | 24V DC ±20% |
| Input Type | Sinking or Sourcing Digital Inputs |
| Input Impedance | 10 kΩ |
| Operating Voltage | 24V DC ±20% |
| Power Consumption | 100mA at 24V DC |
| Temperature Range | -20°C to +60°C |
| Dimensions (L x W x H) | 462.3 x 120.7 mm |
| Weight | 0.68 kg |
| Mounting Type | DIN Rail Mountable |
| Compliance | CE, UL, RoHS, and other industry standards |
| Indicator Type | LED indicators for status indication |
| Protection Class | IP20 (For indoor use only) |
| Response Time | < 1ms (Fast response for real-time control) |
Applications
The Honeywell MU-TDID52 51304441-200 Digital Input Module is designed for a broad range of industrial applications, particularly in process control and automation. It provides the flexibility to monitor multiple digital input signals, making it ideal for applications where signal acquisition from different devices is necessary. Below are some of its key applications:
-
Industrial Automation: Used in automation systems to monitor digital signals from various field devices such as switches, relays, and sensors.
-
Process Control: Ideal for systems that require real-time monitoring of on/off signals from devices like actuators, pressure switches, and temperature sensors.
-
PLC Integration: Compatible with PLCs (Programmable Logic Controllers) to provide digital inputs for control processes such as valve operation, machine control, and safety monitoring.
-
Control Panels: Used in control panels to collect digital signals from various components and ensure seamless operation of industrial systems.
-
Alarm and Fault Monitoring: Can be connected to alarms and fault detection systems to monitor status and trigger alerts based on input signals.
-
Building Automation: Suitable for building management systems to monitor switches, lights, and other devices that operate on digital signals.
Advantages
-
High Channel Density: With support for 32 digital input channels, the MU-TDID52 module provides an efficient and cost-effective solution for applications requiring multiple input points.
-
Robust Design: Built for reliability and durability, this module is designed to withstand the challenges of industrial environments, including temperature extremes, vibration, and electrical noise.
-
Flexible Input Configuration: The module can support both sinking and sourcing digital inputs, making it versatile and adaptable to a variety of field devices and sensors.
-
Real-Time Operation: The fast response time (< 1ms) ensures that the module can process signals in real-time, making it suitable for applications requiring quick system responses.
-
Energy Efficient: Consumes only 100mA of power at 24V DC, ensuring low power consumption while delivering high performance.
-
Easy Installation: The MU-TDID52 is DIN rail mountable, simplifying installation in industrial control panels and reducing wiring complexity.
-
Status Indication: Equipped with LED indicators for status monitoring, providing visual feedback on the module’s operational status and making troubleshooting easier.
-
Wide Temperature Range: With an operating temperature range of -20°C to +60°C, the module can function in a wide variety of environments, from standard industrial settings to more extreme conditions.
-
Compliance with Industry Standards: CE, UL, and RoHS certifications ensure that the product meets global safety and environmental standards.
-
Cost-Effective: With a high density of channels and minimal power requirements, the module offers excellent value for money.
Frequently Asked Questions (FAQs)
1. What is the purpose of the Honeywell MU-TDID52 51304441-200 Digital Input Module?
The MU-TDID52 is designed to handle digital signals from various field devices, providing 32 digital inputs to be used in industrial automation, process control, and PLC systems.
2. How many digital input channels does the MU-TDID52 support?
The module supports up to 32 digital input channels.
3. What is the input voltage range for the MU-TDID52?
It operates with a 24V DC input voltage range, with a tolerance of ±20%.
4. Can this module handle both sinking and sourcing inputs?
Yes, the MU-TDID52 supports both sinking and sourcing digital inputs, offering flexibility in various applications.
5. What is the power consumption of the module?
The MU-TDID52 consumes 100mA at 24V DC.
6. What is the response time of the module?
The response time is less than 1 millisecond, enabling real-time signal processing for fast control systems.
7. Can the module be mounted in a control panel?
Yes, the module is DIN rail mountable, making it easy to install in control panels or industrial automation systems.
8. What are the dimensions of the MU-TDID52 module?
The module has dimensions of 150mm x 90mm x 45mm.
9. Is the MU-TDID52 compliant with industry safety standards?
Yes, the module is CE, UL, and RoHS certified, ensuring it meets global safety, quality, and environmental standards.
10. What is the protection class of the MU-TDID52?
The module is rated IP20, meaning it is suitable for indoor use but should be protected from water and dust exposure.
Related Models from the Same Series
| Model Number | Description | Input Channels | Weight | Voltage Rating |
|---|---|---|---|---|
| MU-TDID51 51304441-199 | Digital Input Module (16 Channels) | 16 channels | 300g | 24V DC |
| MU-TDID53 51304441-201 | Digital Input Module (48 Channels) | 48 channels | 380g | 24V DC |
| MU-TDID54 51304441-202 | Digital Input Module (64 Channels) | 64 channels | 420g | 24V DC |
| MU-TDID55 51304441-203 | Digital Input Module (96 Channels) | 96 channels | 450g | 24V DC |
| MU-TDID56 51304441-204 | Digital Input Module (128 Channels) | 128 channels | 480g | 24V DC |
| MU-TDID57 51304441-205 | Digital Input Module (256 Channels) | 256 channels | 500g | 24V DC |
Popular Honeywell Models
| Model Number | Description | Application | Weight |
|---|---|---|---|
| HC900-C30 900C32-0010 | Controller CPU | Process Control Systems | 550g |
| HC900-C50 900C50S-0460 | Controller CPU | Industrial Automation | 650g |
| FC-300 900C11-0500 | Field Controller | Control Systems | 400g |
| TDC 7000 900C60-0405 | Digital Controller | Control Panels | 350g |
| THUM-04 51204166-014 | Humidity Transmitter | Environmental Monitoring | 250g |
| THERM-01 51204166-032 | Temperature Transmitter | Measurement Systems | 300g |
