Product Introduction

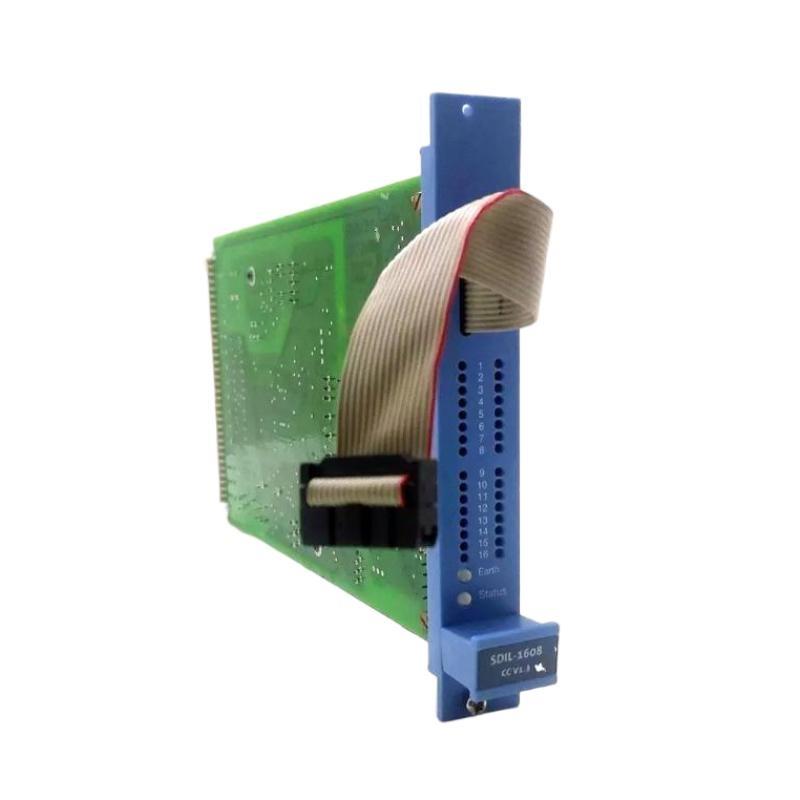

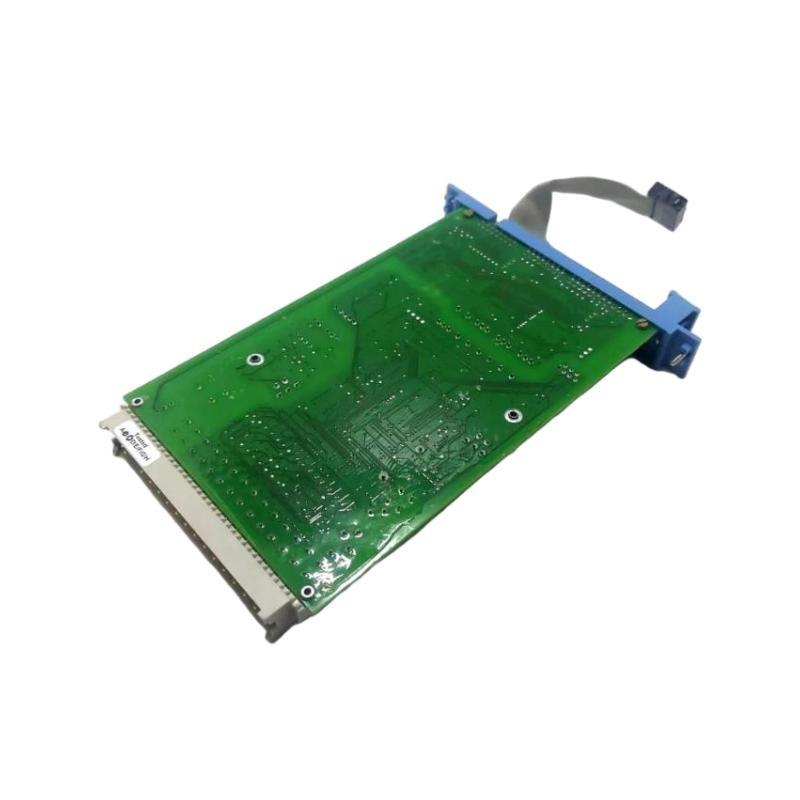

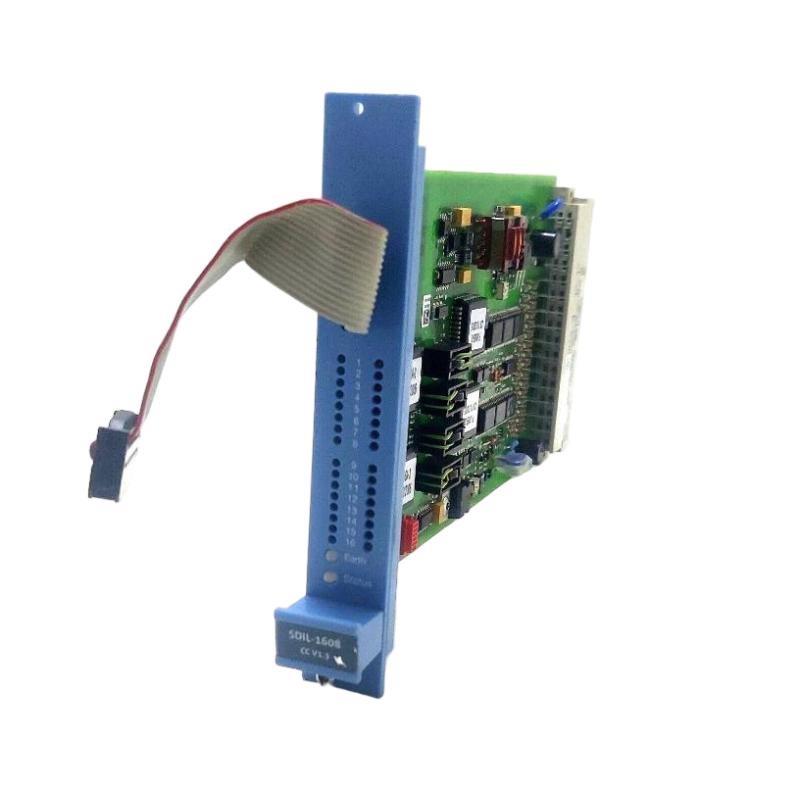

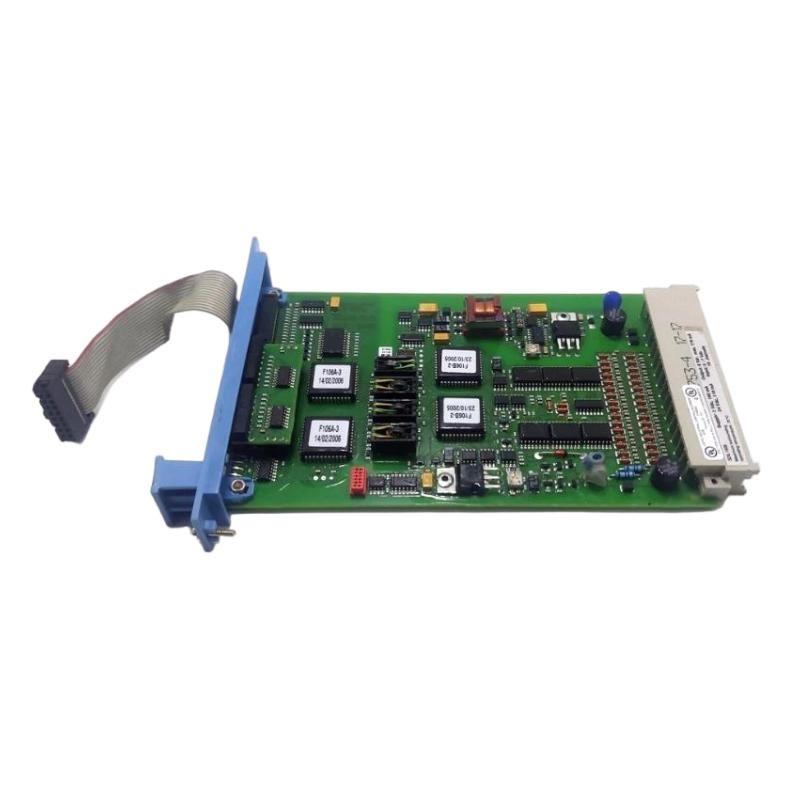

The Honeywell FS-SDIL-1608 Safety Digital Input Module is a highly reliable and advanced digital input module designed for use in industrial safety systems. This module is engineered to process safety-related digital signals in real-time, ensuring that critical safety devices, such as emergency stop buttons, limit switches, and safety interlocks, operate effectively. The FS-SDIL-1608 is an integral part of Honeywell’s safety instrumentation systems, helping to maintain compliance with stringent safety standards and regulations, including SIL (Safety Integrity Level) requirements.
With its compact design and robust features, this module is ideal for applications requiring high-speed processing of safety inputs while ensuring complete system integrity. It is designed to be easily integrated into Honeywell’s safety control systems, enabling seamless operation in industries such as chemical processing, oil & gas, power generation, and manufacturing, where personnel and asset safety are top priorities.
The FS-SDIL-1608 module meets the highest industry standards for functional safety, providing accurate and timely processing of digital signals to support emergency shutdown (ESD) systems, safety alarms, and safety instrumented systems (SIS).
Product Parameters
| Parameter | Value |
|---|---|
| Model | FS-SDIL-1608 |
| Part Number | FS-SDIL-1608 |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 0.1 kg |
| Input Type | Digital Inputs (Safety Signals) |
| Number of Inputs | 16 channels |
| Input Voltage | 24 V DC |
| Input Signal Type | Dry Contact or Voltage Inputs (24V DC) |
| Response Time | < 10 ms |
| Mounting | DIN Rail Mounting |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24V DC |
| Compliance | CE, UL, IEC 61508, IEC 61511, SIL 3 |
| EMI/RFI Protection | Yes, industrial-grade protection |
Product Applications
The Honeywell FS-SDIL-1608 Safety Digital Input Module is designed for a wide range of safety-related applications, including:
-
Safety Instrumented Systems (SIS): The module is widely used in SIS to monitor critical processes and detect dangerous conditions, triggering appropriate actions to protect personnel and equipment.
-
Emergency Shutdown (ESD) Systems: Utilized in ESD systems to process emergency stop signals, enabling safe plant shutdowns in hazardous situations.
-
Fire and Gas Detection: Interfacing with fire and gas detection systems to process alarm signals, ensuring a quick and effective response to potential threats.
-
Oil and Gas Industry: Essential for managing critical alarms and shutdown signals in offshore platforms, refineries, and pipeline operations.
-
Chemical Processing: Used to monitor critical safety parameters and respond to changes in real-time to prevent accidents.
-
Power Generation: Integrated into power plants to monitor key safety indicators and help ensure the safety of equipment and personnel during operations.
-
Manufacturing Facilities: Plays a critical role in industrial plants by interfacing with safety devices and interlocks, ensuring the protection of both workers and machines.
Product Advantages
-
High Safety Integrity – The FS-SDIL-1608 meets SIL 3 (Safety Integrity Level 3) requirements, ensuring the highest level of safety and reliability in critical processes.
-
Compact and Space-Efficient Design – The module’s compact size (22 x 124 x 126 mm) allows for easy integration into space-constrained installations while maintaining full functionality.
-
Fast Response Time – With a response time of less than 10 ms, this module ensures real-time processing of safety-critical signals, enabling swift responses to hazardous conditions.
-
Wide Temperature Range – Designed to operate in temperatures ranging from -40°C to +70°C, making it suitable for a variety of industrial environments.
-
Easy Installation – The module can be easily mounted on a standard DIN rail, simplifying installation and maintenance.
-
Versatile Input Options – Supports both dry contact and voltage input signals, making it compatible with a wide range of field devices.
-
Certified for Functional Safety – The FS-SDIL-1608 is certified to meet international standards, including IEC 61508, IEC 61511, and UL, ensuring its compliance in safety-critical applications.
-
EMI/RFI Protection – The module features industrial-grade electromagnetic interference (EMI) and radio-frequency interference (RFI) protection, ensuring reliable operation in electrically noisy environments.
-
Low Power Consumption – Operates on a low 24V DC power supply, making it energy-efficient and cost-effective over time.
-
Seamless Integration with Honeywell Systems – Fully compatible with Honeywell’s safety and control systems, enabling easy integration into existing plant setups for streamlined operations.
FAQs
Q1: What types of inputs does the FS-SDIL-1608 module support?
A1: The FS-SDIL-1608 supports both dry contact and voltage inputs (24V DC), making it highly versatile for various industrial applications.
Q2: What is the response time of the module?
A2: The module has a fast response time of less than 10 ms, allowing for quick and accurate processing of safety signals.
Q3: What is the power supply requirement for the FS-SDIL-1608?
A3: The module operates on a 24V DC power supply, ensuring compatibility with most industrial control systems.
Q4: How many inputs does the FS-SDIL-1608 support?
A4: The module provides 16 channels for digital input signals, offering ample capacity for monitoring safety-critical systems.
Q5: What industries can benefit from this module?
A5: The FS-SDIL-1608 is suitable for industries like oil and gas, chemical processing, power generation, manufacturing, and more, where safety is a top priority.
Q6: Can the FS-SDIL-1608 be mounted in a DIN rail configuration?
A6: Yes, the module is designed for easy DIN rail mounting, making it simple to install and integrate into existing systems.
Q7: Is the FS-SDIL-1608 certified for safety standards?
A7: Yes, the module is certified for IEC 61508, IEC 61511, and UL, ensuring it meets the necessary safety integrity requirements.
Q8: What is the temperature range for the FS-SDIL-1608?
A8: The module operates within a temperature range of -40°C to +70°C, making it suitable for a wide range of industrial environments.
Q9: Does the FS-SDIL-1608 provide protection against electromagnetic interference (EMI)?
A9: Yes, the module features EMI/RFI protection, ensuring reliable operation in electrically noisy environments.
Q10: How does the FS-SDIL-1608 improve safety in industrial applications?
A10: By processing critical safety signals with high integrity and fast response times, the FS-SDIL-1608 ensures immediate action can be taken to protect personnel and assets in case of emergency situations.
Related Series Models
| Model | Description | Key Features |
|---|---|---|
| FS-SDIL-1204 | Safety Digital Input Module | Offers 4 digital inputs for safety applications |
| FS-SDIL-1612 | Safety Digital Input Module | Provides 12 digital input channels for safety systems |
| FS-SDOL-1608 | Safety Digital Output Module | Supports digital output for controlling safety devices |
| FS-SDOL-1212 | Safety Digital Output Module | Provides 12 digital outputs for emergency shutdown control |
| FS-SDIL-1616 | Advanced Safety Digital Input Module | 16 digital input channels with extended functionality |
| FS-SDOL-1204 | Digital Output for Low-Voltage Safety Applications | Compatible with low-voltage safety control systems |
Popular Honeywell Models
| Model | Description | Key Features |
|---|---|---|
| MC-PAIH01 | Analog Input Module | Supports multiple analog input types, ideal for industrial control systems |
| MC-PAIH03 | High-Level Analog Input Processor | Advanced processing for high-level analog inputs |
| MC-TDOI01 | Digital Output Module | Reliable output signals for safety and control applications |
| MC-TDIQ01 | Universal Digital Input/Output Module | Provides flexible digital I/O options for complex systems |
| CC-PAIH01 | Analog Input Processor | High-precision signal processing for industrial automation |
| MC-PAIH05 | Multi-Channel Analog Input Processor | Multiple channel input processing for large-scale systems |
