Product Introduction

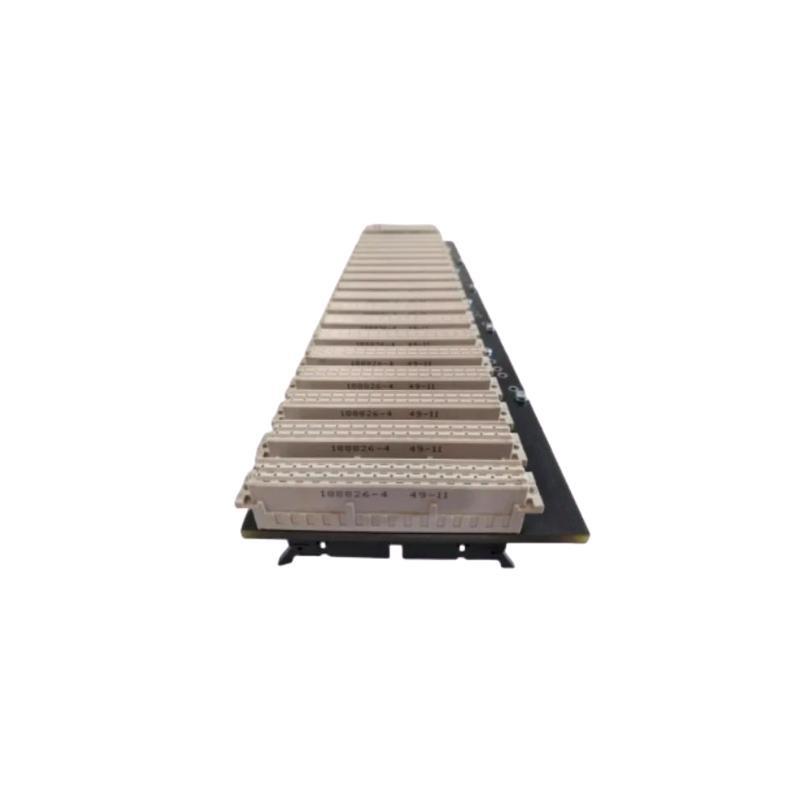

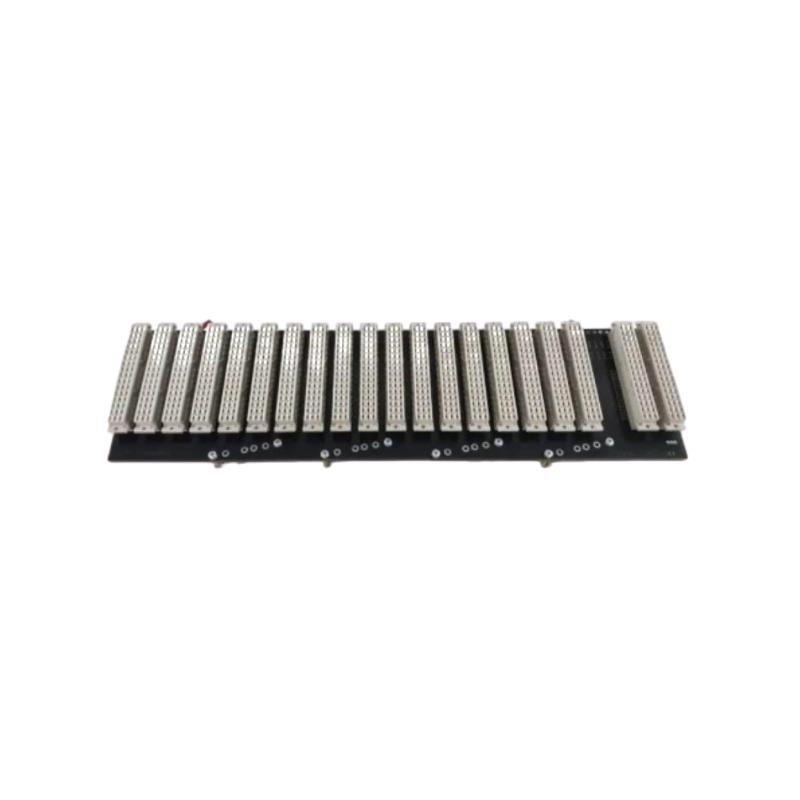

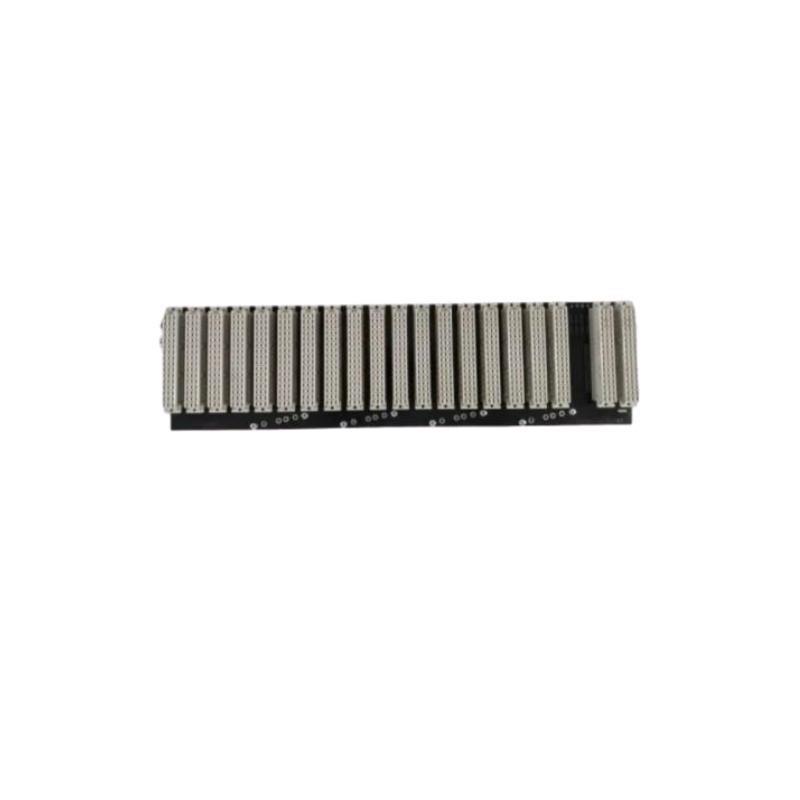

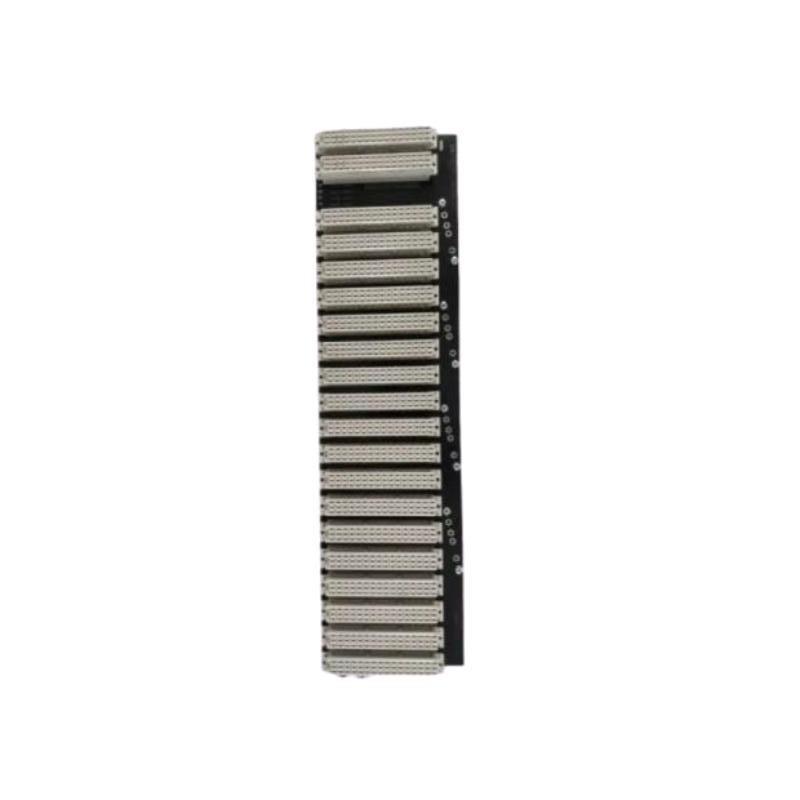

The Honeywell FS-IOBUS-CPIO3 is a critical component of Honeywell’s Safety Manager platform, specifically designed for industrial safety system architectures requiring centralized I/O processing. This module functions as a Compact Process I/O (CPIO) interface within the I/O bus network, enabling deterministic and secure communication between safety controllers and field devices. It is typically employed in Safety Instrumented Systems (SIS) for applications in oil & gas, petrochemical, power generation, and other high-integrity industrial environments.
The FS-IOBUS-CPIO3 offers robust integration within Honeywell’s Fail Safe Controller (FSC) framework and supports dual redundancy and hot-swap capabilities to ensure system uptime and operational integrity. It delivers real-time input/output data exchange and diagnostics while meeting stringent safety integrity level (SIL) standards.
Product Advantages
-
High Availability: Supports redundancy and hot-swapping, minimizing downtime during maintenance or module replacement.
-
Safety Certified: Designed to meet IEC 61508 up to SIL 3, making it ideal for critical safety operations.
-
Compact Design: Its space-saving form factor fits easily into tight control cabinets without sacrificing performance.
-
Deterministic Communication: Ensures real-time responsiveness in safety-critical environments with minimal latency.
-
Integration Friendly: Seamlessly integrates with Honeywell Safety Manager systems and field instrumentation.
-
Robust Diagnostics: Offers advanced fault detection and status monitoring for proactive maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | FS-IOBUS-CPIO3 |
| Product Type | Compact Process I/O Interface Module |
| System Compatibility | Honeywell Safety Manager (FSC) |
| Communication Interface | I/O Bus |
| Safety Certification | IEC 61508 SIL 3 compliant |
| Redundancy Support | Yes (Dual Redundant I/O Bus Capability) |
| Dimensions | 22 x 124 x 126 mm |
| Weight | 0.1 kg |
| Mounting | DIN Rail |
| Power Supply | 24 VDC nominal |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Hot Swap Capability | Yes |
| Module Status LEDs | Yes (Multi-color for diagnostics and health) |
Product Applications
The FS-IOBUS-CPIO3 is widely deployed in industrial sectors requiring functional safety and high system availability. Key applications include:
-
Emergency Shutdown (ESD) Systems
-
Fire & Gas Detection and Suppression Systems
-
Burner Management Systems (BMS)
-
Turbine Control and Protection
-
Boiler Protection Systems
-
Pipeline Monitoring and Leak Detection
-
High-Integrity Pressure Protection Systems (HIPPS)
-
Power plant safety interlocks and logic execution
Installation Instructions
-
Ensure the power to the system is OFF before installation to prevent electrical hazard.
-
Mount the FS-IOBUS-CPIO3 securely on a DIN rail in a well-ventilated control cabinet.
-
Connect the I/O Bus cables to the module’s designated ports.
-
Verify grounding and shielding are properly done to minimize electrical noise.
-
Insert the module into the Safety Manager rack; if in redundant mode, ensure pairing is correctly configured.
-
Power ON the system and observe status LEDs to confirm successful startup.
-
Use Honeywell’s configuration software to integrate the module into the control logic.
-
Run diagnostics to validate field device communication and data integrity.
Compatible / Associated Models
-
Honeywell FS-SAI-1620m
-
Honeywell FS-DO-0824
-
Honeywell FS-PM-CPU
-
Honeywell FS-AI-1616
-
Honeywell FS-RTD-4
-
Honeywell FS-RLY-8
Popular Models from the Same Brand
| Model Number | Description | Size (mm) | Weight | Voltage |
|---|---|---|---|---|
| FS-SAI-1620m | 16-Channel Analog Input Module | 130 x 30 x 120 | 290g | 24 VDC |
| FS-DO-0824 | 8-Channel Digital Output Module | 130 x 30 x 120 | 270g | 24 VDC |
| FS-AI-1616 | 16-Channel Analog Input for Safety Manager | 130 x 30 x 120 | 295g | 24 VDC |
| FS-CPU-2020 | Safety Manager CPU Module | 130 x 40 x 120 | 310g | 24 VDC |
| FS-PM-CPU | Process Manager CPU Module | 130 x 40 x 120 | 320g | 24 VDC |
| 2MLQ-RY2B | Compact Safety I/O Relay Module | 140 x 30 x 110 | 260g | 24 VDC |
FAQs (Frequently Asked Questions)
Q1: Is the FS-IOBUS-CPIO3 compatible with all versions of Honeywell Safety Manager?
A1: Yes, the module is designed for full compatibility with Honeywell Safety Manager systems, particularly FSC configurations.
Q2: Can I hot-swap the module during live operations?
A2: Yes, FS-IOBUS-CPIO3 supports hot-swapping without disrupting system operations, provided it is configured in a redundant system.
Q3: What happens if communication on one bus line fails?
A3: The module supports redundant I/O buses. If one fails, the system automatically switches to the secondary bus with no data loss.
Q4: What are the indicators on the module for?
A4: The LEDs indicate power status, communication health, module fault, and operational diagnostics.
Q5: How should I wire the grounding for noise immunity?
A5: Grounding should follow Honeywell’s recommended installation standards to ensure signal integrity and noise suppression.
Q6: Can it be used in high-vibration or outdoor environments?
A6: The FS-IOBUS-CPIO3 is designed for control cabinet environments. For harsh or outdoor use, appropriate enclosures must be used.
Q7: How often does the firmware need to be updated?
A7: Firmware updates are issued as needed for performance or security enhancements. Updates can be managed via Honeywell’s configuration tools.
Q8: What diagnostic tools are supported?
A8: The module supports system diagnostics through the Safety Manager’s integrated software and online maintenance interface.
Q9: Is there a specific power supply requirement?
A9: A stable 24 VDC power source is required. Tolerance and regulation must conform to industrial standards.
Q10: Can this module be used with third-party control systems?
A10: While optimized for Honeywell systems, integration with third-party platforms is possible but requires protocol converters or middleware.
