Product Introduction

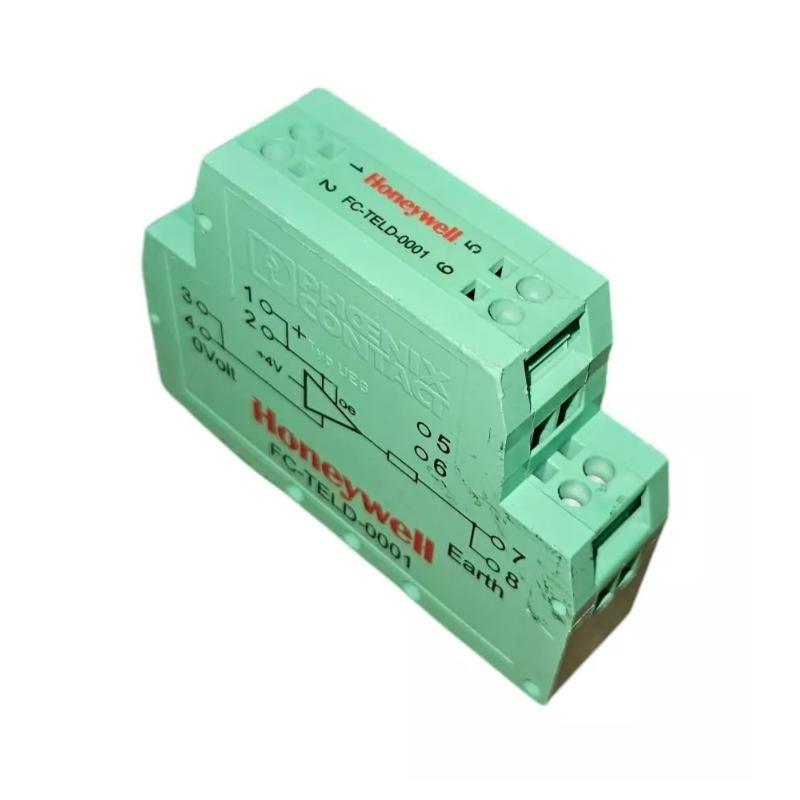

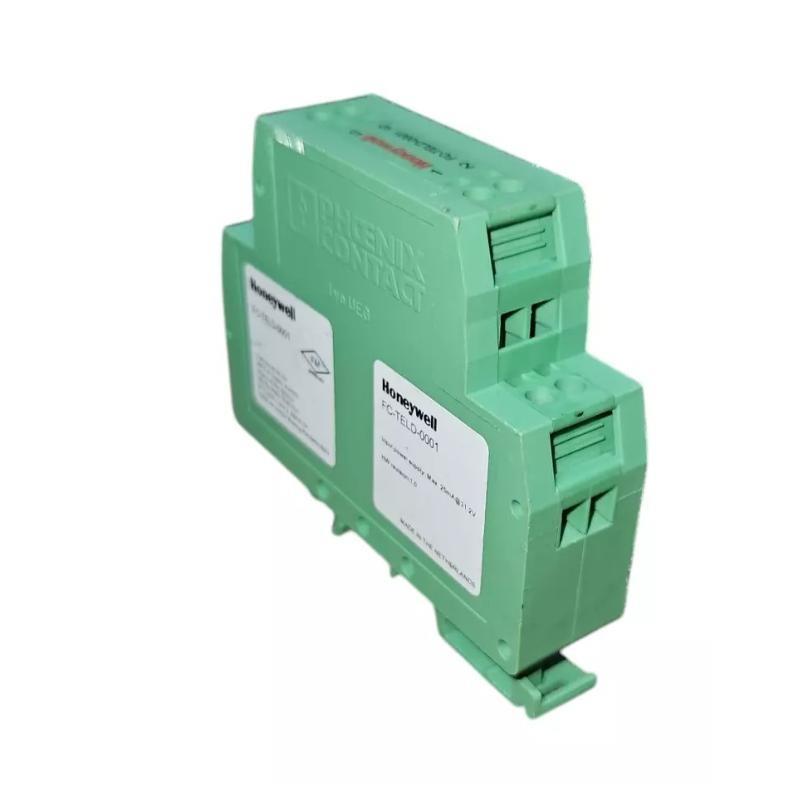

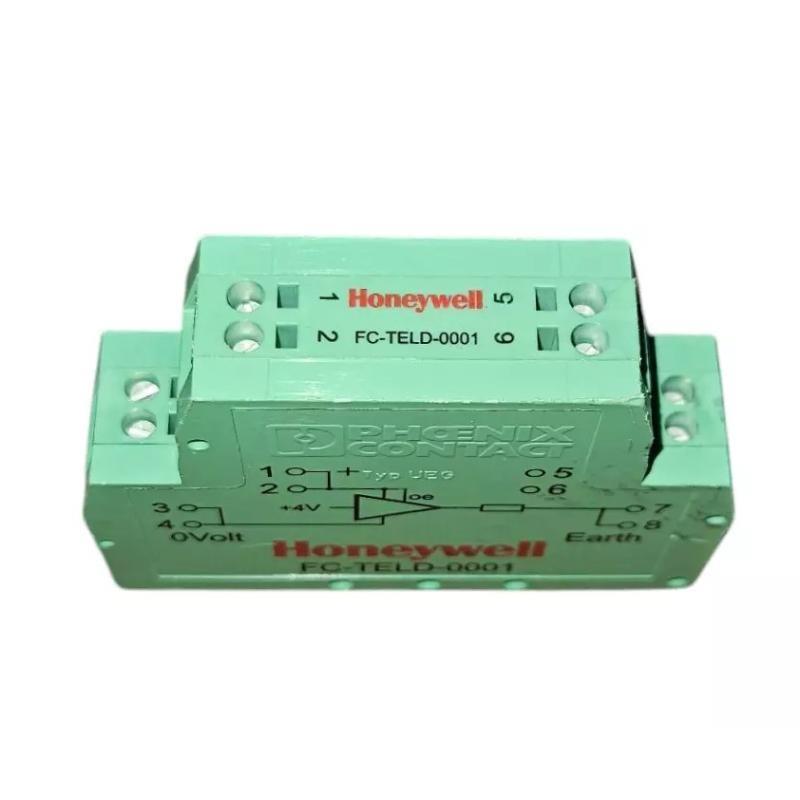

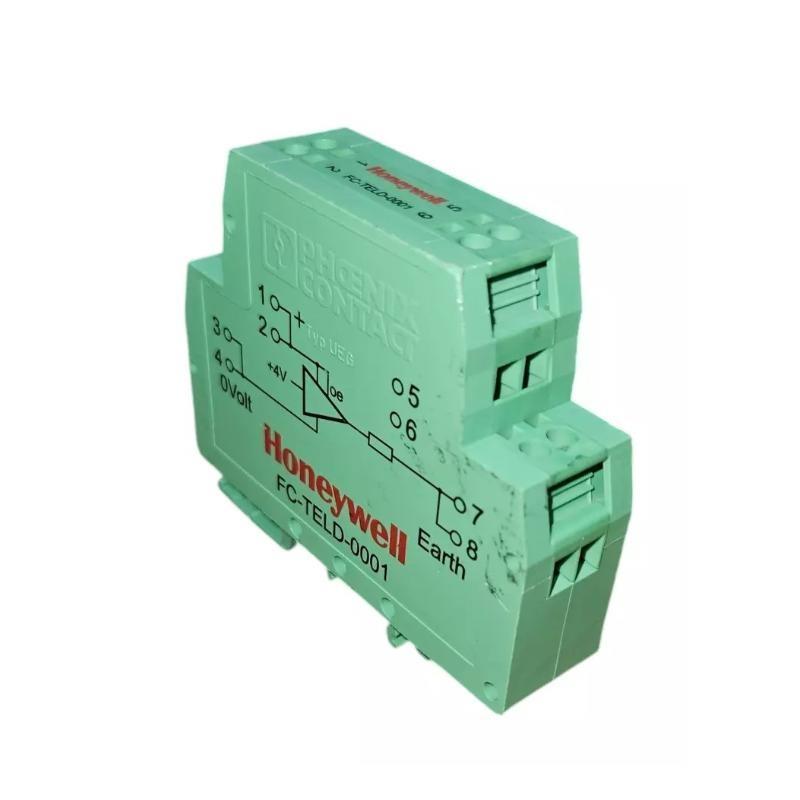

The Honeywell FC-TELD-0001 UIO Earth Leakage Detector is a specialized device designed to monitor and detect earth leakage currents in industrial electrical installations. It plays a critical role in protecting personnel, equipment, and the environment by identifying insulation faults and preventing potential hazards caused by unintended leakage currents to earth.
This unit is engineered for integration within Honeywell’s control and safety systems, ensuring real-time monitoring and rapid alarm signaling. With its precise detection capabilities, the FC-TELD-0001 helps maintain operational safety and compliance with electrical safety standards.
Designed for rugged industrial environments, the detector supports continuous monitoring and provides early warning of insulation degradation, enabling preventive maintenance and reducing unexpected downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-TELD-0001 |
| Manufacturer | Honeywell |
| Function | Earth Leakage Current Detector |
| Measurement Range | Typically 0 mA to 1000 mA (adjustable threshold settings) |
| Detection Method | Residual current monitoring with electronic sensing |
| Output Type | Relay output and digital signal interface |
| Power Supply | 24 VDC nominal |
| Response Time | <100 ms |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Installation | DIN rail or panel mounting |
| Dimensions (H × W × D) | 80 x 20 x 70 mm |
| Weight | 0.34 kg |
| Certifications | CE, UL, CSA |
Product Applications
The FC-TELD-0001 Earth Leakage Detector is widely used in sectors requiring stringent electrical safety measures, including:
-
Oil and Gas Industry – Protects hazardous area electrical installations by monitoring insulation integrity.
-
Power Generation Plants – Monitors leakage currents in switchgear, transformers, and generator circuits.
-
Chemical and Petrochemical Plants – Helps prevent ignition sources by early detection of insulation faults.
-
Water and Wastewater Facilities – Ensures safety of electrical distribution systems controlling pumps and treatment processes.
-
Manufacturing Plants – Monitors critical electrical equipment to reduce risk of electrical shocks or fire.
-
Building Management Systems – Integrated into electrical safety monitoring for commercial and industrial buildings.
Product Advantages
-
High Sensitivity Detection: Accurately detects low-level earth leakage currents before they escalate.
-
Fast Response Time: Rapid detection minimizes risk and damage.
-
User-Configurable Thresholds: Allows adjustment for different operational environments and safety requirements.
-
Reliable Relay and Digital Outputs: Enables integration with alarms and control systems for immediate action.
-
Compact and Durable Design: Suitable for installation in confined spaces and harsh industrial conditions.
-
Easy Installation and Maintenance: Supports DIN rail or panel mounting with accessible wiring terminals.
Frequently Asked Questions (FAQ)
-
What is the main function of the FC-TELD-0001?
It detects earth leakage currents to help prevent electrical hazards. -
What leakage current range can it detect?
Typically from 0 mA up to 1000 mA with adjustable thresholds. -
How fast does the detector respond?
Response time is less than 100 milliseconds. -
What outputs does the device provide?
It provides relay output and digital interface signals for alarms or control systems. -
Where can the FC-TELD-0001 be installed?
It can be mounted on a DIN rail or inside control panels. -
Is the device suitable for hazardous locations?
While it supports industrial environments, specific hazardous area certifications depend on installation and additional protection. -
What power supply does it require?
It requires a nominal 24 VDC power supply. -
Can the leakage detection threshold be adjusted?
Yes, it supports configurable sensitivity settings. -
What environmental conditions can it operate in?
Operating temperature ranges from -20°C to 60°C, with 5% to 95% relative humidity (non-condensing). -
Is the device compatible with Honeywell control systems?
Yes, it integrates smoothly with Honeywell’s automation and safety control platforms.
