Product Introduction

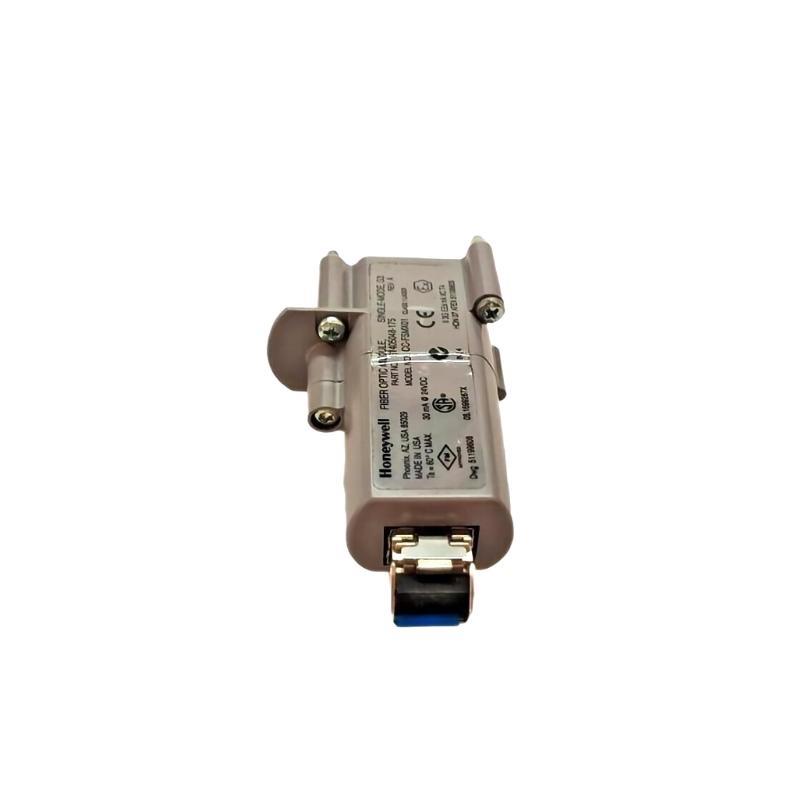

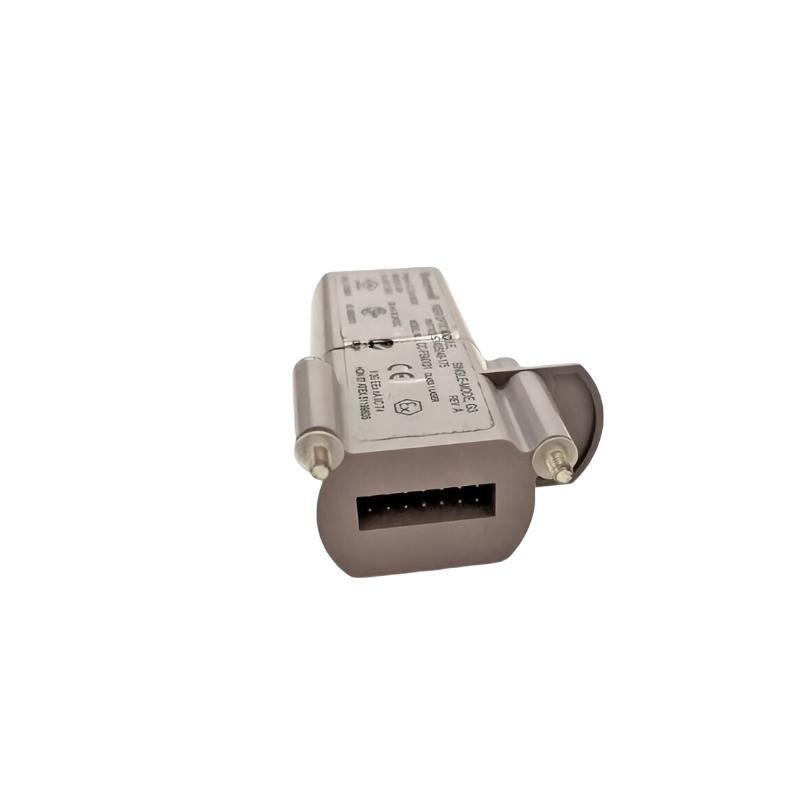

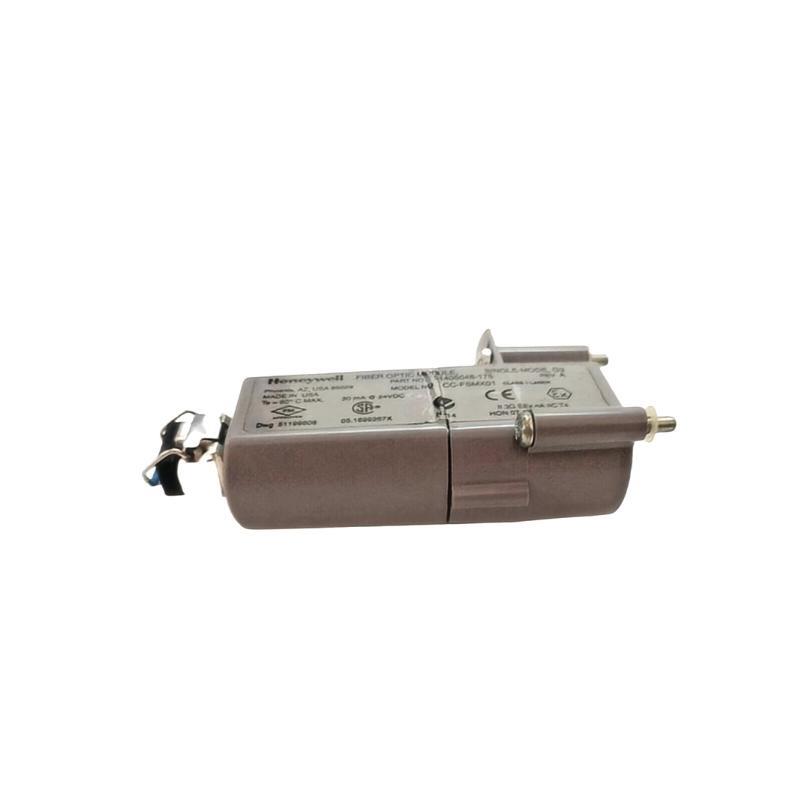

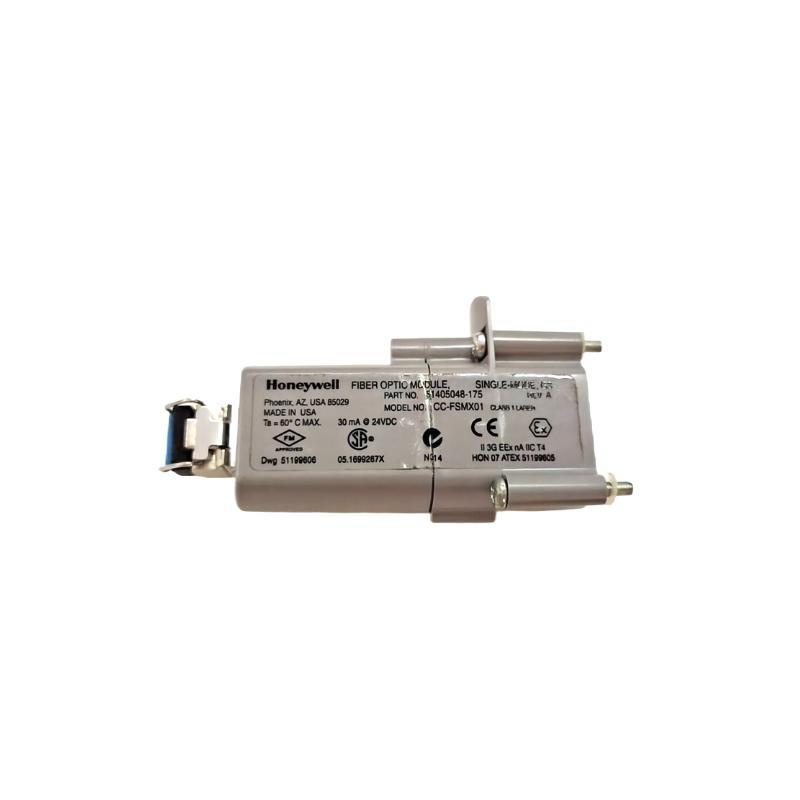

The Honeywell CC-FSMX01 51405048-175 Fiber Optic Module is engineered to provide high-speed, reliable data transmission in industrial control systems. Designed for seamless integration into Honeywell’s Experion PKS and TDC 3000 systems, this module ensures robust communication over long distances with superior immunity to electromagnetic interference (EMI) and radio-frequency interference (RFI).
Its compact design and durable construction make it suitable for harsh industrial environments, where consistent and secure data transfer is critical. The CC-FSMX01 supports both single-mode and multi-mode fiber optics, offering flexibility to meet various network requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | CC-FSMX01 |
| Part Number | 51405048-175 |
| Manufacturer | Honeywell |
| Application | Industrial Control Systems |
| Transmission Speed | Up to 10 Gbps |
| Fiber Compatibility | Single-mode or Multi-mode |
| Maximum Distance | Over 100 km |
| Data Integrity | Highly resistant to EMI/RFI |
| Power Consumption | Less than 5W |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 150 x 100 x 30 mm |
| Weight | 0.4 kg |
| Connector Type | LC or SC |
| Enclosure Material | Polycarbonate |
| Mounting | 1U Rack Mountable |
| Warranty Period | 5 years |
Applications
The Honeywell CC-FSMX01 Fiber Optic Module is utilized in various industrial sectors, including:
-
Oil & Gas: Facilitates reliable data transmission in exploration and refining operations.
-
Power Generation: Ensures stable communication in power plants and substations.
-
Pharmaceuticals: Supports stringent data integrity requirements in manufacturing processes.
-
Water Treatment: Enables secure control systems in water and wastewater facilities.
-
Manufacturing: Provides robust networking in automated production lines.
Its ability to operate in extreme temperatures and resist EMI/RFI makes it ideal for environments where traditional copper cabling is insufficient.
Advantages
-
High-Speed Data Transmission: Supports up to 10 Gbps, ensuring rapid communication.
-
Long-Distance Capability: Operates effectively over distances exceeding 100 km.
-
EMI/RFI Resistance: Maintains data integrity in electrically noisy environments.
-
Compact and Lightweight: Easy integration into existing systems without significant space requirements.
-
Durable Construction: Polycarbonate enclosure withstands harsh industrial conditions.
-
Flexible Connectivity: Compatible with both LC and SC connectors for versatile installation.
-
Energy Efficient: Low power consumption reduces operational costs.
-
Extended Temperature Range: Functions reliably in temperatures from -40°C to +85°C.
-
Easy Maintenance: Designed for straightforward installation and minimal upkeep.
-
Warranty Support: Backed by a 1 year warranty for long-term reliability.
Frequently Asked Questions (FAQs)
-
What is the primary function of the CC-FSMX01 module?
It facilitates high-speed, long-distance fiber optic communication in industrial control systems. -
Which fiber types are compatible with this module?
The module supports both single-mode and multi-mode fiber optics. -
What is the maximum data transmission speed?
It can transmit data at speeds up to 10 Gbps. -
How far can the CC-FSMX01 transmit data?
It supports data transmission over distances exceeding 100 km. -
Is the module resistant to electromagnetic interference?
Yes, it is highly resistant to EMI and RFI, ensuring data integrity. -
What are the operating temperature limits?
The module operates reliably between -40°C and +85°C. -
What types of connectors does it support?
It is compatible with both LC and SC fiber optic connectors. -
What is the power consumption of the module?
The module consumes less than 5W of power. -
What materials are used in the module’s construction?
It features a durable polycarbonate enclosure suitable for industrial environments. -
Does the module come with a warranty?
We provide one year warranty.
Related Models from the Same Series or Application
| Model Number | Description | Compatibility | Key Feature |
|---|---|---|---|
| CC-FMMX01 | Multi-mode Fiber Optic Module | Experion PKS / TDC 3000 | Supports multi-mode fiber optics |
| CC-TAOX01 | Optical Transmitter Module | Experion PKS | Transmits optical signals |
| CC-FPDX01 | Fiber Digital Exchange Interface | Experion PKS | Handles multiplexed fiber digital I/O |
| CC-PDOB01 | Digital Output Module | Experion PKS / TDC 3000 | Provides redundant fail-safe outputs |
| 51400955-100 | Fiber Transmitter/Receiver Module | TDC 3000 | Basic LCN optical connectivity |
| CC-FLRX01 | Fiber Link Receiver Module | Experion PKS | Receives data over fiber optics |
