Product Introduction

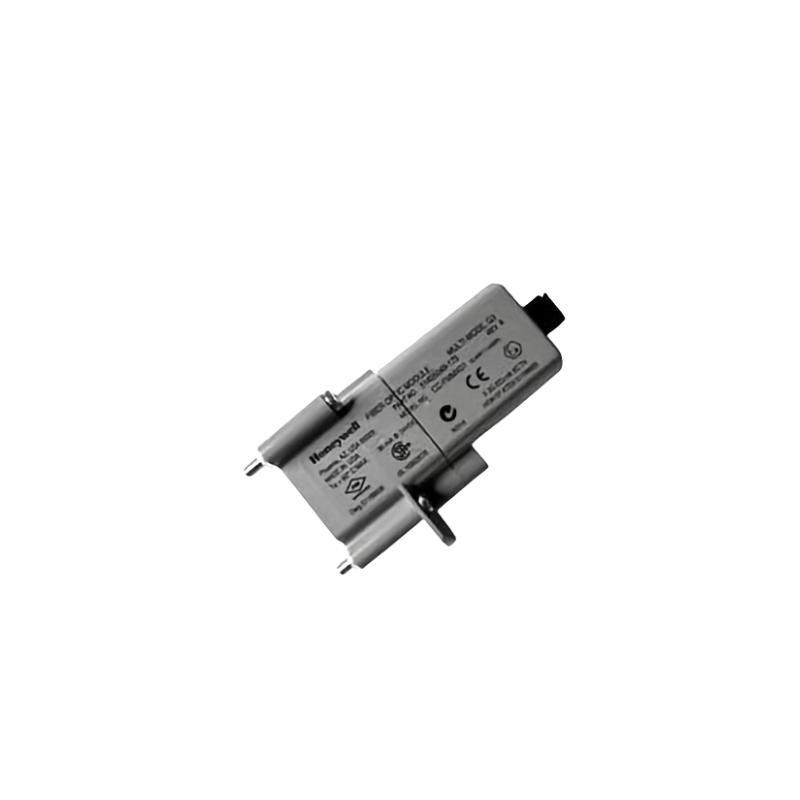

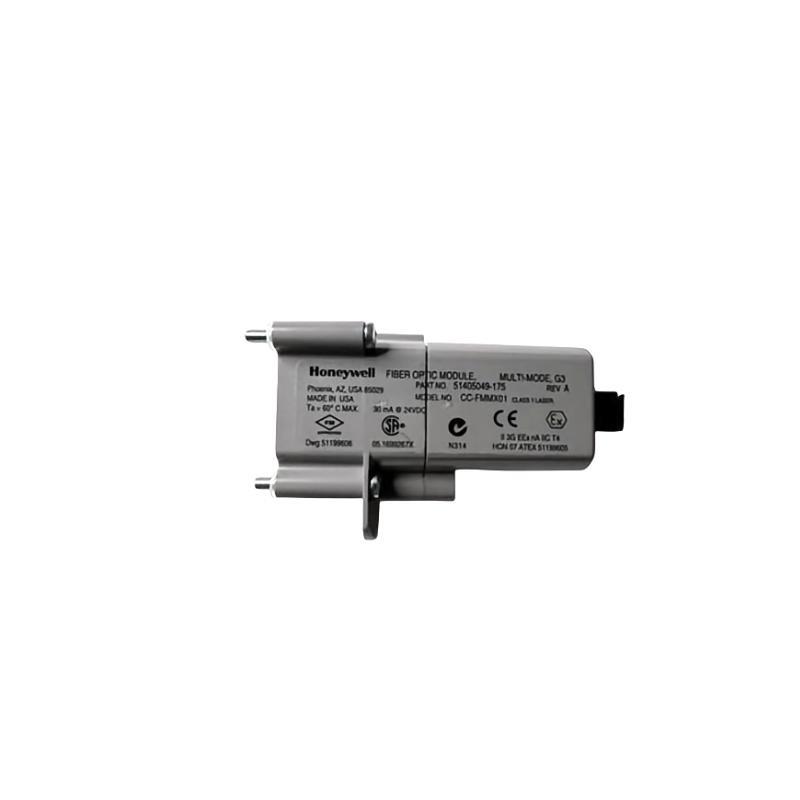

The Honeywell CC-FMMX01 51405049-175 Fiber Optic Module is a high-performance communication interface designed for use within Honeywell’s Experion PKS and TDC 3000 distributed control systems (DCS). This module enables fiber-optic data transmission between different nodes or devices in a control network, offering high-speed, noise-immune, and secure communication capabilities for industrial automation environments.
It functions as a redundant, fiber-based communication bridge, often used in critical control and I/O environments where electromagnetic interference (EMI), long-distance transmission, and secure signal integrity are required. As part of Honeywell’s robust process control ecosystem, the CC-FMMX01 ensures data consistency, system uptime, and real-time reliability in demanding industrial settings.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | CC-FMMX01 Fiber Optic Module |
| Part Number | 51405049-175 |
| Manufacturer | Honeywell Process Solutions |
| Product Series | Experion PKS / TDC 3000 |
| Function | Fiber-optic communication interface module |
| Communication Protocol | Proprietary fiber-optic link (Honeywell LCN/UCN compatible) |

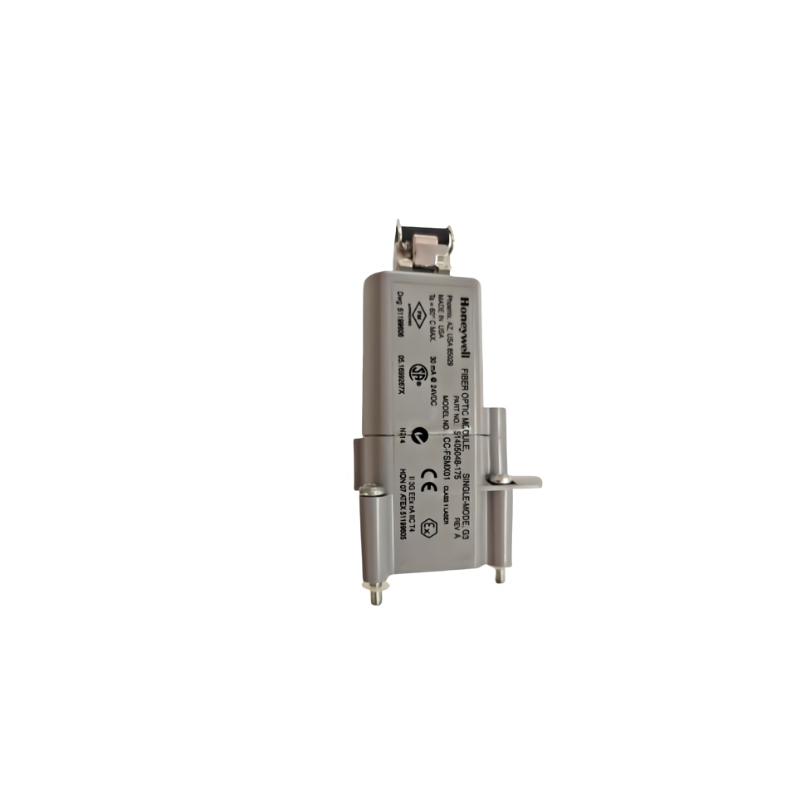

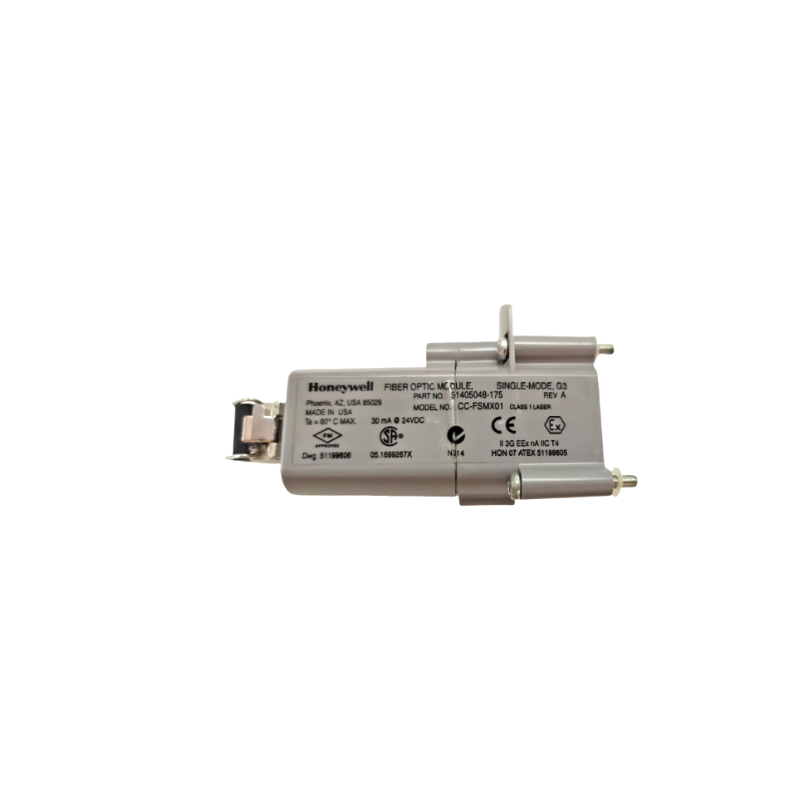

| Transmission Medium | Multimode or Single-mode Fiber Optic (depending on model variant) |
| Data Rate | Up to 100 Mbps |
| Fiber Connectors | ST-style or SC-style (varies by version) |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | ≤ 5W |
| Hot-swappable | Yes |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 150 x 90 x 60 mm |
| Weight | 0.8 kg |
| Mounting | Rack-mounted module (standard chassis slot) |
| Certifications | CE, UL, CSA, FCC Part 15 Class A |
| EMI/RFI Immunity | High (optical isolation) |
| System Compatibility | Honeywell Experion PKS, TDC 3000 |
Applications
The Honeywell CC-FMMX01 module finds its application in various mission-critical and EMI-sensitive environments, including:
-
Petrochemical Refineries: Links control rooms to remote field I/O safely across high-noise zones.
-
Power Generation Plants: Transmits real-time turbine and substation data over optical links.
-
Pharmaceutical Facilities: Ensures interference-free communication between cleanroom control systems.
-
Metals & Mining Automation: Bridges long-distance control segments across expansive sites.
-
Data-Heavy Industrial Plants: Enables high-throughput communication between PLC/DCS nodes.
-
High-EMI Industrial Zones: Ideal for environments where copper cabling is prone to signal degradation.
Due to its fiber-optic backbone, it’s used in locations where electrical isolation and long-distance communication are essential.
Product Advantages
-
Electromagnetic Immunity: Immune to EMI/RFI interference, making it ideal for heavy industrial environments.
-
High-Speed Communication: Ensures fast and stable data transmission with minimal latency.
-
Hot-Swappable Design: Supports live replacement without disrupting system operation or requiring shutdown.
-
Long-Distance Capability: Fiber-optic links allow reliable communication over several kilometers.
-
Secure and Isolated: Optical communication inherently offers data security and galvanic isolation.
-
High Availability: Designed for continuous operation in redundant network configurations.
-
Future-Proof Architecture: Easily integrates with modernized Experion PKS architecture.
-
Compact Form Factor: Standard modular rack design minimizes control cabinet footprint.
-
Low Maintenance: No moving parts and optical design lead to low wear and long operational life.
-
Backward Compatibility: Compatible with legacy TDC 3000 systems, supporting long-term investments.
Frequently Asked Questions (FAQ)
-
What is the function of the Honeywell CC-FMMX01 module?
It acts as a fiber-optic communication interface within a Honeywell control system, enabling EMI-immune, high-speed data links between DCS components. -
Which Honeywell systems is it compatible with?
It is compatible with both Experion PKS and legacy TDC 3000 systems. -
Does it support redundancy?
Yes, it is typically deployed in redundant configurations for fault tolerance. -
What type of fiber optic cable is used?
It supports multimode or single-mode fiber depending on the model variant and installation requirements. -
Can I hot-swap the module without shutting down the system?
Yes, it supports hot-swapping when installed in a properly designed rack with redundancy. -
What is the max transmission distance supported?
Depending on the fiber type, it can support distances ranging from hundreds of meters to several kilometers. -
Is it certified for industrial use?
Yes, it meets CE, UL, CSA, and FCC certifications, suitable for industrial automation environments. -
What connectors are supported?
Typically ST or SC fiber connectors are supported, based on the hardware revision. -
Is the module firmware-upgradable?
It may support firmware updates, but Honeywell usually ships it with fully validated firmware. -
Is this module still supported by Honeywell?
Yes, it is actively supported for use in ongoing and legacy Honeywell systems.
Related Models from the Same Series or Application
| Model Number | Description | System Compatibility | Key Feature |
|---|---|---|---|
| CC-PCF901 | Fiber Optic Interface Module | Experion PKS / TDC 3000 | Fiber redundancy management |
| CC-TAOX01 | Optical Transmitter Module | Experion PKS | Optical transmission of control data |
| CC-FPDX01 | Fiber Digital Exchange Interface | Experion PKS | Multiplexed fiber digital I/O |
| CC-PDOB01 | Digital Output Module | Experion PKS / TDC 3000 | Redundant fail-safe outputs |
| 51400955-100 | Fiber Transmitter/Receiver Module | TDC 3000 | Basic LCN optical connectivity |
| CC-FLRX01 | Fiber Link Receiver Module | Experion PKS | Supports data reception over fiber |
Popular Honeywell Models
| Model Number | Description | System Compatibility | Application Area |
|---|---|---|---|
| C300 Controller | Central process controller | Experion PKS | Main control execution engine |
| CC-PAIN01 | Analog Input Module | Experion PKS | 16-channel analog input |
| CC-TDIL01 | Digital Input Module | Experion PKS / TDC 3000 | 32-channel digital input |
| MC-TAMR03 | Multiplexer Module | TDC 3000 | Analog signal muxing |
| FTE Switch | Fault-tolerant Ethernet switch | Experion PKS Network | Redundant industrial networking |
| CC-TAIX01 | Analog Input Module with HART | Experion PKS | HART-enabled field input integration |
