Product Introduction

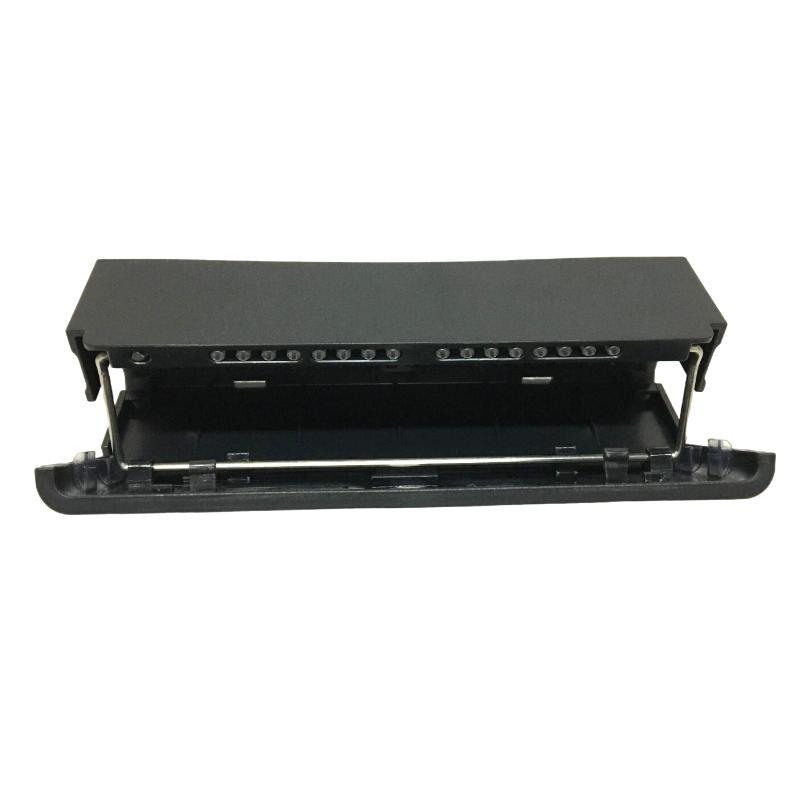

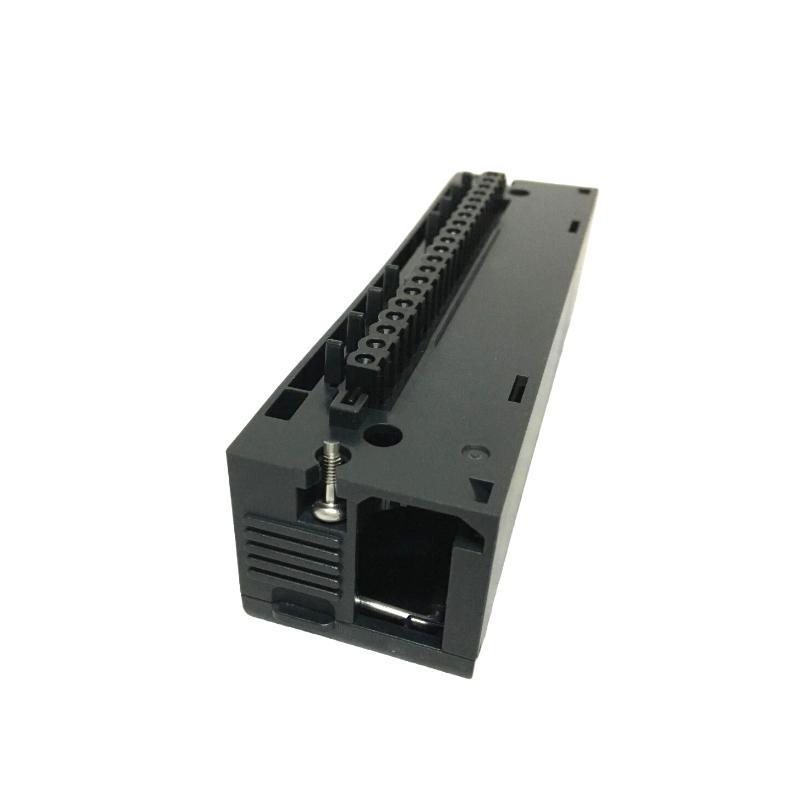

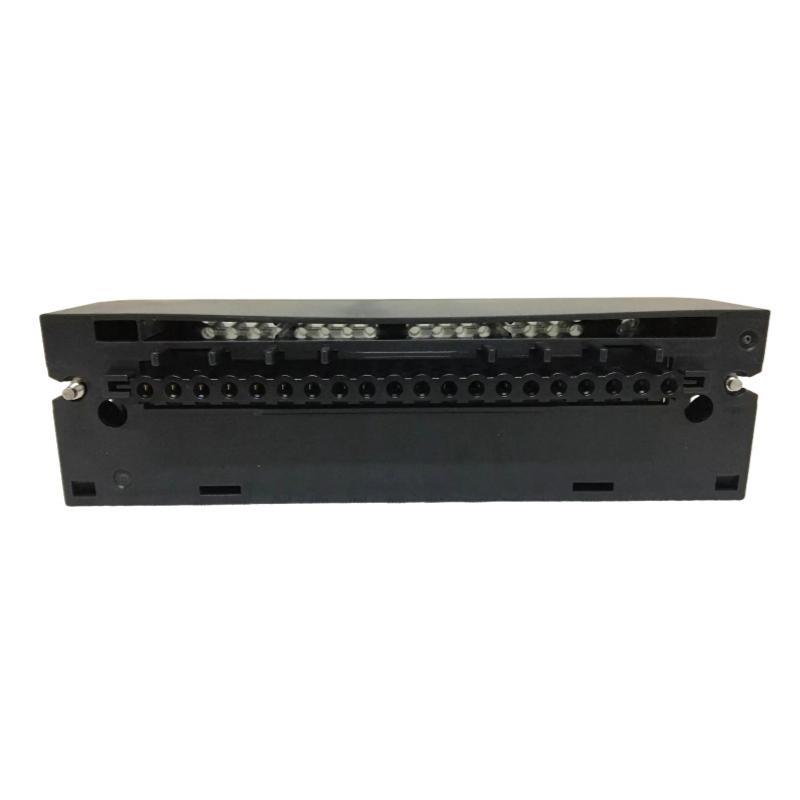

The Honeywell 900TEK-0200 Terminal Block is a premium-quality field wiring interface designed for Honeywell’s automation systems. Built to support high-density, high-reliability terminations, it serves as the key bridge between field devices and process control systems.
Engineered with precision, the 900TEK-0200 Terminal Block allows safe, organized, and efficient connection of signals from a wide range of input and output devices—whether analog or digital. It is optimized for use in control cabinets, DCS panels, and PLC enclosures across industries requiring superior connectivity and durability, such as power generation, oil & gas, chemicals, water treatment, and manufacturing.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Honeywell 900TEK-0200 Terminal Block |
| Model Number | 900TEK-0200 |
| Series | Honeywell 900 Series |
| Function | Field wiring terminal block |
| Number of Terminals | 64 points |
| Terminal Type | Screw clamp |
| Wire Size Range | 0.5 mm² to 2.5 mm² (AWG 20–14) |
| Insulation Material | High-quality polyamide, flame-retardant |
| Dielectric Strength | ≥ 2500 V RMS |
| Operating Voltage | Up to 300 V AC/DC |
| Rated Current | Up to 10 A per terminal |
| Flame Retardancy | UL 94 V-0 |
| IP Protection Rating | IP20 |
| Temperature Range (Operating) | -20°C to +70°C |
| Temperature Range (Storage) | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Mounting Type | DIN rail or panel mounting |
| Dimensions (H x W x D) | 210 × 70 × 45 mm |
| Weight | 0.35 kg |
| Certifications | CE, UL, CSA |
Product Applications
The Honeywell 900TEK-0200 Terminal Block is designed for use across a broad range of industries that demand secure, organized, and efficient field wiring, including:
-
Power Generation
Provides reliable terminations for turbine controls, auxiliary equipment, and instrumentation signals. -
Oil & Gas Industry
Used in offshore platforms, refineries, and pipelines for safe and clear signal wiring. -
Chemical and Petrochemical Plants
Supports complex control systems for reactors, compressors, and utility systems. -
Water and Wastewater Treatment
Simplifies signal termination for pumps, sensors, and distributed I/O. -
Pharmaceutical Manufacturing
Used in validated systems to ensure signal integrity and support compliance. -
Manufacturing and Process Industries
Flexible wiring solution for packaging, material handling, and automated production systems.
Product Advantages
-
High-Density Wiring
64-terminal design allows for efficient use of panel space. -
Superior Reliability
Robust construction ensures long-term performance in industrial environments. -
High Safety Standards
Excellent insulation, flame retardancy (UL 94 V-0), and dielectric strength for safe operation. -
Ease of Maintenance
Clearly marked terminal positions simplify field maintenance and reduce wiring errors. -
Flexible Mounting
Supports both DIN rail and panel installation for a wide range of cabinet designs. -
Industrial Temperature Range
Operates reliably even in harsh temperature conditions. -
Certified for Global Use
CE, UL, and CSA certifications ensure worldwide usability. -
Low Maintenance
Durable materials reduce wear and tear, minimizing long-term maintenance costs.
Frequently Asked Questions (FAQ)
-
What is the primary use of the Honeywell 900TEK-0200 Terminal Block?
It securely connects field wiring to automation systems like DCS and PLCs. -
How many terminal points are on this model?
The 900TEK-0200 features 64 connection points. -
What wire sizes can I use?
Wire sizes from 0.5 mm² to 2.5 mm² (AWG 20–14) are supported. -
Does it support DIN rail mounting?
Yes, it is compatible with both DIN rail and direct panel mounting. -
What voltage rating is the terminal block designed for?
It supports operating voltages up to 300 V AC/DC. -
What is the current rating per terminal?
Each terminal supports up to 10 A. -
What temperature ranges can it handle?
Operating: -20°C to +70°C; Storage: -40°C to +85°C. -
What is the level of insulation protection?
Dielectric strength ≥ 2500 V RMS, IP20-rated housing. -
Is the block certified for global industrial markets?
Yes, it carries CE, UL, and CSA certifications. -
What industries typically use this product?
It is widely used in power generation, oil & gas, chemicals, pharmaceuticals, water treatment, and manufacturing.
Recommended Related Models
| Model Number | Description |
|---|---|
| 900TEK-0100 | 32-point Terminal Block |
| 900TEK-0300 | 128-point Terminal Block |
| 900TEK-0400 | Fused Terminal Block |
| 900TEK-0500 | High-density Terminal Block |
| 900TEK-0600 | Grounding Terminal Block |
| 900TEK-0700 | Shielded Terminal Block |
Popular Honeywell Models
| Model Number | Description |
|---|---|
| CC-TDIL01 | Digital Input Module |
| CC-TDOB01 | Solid-State Digital Output Module |
| MC-PAOY22 | Analog Output Module |
| FC-TSDI-1624 | 16-Channel Digital Input Module |
| FC-TSRO-0824 | 8-Channel Relay Output Module |
| CC-PDIL01 | Pulse Digital Input Module |
