Product Introduction

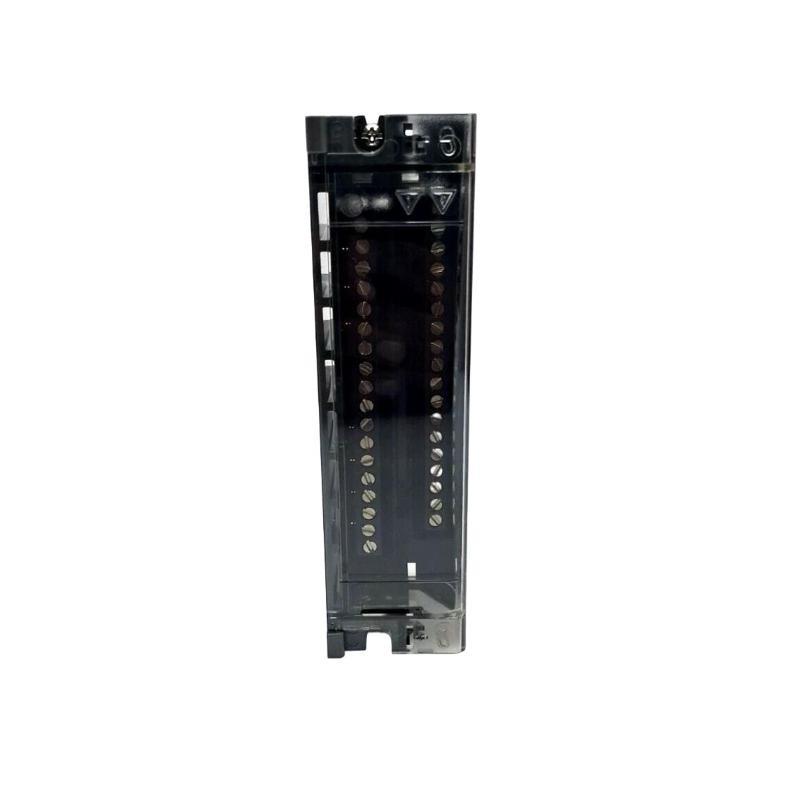

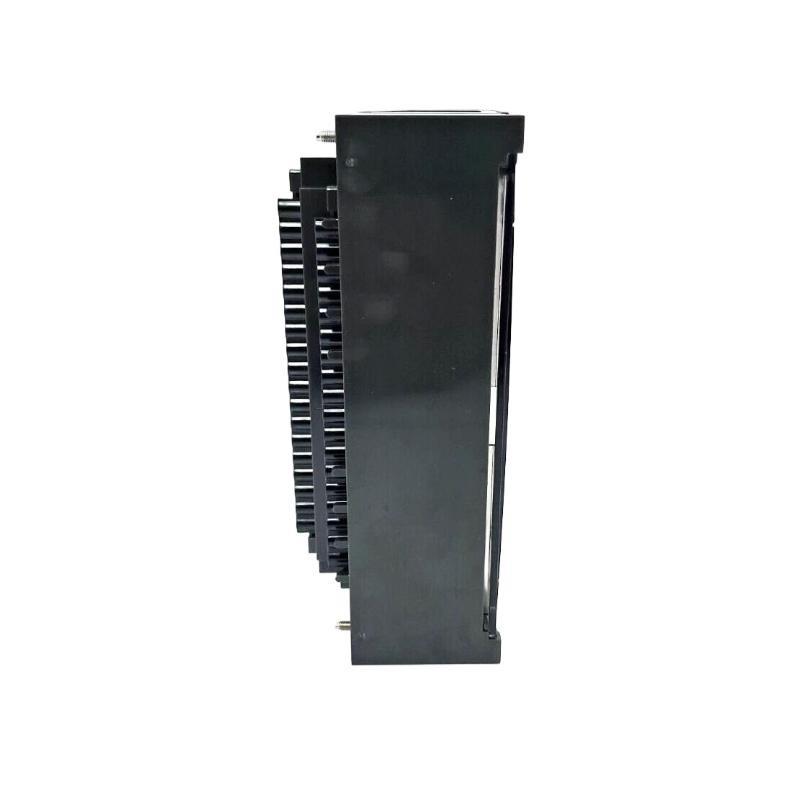

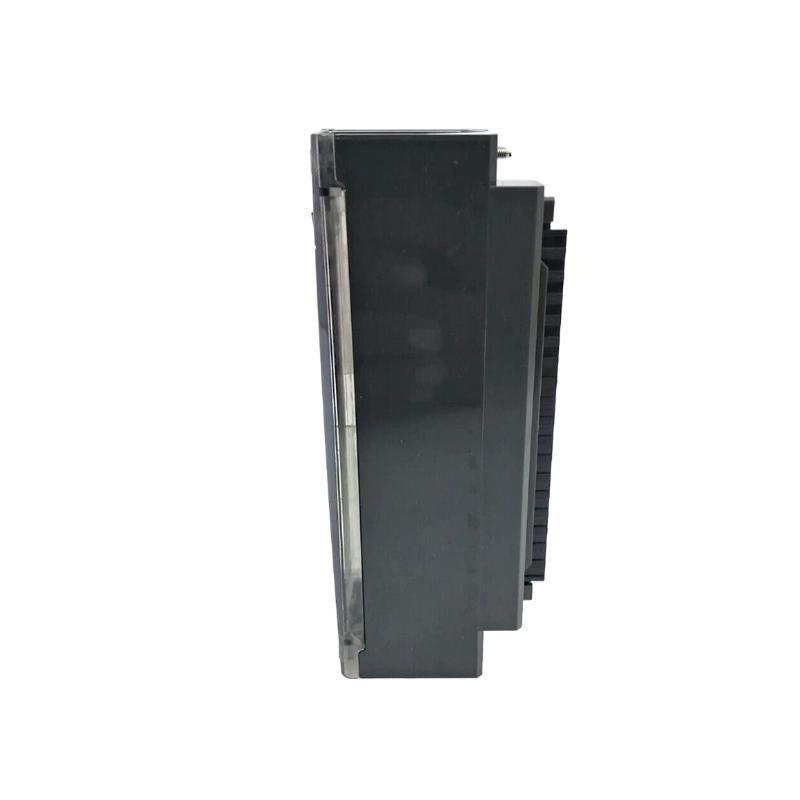

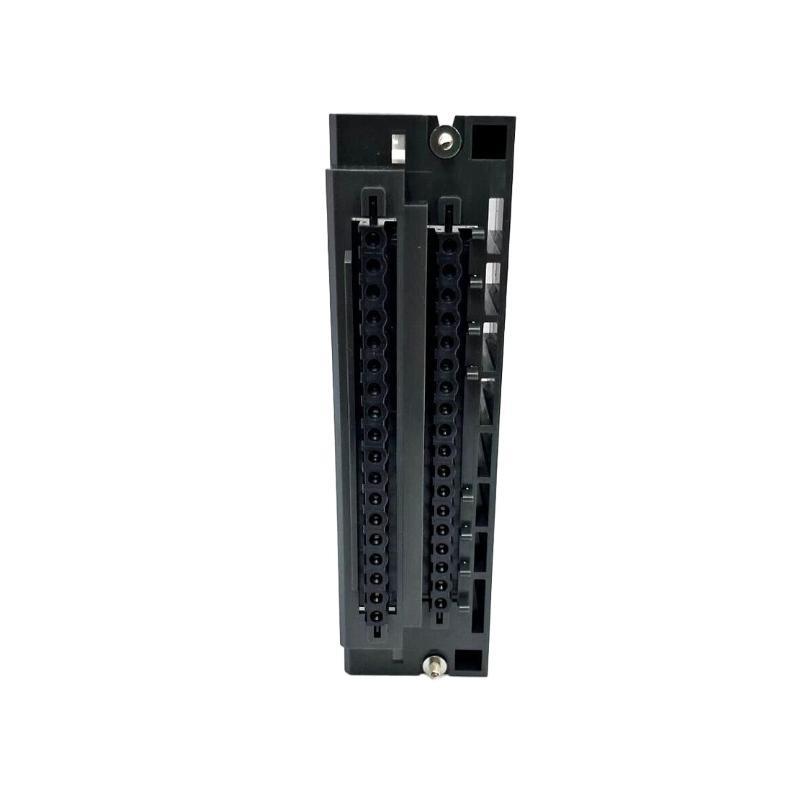

The Honeywell 900TCK-0101 Terminal Block is a reliable and versatile wiring interface solution designed for Honeywell’s industrial control systems. As an essential component in automation panels, this terminal block enables secure and organized connections between field wiring and the I/O modules of a Distributed Control System (DCS) or Programmable Logic Controller (PLC).
With its rugged construction, excellent insulation properties, and ease of installation, the 900TCK-0101 enhances the overall reliability and maintainability of industrial automation systems. The module is built to Honeywell’s high-quality standards, ensuring long service life even in harsh environments such as power plants, oil & gas refineries, chemical plants, and other process industries.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Honeywell 900TCK-0101 Terminal Block |
| Model Number | 900TCK-0101 |
| Series | Honeywell 900 Series I/O Terminal Block |
| Function | Terminal block for signal wiring |
| Number of Terminals | 32 points |
| Terminal Type | Screw clamp |
| Wire Size Range | 0.5 mm² to 2.5 mm² (AWG 20–14) |
| Insulation Material | High-grade polyamide |
| Dielectric Strength | ≥ 2500 V RMS |
| Operating Voltage | Up to 250 V |
| Rated Current | Up to 10 A per terminal |
| Protection Rating | IP20 |
| Flame Retardancy | UL 94 V-0 rated |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN rail or direct panel mount |
| Dimensions (H x W x D) | 160 × 65 × 45 mm |
| Weight | 0.159 kg |
| Certifications | CE, UL, CSA |
Product Applications
The Honeywell 900TCK-0101 Terminal Block is widely used in various industrial automation environments, particularly where reliability, safety, and ease of wiring are priorities:
-
Power Generation
For connecting sensors, actuators, and control signals in power plants, including turbine controls and auxiliary systems. -
Oil & Gas
For safe and secure signal termination in refineries, offshore platforms, and natural gas plants. -
Chemical & Petrochemical
Used for signal routing and I/O connectivity in process units, reaction skids, and utility systems. -
Water & Wastewater
Supports distributed control and instrumentation in pumping stations and treatment facilities. -
Pharmaceutical Manufacturing
Provides validated wiring infrastructure for compliant control systems. -
Automotive and Food & Beverage
For flexible and organized wiring in high-speed production environments.
Product Advantages
-
Reliable Signal Termination
Ensures secure and vibration-resistant wiring connections for stable signal transmission. -
High Insulation Strength
Superior dielectric performance guarantees operational safety in high-voltage environments. -
Compact Footprint
32-point terminal block optimizes panel space and simplifies wiring layouts. -
Easy Maintenance
Clearly labeled terminals and accessible design simplify field troubleshooting and re-wiring. -
High Flame Retardancy
UL 94 V-0 rated materials minimize fire risk in control cabinets. -
Flexible Mounting Options
Suitable for both DIN rail and direct panel installations. -
Durable Industrial Design
Built to withstand the rigors of industrial use with wide temperature and humidity tolerances. -
Global Certification
CE, UL, and CSA certified for use in international automation projects.
Frequently Asked Questions (FAQ)
-
What is the function of the 900TCK-0101 Terminal Block?
It is used to securely terminate field wiring and connect signals to the control system. -
How many terminals does it have?
The terminal block has 32 connection points. -
What type of terminals are used?
It uses screw clamp terminals for secure wiring. -
What wire sizes can be used?
It supports 0.5 mm² to 2.5 mm² wires (AWG 20–14). -
What is the maximum rated current per terminal?
Each terminal can handle up to 10 A. -
Can this terminal block be mounted on a DIN rail?
Yes, it supports DIN rail and direct panel mounting. -
What insulation rating does it have?
Dielectric strength is ≥ 2500 V RMS. -
What certifications does the 900TCK-0101 have?
It is CE, UL, and CSA certified. -
What is its operating temperature range?
It operates between -20°C and +70°C. -
In which industries is this terminal block commonly used?
It is widely used in power generation, oil & gas, chemical, pharmaceutical, and manufacturing industries.
