Product Introduction

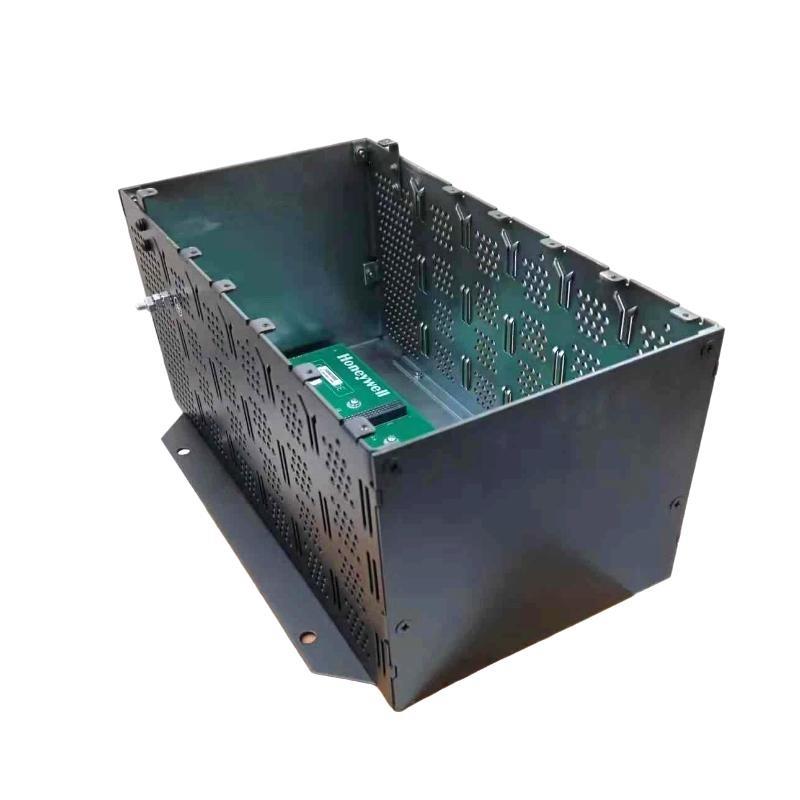

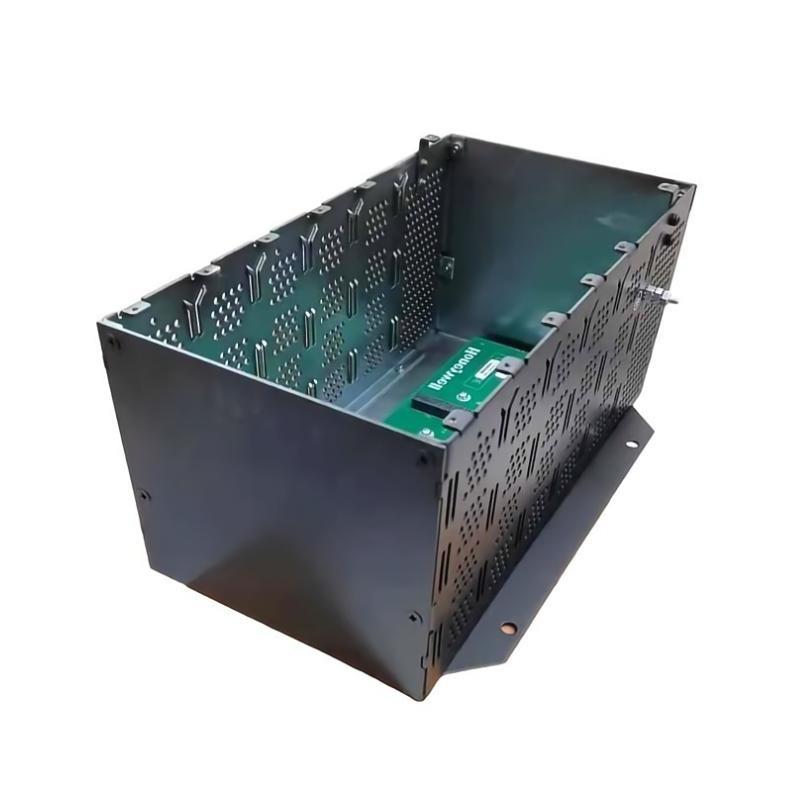

The Honeywell 900R04-0200 4 Slot I/O Slot Rack is a modular I/O chassis designed for the HC900 Hybrid Controller and other Honeywell process automation systems. It provides a robust and flexible platform for housing digital and analog input/output modules, enabling streamlined integration of process control devices into centralized control architectures.
Designed for industrial environments, the 4-slot I/O rack ensures reliable electrical connections, secure mounting of modules, and effective communication between the I/O modules and the HC900 controller. This rack is widely used in industries requiring high system availability, real-time monitoring, and centralized control of multiple field devices.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Model | Honeywell 900R04-0200 |
| Series | HC900 I/O Rack |
| Slot Count | 4 Slots for I/O modules |
| Supported Modules | Digital Input, Digital Output, Analog Input, Analog Output modules |
| Backplane Communication | High-speed communication bus to HC900 CPU |
| Power Supply | 24 VDC nominal via system backplane |
| Maximum Current per Slot | 2 A |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% – 95% non-condensing |
| Mounting Type | DIN-rail or panel mount |
| Dimensions | 137 x 266.7 x 151.7 mm |
| Weight | 2.104 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
-
Process Automation – Centralizes digital and analog I/O modules for coordinated control of process equipment.
-
Water and Wastewater Treatment – Interfaces with pumps, valves, and chemical dosing systems.
-
Oil & Gas Facilities – Connects field sensors and actuators to the HC900 control system for safe and efficient operations.
-
Chemical and Pharmaceutical Production – Houses I/O modules for precise process measurement and control.
-
Power Generation – Enables distributed monitoring and control of auxiliary equipment.
-
Manufacturing Automation – Provides modular expansion capability for machine and line automation.
Product Advantages
-
Modular Design – Supports flexible installation and easy future expansion with additional I/O modules.
-
High Reliability – Industrial-grade design ensures consistent performance in harsh environments.
-
Seamless Integration – Fully compatible with HC900 controllers and communication protocols.
-
Efficient Space Usage – Four slots in a compact rack allow efficient utilization of cabinet space.
-
Rapid Maintenance – Hot-swappable modules reduce downtime during maintenance.
-
Real-Time Performance – High-speed backplane ensures low-latency communication with the controller.
-
Versatile Mounting – DIN-rail or panel mounting options simplify installation in diverse setups.
-
Safe and Secure Connections – Locking connectors prevent module disconnections and signal errors.
FAQ
-
What types of I/O modules can be installed in the 900R04-0200?
It supports digital input, digital output, analog input, and analog output modules compatible with HC900. -
Is the rack hot-swappable?
Yes, I/O modules can be replaced without powering down the system when used with appropriate HC900 CPU configurations. -
How does the rack communicate with the HC900 controller?
Communication occurs via a high-speed backplane that ensures real-time data transfer between modules and CPU. -
Can multiple racks be connected in one system?
Yes, multiple 4-slot racks can be connected to expand total I/O capacity. -
What is the maximum current per slot?
Each slot supports up to 2 A of current for connected I/O modules. -
Does the rack require a separate power supply?
No, power is supplied via the system backplane from the HC900 controller. -
Can the rack be mounted in standard industrial cabinets?
Yes, it supports both DIN-rail and panel mounting options. -
Does it support analog signal modules?
Yes, the rack is fully compatible with analog input/output modules for voltage and current signals. -
Are there any diagnostic features for the rack itself?
Yes, module status LEDs and backplane fault indicators assist in troubleshooting. -
Can the rack be used in environments with high humidity or dust?
Yes, it operates reliably in 5%–95% non-condensing humidity environments typical in industrial settings.
