Product Overview

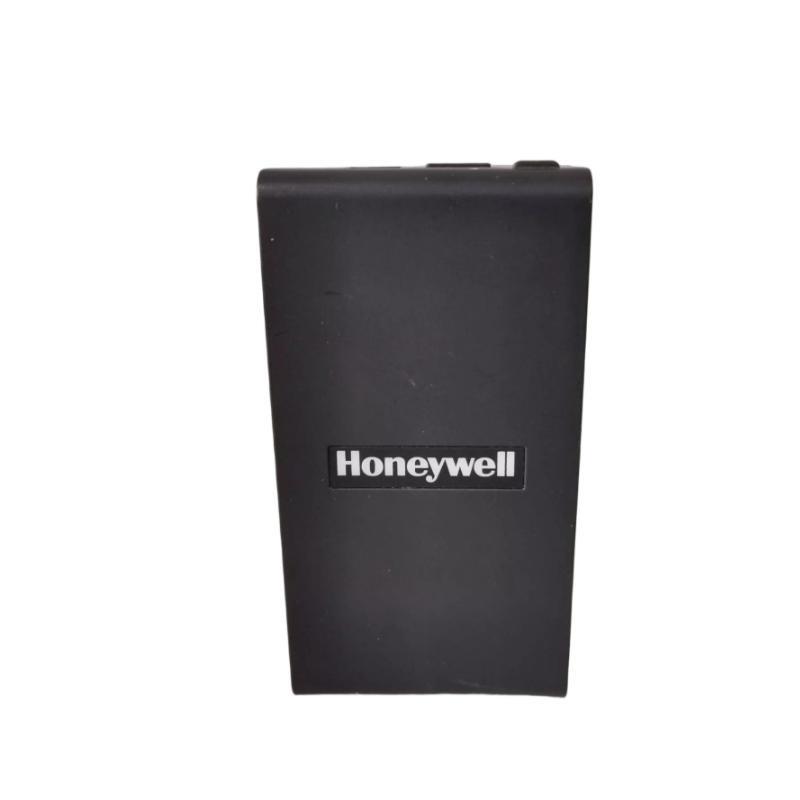

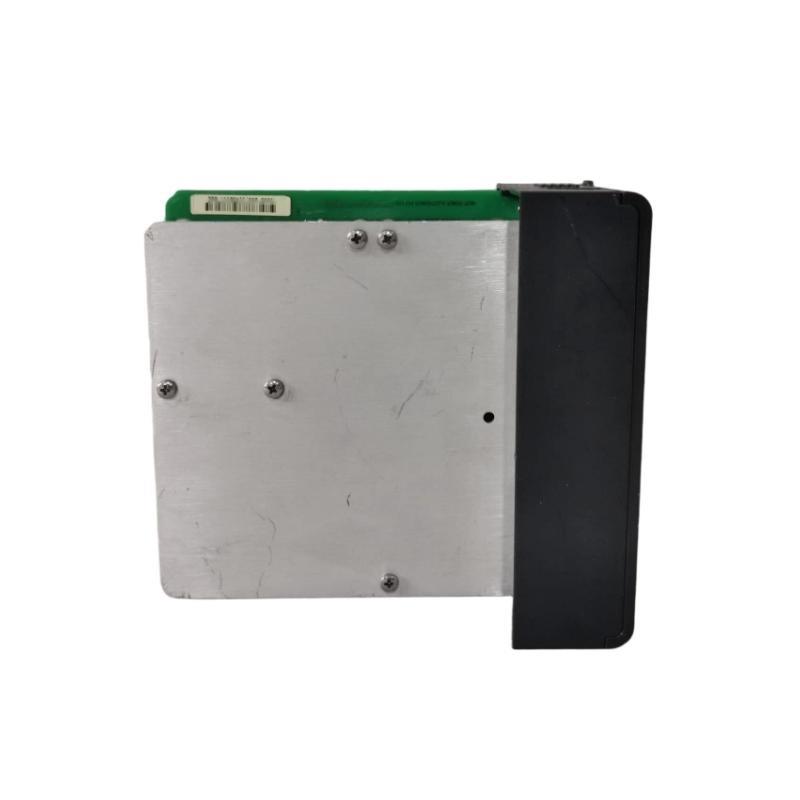

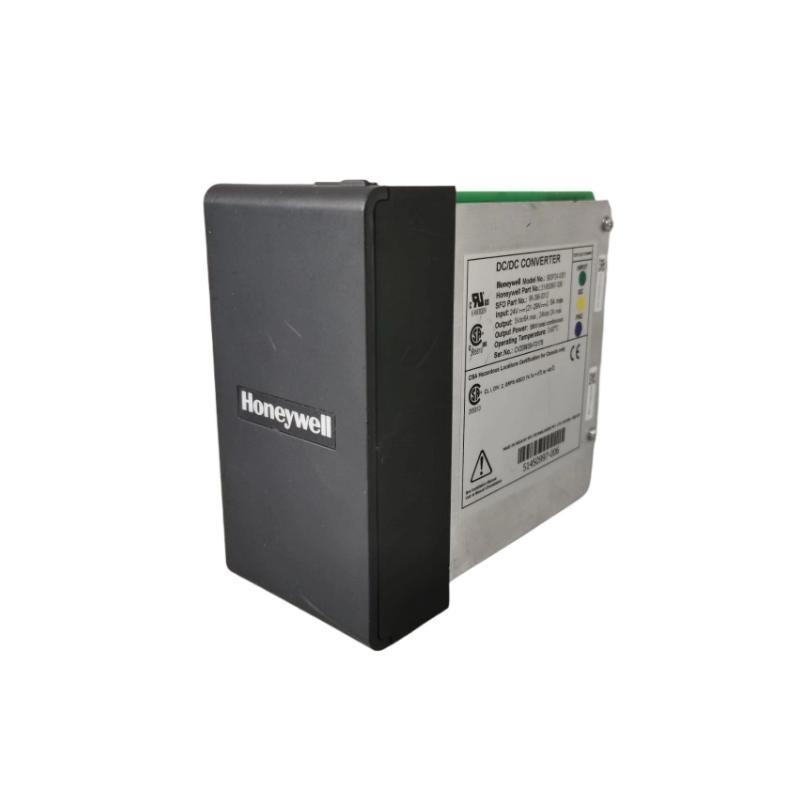

The Honeywell 900P24-0501 is a 24VDC power supply module designed for the HC900 ControlEdge system. It delivers both 5VDC and 24VDC to support HC900 racks containing CPUs, I/O modules, and scanners. With a 60-watt output capacity, it ensures reliable and efficient power delivery for various process automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 900P24-0501 |
| Input Voltage Range | 21–29 VDC |
| Output Voltage | 5 VDC and 24 VDC |
| Output Power Rating | 60 Watts |
| Inrush Current | 30 A for 3 ms @ 29 VDC |
| Internal Fuse | Yes (non-replaceable) |
| Test Jacks | None |

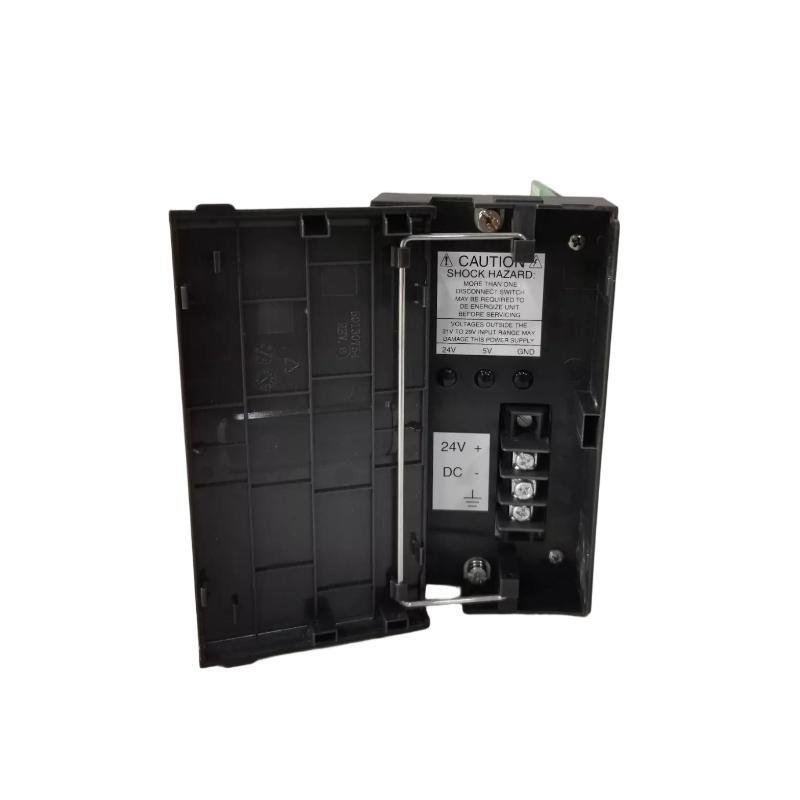

| Wiring Type | Screw terminals, #12–22 AWG |
| Dimensions (H x W x D) | 137 x 72.6 x 151 mm |
| Weight | 0.65 kg |
| Mounting | Standard 35 mm DIN rail |
Applications
-
Powering HC900 controller racks with CPUs and I/O modules
-
Suitable for use in industrial automation and process control
-
Used in systems requiring reliable 24VDC operation with redundancy support
-
Appropriate for remote I/O stations with DC power infrastructure
Product Advantages
-
Stable Power Delivery: Supports both logic and field power (5VDC & 24VDC) up to 60W
-
Compact Form Factor: Saves panel space with its DIN rail mountable design
-
Built-in Protection: Features an internal non-replaceable fuse for overcurrent protection
-
Industrial Grade: Designed for harsh industrial environments with robust reliability
-
No Derating Required: Supports full range of I/O modules with minimal derating
-
Easy Installation: Screw terminal wiring and secure mounting design
Frequently Asked Questions (FAQ)
Q1: What is the power rating of the 900P24-0501 module?
A1: It provides up to 60 watts of total output power.
Q2: What input voltage does the module require?
A2: It operates with a 21–29VDC input voltage range.
Q3: Does it support redundant power configurations?
A3: Yes, it’s suitable for racks designed with redundancy.
Q4: Is there a fuse inside the unit?
A4: Yes, it contains an internal non-replaceable fuse for protection.
Q5: Can I replace the fuse in case of failure?
A5: No, the fuse is non-replaceable; the unit must be serviced or replaced.
Q6: Is it suitable for AC power input?
A6: No, this model is strictly for 24VDC input.
Q7: Are there test points available on this unit?
A7: No, test jacks are not available on the 900P24-0501.
Q8: What kind of wiring terminals does it support?
A8: It uses screw terminals compatible with 12–22 AWG wires.
Q9: What is the mounting method for this power supply?
A9: It mounts on a standard 35mm DIN rail.
Q10: What certifications does it hold?
A10: It complies with CE, UL, CSA, FM, and ATEX certifications.
Related Models (Same Series)
| Model Number | Description | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 900P24-0301 | 24VDC PSU, standard | 21–29 VDC | 60W | 137 x 72.6 x 151 | 0.79 kg |
| 900P24-0401 | 24VDC PSU, SIL-rated | 21–29 VDC | 60W | 137 x 72.6 x 151 | 0.65 kg |
| 900P01-0301 | 120/240VAC PSU, standard | 90–264 VAC | 60W | 137 x 72.6 x 151 | 0.82 kg |
| 900P01-0401 | 120/240VAC PSU, SIL-rated | 90–264 VAC | 60W | 137 x 72.6 x 151 | 0.65 kg |
| 900PSM-0200 | Power Status Module (Redundant) | N/A | N/A | 137 x 35.6 x 151 | 0.45 kg |
| 900R08R-0200 | Rack with redundant PSU support | N/A | N/A | 137 x 530.9 x 151.7 | 4.42 kg |
Popular Honeywell Models (Same Brand)
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 900C70-0460 | HC900 Controller CPU | 137 x 38.1 | 0.40 kg |
| 900S75-0460 | 2-Port Scanner Module | 137 x 38.1 | 0.40 kg |
| 900A01-0202 | 8-Ch Universal Analog Input Module | 137 x 35.6 | 0.21 kg |
| 900B08-0202 | 8-Ch Analog Output Module | 137 x 35.6 | 0.40 kg |
| 900G32-0101 | 32-Ch DC Digital Input Module | 137 x 35.6 | 0.18 kg |
| 900H01-0202 | 8-Ch Relay Output Module | 137 x 35.6 | 0.43 kg |
