Product Introduction

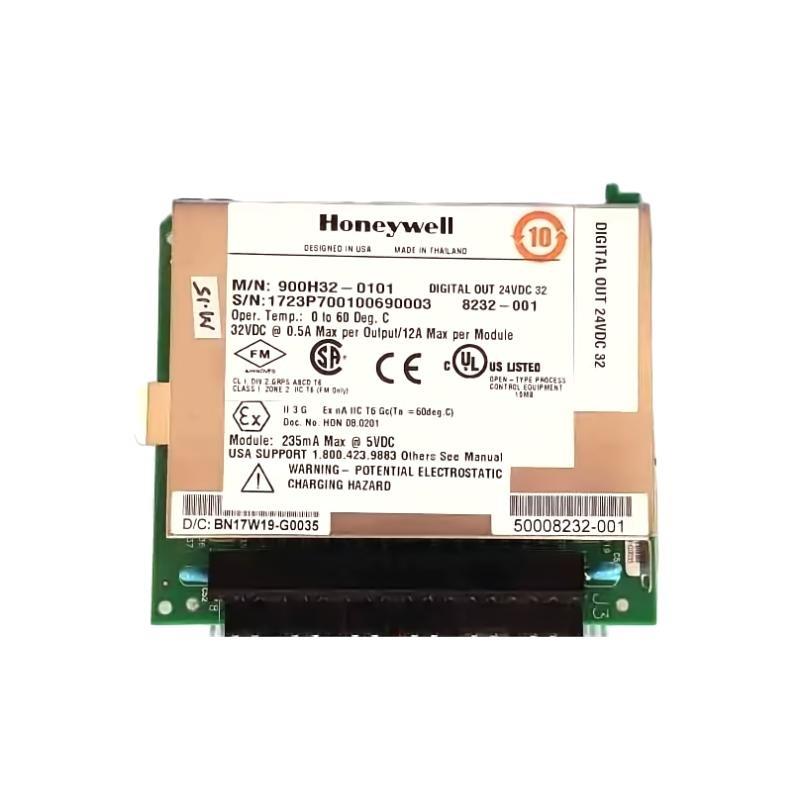

The Honeywell 900H32-0101 Digital Output Module is a high-performance output module designed for use in Honeywell’s Experion® Process Knowledge System (PKS) and ControlEdge™ automation platforms. It provides reliable digital signal output for driving actuators, relays, solenoids, and other field devices in industrial control environments.
This module is engineered with strong isolation, robust protection, and fast response characteristics, making it a dependable solution for process control industries. It ensures seamless integration with Honeywell controllers and offers superior performance in mission-critical applications where precise and stable digital output signals are required.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Honeywell 900H32-0101 |
| Module Type | Digital Output Module |
| Channels | 32 channels (individually configurable) |
| Output Type | Discrete, sourcing |
| Output Voltage Range | 24 V DC nominal (18–32 V DC) |
| Maximum Output Current | 0.5 A per channel |
| Channel Isolation | Optical isolation per channel |
| Switching Speed | < 1 ms |
| Diagnostics | Open circuit, short circuit, and overload detection |
| Power Consumption | Approx. 8 W |
| Protection Features | Overload, overtemperature, and short-circuit protection |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -20–70 °C |
| Humidity Range | 5–95% RH, non-condensing |
| Cooling Method | Natural convection |
| Standards Compliance | IEC/EN 61131, CE, UL, CSA certified |
| Mounting | Rack-mounted in Honeywell system chassis |
| Dimensions | 137 x 35.6 x 137.16 mm |
| Weight | 0.18 kg |
Product Applications
The 900H32-0101 Digital Output Module is widely used in industrial automation systems where reliable switching and control signals are necessary. Typical applications include:
-
Process Control Systems: Driving field actuators, solenoids, and relay coils in DCS/PLC environments.
-
Power Generation Plants: Controlling breakers, switches, and turbine auxiliary systems.
-
Petrochemical and Refining: Managing discrete control signals for pumps, valves, and emergency shutdown devices.
-
Pharmaceutical Automation: Precise on/off control for batch processes and production lines.
-
Manufacturing: Machine control, packaging systems, and robotic actuation.
-
Utilities: Monitoring and controlling water treatment, distribution, and energy management systems.
Product Advantages
-
High Channel Density – 32 channels per module for efficient space utilization.
-
Fast Response Time – Less than 1 ms switching for time-sensitive applications.
-
Enhanced Protection – Built-in protection against overload, short circuit, and overheating.
-
Advanced Diagnostics – Provides clear fault detection for easy troubleshooting.
-
Strong Isolation – Optical isolation for channel-to-channel and system protection.
-
Scalability – Easily integrates with Honeywell’s DCS/PLC platforms for system expansion.
-
Industrial Durability – Designed for continuous operation in demanding environments.
-
Seamless Integration – Fully compatible with Honeywell Experion® PKS and ControlEdge™ systems.
FAQ
-
How many output channels does the 900H32-0101 support?
It provides 32 individually configurable channels. -
What is the nominal output voltage of the module?
The module operates at 24 V DC nominal (18–32 V DC range). -
What is the maximum current supported per channel?
Each channel can deliver up to 0.5 A. -
Does the module provide channel-to-channel isolation?
Yes, each channel is optically isolated. -
What is the typical switching speed of the outputs?
The outputs switch in less than 1 millisecond. -
Does the module support diagnostic functions?
Yes, it detects open circuits, short circuits, and overloads. -
What protection mechanisms are included?
The module has overload, short-circuit, and overtemperature protection. -
Can the outputs be configured as sourcing or sinking?
The 900H32-0101 is primarily a sourcing output module. -
What environmental standards does the module meet?
It complies with IEC/EN 61131, CE, UL, and CSA standards. -
Is the module compatible with Honeywell Experion PKS controllers?
Yes, it is fully compatible and designed for seamless integration.
