Product Introduction

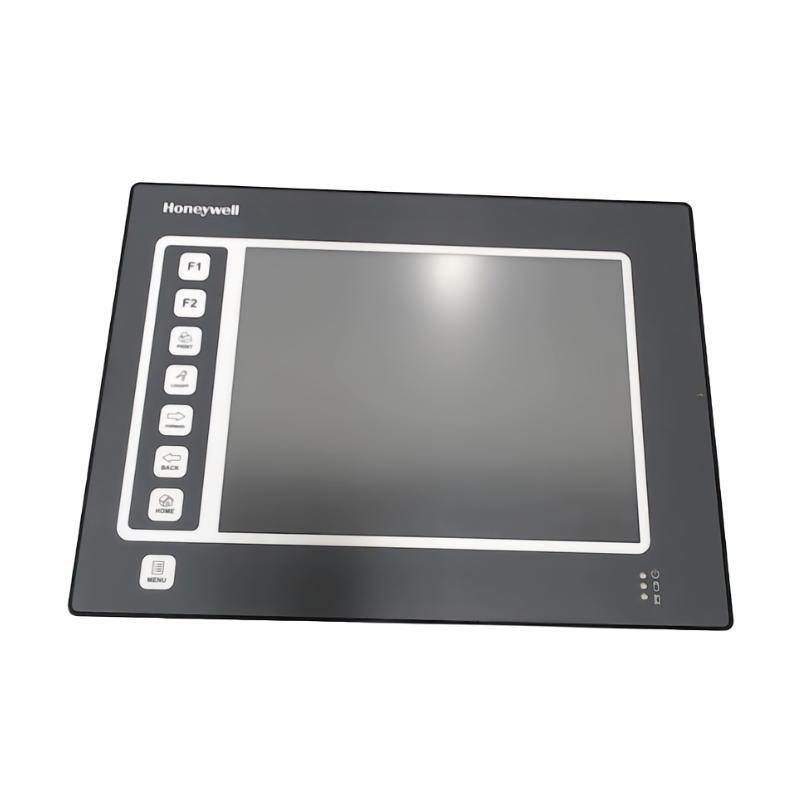

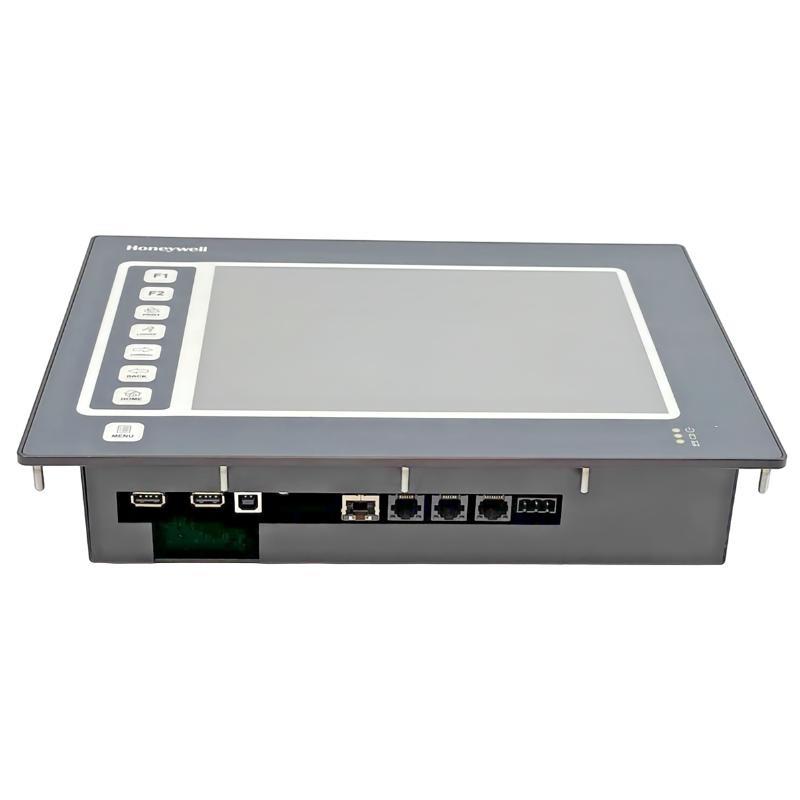

The Honeywell 900CS10-00 HC900 Control Station is a versatile operator interface designed for Honeywell’s HC900 Hybrid Controller platform. It provides a centralized human-machine interface (HMI) for monitoring, configuring, and controlling industrial processes. The control station integrates seamlessly with HC900 CPUs, enabling operators to visualize real-time process data, execute control commands, and respond to alarms efficiently.
Engineered for demanding industrial environments, the HC900 Control Station ensures reliability, high responsiveness, and intuitive operation. It is widely used in industries such as water and wastewater treatment, chemical processing, power generation, and advanced manufacturing where accurate monitoring and rapid operator response are critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Model | Honeywell 900CS10-00 |
| Series | HC900 Control Station |
| Display Type | TFT LCD, color, backlit |
| Display Resolution | 800 × 600 pixels |
| Input Method | Touchscreen with multi-point support |
| CPU Compatibility | HC900 C30 / C50 / C70 Controllers |

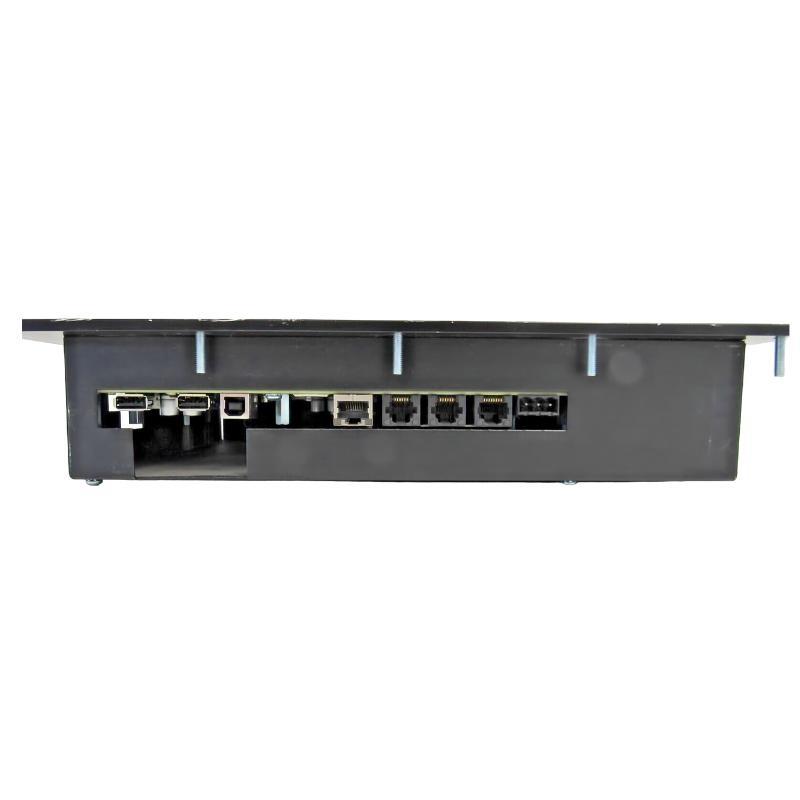

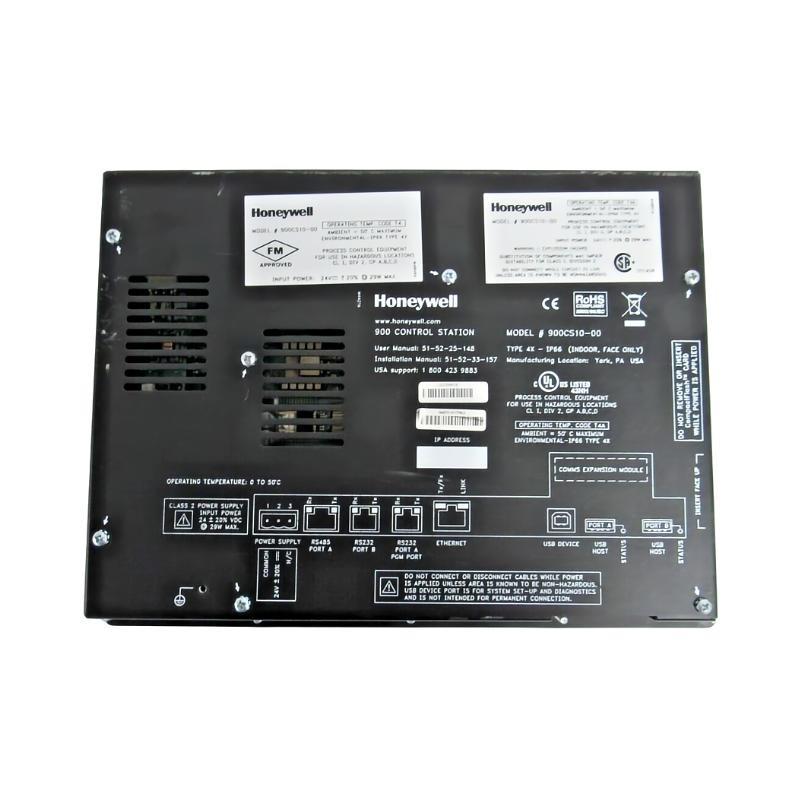

| Communication Ports | Ethernet, RS-232, RS-485 |
| Supported Protocols | Modbus RTU, Modbus TCP/IP, Honeywell proprietary protocols |
| Power Supply | 24 VDC nominal |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% – 95% non-condensing |
| Mounting | Panel mount |
| Dimensions | 311.2 × 226.7 mm |
| Weight | 2.53 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
-
Process Monitoring – Provides real-time visualization of industrial processes, including temperature, flow, pressure, and level control.
-
Batch Control – Enables operators to monitor and execute batch sequences accurately, ensuring process consistency.
-
Water and Wastewater Treatment – Used for controlling pumps, valves, and chemical dosing systems efficiently.
-
Chemical and Pharmaceutical Manufacturing – Monitors complex chemical reactions, blending, and safety interlocks.
-
Power Generation – Interfaces with boiler, turbine, and auxiliary equipment for operator oversight.
-
Oil & Gas Facilities – Supervises upstream and downstream operations, ensuring safe and efficient production.
-
Machine Automation – Facilitates human interaction with automated equipment and robotics.
Product Advantages
-
Intuitive Interface – User-friendly touchscreen with graphical visualization simplifies operator interaction.
-
Seamless Integration – Fully compatible with Honeywell HC900 controllers and other DCS components.
-
Real-Time Data Access – Provides up-to-date process information for faster decision-making.
-
Alarm Management – Supports configurable alarms with acknowledgment and logging for safety and compliance.
-
Network Flexibility – Multiple communication ports enable connection to controllers and remote systems.
-
Scalable System – Can be used in small standalone installations or large distributed networks.
-
High Reliability – Industrial-grade construction ensures operation in demanding environments.
-
Customizable Display – Supports process graphics, trends, and operator control elements for tailored applications.
-
Enhanced Diagnostics – Integrated system diagnostics allow rapid identification and resolution of issues.
-
Future-Proof Design – Compatible with firmware updates and software enhancements for long-term adaptability.
FAQ
-
Which HC900 controllers are compatible with the 900CS10-00?
It is compatible with HC900 C30, C50, and C70 controller CPUs. -
What communication protocols are supported?
Modbus RTU, Modbus TCP/IP, and Honeywell proprietary protocols are supported. -
Can multiple control stations be networked together?
Yes, multiple control stations can operate on the same network, providing synchronized data access. -
Is the touchscreen interface multi-touch capable?
Yes, it supports multi-point touchscreen operation for intuitive navigation. -
Can the control station display real-time trends and historical data?
Yes, it can display both real-time process trends and historical process data. -
Does the station support alarm logging and notifications?
Yes, alarms are configurable with acknowledgment and historical logging for safety compliance. -
Is remote monitoring possible using the 900CS10-00?
Yes, through Ethernet connectivity, remote monitoring and control are possible with appropriate network configuration. -
Can the display graphics be customized for specific processes?
Yes, operators can configure graphics, control elements, and process indicators to match application requirements. -
Does it provide diagnostic information about the connected controllers?
Yes, it can display CPU status, communication errors, and input/output diagnostics. -
Can firmware be updated on the control station?
Yes, firmware updates are supported to ensure compatibility with new system features and software enhancements.
