Product Introduction

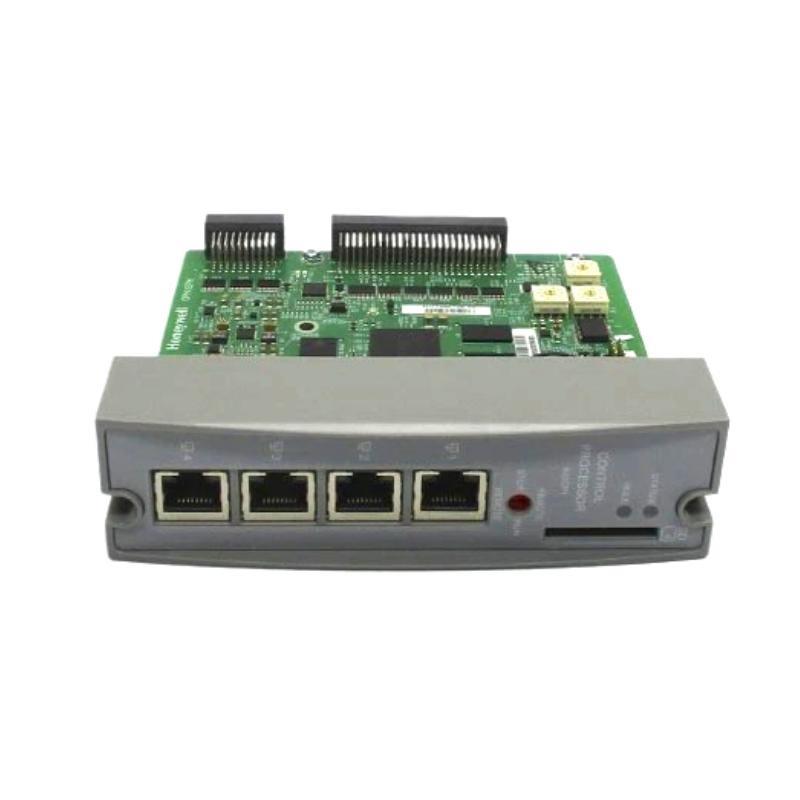

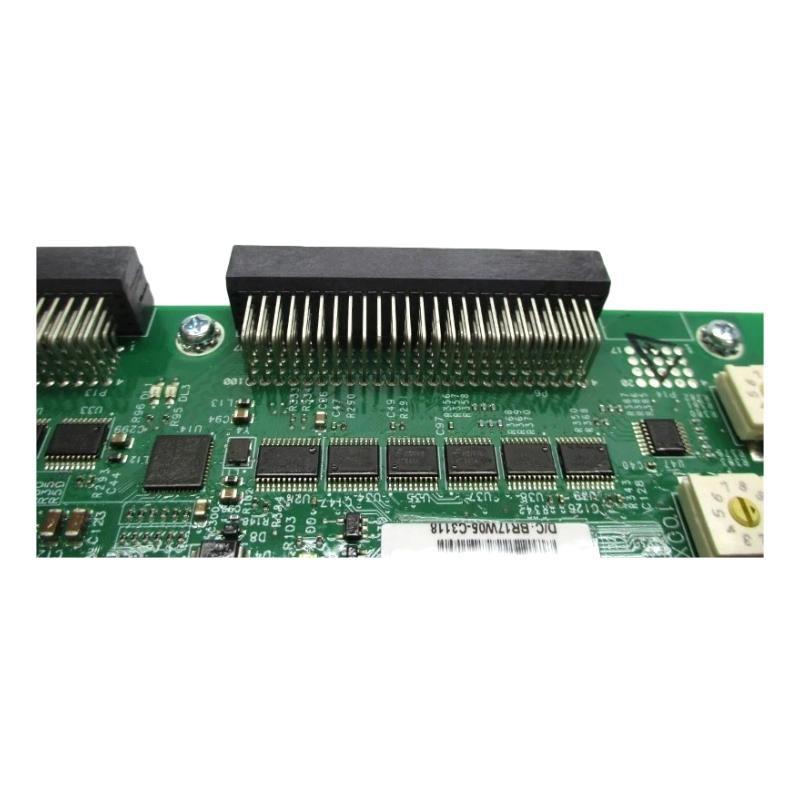

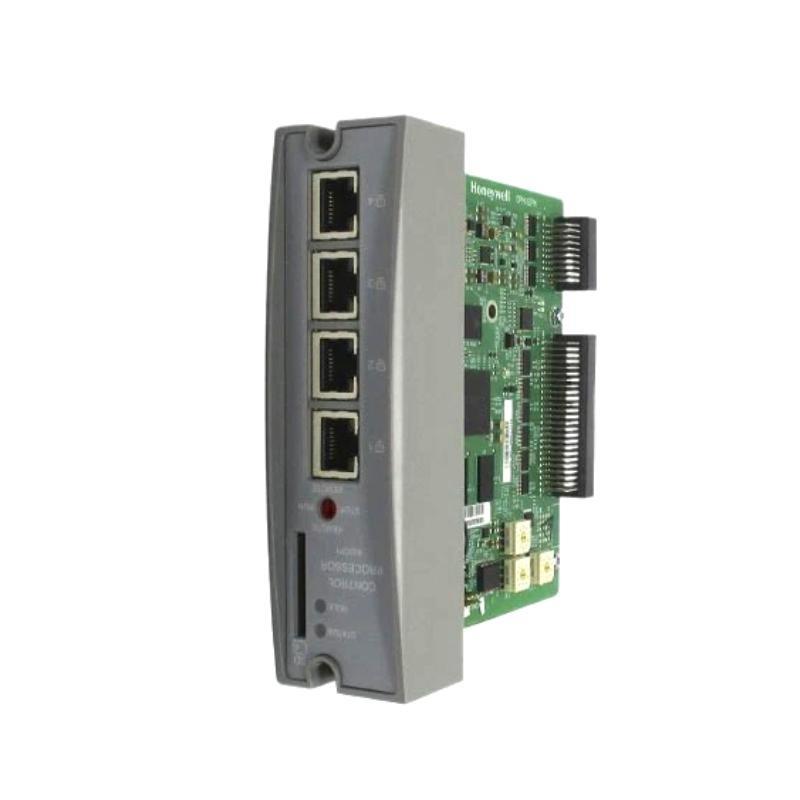

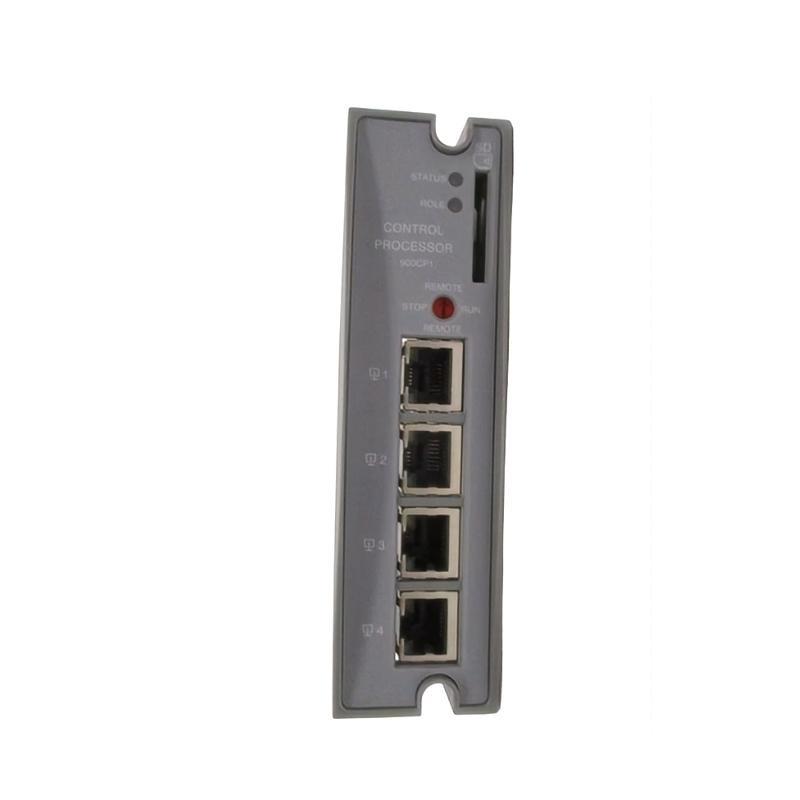

The Honeywell 900CP1-0100 Control Processor Module is a central processing unit designed for the HC900 Hybrid Control System. It serves as the “brain” of the control rack, executing process control, sequencing, logic, and communication functions. Built with industrial-grade reliability, this processor module integrates seamlessly into the HC900 platform, delivering real-time monitoring, high-speed processing, and robust networking.
The 900CP1-0100 enables process industries to unify logic and loop control in one hardware module, eliminating the need for separate PLC and DCS systems. It provides an optimal solution for mid-range automation, balancing flexibility, power, and redundancy.
Product Specifications
| Parameter | Description |
|---|---|
| Model | Honeywell 900CP1-0100 |
| Product Type | Control Processor Module (HC900 series) |
| Processor Type | 32-bit high-performance CPU |
| Memory | 32 MB RAM, 16 MB Flash for program and data storage |
| I/O Capacity | Up to 4,000 I/O points with modular expansion |
| Communication Interfaces | Ethernet (Modbus TCP/IP), peer-to-peer networking, backplane bus |
| Redundancy | Supports controller redundancy with paired modules |
| Scan Rate | As low as 10 ms depending on system load |
| Power Supply Requirement | 24 V DC nominal (18–32 V DC range) |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -20–70 °C |
| Humidity Range | 5–95% RH, non-condensing |
| Standards Compliance | CE, UL, CSA, IEC/EN 61131 |
| Diagnostics | Built-in watchdog, self-check, fault LEDs |
| Dimensions | 137 x 35.6 x 137.16 mm |
| Weight | 0.18 kg |
Product Applications
The 900CP1-0100 Control Processor Module is widely deployed across diverse industries due to its ability to combine process automation and logic control. Key applications include:
-
Power Generation – Boiler control, turbine auxiliary systems, and safety interlocks.
-
Oil & Gas / Petrochemical – Reactor control, compressor monitoring, and process sequencing.
-
Water and Wastewater Treatment – Pump control, dosing systems, filtration, and plant automation.
-
Food & Beverage – Batch processing, recipe management, and temperature control.
-
Pharmaceutical Industry – Sterilization, clean room automation, and regulatory compliance control.
-
Metals and Mining – Furnace control, rolling mill automation, and safety systems.
Product Advantages
-
Unified Control – Combines loop, logic, and sequencing in one processor.
-
High-Speed Performance – Fast execution cycle enables precise process control.
-
Redundancy Support – Works in paired configuration for fault-tolerant operation.
-
Scalability – Supports expansion up to thousands of I/O points.
-
Seamless Integration – Compatible with Honeywell Experion® and third-party SCADA systems.
-
Diagnostics and Reliability – Built-in fault detection and watchdog timer.
-
Industrial-Grade Design – Rugged module suitable for continuous 24/7 operation.
-
Flexible Networking – Supports Ethernet communication and Modbus TCP/IP protocols.
FAQ
-
What type of CPU architecture does the 900CP1-0100 use?
It uses a 32-bit high-performance CPU optimized for real-time process control. -
Does this module support controller redundancy?
Yes, it can be paired with another 900CP1-0100 for redundant operation. -
What is the maximum number of I/O points supported?
Up to 4,000 I/O points can be configured with modular expansion. -
How fast is the scan cycle of the processor?
The processor can achieve a scan rate as low as 10 ms depending on system configuration. -
Which communication protocols are supported?
It supports Ethernet, Modbus TCP/IP, peer-to-peer networking, and the backplane bus. -
Can this module be integrated with Honeywell Experion systems?
Yes, it is fully compatible with Experion® PKS for extended control and monitoring. -
What diagnostic features are included?
The module has self-check mechanisms, watchdog timers, and fault indication LEDs. -
Is it possible to hot-swap this processor module?
No, the processor itself is not hot-swappable, but certain I/O modules are. -
How is memory allocated for user programs?
It includes 32 MB RAM and 16 MB Flash for programs, historical data, and process variables. -
What redundancy modes are supported?
It supports CPU redundancy, automatic switchover, and communication failover.
