Product Introduction

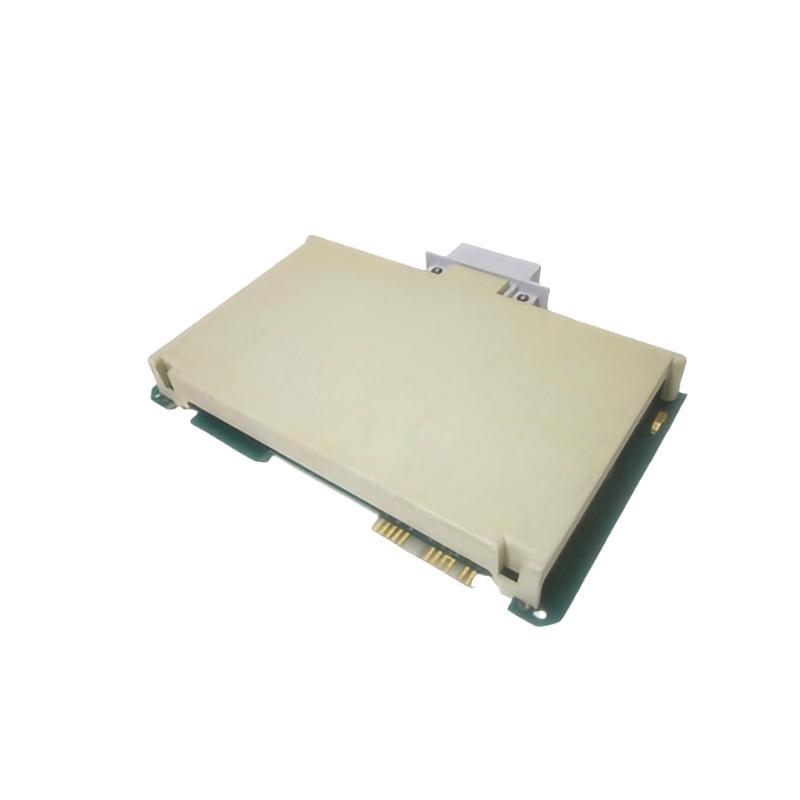

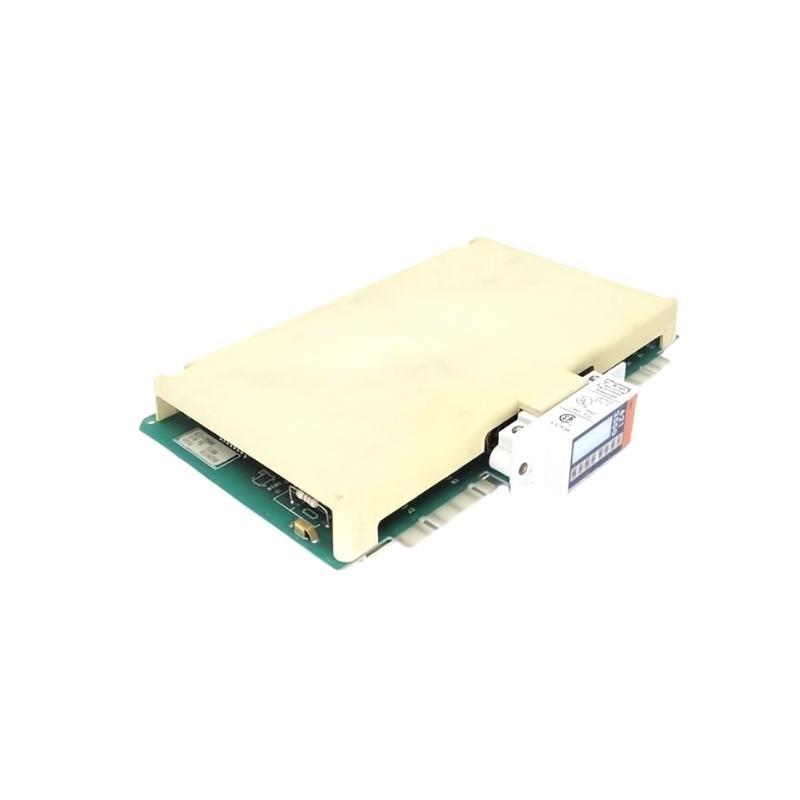

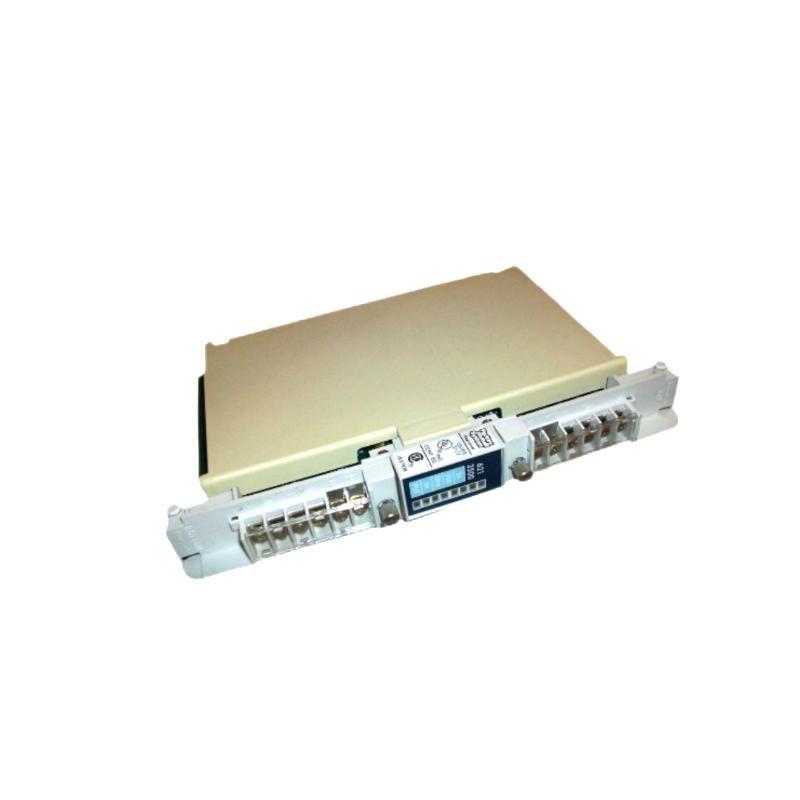

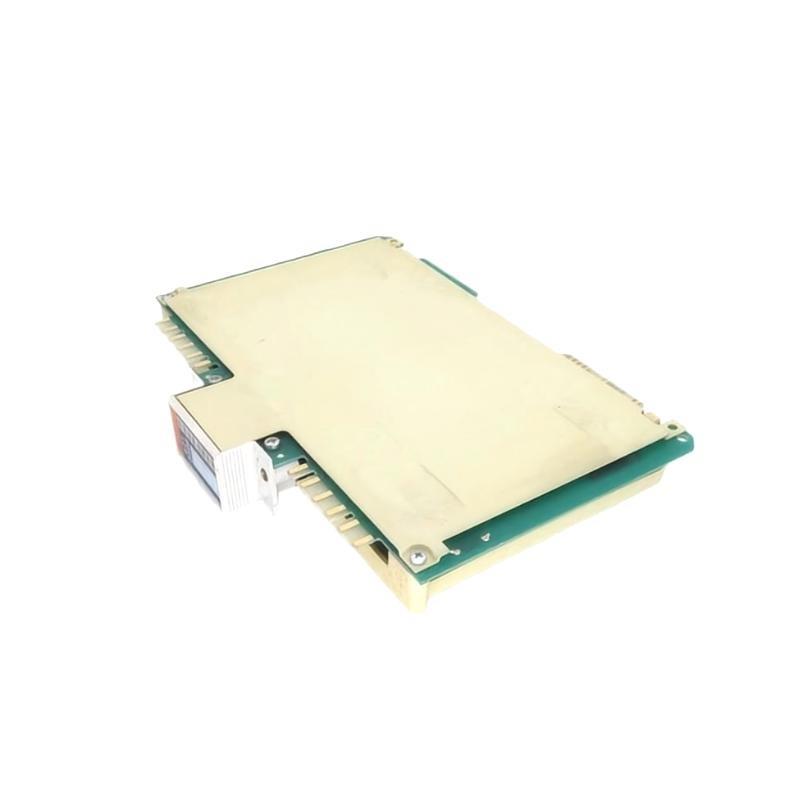

The Honeywell 621-3500 Input Module is an advanced input module designed for use in industrial control systems. It offers high accuracy, reliability, and flexibility, enabling seamless integration into Honeywell’s control systems. Ideal for various industrial automation applications, this input module is capable of handling analog and digital inputs from a variety of devices such as sensors, switches, and transmitters. With its robust design and modular configuration, the 621-3500 ensures optimal performance in complex process control environments.
This module supports a wide range of input types and is designed to work efficiently within Honeywell’s Experion® Process Knowledge System (PKS) and Distributed Control Systems (DCS). It also integrates easily with other Honeywell field devices, allowing for scalable solutions in process industries such as chemical, oil & gas, and power generation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 621-3500 Input Module |
| Model Number | 621-3500 |
| Manufacturer | Honeywell |
| Input Type | Analog and Digital Inputs |
| Number of Channels | 16 input channels (configurable) |
| Input Voltage Range | 0–10 VDC (for analog inputs) |
| Input Current Range | 4–20 mA (for current loop inputs) |
| Input Type (Digital) | 24 VDC (dry contact, isolated) |
| Accuracy | ±0.1% of full scale (for analog inputs) |
| Mounting Type | DIN Rail Mount |
| Communication Protocol | Modbus RTU, OPC, Honeywell proprietary communication protocols |
| Dimensions (W x H x D) | 158 x 47 x 108 mm |
| Weight | 0.2 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Power Consumption | 3.5 W (typical) |
| Certification | CE, UL, RoHS, ATEX |
| Compliance | ISO 9001, ATEX |
Product Applications
The Honeywell 621-3500 Input Module is designed to be used in a wide variety of industrial and process control applications, including:
-
Process Automation: In industries such as oil & gas, chemicals, and petrochemicals, it is used to collect data from field sensors and transmitters to control and monitor industrial processes.
-
Manufacturing Systems: Ideal for automated manufacturing environments, including factory assembly lines, robotics, and quality control systems.
-
Energy Management: Used in power generation plants, renewable energy systems, and substations to monitor critical parameters such as temperature, pressure, and flow.
-
Building Management Systems (BMS): Enables data collection and control of HVAC, lighting, and security systems in commercial and industrial buildings.
-
Water and Wastewater Treatment: Integrated into control systems for monitoring pumps, valves, chemical dosing, and other critical water treatment processes.
-
Smart Grid and Infrastructure: Applied in the control of infrastructure systems like electrical grids, transportation networks, and utilities.
Product Advantages
-
Flexible Input Types: Supports both analog and digital inputs, offering flexibility for a wide range of sensors and field devices, making it ideal for varied applications in different industries.
-
High Accuracy: The module provides high accuracy for analog inputs, ensuring that data collected from the field is precise and reliable.
-
Modular Design: The 621-3500’s modular design allows for easy expansion and integration, making it scalable to meet the needs of growing operations.
-
Durable Construction: Designed for industrial environments, it is built to withstand harsh conditions such as extreme temperatures, humidity, and electrical noise.
-
Energy Efficient: With low power consumption (only 3.5 W), the module ensures minimal impact on overall system energy costs.
-
Ease of Integration: It is easily integrated into Honeywell’s DCS and Experion systems, as well as with third-party systems via standard communication protocols like Modbus RTU and OPC.
-
Compact Size: Its small footprint ensures that it can fit into tight control panels, saving valuable space in crowded control cabinets.
-
Real-time Diagnostics: Built-in diagnostic features help users monitor system health and identify potential issues before they affect operations, reducing maintenance time and costs.
-
Rugged and Reliable: Designed for industrial use, the module is durable and capable of performing reliably even in challenging environments.
Frequently Asked Questions (FAQ)
-
What types of inputs does the Honeywell 621-3500 support?
It supports both analog inputs (0-10 VDC and 4-20 mA) and digital inputs (24 VDC dry contact). -
What is the accuracy of the analog inputs on the 621-3500?
The accuracy of the analog inputs is ±0.1% of full scale. -
How many input channels does the 621-3500 module have?
The module features 16 configurable input channels. -
Can the module be mounted on a DIN rail?
Yes, the 621-3500 is designed for easy DIN rail mounting. -
What is the operating temperature range for the Honeywell 621-3500?
The operating temperature range is from -20°C to +60°C. -
What communication protocols are supported by the module?
The module supports Modbus RTU, OPC, and Honeywell proprietary communication protocols. -
What certifications does the module hold?
The 621-3500 has CE, UL, RoHS, and ATEX certifications, making it suitable for use in hazardous environments. -
What is the power consumption of the 621-3500 module?
The typical power consumption is 3.5 W. -
Can the 621-3500 be used in hazardous environments?
Yes, it is certified for use in hazardous environments under ATEX certification. -
What is the weight and size of the module?
The dimensions are 158 x 47 x 108 mm, and the weight is 0.2 kg.
Related Models (Same Series or Functional Range)
| Model | Description | Key Features |
|---|---|---|
| 621-3510 | Analog Input Module | Supports 8-channel analog input (0-10V, 4-20mA) |
| 621-3505 | Digital I/O Control Module | 16 digital inputs/outputs, ideal for discrete control |
| 621-3501 | High-speed Input Module | High-speed inputs for critical real-time applications |
| 621-3502 | Dual-Channel Input Module | Two isolated input channels for enhanced flexibility |
| 621-3503 | Universal Input Module | Multi-function inputs supporting various field devices |
| 621-3506 | Expansion I/O Module | Expands input capacity for large control systems |
Popular Honeywell Models (Other Product Series)
| Model | Description | Application |
|---|---|---|
| Experion C300 | Advanced process controller | Used in large-scale process control systems |
| HC900-CPU-0551 | Hybrid controller for process systems | Ideal for continuous and batch process applications |
| UDC3500 | Universal digital controller | Applied in temperature and process control systems |
| RM7800L1014 | Burner Management System | Controls and manages combustion systems |
| ML200R-ETH | Ethernet communication module | Provides network connectivity for remote systems |
| S90 | Supervisory control system | Real-time process supervision and control |
