Product Overview

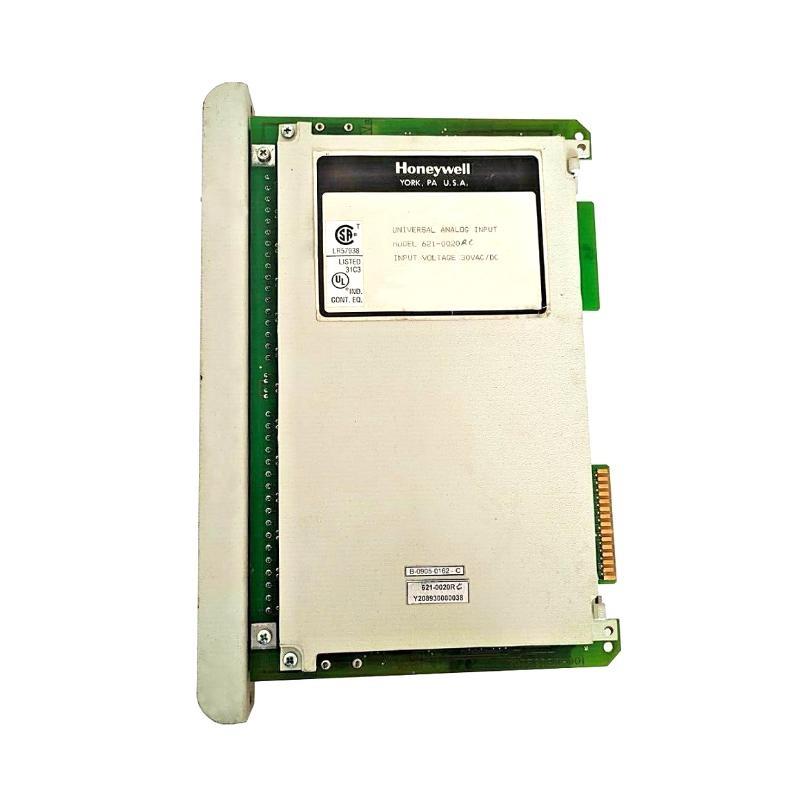

The Honeywell 621-0020R Universal Analog Input Module is a core component of Honeywell’s legacy TDC 2000/TDC 3000 process control systems. Designed to offer reliable and high-performance analog input capabilities, this module serves as a critical interface between analog field devices and the distributed control system (DCS). With robust signal conditioning, broad compatibility with various sensor types, and a compact form factor, the 621-0020R is widely used in industries requiring precision and operational continuity.
The module accepts a wide range of analog signals, including voltage and current types, and processes them into digital data for control, monitoring, and data acquisition purposes. Known for its durability and stable performance under industrial conditions, the 621-0020R continues to support plants in power generation, chemical, oil and gas, water treatment, and more.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 621-0020R |
| Manufacturer | Honeywell |
| Function | Universal Analog Input Module |
| Number of Input Channels | 8 Analog Inputs |
| Signal Types Supported | 0–10V, 4–20mA, 1–5V, Thermocouples, RTDs |
| Input Impedance | >1 MΩ (voltage), 250 Ω (current) |
| Resolution | 12-bit |
| Sampling Rate | 10 samples per second per channel (typical) |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Power Consumption | Approx. 3.5 W |
| Mounting Type | Rack-mounted |
| Compatibility | Honeywell TDC 2000, TDC 3000, TPS |
| Dimensions (W x H x D) | 330 x 230 x 130 mm |
| Weight | 0.6 kg |
| Certifications | CE, UL, FM, CSA |
Applications
The Honeywell 621-0020R module is applied in a variety of industrial control and monitoring environments where accurate analog data acquisition is vital. Key application areas include:
-
Oil & Gas Facilities: Pressure and temperature monitoring in pipelines, separators, and compressors.
-
Power Plants: Analog signal acquisition for turbines, generators, and auxiliary systems.
-
Chemical & Petrochemical Plants: Monitoring of pH, flow, and level in complex process loops.
-
Water and Wastewater Treatment: Input from level sensors, turbidity meters, and chemical analyzers.
-
Pharmaceutical Manufacturing: Precise environmental and process parameter measurement.
-
Food & Beverage Industry: Temperature and flow control in batch processing systems.
Key Advantages
-
Versatile Signal Handling: Accepts a variety of analog input types, including voltage, current, RTDs, and thermocouples.
-
High Reliability: Proven industrial-grade design ensures consistent performance in harsh environments.
-
Robust Isolation: Channel-to-channel and system isolation enhances safety and minimizes interference.
-
Long Product Lifecycle: Supports long-term operation in legacy control systems with backward compatibility.
-
Scalable Design: Easily integrates with other Honeywell modules in modular DCS setups.
-
Minimal Maintenance: Engineered for stability, reducing calibration and servicing needs.
-
Real-time Processing: Fast and accurate sampling provides real-time input for process control.
-
Compact Form Factor: Ideal for applications with limited cabinet or rack space.
-
OEM Support: Backed by Honeywell’s long-standing engineering and documentation support.
-
Field-Proven: Installed across thousands of global facilities with a solid performance track record.
Frequently Asked Questions (FAQ)
1. What types of sensors can be connected to the 621-0020R module?
The module supports a broad range of analog sensors, including thermocouples, RTDs, voltage transmitters (0–10V), and current transmitters (4–20mA), making it ideal for multi-signal environments.
2. How many analog input channels does this module support?
The 621-0020R provides 8 independent analog input channels, each capable of handling different signal types simultaneously.
3. Is it possible to mix signal types (e.g., voltage and current) on the same module?
Yes, the module is designed to handle mixed analog signal types across its channels without requiring separate modules.
4. Does the 621-0020R include built-in electrical isolation?
Yes, the module offers channel-to-channel and channel-to-system isolation to prevent signal interference and ground loop issues.
5. What is the resolution of the analog-to-digital conversion?
It uses a 12-bit A/D converter, allowing for precise data acquisition and high-resolution monitoring.
6. How is the module integrated into the Honeywell DCS system?
The 621-0020R is rack-mounted and communicates directly with Honeywell TDC 2000/TDC 3000 or TPS systems via standard I/O interfaces.
7. Can this module be replaced without shutting down the system?
No, for safety and system integrity, the system must be powered down before removing or replacing the module.
8. How often should the module be maintained or calibrated?
Under normal operating conditions, it requires minimal maintenance. Calibration intervals depend on process requirements but are generally infrequent.
9. Is the module resistant to harsh environmental conditions?
It is rated for industrial environments with wide operating temperatures and humidity tolerance but should still be installed in a protected cabinet.
10. What diagnostic features are built into the 621-0020R?
The module includes internal diagnostics to detect issues like open sensor circuits, signal errors, or internal faults, which are reported back to the control system for prompt action.
