Product Overview

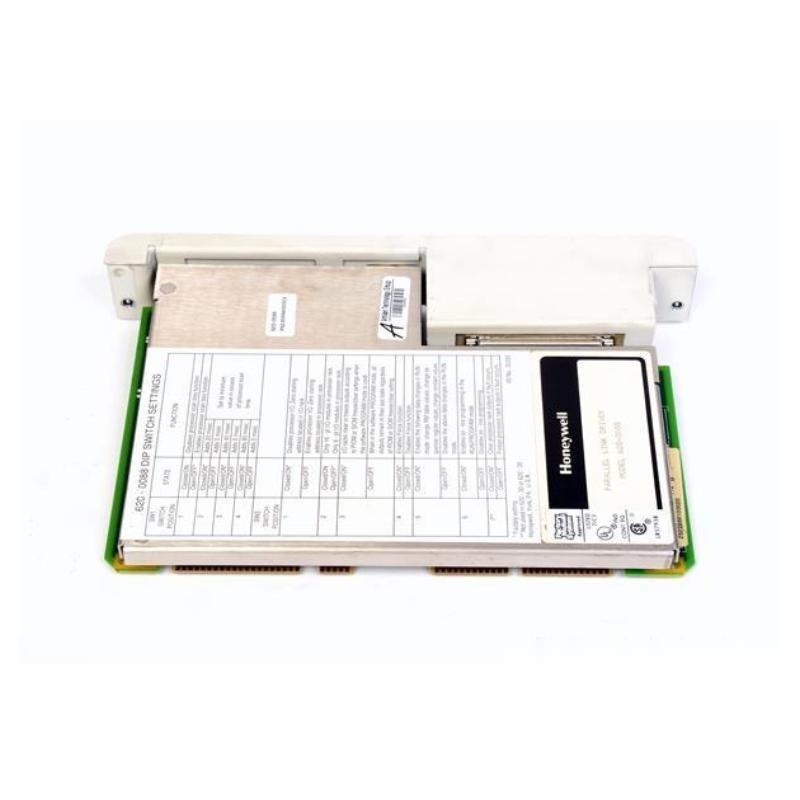

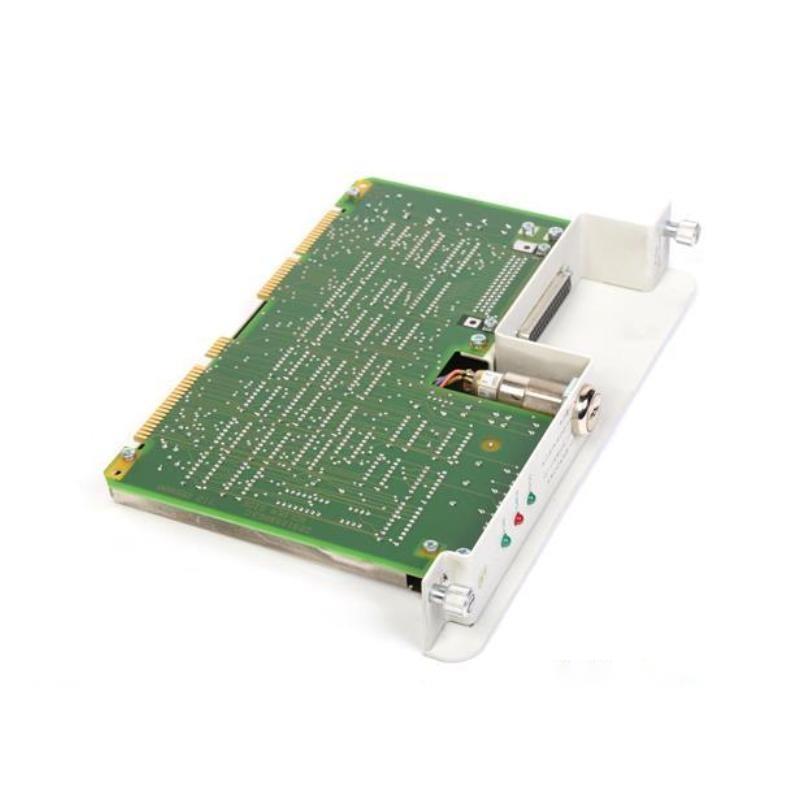

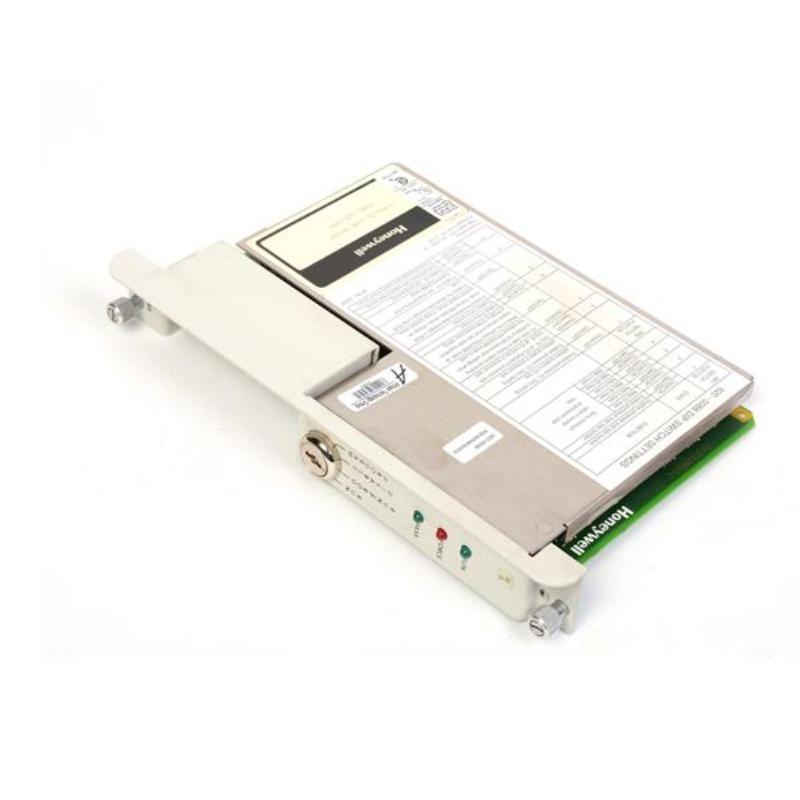

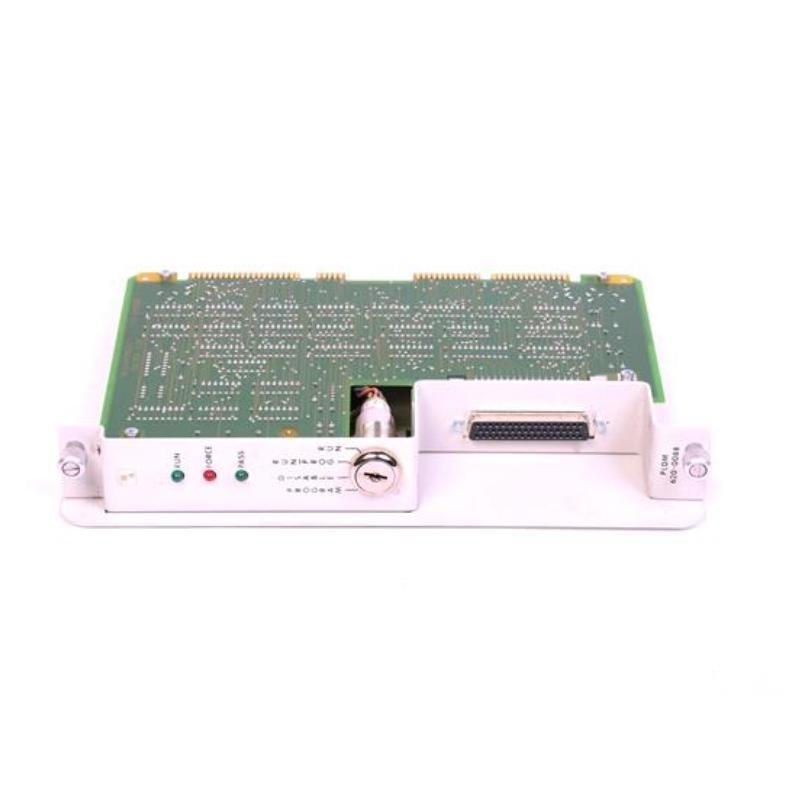

The Honeywell 620-0088 Parallel Link Driver Module is a specialized communication interface module designed for use within the Honeywell 620 Series Distributed Control System (DCS). As part of the TDC 2000 and TDC 3000 system families, this module enables high-speed parallel data transfer between central processors and remote nodes or input/output (I/O) subsystems.
It plays a critical role in environments requiring reliable and deterministic communication over short-to-medium distances. Built for durability and precision, the 620-0088 offers robust connectivity solutions ideal for mission-critical industrial automation networks where fault tolerance and communication speed are paramount.
Key Features
-
High-throughput parallel communication channel
-
Compatible with Honeywell 620 Series control architecture
-
Supports synchronous data transfer between processor and I/O racks
-
Built-in error detection and link monitoring
-
LED indicators for operational status and diagnostics
-
Designed for rack-based installation in standard Honeywell I/O chassis
-
Ideal for redundant and non-redundant communication systems
-
Long-life solid-state components with minimal maintenance required
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 620-0088 |
| Product Type | Parallel Link Driver Module |
| Communication Protocol | Parallel (synchronous) |
| Application Platform | Honeywell 620 Series (TDC 2000 / TDC 3000) |
| Supported Configuration | Single or redundant link |
| Data Transfer Method | Hardware-controlled, parallel |
| Error Detection | Parity check, CRC, and signal integrity monitoring |
| Status Display | LED indicators for power, activity, and error states |
| Maximum Cable Length | 100 meters (with standard cabling and signal repeaters) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting | Rack-mounted (Honeywell 620 backplane) |
| Hot-Swappable | No |
| Power Consumption | < 15 W |
| Certifications | CE, UL, CSA, RoHS |
| Dimensions | 220 x 120 x 60 mm |
| Weight | 0.63 kg |
Industry Applications
The 620-0088 Parallel Link Driver Module is widely used in industries that require robust, synchronized communication between distributed control components, such as:
-
Oil & Gas Refining – Interfaces remote I/O racks with central process controllers
-
Chemical Manufacturing – Provides reliable communication pathways for hazardous area control
-
Power Generation – Supports parallel data links for turbine and plant control subsystems
-
Water & Wastewater Treatment – Connects remote valve control units with PLCs
-
Pharmaceuticals – Assures high-speed data transmission for cleanroom automation
-
Steel & Metal Processing – Handles rugged environments with fault-tolerant communication
Product Advantages
-
High Communication Reliability: Ensures consistent data integrity under harsh conditions
-
Fast Parallel Processing: Enhances system responsiveness with minimal latency
-
Flexible Redundancy Options: Supports dual-link configurations for fault tolerance
-
Diagnostic LEDs: Offers real-time visual feedback on link status and errors
-
No Complex Software Required: Auto-integrates into 620 DCS environment
-
Industrial Grade Build: Resistant to temperature, vibration, and humidity extremes
-
Scalable Integration: Easily deployable in both small and large control systems
-
Honeywell Ecosystem Compatibility: Seamless operation with TDC 2000/3000 networks
Frequently Asked Questions (FAQ)
-
What is the main function of the 620-0088 module?
It facilitates high-speed parallel communication between Honeywell control processors and remote I/O subsystems. -
Can I use the 620-0088 in a redundant system?
Yes, it supports single and dual redundant configurations. -
What control systems is it compatible with?
It is designed specifically for the Honeywell 620 Series within the TDC 2000 and TDC 3000 systems. -
Is it a hot-swappable module?
No, the system should be powered down before inserting or removing the module. -
What diagnostic tools does it provide?
It includes front-panel LEDs for link activity, error detection, and power status. -
How far can it transmit data?
Up to 100 meters using standard parallel communication cabling. -
Does it require external configuration?
No manual configuration is needed—it is automatically recognized by the system. -
What error handling features are included?
It uses parity checks, CRC, and signal validation for robust error management. -
What are the operating temperature limits?
It operates between 0°C and 60°C. -
Where can I purchase or find support for this module?
Through Honeywell authorized distributors or industrial automation resellers.
Related Models
| Model Number | Description |
|---|---|
| 620-0086 | Parallel Link Driver Module (Alternate variant) |
| 620-0083C | Processor Power Module |
| 620-0056 | Central Processor Module |
| 620-0036 | Serial Communication Interface |
| 620-0095 | Digital Output Module |
| 620-0071 | Analog Input Module |
