Product Overview

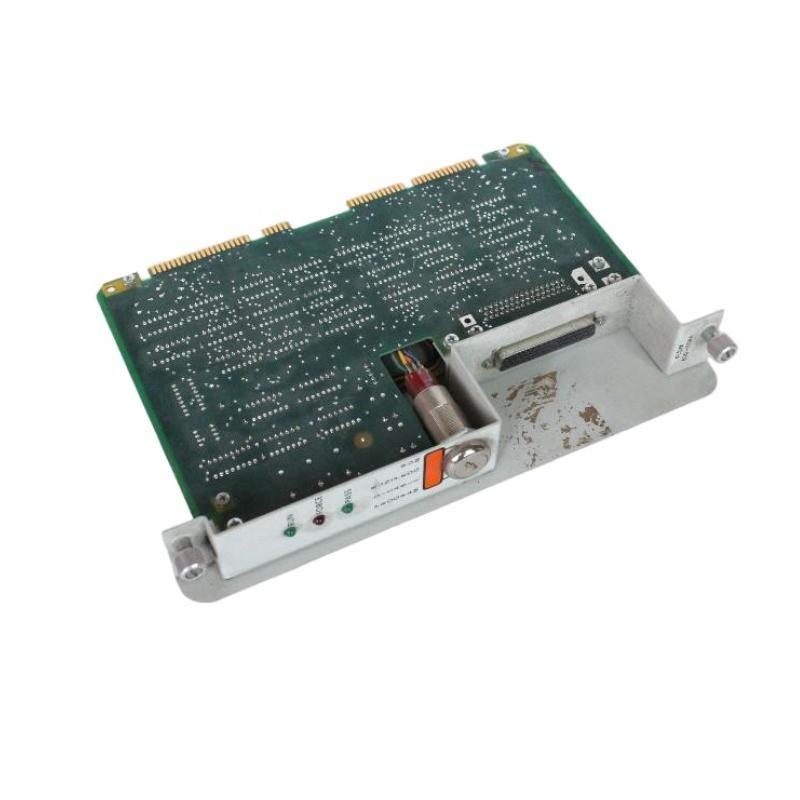

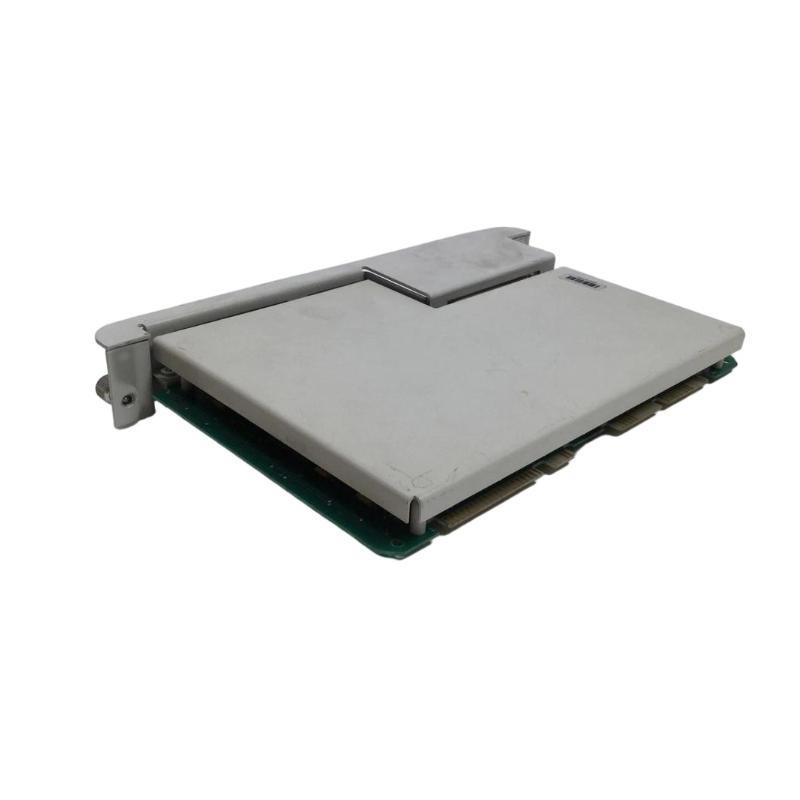

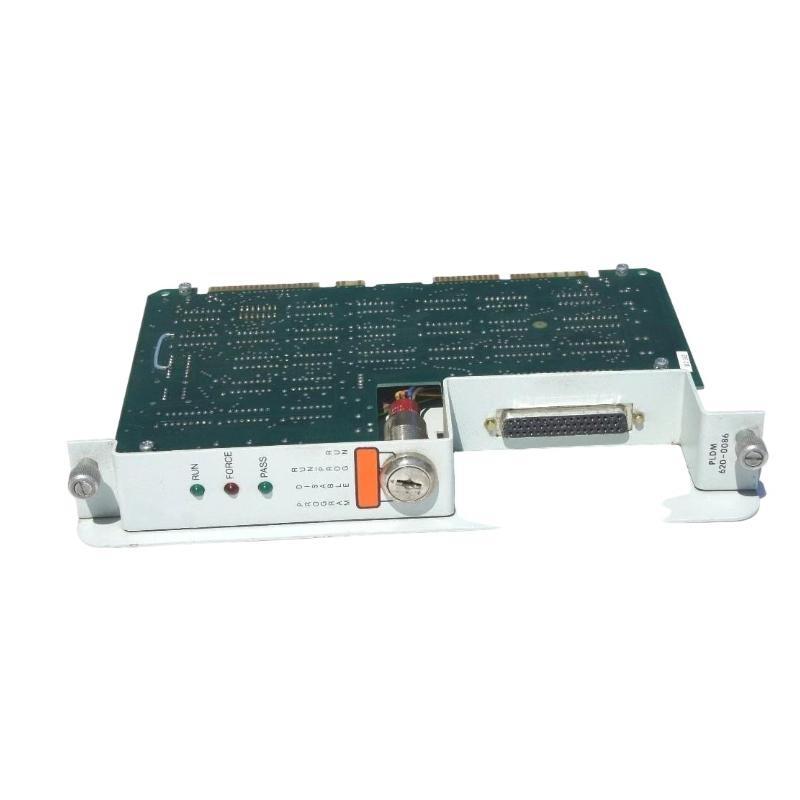

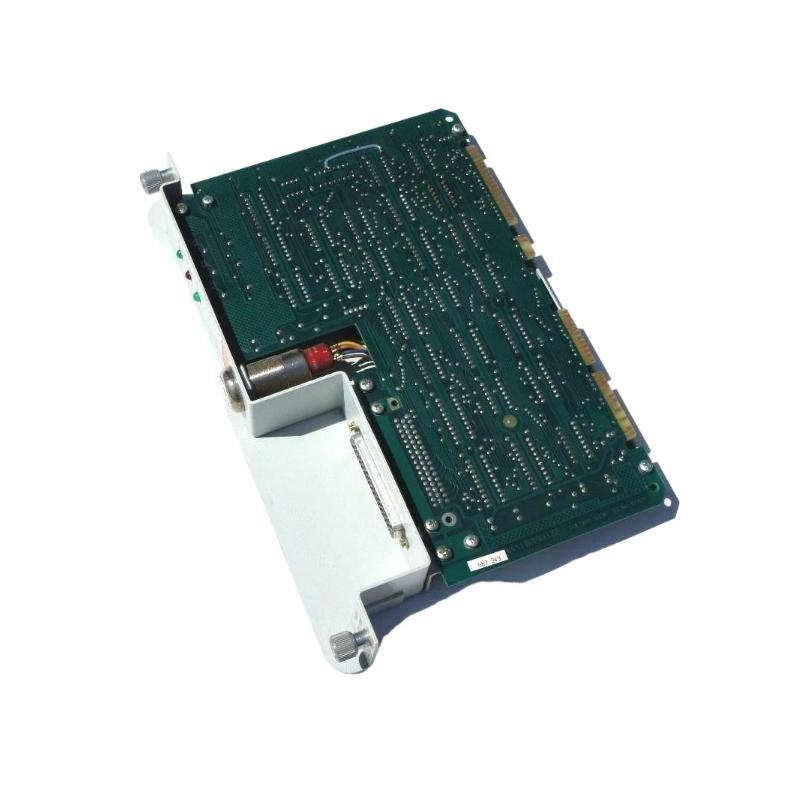

The Honeywell 620-0086 Parallel Link Driver Module is a communication interface device used in Honeywell’s 620 Series Distributed Control Systems (DCS), particularly in TDC 2000 and TDC 3000 environments. This module serves as a crucial link between the control processors and peripheral systems or expansion racks, enabling high-speed parallel data exchange with minimal latency.
The 620-0086 Parallel Link Driver Module is designed for use in redundant, high-reliability systems that require robust, low-error-rate communication between distributed components. It is ideal for process control systems where signal integrity, speed, and fault-tolerant design are essential.
Key Features
-
High-speed parallel data communication link
-
Facilitates connectivity between main controller and remote or I/O racks
-
Supports synchronous communication with minimal delay
-
Reliable error-checking and fault detection mechanisms
-
Designed for redundant and non-redundant configurations
-
Rack-mounted module, plug-and-play with Honeywell 620 backplane
-
Status and diagnostic LEDs on front panel for monitoring
-
Supports long-distance parallel communication (with extenders)
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 620-0086 |
| Product Type | Parallel Link Driver Module |
| System Compatibility | Honeywell 620 Series (TDC 2000 / TDC 3000) |
| Communication Type | Parallel (synchronous) |
| Data Transfer Method | Bit-parallel, hardware-controlled |
| Link Support | Single or dual redundant link configurations |
| Supported Distance | Up to 100 meters (with standard cabling) |
| Status Indicators | LEDs for link activity, power, and error |
| Error Detection | CRC, parity, and line-level signal validation |
| Mounting | Rack-mounted in Honeywell 620 I/O chassis |
| Hot-Swappable | No |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | CE, UL, CSA, RoHS |
| Dimensions | 220 x 120 x 60 mm |
| Weight | 0.26 kg |
Industry Applications
The 620-0086 Parallel Link Driver Module is used in a wide range of industries requiring fast and reliable data exchange between control and remote subsystems:
-
Oil & Gas Refineries – Ensures seamless communication between local and remote control units
-
Chemical Processing Plants – Used in redundant DCS links for critical process lines
-
Power Generation Facilities – Drives data between turbines, control rooms, and safety systems
-
Water Treatment Plants – Interfaces central controllers with widely spaced valve/IO locations
-
Metals & Mining Operations – Connects high-power equipment controllers with remote monitoring nodes
-
Pharmaceutical Plants – Maintains synchronized data paths between cleanroom control elements
Product Advantages
-
High-Speed Data Integrity: Ensures accurate, low-latency communication between system components
-
Redundant Communication Support: Enables fault-tolerant operation in critical systems
-
Field-Proven Design: Part of Honeywell’s trusted 620 architecture
-
Real-Time Synchronization: Ideal for systems needing deterministic behavior
-
Simple Diagnostics: Front-panel LEDs make status and fault checking easy
-
Versatile Deployment: Compatible with both main controller and I/O rack installations
-
Compact Form Factor: Saves space in dense control cabinets
-
Minimal Maintenance: Long service life with passive cooling and solid-state design
Frequently Asked Questions (FAQ)
-
What is the function of the Honeywell 620-0086 module?
It provides parallel communication between the main controller and peripheral systems in a DCS. -
Is this module hot-swappable?
No. Power down the system before removing or inserting this module. -
Does it support redundant communication?
Yes. It is designed for use in single or dual redundant link configurations. -
What type of communication does it use?
Synchronous parallel communication for high-speed, reliable data transfer. -
What kind of diagnostics are available?
Front-panel LEDs indicate status, link activity, and error conditions. -
Can it be used in non-Honeywell systems?
It is specifically engineered for Honeywell 620 Series and is not compatible with third-party systems. -
What is the maximum supported cable length?
Up to 100 meters using standard parallel cabling and signal conditioning. -
Does it require special software configuration?
No user configuration is typically required—recognition is automatic within the DCS environment. -
Is it CE/UL certified?
Yes. It is compliant with CE, UL, CSA, and RoHS directives. -
Where can I get replacements or spares?
Modules are available through Honeywell authorized industrial automation distributors.
