Product Introduction

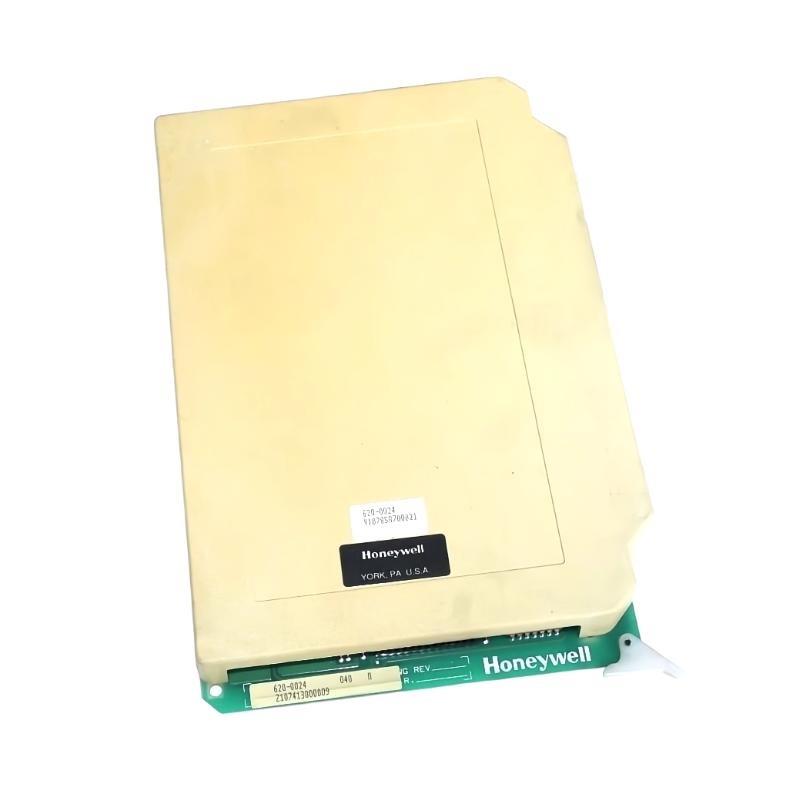

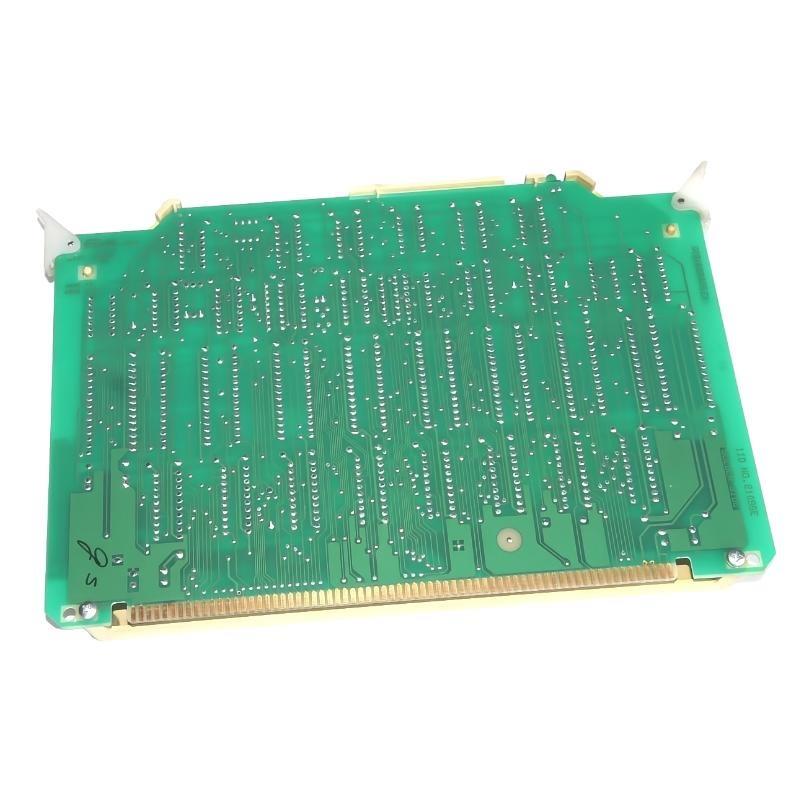

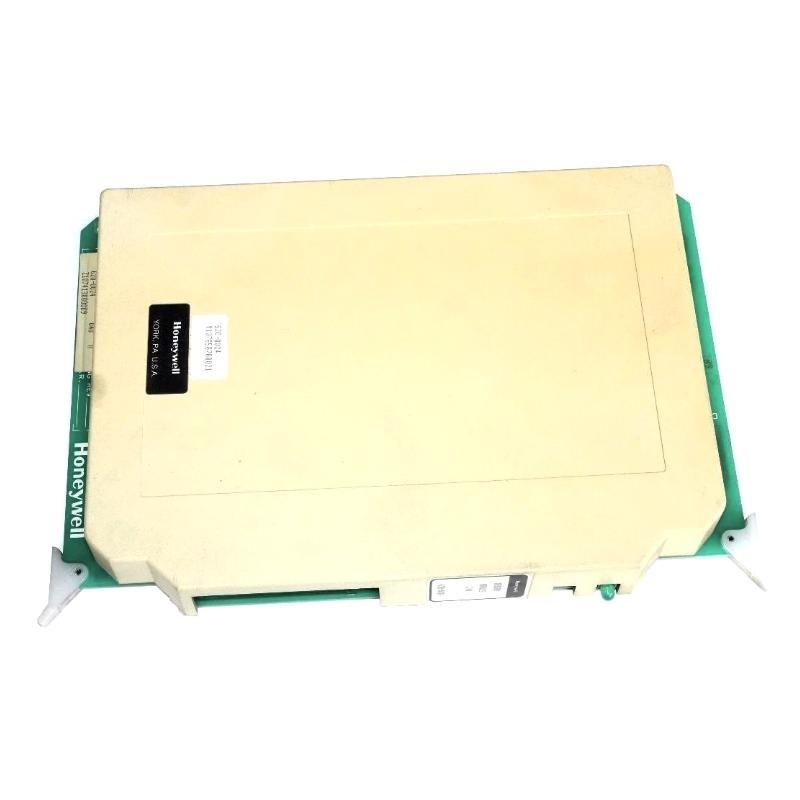

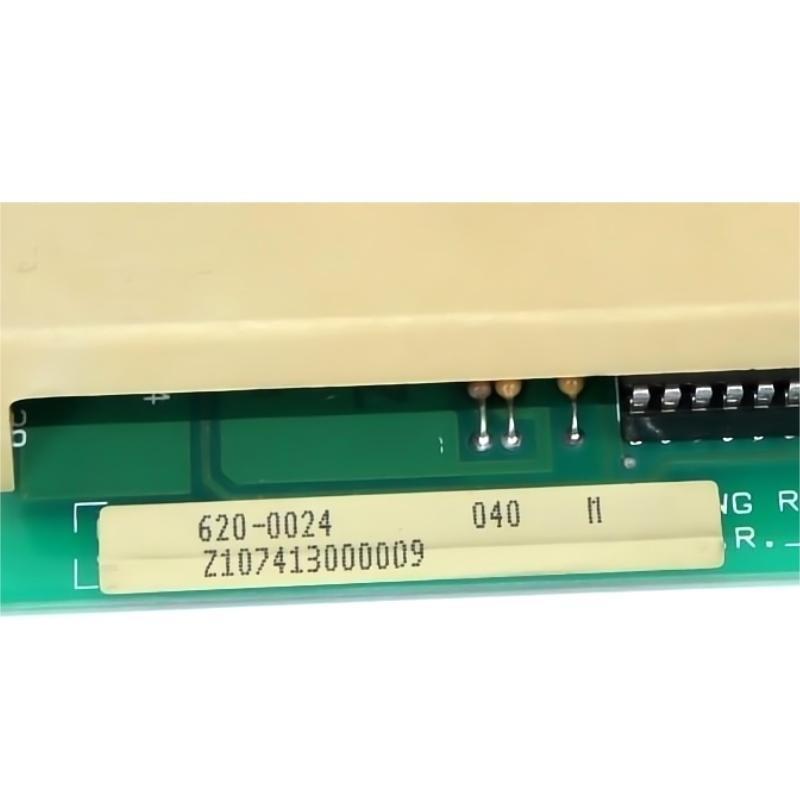

The Honeywell 620-0024 Memory Module is a key component within Honeywell’s 620 Series of programmable control systems, designed to provide reliable and expandable memory resources for process automation environments. It acts as a critical element for storing program logic, configuration parameters, and operational data required for real-time control applications.
Built to industrial-grade standards, this memory module ensures secure data retention, rapid data access, and robust performance in demanding environments. It supports system stability by maintaining controller memory functions even during brief power interruptions, making it indispensable in mission-critical automation processes such as oil refining, chemical processing, and energy generation.
Whether used in standalone applications or as part of a distributed control system (DCS), the 620-0024 delivers consistent and reliable memory storage with seamless integration into Honeywell’s control architecture.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 620-0024 |
| Product Type | Memory Module |
| Series | Honeywell 620 Series |
| Function | Program and configuration data storage |
| Memory Type | Non-volatile memory (EEPROM or battery-backed RAM) |
| Memory Capacity | Typically 64KB – 256KB (model variant dependent) |
| System Compatibility | Honeywell 620 Programmable Logic Controllers |
| Power Supply | Internal system bus (no external power required) |
| Battery Backup | Yes, integrated for non-volatile retention |
| Mounting Style | Plug-in module into system chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5–10 Hz (IEC 60068-2-6 compliant) |
| Dimensions (L x W x H) | 150 x 110 x 25 mm |
| Weight | 0.476 kg |
| Compliance Certifications | CE, UL, CSA, RoHS |
Applications
The Honeywell 620-0024 Memory Module is used across a wide range of industrial automation sectors. It plays an essential role in systems where control reliability, data retention, and reconfigurability are critical. Its common applications include:
-
Distributed Control Systems (DCS) in refineries, power plants, and chemical plants.
-
Programmable Logic Controllers (PLCs) in automated production lines.
-
Batch Processing Units where repeated sequences require fast retrieval of configuration files.
-
Redundant Control Systems for storing failover configurations in safety-critical applications.
-
Data Logging and Historical Archiving, enabling long-term trend analysis and process optimization.
-
Energy Management Systems, supporting smart grid infrastructure and real-time control logic storage.
Product Advantages
-
Non-Volatile Data Retention: Ensures critical control data remains intact during power outages or system reboots.
-
Plug-and-Play Integration: Designed to fit directly into Honeywell 620 PLC systems without configuration changes.
-
Reliable Battery Backup: Built-in backup ensures data is preserved even under abnormal shutdown conditions.
-
Long-Term Stability: Industrial-grade build quality and memory type ensure years of uninterrupted operation.
-
Compact Footprint: Its small size allows for efficient use of space within control enclosures.
-
Reduced Downtime: Enables rapid replacement and minimal disruption during maintenance or upgrades.
-
Certified Safety Standards: Fully compliant with major global safety and environmental standards.
-
Secure Program Storage: Protects intellectual property and logic configurations from loss or corruption.
Frequently Asked Questions (FAQ)
1. What is the primary function of the 620-0024 memory module?
Its main purpose is to store control logic, configuration parameters, and critical system data within Honeywell’s 620 Series controllers.
2. Can the 620-0024 be used across all Honeywell control systems?
No, it is specifically designed for use with the Honeywell 620 Series. It may not be compatible with other Honeywell platforms like Experion or TDC 3000.
3. Does this memory module include battery backup?
Yes, the module features an integrated battery to retain memory contents in the event of a power failure.
4. Is the module hot-swappable?
No, the system must be powered down before inserting or removing the memory module to prevent data corruption.
5. What is the storage capacity of this model?
Capacity typically ranges between 64KB and 256KB, depending on specific configuration and revision.
6. How is the 620-0024 installed into the system?
It is a plug-in module that fits into the memory slot of the Honeywell 620 controller chassis.
7. How long does the battery backup last?
Under normal conditions, the battery can retain data for several years. Periodic replacement is recommended based on system diagnostics.
8. Does the module support firmware upgrades?
No, firmware updates are generally applied to the controller, not the memory module itself.
9. Is the 620-0024 resistant to industrial vibrations and temperature fluctuations?
Yes, it is built to withstand standard industrial conditions, including moderate vibration and temperature extremes.
10. What happens if the module fails?
In case of failure, it should be replaced with a genuine Honeywell 620-0024 unit. Backup procedures should be followed to restore stored data from system backups.
Related or Similar Honeywell Models (Same Series or Functionality)
| Model | Part Number | Function | Memory Type |
|---|---|---|---|
| 620-0025 | 620-0025 | Extended Memory Module | Battery-backed RAM |
| 620-0036 | 620-0036 | Redundant System Memory Card | EEPROM |
| 620-0089 | 620-0089 | Logic Storage Module | Flash/EEPROM |
| 620-0041 | 620-0041 | Field Controller Memory Expansion | RAM |
| 620-0050 | 620-0050 | Archive Memory Module | Non-volatile Flash |
| 620-0071 | 620-0071 | I/O System Configuration Card | EEPROM |
Popular Honeywell Industrial Automation Modules
| Model | Part Number | Function | System Compatibility |
|---|---|---|---|
| TC-CCR013 | TC-CCR013 | Control Processor Module | Experion PKS / C300 |
| CC-PDIL01 | 51405040-175 | Digital Input Module | C300 Process Controller |
| CC-PCNT01 | 51405046-100 | Pulse Counter Module | Experion Universal IO |
| MU-TDOD12 | 51304441-200 | Digital Output Module | TDC 3000 / TPS |
| FC-SDO-0824 | FC-SDO-0824 | Smart Distributed Output Module | Safety Manager System |
| CC-PAIN01 | 51410069-175 | Analog Input Module | C300 / Process Manager |
