Product Introduction

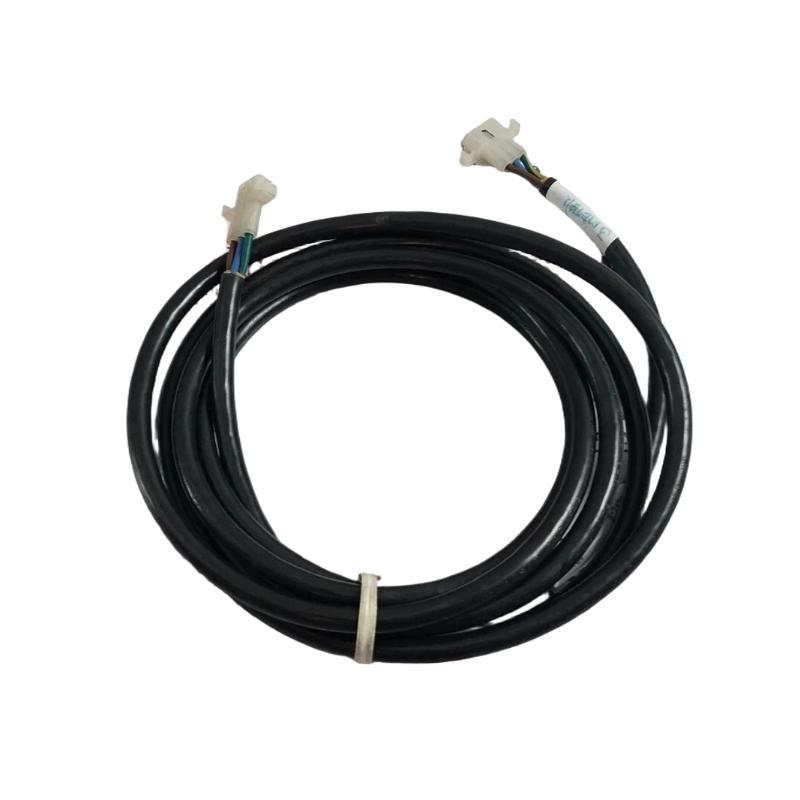

The Honeywell 51109516-100 Fan Cable is a specialized industrial-grade cable designed to interface seamlessly with Honeywell’s control and cooling systems. It is engineered for demanding environments where reliability and durability are critical. Typically used in conjunction with fan assemblies within industrial control panels, DCS systems, and thermal management modules, this cable facilitates the efficient connection between the system’s power/control board and its ventilation units.
As part of Honeywell’s renowned line of industrial automation accessories, the 51109516-100 ensures uninterrupted airflow and temperature control, helping extend the lifespan of sensitive electronics. With precision-manufactured connectors and rugged insulation, this cable meets the stringent standards of industrial operations.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Fan Cable |
| Part Number | 51109516-100 |
| Brand | Honeywell |
| Cable Type | Power & signal cable for fan unit |
| Connector Type | Molded plug connector on both ends |
| Outer Jacket Material | High-durability PVC |
| Wire Gauge | 18 AWG |
| Temperature Rating | -20°C to +105°C |
| Voltage Rating | 300V |
| Shielding | Unshielded |
| Number of Conductors | 2 to 4 (varies by internal configuration) |
| Compliance Standards | RoHS, UL Recognized |
| Compatibility | Honeywell fan modules, DCS panels |
| Cable Length | 3 meters |
| Weight | 0.37 kg |
Applications
The 51109516-100 Fan Cable is typically deployed in the following environments and systems:
-
Distributed Control Systems (DCS): Connects internal fan modules to mainboards.
-
Industrial Control Cabinets: Supports ventilation units used in automation and process control.
-
Data Acquisition Panels: Maintains optimal temperatures inside high-density circuit areas.
-
Thermal Regulation Subsystems: Enables seamless airflow control in HVAC integrated controls.
-
Power Electronics Enclosures: Provides safe fan operation in power inverter and rectifier housings.
Its robust construction makes it ideal for continuous industrial use, particularly in refineries, chemical plants, utility substations, and other critical infrastructure facilities.
Product Advantages
-
Durability: Engineered with high-quality materials to withstand industrial temperature ranges and mechanical stress.
-
Plug-and-Play: Pre-fitted with connectors for easy and error-free installation.
-
Compatibility: Specifically designed to integrate with Honeywell’s control and fan systems.
-
Reliability: Reduces failure points associated with third-party or custom cables.
-
Compact Design: Minimizes space requirements within densely populated control cabinets.
-
Cost-Effective: Minimizes downtime and servicing costs through improved reliability.
-
Safe Operation: Meets RoHS and UL standards ensuring it is safe and environmentally compliant.
Frequently Asked Questions (FAQ)
-
What is the primary function of the Honeywell 51109516-100 Fan Cable?
It connects the fan module to a Honeywell control system to ensure proper airflow and thermal regulation. -
Is this cable compatible with third-party fans?
While possible, it is optimized for Honeywell systems and may not work properly with non-Honeywell products. -
Can this cable be used outdoors?
It is intended for indoor, enclosed environments. For outdoor use, additional weatherproofing is required. -
Does this cable require special tools for installation?
No, it comes pre-terminated with connectors for plug-and-play usage. -
Is the 51109516-100 a shielded cable?
No, it is unshielded and designed specifically for fan power/signal transmission. -
What systems is it commonly used in?
It is often found in Honeywell’s DCS systems, power cabinets, and industrial cooling modules. -
How long is the 51109516-100 cable?
It has a length of 3 meters. -
Does the cable support high-voltage applications?
It is rated up to 300V, suitable for low to medium voltage operations. -
Is the cable RoHS compliant?
Yes, it adheres to RoHS and UL environmental and safety standards. -
How do I replace the cable if it becomes damaged?
Simply disconnect both ends from their connectors and insert a new 51109516-100 unit. No special configuration is needed.
