Product Introduction

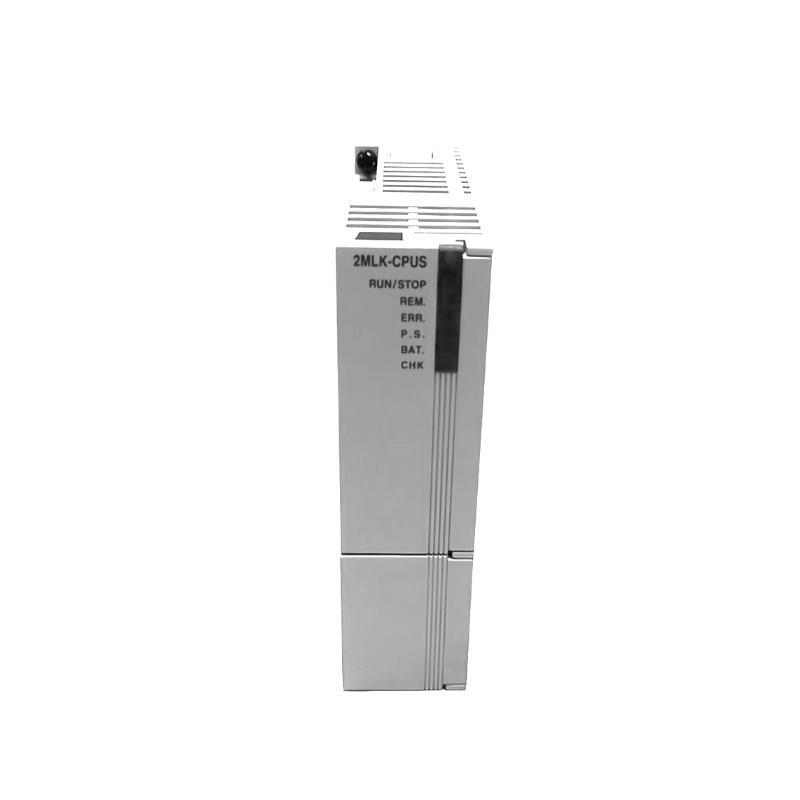

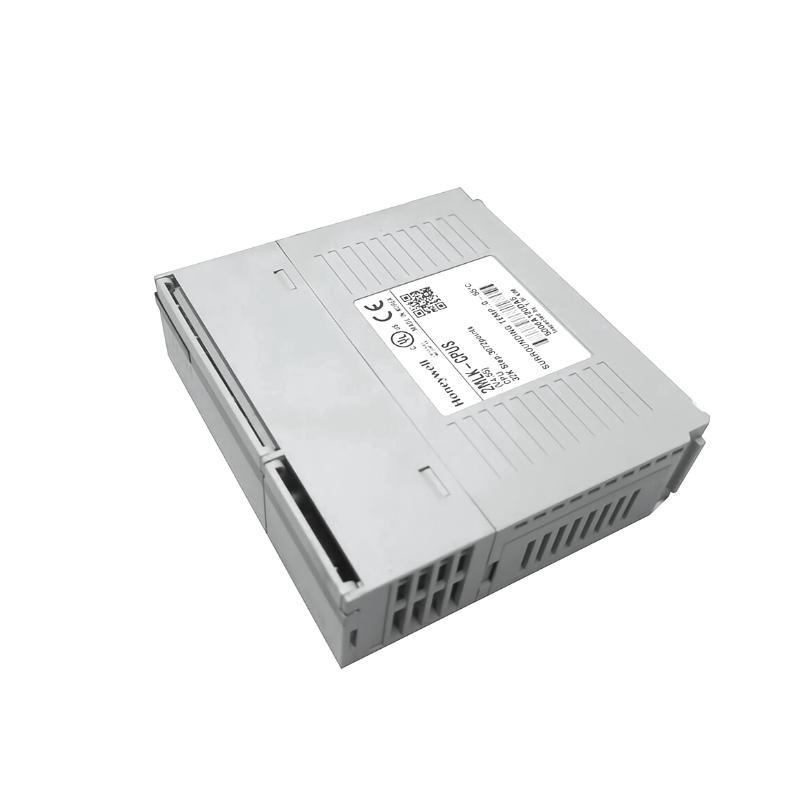

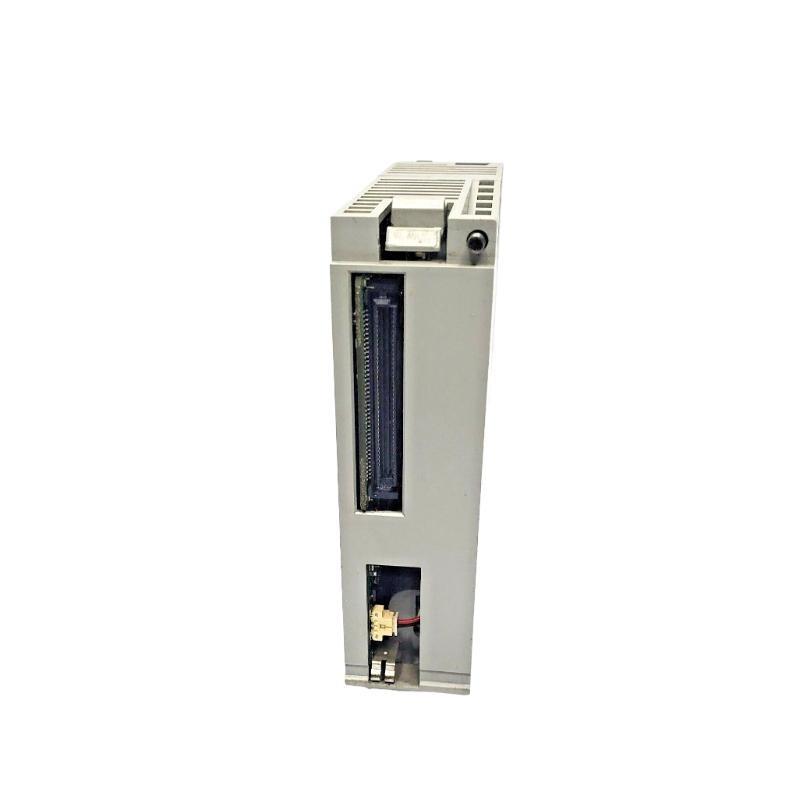

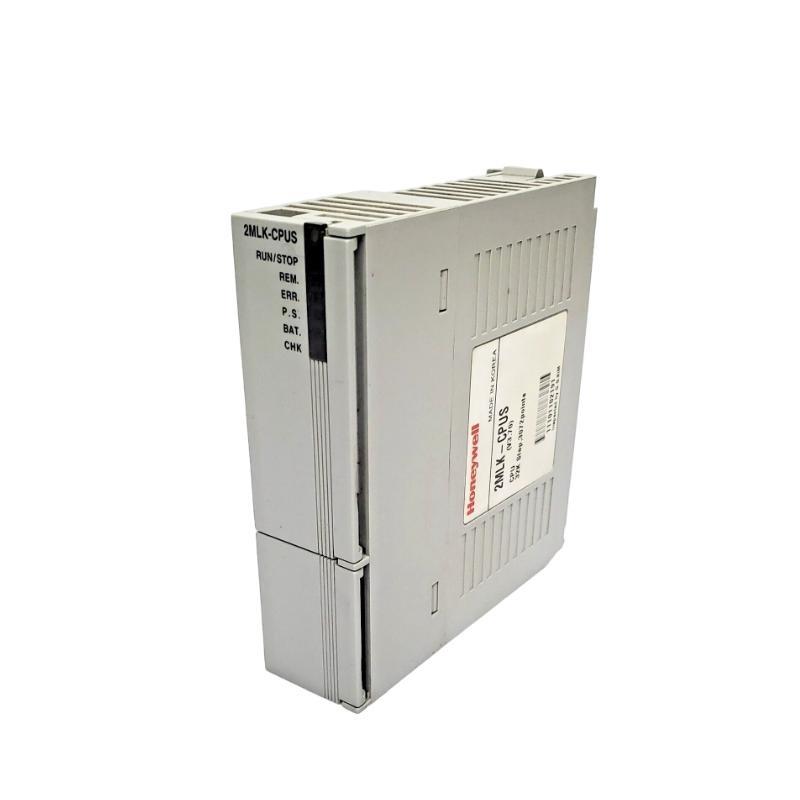

The Honeywell 2MLK-CPUS-CC Processor Module is an advanced high-performance CPU module designed for industrial automation and process control systems. It is an integral component of Honeywell’s Experion Process Knowledge System (PKS) and ControlEdge product lines, offering fast data processing, extensive connectivity options, and robust control capabilities.
This processor module serves as the central processing unit within the system architecture, enabling seamless control of various field devices, efficient execution of complex logic, and high-speed communication across control networks. Built with industrial-grade reliability, the 2MLK-CPUS-CC ensures continuous operation even in challenging environments.
Engineered for critical control applications across a variety of industries—including refining, chemicals, power generation, pharmaceuticals, food & beverage, and more—this module offers a flexible and scalable solution for modern process automation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 2MLK-CPUS-CC |
| Module Type | Processor Module |
| CPU | Multi-core industrial-grade CPU |
| Processor Speed | 1.6 GHz (typical) |
| System Memory | 8 GB RAM |
| Non-volatile Memory | 32 GB flash |
| Communication Interfaces | Ethernet (Dual), RS485, RS232, USB |
| Supported Protocols | Modbus TCP/IP, OPC UA, EtherNet/IP, Profibus, Honeywell proprietary protocols |
| I/O Capacity | Supports up to 10,000 I/O points |
| Redundancy Support | Yes, Hot standby and failover |
| Data Logging | Real-time and historical data logging |
| Time Synchronization | NTP and IEEE 1588 PTP |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Shock / Vibration | IEC 60068-2-27 / IEC 60068-2-6 compliant |
| Power Supply | 24 VDC nominal (18-32 VDC range) |
| Power Consumption | 15 W typical |
| Dimensions (H x W x D) | 150 × 102 × 35 mm |
| Weight | 0.42 kg |
| Mounting | DIN rail or rack-mounted |
| Firmware Updateable | Yes, field upgradeable |
| Certifications | CE, UL, cUL, ATEX Zone 2, IECEx, RoHS |
Applications
The 2MLK-CPUS-CC Processor Module finds application across a broad range of industries and control environments, including:
-
Oil & Gas
Control of upstream and downstream processes, pipeline automation, and offshore platform control. -
Refining & Petrochemical
Advanced control of distillation columns, blending, and reactor systems. -
Power Generation
Turbine control, auxiliary systems, and distributed control for thermal, hydro, and renewable energy plants. -
Pharmaceutical & Biotechnology
Batch control, recipe management, and GMP-compliant validated automation processes. -
Food & Beverage
Production line automation, batch processes, and quality control systems. -
Water & Wastewater Treatment
SCADA integration, pump station management, and distributed network control. -
Pulp & Paper
Automation of pulp processing, paper machine operations, and finishing lines.
Product Advantages
-
High Processing Performance
Powerful multi-core CPU ensures rapid execution of control strategies and fast data processing. -
Scalability
Supports large-scale installations with up to 10,000 I/O points. -
Redundancy & Reliability
Hot standby redundancy with automatic failover for continuous, uninterrupted operation. -
Extensive Connectivity
Multiple communication interfaces and protocol support for seamless integration with existing plant systems. -
Enhanced Security
Built-in cybersecurity features, including encrypted communications and user authentication. -
Time Synchronization
High precision clock synchronization via NTP/PTP for accurate data and control operations. -
Flexible Mounting Options
Suitable for DIN rail or rack-mount installations, adapting to different system architectures. -
Field Upgradeable
Allows firmware updates without removal from the system, reducing downtime and maintenance efforts. -
Global Certifications
Approved for use in hazardous environments and compliant with international standards. -
Industrial Durability
Designed to operate reliably in harsh industrial environments with wide temperature and humidity tolerance.
FAQ (10 Professional-Level Questions)
-
What is the primary function of the 2MLK-CPUS-CC processor module?
It serves as the main processing unit for Honeywell control systems, executing control logic, managing communication, and coordinating I/O operations. -
Can the 2MLK-CPUS-CC be used in a redundant configuration?
Yes, it supports hot standby redundancy and automatic failover for high availability applications. -
What field protocols does this module support?
It supports Modbus TCP/IP, OPC UA, EtherNet/IP, Profibus, and Honeywell proprietary protocols. -
Is the module suitable for critical control in hazardous environments?
Yes, it carries ATEX Zone 2 and IECEx certifications, making it suitable for hazardous industrial environments. -
How is firmware updated on the 2MLK-CPUS-CC?
Firmware can be updated via Ethernet using Honeywell’s engineering tools, without requiring module removal. -
What types of time synchronization are supported?
The module supports NTP and IEEE 1588 Precision Time Protocol (PTP) for precise time alignment. -
How many I/O points can the 2MLK-CPUS-CC handle?
It can support up to 10,000 I/O points, scalable depending on system requirements. -
Does the module offer built-in data logging?
Yes, it provides real-time and historical data logging capabilities for advanced process tracking. -
What kind of cybersecurity features are available?
It includes encrypted communications, role-based user authentication, and compliance with cybersecurity best practices. -
Can this module be used with legacy Honeywell systems?
Yes, it is compatible with Honeywell Experion PKS and ControlEdge platforms and supports migration paths for legacy systems.
Related Models (Same Series or Functionally Related)
| Model Number | Description |
|---|---|
| 2MLK-CPUS-CB | Processor Module (Alternate configuration) |
| 2MLK-CPUS-CE | Enhanced Processor Module |
| 2MLK-IOPS-AA | I/O Processor Module |
| 2MLK-COMS-AA | Communications Interface Module |
| 2MLK-IMPS-AA | Input/Output Management Processor |
| 2MLK-DPS-CC | Dual Power Supply Processor Module |
Popular Honeywell Modules (Same Brand, High Demand)
| Model Number | Description |
|---|---|
| CC-PCNT01 | Process Controller Module |
| CC-TDIL01 | Digital Input Module |
| CC-TDOX01 | Digital Output Module |
| CC-TAIX11 | Analog Input Module |
| CC-PAOH01 | Analog Output Module |
| FC-PDIO01 | Mixed I/O Module (Digital and Analog) |
