Product Overview

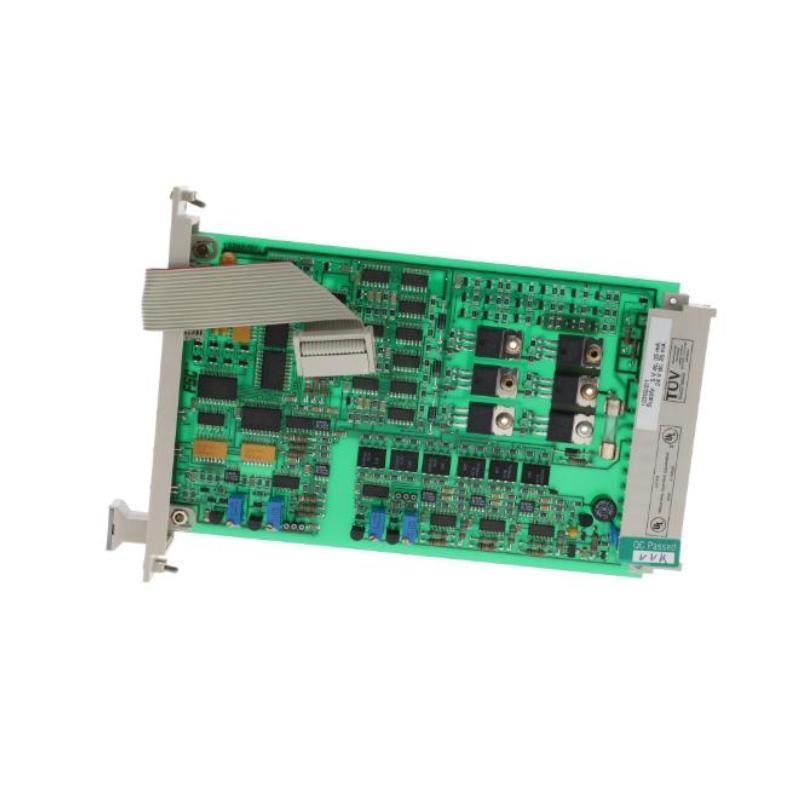

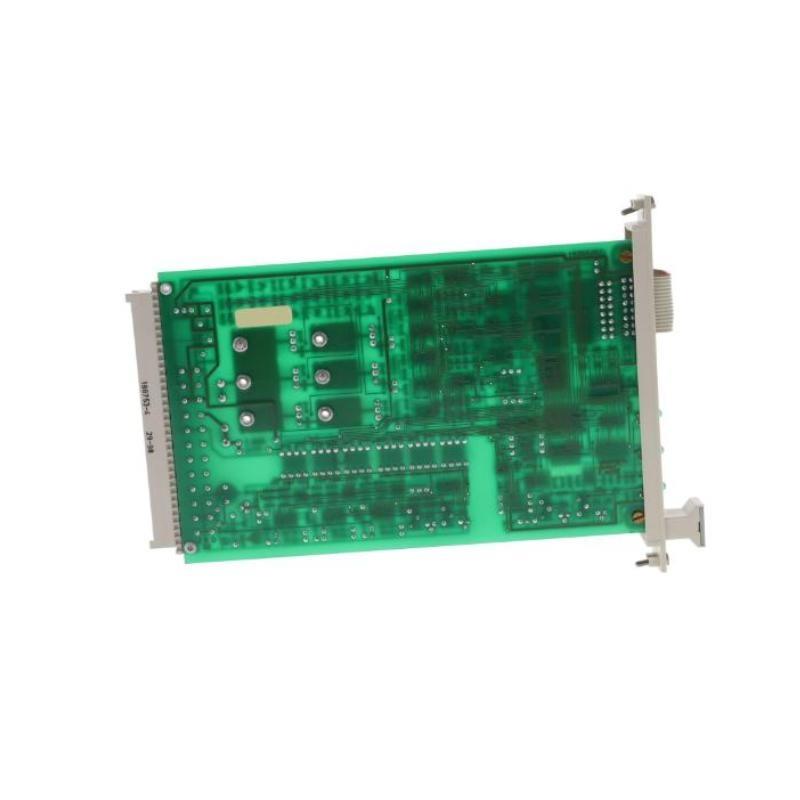

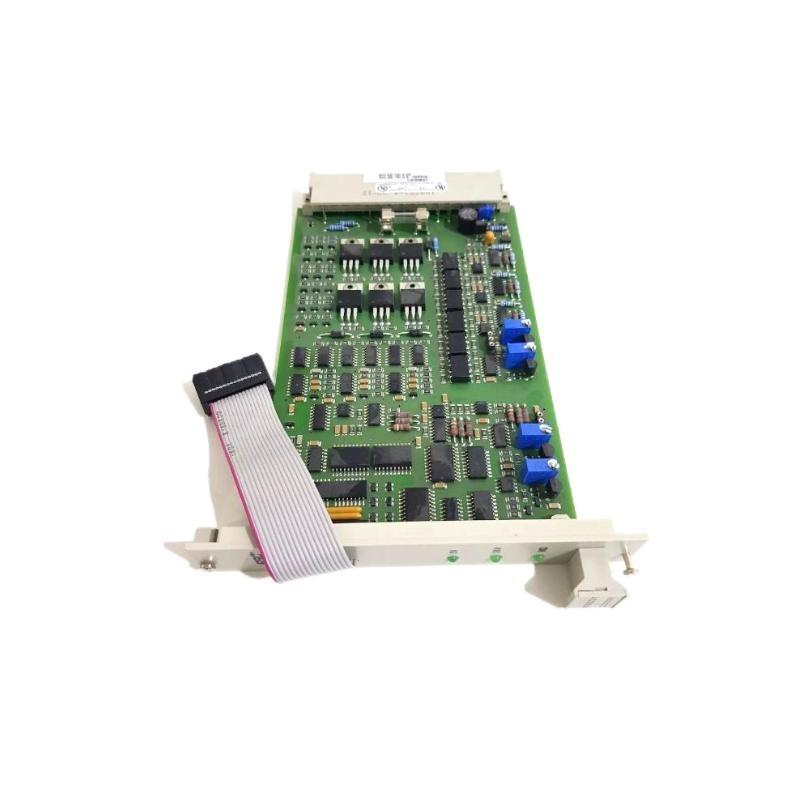

The Honeywell 10302/2/1 Watchdog Repeater Module is a high-reliability signal integrity and system monitoring component, purpose-built for critical industrial automation environments. As part of Honeywell’s trusted industrial control platform, this module functions as a watchdog and repeater, monitoring system health while ensuring continuous and reliable data transmission between devices or controllers across extended distances.
This module acts as a sentinel in distributed control systems (DCS), programmable logic controllers (PLC), and safety instrumented systems (SIS). It watches for data loss, timeouts, or communication errors and ensures signal retransmission with integrity. Its dual functionality—error detection (watchdog) and signal boosting (repeater)—makes it indispensable in large-scale and safety-critical installations.
Engineered for longevity and minimal downtime, the 10302/2/1 is suitable for challenging field conditions, offering performance stability across temperature extremes and electromagnetic environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 10302/2/1 |
| Product Type | Watchdog Repeater Module |
| Manufacturer | Honeywell |
| Primary Functions | Signal Repetition & Watchdog Supervision |
| Input Voltage | 24 VDC nominal (18–30 VDC range) |
| Output Type | Repeated signal (digital/serial, dependent on setup) |
| Input/Output Channels | Dual-channel support |
| Communication Protocols | RS-232, RS-485, proprietary fieldbus |
| Signal Monitoring | Timeout, CRC error, no-response detection |

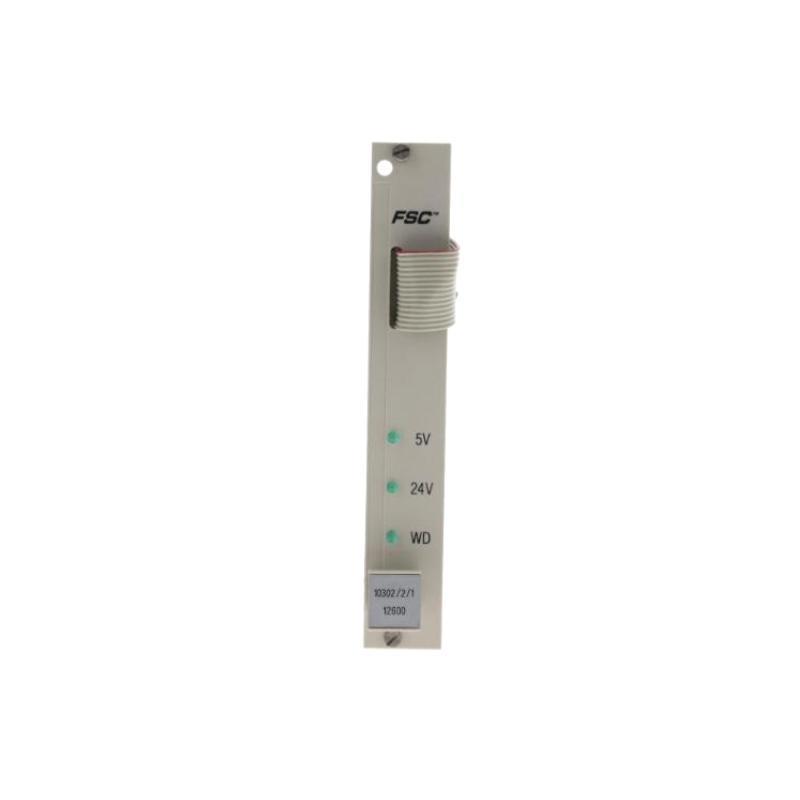

| LED Indicators | Power, Signal Active, Watchdog Alarm |
| Mounting Style | DIN rail / backplane compatible |
| Temperature Range | -25°C to +70°C (operating) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Isolation | Galvanic isolation (Input/Output) |
| Enclosure Rating | IP20 (suitable for control cabinet installation) |
| Housing Material | Flame-retardant industrial-grade polymer |
| Dimensions (W x H x D) | 160 x 100 x 25 mm |
| Weight | 0.12 kg |
| Compliance | CE, RoHS, UL |
Applications
The 10302/2/1 Watchdog Repeater Module is widely used in applications that demand uninterrupted communication, fault detection, and long-distance signal transmission:
-
Distributed Control Systems (DCS)
Enhances the reliability of communication between remote I/O and controllers. -
Safety Instrumented Systems (SIS)
Monitors communication integrity for fail-safe triggering in emergency conditions. -
Power & Energy Plants
Ensures signal stability between turbines, control centers, and substations. -
Chemical & Petrochemical Plants
Facilitates uninterrupted data flows for real-time process adjustments. -
Water & Wastewater Treatment
Supports telemetry and SCADA systems over large coverage areas. -
Manufacturing Automation
Detects communication failures between machines, relays commands over long wiring.
Product Advantages
-
Integrated Watchdog Functionality
Actively monitors system status and triggers alerts on signal loss or errors. -
Signal Integrity Assurance
Repeats and cleans digital signals for extended transmission distance without degradation. -
Dual-Channel Redundancy
Offers failover protection or dual-loop communications for added safety. -
Robust Industrial Design
Operates reliably in harsh temperature, humidity, and vibration conditions. -
EMC-Resistant Architecture
Shields against electrical noise and interference. -
Simple Installation and Diagnostics
DIN rail mounting, LED indicators, and plug-in terminals enable quick setup. -
Low Power Consumption
Efficient design reduces heat generation and extends component lifespan. -
Flexible Communication Support
Supports multiple serial protocols and bus configurations. -
Global Compliance
CE, UL, and RoHS certified for worldwide usage. -
Field-Proven Reliability
Extensively deployed in mission-critical Honeywell systems globally.
Frequently Asked Questions (FAQ)
-
What is the primary purpose of the 10302/2/1 module?
It serves as both a watchdog for communication faults and a signal repeater for long-distance transmission. -
Is this module compatible with RS-485 or RS-232?
Yes, it supports both protocols, depending on system configuration. -
Can I use it in a redundant loop system?
Absolutely. The module supports dual channels that can be configured for redundancy or parallel operation. -
What happens when a communication fault is detected?
An alarm output is triggered, and LEDs indicate the fault for maintenance staff. -
Does the module provide isolation between input and output?
Yes, galvanic isolation is built-in to prevent ground loops and noise. -
Is remote diagnostics available?
Remote fault alerts can be wired, but advanced diagnostics depend on your system’s capabilities. -
What is the maximum cable length supported after repeating?
It depends on the communication type, but typically extends RS-485 up to 1200 meters. -
How is the unit powered?
Via a 24 VDC power supply (18–30 V range). -
Is hot-swap supported?
Generally, this depends on the backplane and system architecture—consult Honeywell DCS specs. -
What maintenance is required?
Very minimal—periodic checks for dust and connector integrity are usually sufficient.
Related Models (Same Series or Functional Category)
| Model Number | Description | Key Features |
|---|---|---|
| 10302/2/2 | Watchdog Repeater with Extended Range | Supports extended cable lengths |
| 10301/3/1 | High-Speed Data Repeater Module | Low-latency transmission |
| 10302/1/1 | Basic Signal Watchdog Module | Compact, single-function watchdog |
| 10300/1/2 | Converter-Repeater Combo Module | Multi-purpose signal adapter |
| 10302/2/R | Redundant Watchdog Repeater | Dual-channel fail-safe system |
| 10303/4/1 | Multi-Channel Repeater Unit | Handles up to four communication lines |
Popular Honeywell Models (Same Brand)
| Model Number | Description | Application Area |
|---|---|---|
| HC900-CPU-701 | Hybrid Control System CPU Module | Advanced process automation |
| STT750 | Smart Temperature Transmitter | Industrial temperature sensing |
| UDC3500 | Universal Digital Controller | Process control with Ethernet support |
| RM7897A1012 | Advanced Burner Safety Relay | Flame safeguard control |
| FSC1004 | Field Safety Controller | Safety-critical system backbone |
| MX1004 | Multiplexer Module for Field Sensors | Signal conditioning and distribution |
