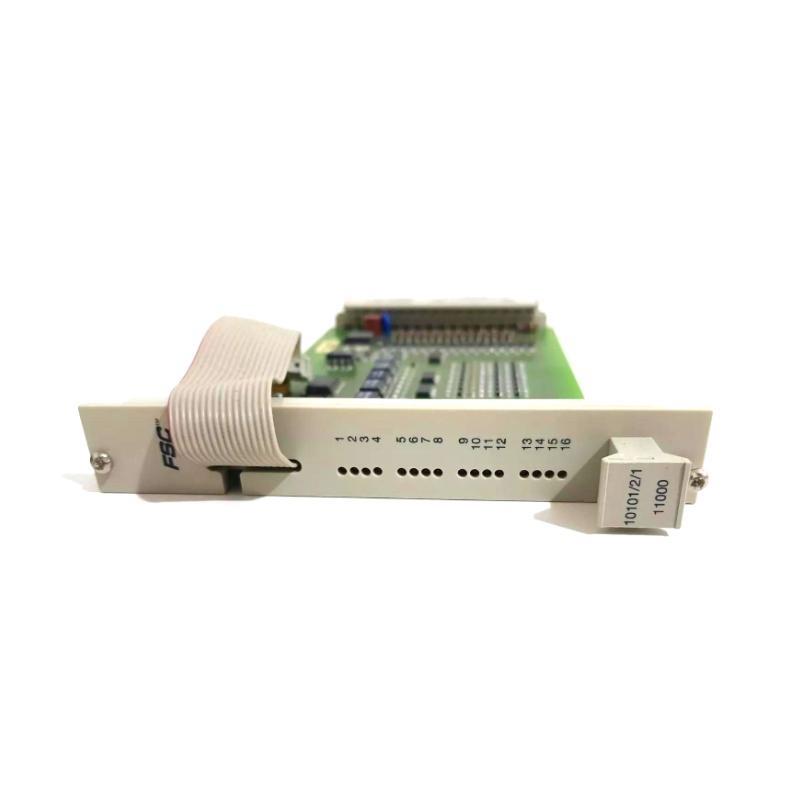

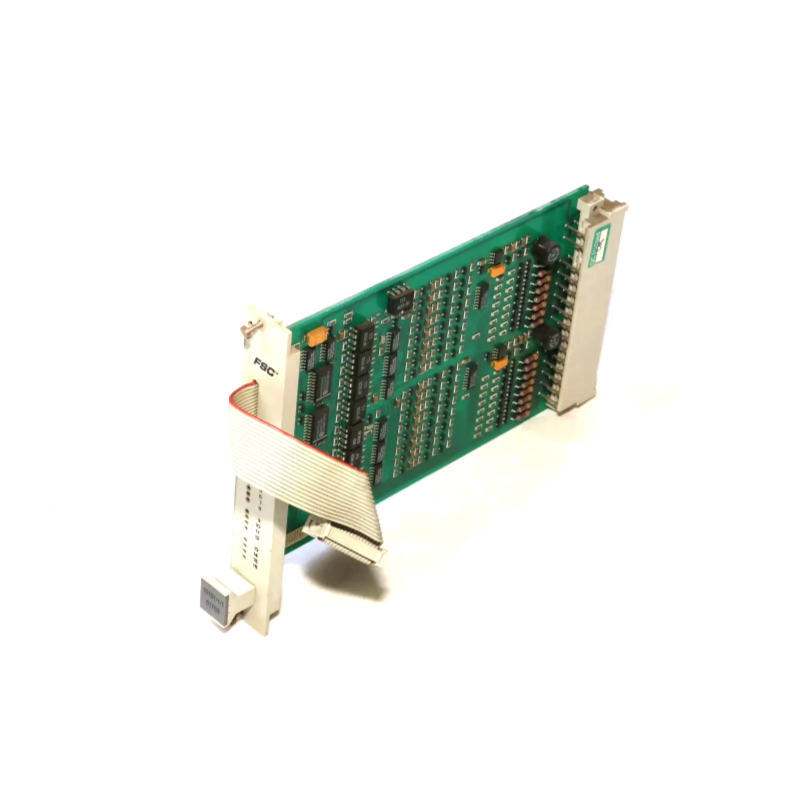

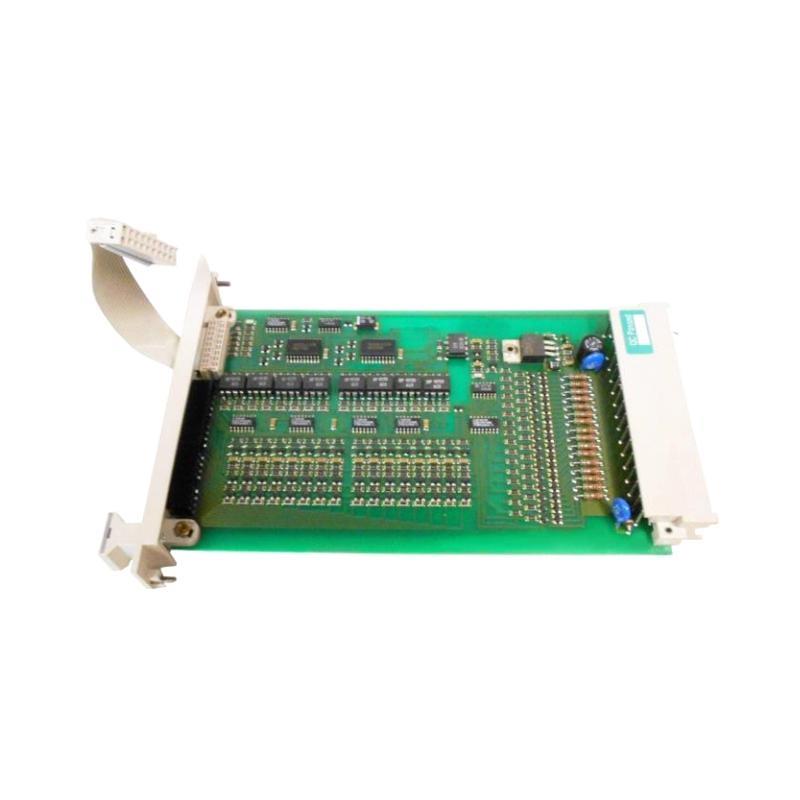

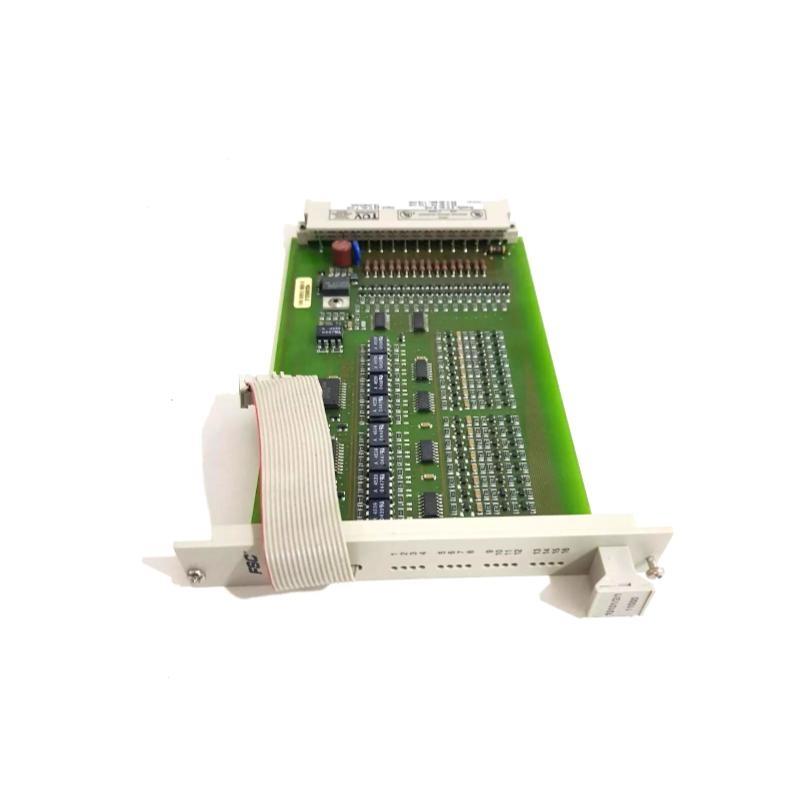

Product Introduction:
The Honeywell 10101/1/1 Fail Safe Digital Input Module is designed for industrial automation and control systems to provide reliable and safe digital input functionality. This module is specifically built to ensure the safety of critical systems by detecting and responding to input signals in real-time, even in the event of failure. It is typically used in safety-critical applications where input data needs to be continuously monitored and the system needs to remain operational under fault conditions. The module is engineered for integration with Honeywell’s control systems, offering seamless compatibility with Honeywell’s Distributed Control System (DCS) and Safety Instrumented System (SIS).
This fail-safe module is perfect for applications that require a high degree of reliability, where system downtime or incorrect input data could result in severe consequences. By providing real-time monitoring and failover protection, it ensures continuous operation in environments with high risk.
Product Parameters:
| Feature | Specification |
|---|---|
| Model | 10101/1/1 |
| Type | Fail-Safe Digital Input Module |
| Input Type | 16 Digital Inputs |
| Input Voltage | 24 VDC (nominal) |
| Input Signal | ON: 12-30 VDC / OFF: 0-5 VDC |
| Module Power Supply | 24 VDC (nominal) |
| Output Type | Digital ON/OFF |
| Temperature Range | -20°C to +60°C |
| Mounting Type | DIN Rail Mount |
| Dimensions (L x W x H) | 140 x 120 x 45 mm |
| Weight | 0.6 kg |
| Enclosure | IP20, Shock-resistant |
| Response Time | 10 ms (typical) |
| Certification | CE, UL, IECEx, ATEX |
| Safety Features | Fail-safe operation, redundant inputs for critical monitoring |
| Isolation | 1500 Vrms Isolation between Input and Output |
Product Applications:
The Honeywell 10101/1/1 Fail Safe Digital Input Module is used in a variety of industries and applications where safety and reliability are paramount:
- Oil & Gas: In offshore platforms and refineries, it is used to monitor critical safety signals such as pressure, flow, and emergency shutdown conditions.
- Chemical & Petrochemical Plants: Provides real-time monitoring of critical sensors and alarms to maintain process safety.
- Power Generation: Used in power plants to ensure that all critical digital input data from field devices (such as limit switches or safety relays) is properly received and processed for continuous operation.
- Manufacturing & Automation: Essential for controlling and monitoring automated processes and machinery where safe operation is critical.
- Transportation & Railways: Used in train signaling and control systems to ensure proper detection of system status and fault conditions.
- Mining: Provides fail-safe input monitoring for mining operations, where equipment failure could result in costly delays and unsafe conditions.
Product Advantages:
- Fail-Safe Operation: The Honeywell 10101/1/1 module is designed to provide fail-safe operation, ensuring that even if one part of the system fails, the module continues to operate correctly, minimizing downtime.
- High Reliability: Engineered for high reliability in safety-critical applications, it ensures that input signals are consistently monitored and processed, even in the event of signal or system failure.
- Compact Design: The compact, DIN-rail mountable design allows for easy integration into existing control cabinets, even in limited space.
- Wide Temperature Range: With an operating temperature range of -20°C to +60°C, the module can function in harsh environmental conditions, making it suitable for a variety of industrial settings.
- Enhanced Safety Features: The module includes redundant inputs, which improve the system’s ability to maintain operational integrity even in fault conditions, ensuring safety-critical operations.
- Robust Build: Designed to withstand harsh industrial environments, it comes in a rugged IP20 enclosure that provides protection against dust and accidental contact.
- Easy Integration: The Honeywell 10101/1/1 module seamlessly integrates into Honeywell’s DCS and SIS systems, reducing setup time and complexity.
- Compliance with International Standards: This module is certified for use in hazardous areas, including IECEx, ATEX, and UL certifications, ensuring compliance with international safety standards.
- Low Response Time: With a response time of 10 milliseconds, the module provides real-time data collection and processing, critical for time-sensitive applications.
- Cost-Effective: Despite its advanced safety features, the Honeywell 10101/1/1 module is competitively priced, providing an efficient and affordable solution for safety-critical systems.
Latest News Titles:
- “Honeywell Launches Advanced Fail-Safe Digital Input Module for Industrial Applications”
- “Ensuring Safety with Honeywell’s 10101/1/1 Fail-Safe Digital Input Module in Oil & Gas Operations”
- “Honeywell’s 10101/1/1 Module Enhances Reliability in Power Generation Safety Systems”
- “Minimizing Risk: The Honeywell 10101/1/1 Fail-Safe Digital Input Module Revolutionizes Industrial Safety”
- “Honeywell Introduces a Compact Solution for Fail-Safe Monitoring in Hazardous Environments”
- “Enhancing System Integrity in Chemical Plants with Honeywell’s New Digital Input Module”
- “Honeywell’s Fail-Safe Digital Input Module Meets High Standards for Safety in Automation”
- “Real-Time Monitoring with Honeywell 10101/1/1: A Game-Changer for Transportation Safety Systems”
- “New Honeywell Digital Input Module Optimizes Safety in Manufacturing Processes”
- “Honeywell 10101/1/1 Digital Input Module: The Key to Uninterrupted Operation in Mining Sites”
FAQ (Frequently Asked Questions):
-
What is the Honeywell 10101/1/1 Fail-Safe Digital Input Module used for?
- It is used to provide fail-safe monitoring of digital inputs in industrial systems, ensuring that even if part of the system fails, the module continues to function and the system remains safe.
-
What are the input voltage and signal requirements for this module?
- The module operates with a nominal input voltage of 24 VDC, and the input signal is ON at 12-30 VDC and OFF at 0-5 VDC.
-
How is the Honeywell 10101/1/1 mounted?
- The module is designed for DIN rail mounting, making it easy to integrate into control panels and cabinets.
-
What is the response time of the 10101/1/1 module?
- The module has a response time of 10 ms (typical), allowing for real-time data processing.
-
Can the 10101/1/1 module be used in hazardous areas?
- Yes, the module is certified for use in hazardous environments with certifications like IECEx, ATEX, and UL.
-
What is the operating temperature range of the module?
- The module operates in temperatures ranging from -20°C to +60°C.
-
What kind of enclosure does the module have?
- The Honeywell 10101/1/1 module has an IP20 rated enclosure, making it resistant to dust and providing protection against accidental contact.
-
What is the power supply requirement for the module?
- The module requires a 24 VDC supply voltage for both input and operation.
-
How many digital inputs does the 10101/1/1 module have?
- The module has 16 digital inputs, providing robust input monitoring for safety-critical systems.
-
How does the fail-safe feature work in the 10101/1/1 module?
- The module ensures fail-safe operation by using redundant inputs, so the system continues to operate correctly even if part of the input circuit fails.
