Product Introduction

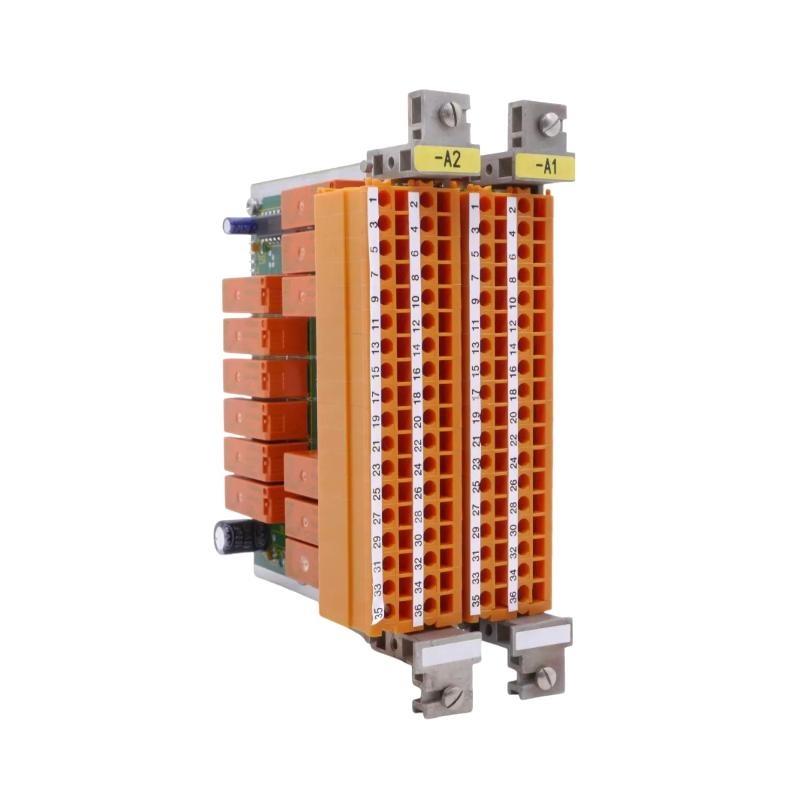

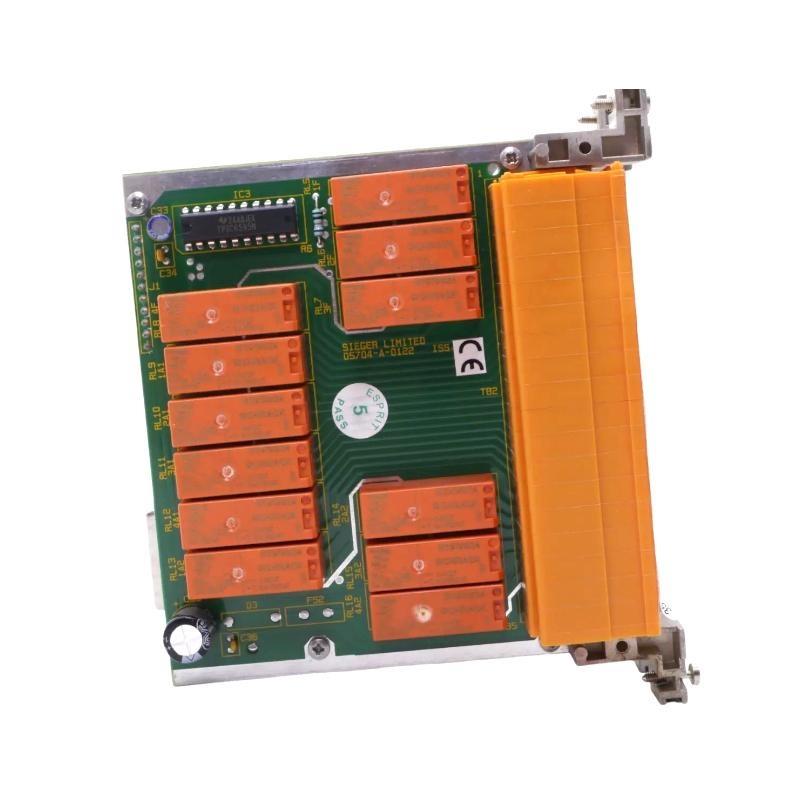

The Honeywell 05704-A-0131 Quad Relay Interface Card is a high-performance relay output module designed to provide reliable isolation and control in process automation and distributed control systems (DCS). This card is part of Honeywell’s advanced I/O subsystem and is specifically used to interface control logic with external devices such as actuators, solenoids, alarms, and contactors.
Equipped with four independent relay channels, the 05704-A-0131 offers robust switching capabilities, making it suitable for safety-critical applications and high-reliability control systems. The card is designed to operate in harsh industrial environments, with high immunity to electromagnetic interference (EMI) and robust isolation to protect the control system from field-side disturbances.
The module ensures seamless integration into Honeywell’s TDC 3000, Experion® PKS, and other compatible DCS architectures, providing a stable and flexible solution for output interfacing in industrial automation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | Honeywell 05704-A-0131 Quad Relay Interface Card |
| Type | Relay Output Interface Module |
| Number of Channels | 4 Independent Relay Outputs |
| Relay Type | Form-C (SPDT) Electro-Mechanical Relays |
| Contact Rating | 2 A @ 30 VDC / 0.5 A @ 125 VAC |
| Isolation Voltage | 1500 V RMS (control to field isolation) |
| Response Time | < 10 ms typical |
| Control Voltage | 24 VDC typical |
| Power Consumption | 5 W |
| Mounting Type | Card Cage / Rack Mounted |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Compliance Standards | UL, CE, RoHS, IEC |
| Dimensions (H x W x D) | 122 x 52 x 132 mm |
| Weight | 0.5 kg |
Product Applications
The Honeywell 05704-A-0131 Quad Relay Interface Card is widely used in industrial automation, energy, and process control sectors. Key applications include:
-
Distributed Control Systems (DCS): Interfaces control logic with external field devices.
-
Safety and Alarm Systems: Controls audible and visual alarm circuits with galvanic isolation.
-
Actuator and Solenoid Control: Drives field actuators and solenoids in critical process loops.
-
Contact Closure Output: Provides reliable dry contact outputs for external systems.
-
Power Plant Automation: Used in turbine and boiler control systems requiring robust relay outputs.
-
Oil, Gas, and Chemical Plants: Ideal for hazardous and high-EMI environments requiring reliable relay interfacing.
Product Advantages
-
Four Independent Outputs: Allows control of multiple devices with a single interface card.
-
High Isolation: Provides 1500 V RMS isolation between field and control circuits for system protection.
-
Robust Industrial Design: Built to withstand EMI and harsh process plant conditions.
-
Fast Response: Ensures quick and accurate relay switching for critical control functions.
-
Seamless Integration: Fully compatible with Honeywell Experion® PKS and TDC 3000 systems.
-
Flexible Applications: Can drive alarms, actuators, solenoids, and contactors in multiple industrial settings.
FAQ
-
How many relay outputs does the 05704-A-0131 provide?
The card offers 4 independent relay outputs for versatile control applications. -
What type of relays are used in the module?
It uses Form-C (SPDT) electro-mechanical relays with galvanic isolation. -
What is the contact rating for each relay output?
Each relay is rated for 2 A at 30 VDC or 0.5 A at 125 VAC. -
Does the 05704-A-0131 provide electrical isolation between field and control circuits?
Yes, it provides up to 1500 V RMS isolation to protect control systems. -
What is the typical response time for the relay activation?
The typical switching response time is less than 10 ms. -
Is the card compatible with Honeywell Experion® PKS systems?
Yes, it integrates seamlessly with Experion® PKS and legacy TDC 3000 architectures. -
Can the card drive inductive loads such as solenoids and contactors?
Yes, it is designed to handle inductive loads with appropriate suppression. -
What is the typical control voltage required?
The module typically operates with a 24 VDC control signal. -
Is the card suitable for use in safety-critical applications?
Yes, it is commonly used in alarm and emergency shutdown systems due to its reliability. -
Does the 05704-A-0131 meet international compliance standards?
Yes, it complies with UL, CE, RoHS, and IEC standards for industrial automation equipment.
