Product Introduction

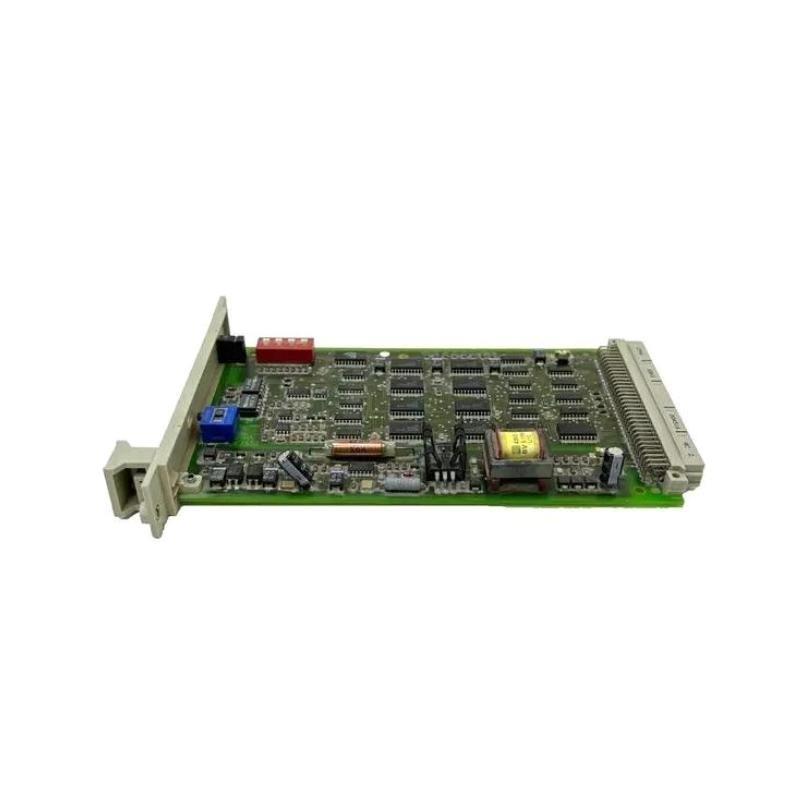

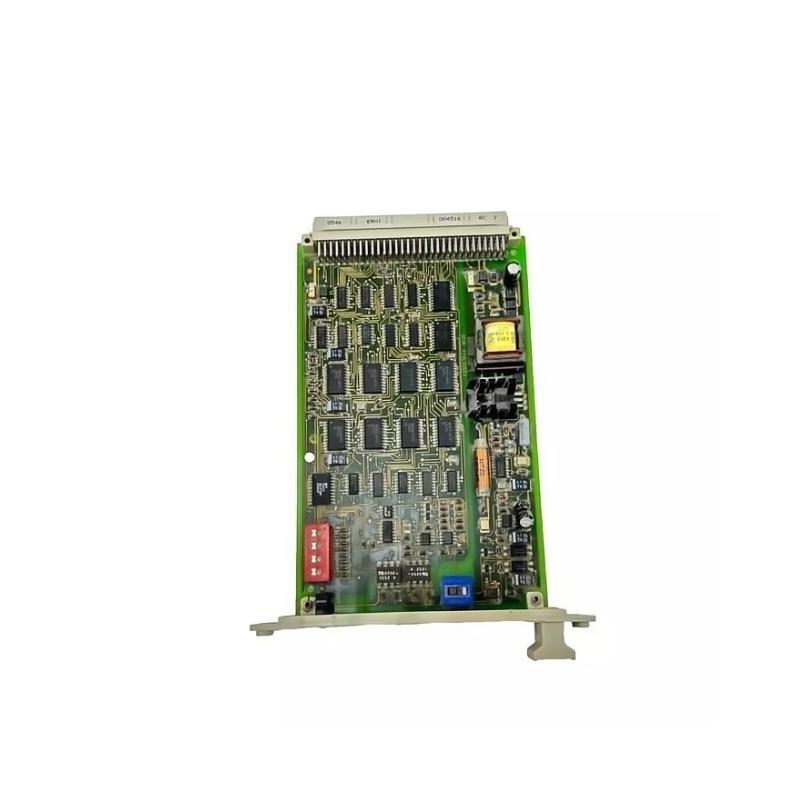

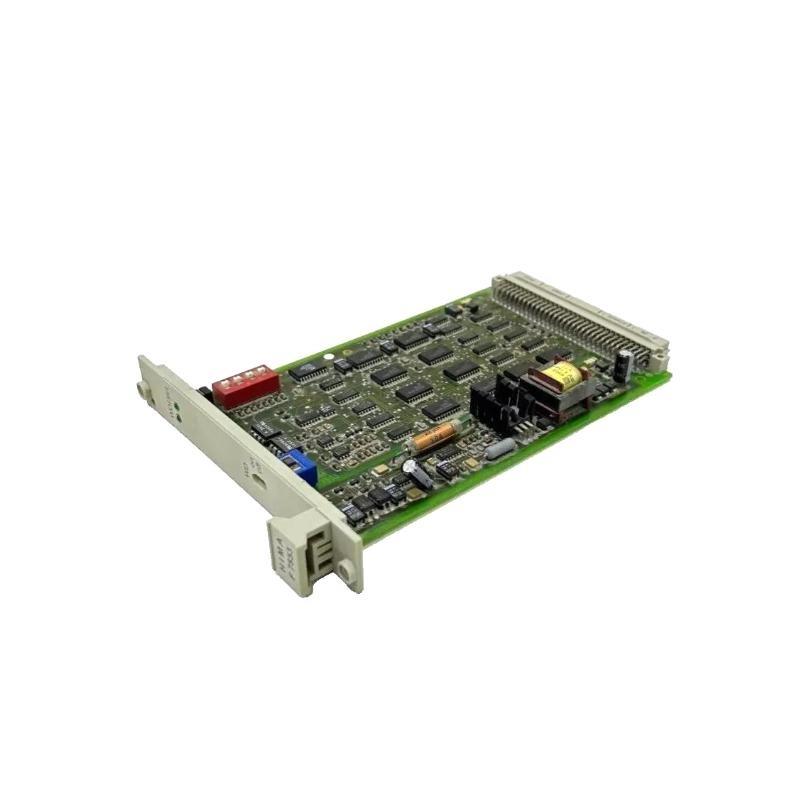

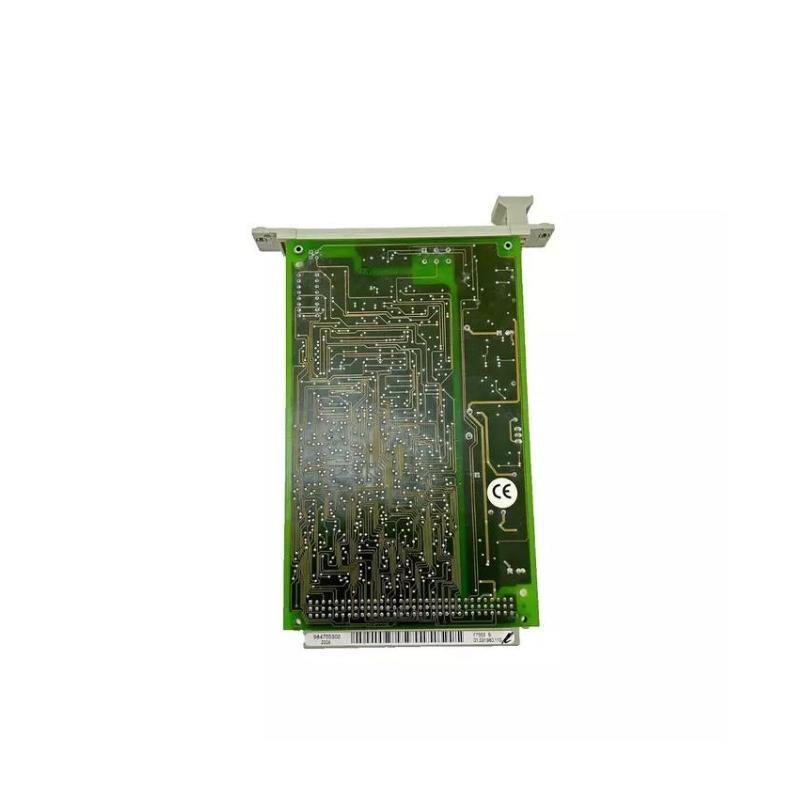

The HIMA F7553 Coupling Module is a vital interface component within HIMA’s safety automation systems, designed to reliably interconnect safety I/O modules with the main processing units. It acts as a high-integrity coupling bridge that ensures fast, secure, and fault-tolerant communication across the safety bus. The F7553 is engineered to support both centralized and decentralized architectures, making it adaptable to complex industrial safety systems where dependability and real-time operation are crucial.
Built to withstand harsh industrial environments, the F7553 module delivers exceptional performance in process automation and safety-related control. It integrates seamlessly with HIMA’s HIMax and HIQuad X platforms, facilitating modular expansion and providing comprehensive diagnostics to reduce maintenance efforts and increase operational uptime.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | F7553 |
| Manufacturer | HIMA |
| Function | Coupling Module |
| Communication Interface | Internal safety bus coupling |
| Supported Systems | HIMax, HIQuad X |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 3.2 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | < 95%, non-condensing |
| Mounting Type | DIN rail |
| Housing Material | Industrial-grade flame-retardant thermoplastic |
| Space requirement | 4 TE |
| Weight | 0.14 kg |
| Safety Certification | SIL 3 (IEC 61508), CE, ATEX |
Product Applications
The F7553 Coupling Module is primarily used in safety-critical automation environments where communication integrity and system reliability are paramount. Typical application areas include:
-
Oil & Gas Industry
Ensures safe data transmission between distributed I/O racks and safety controllers in refinery and pipeline control systems. -
Chemical and Petrochemical Plants
Facilitates modular, redundant safety bus communication to protect personnel and equipment from hazardous incidents. -
Power Plants
Supports safety-related control functions for turbine control, emergency shutdown, and boiler safety systems. -
Pharmaceutical Manufacturing
Allows for safe automation of batch processes by securely connecting field devices to central safety logic. -
Transportation Systems
Used in railway and mass transit signaling to maintain high safety standards in operational communication.
Product Advantages
-
Robust Safety Communication
Provides reliable, high-speed data coupling with built-in fault detection, ensuring safe and uninterrupted communication. -
Certified for SIL 3 Applications
Complies with the highest safety integrity standards, ideal for the most demanding industrial safety environments. -
Modular and Compact Design
Slim form factor for easy DIN rail mounting, supporting scalable system architectures. -
Wide Operating Range
Capable of operating reliably across a broad temperature range and in challenging environmental conditions. -
Integrated Diagnostics
Includes status LEDs and fault indicators that simplify troubleshooting and maintenance. -
Flexible Integration
Compatible with multiple HIMA safety platforms, enabling easy upgrades and system expansions.
Frequently Asked Questions (FAQ)
-
Q: What role does the F7553 play in a HIMA safety system?
A: It acts as a coupling bridge between safety I/O modules and the central processor, enabling reliable data exchange on the safety bus. -
Q: Can the F7553 be used in redundant system configurations?
A: Yes, it supports redundant architectures to ensure continuous operation during hardware failures. -
Q: Is the F7553 module hot-swappable?
A: Yes, it can be replaced without shutting down the system in platforms that support hot-swapping, such as HIMax. -
Q: What indicators are available to monitor the module’s status?
A: The module has integrated LEDs that show operating status and fault conditions for quick diagnostics. -
Q: What maintenance does the F7553 require?
A: It is designed to be maintenance-free, though periodic inspections and diagnostic checks are recommended. -
Q: How does the module handle power supply variations?
A: The F7553 operates on a stable 24 V DC supply and includes protections against minor voltage fluctuations. -
Q: Can the F7553 interface with legacy HIMA systems?
A: It is optimized for HIMax and HIQuad X systems; compatibility with older systems should be verified case by case. -
Q: What are the environmental requirements for installing the F7553?
A: It should be installed in environments within the specified temperature and humidity ranges, mounted securely on DIN rails. -
Q: What happens if the F7553 detects a fault?
A: It signals the fault via LEDs and the safety system triggers safe-state procedures to prevent hazardous situations. -
Q: Is the F7553 certified for use in explosive atmospheres?
A: Yes, it is ATEX certified for Zone 2/22 hazardous area installations when housed appropriately.
Related Models (Same Series or Function)
| Model | Description | Key Features |
|---|---|---|
| F7550 | Standard I/O Coupling Module | Base bus coupling with diagnostic support |
| F7546 | I/O Bus Coupling Module | High-speed internal bus interface |
| F7551 | Compact Coupling Module | Smaller form factor for limited space |
| F7554 | Redundant Coupling Module | Supports full redundant bus architectures |
| F8621A | Digital Output Module | Certified fail-safe outputs for shutdown |
| F7140 | Analog Input Interface | Precise analog signal conversion |
Popular HIMA Models (High Demand)
| Model | Description | Key Features |
|---|---|---|
| F8621A | Digital Output Module | SIL 3 certified, robust field outputs |
| F3330 | Safety CPU Processor | High-performance safety logic processing |
| F7131 | Analog Input Module | Accurate measurement for various signals |
| F3221 | Digital Input Module | High integrity input signal handling |
| F3417A | Frequency/Pulse Input Module | Suitable for flow and turbine speed inputs |
| F8652X | Compact Safety Controller | Modular, scalable, and redundant capable |
