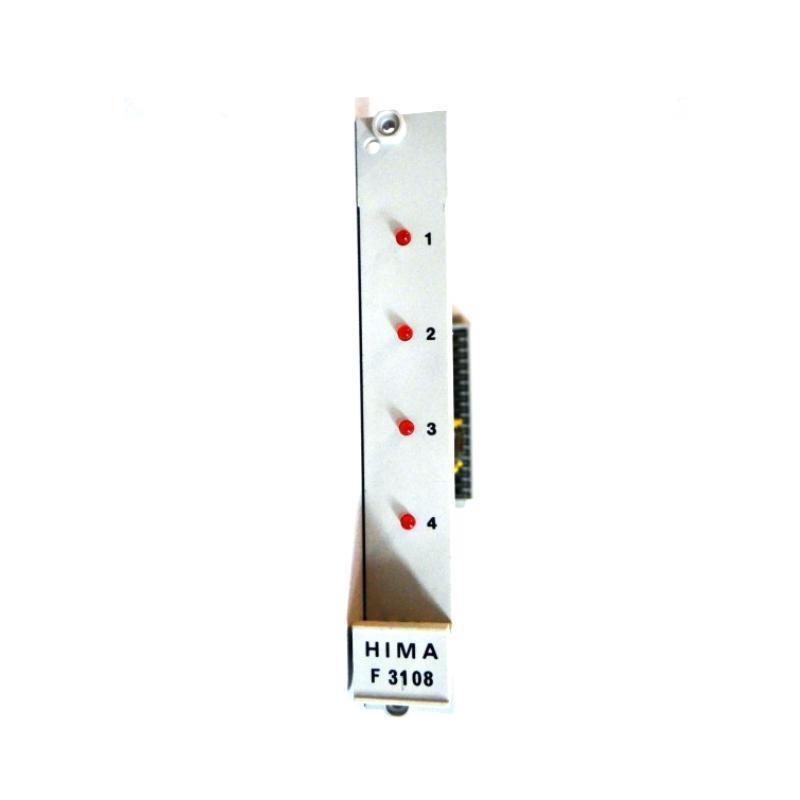

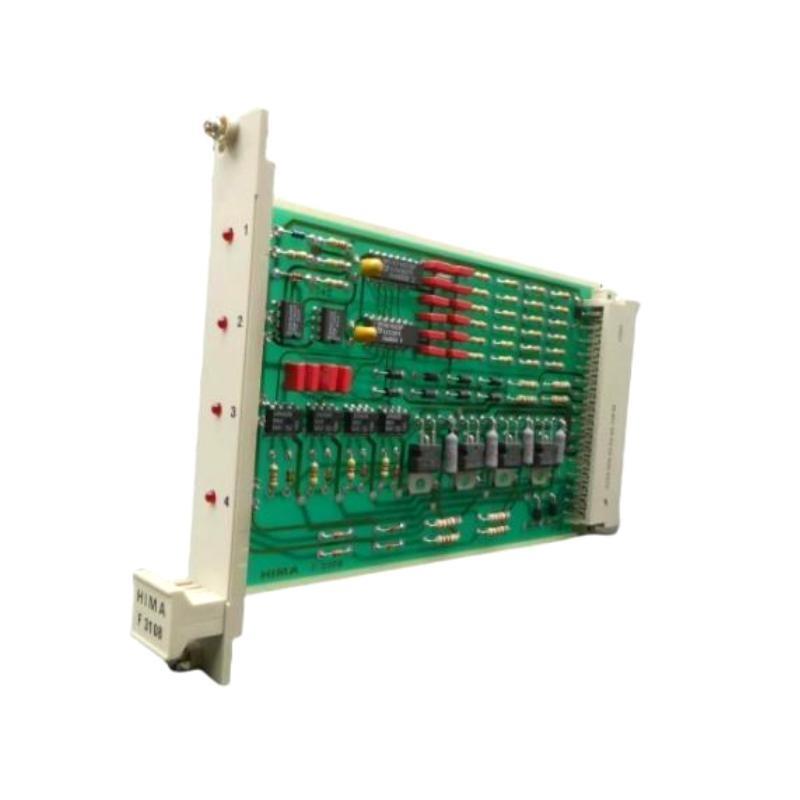

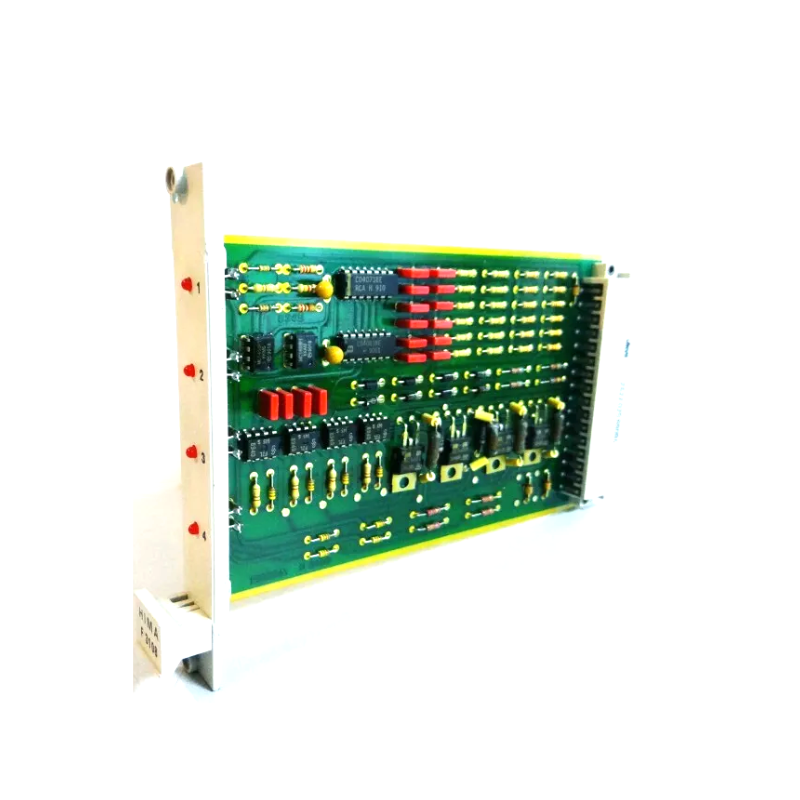

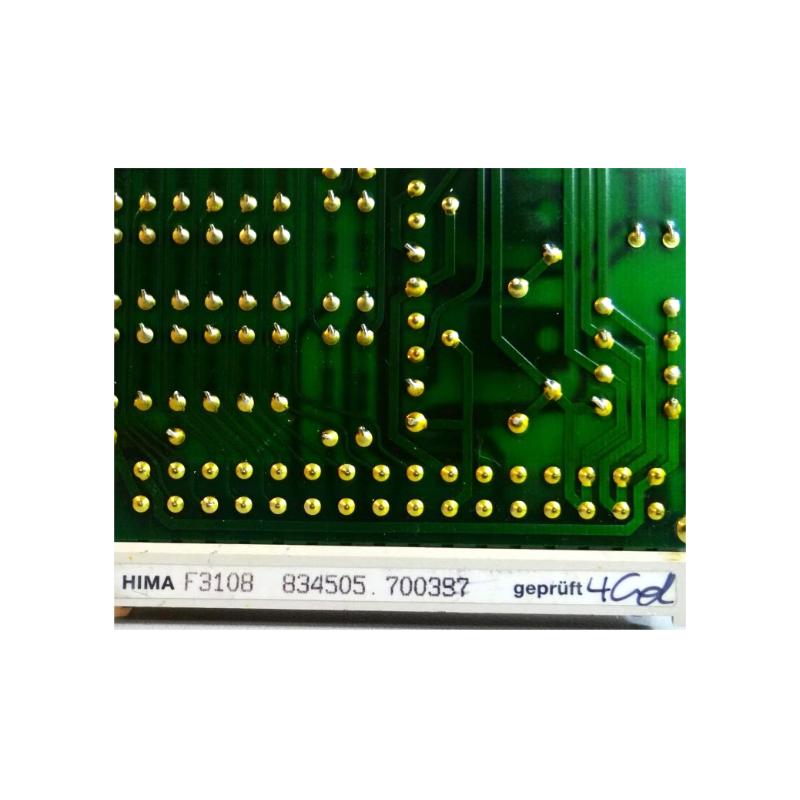

Product Introduction
The HIMA F3108 Relay Amplifier Module is a high-performance, industrial-grade relay amplifier designed to enhance the reliability and efficiency of control systems in critical applications. It is specifically engineered for use in safety-related automation and process control environments, where high precision and operational stability are paramount.
This module is an essential component in HIMA’s extensive safety system portfolio, providing robust signal amplification and isolation capabilities. The F3108 is designed to function in demanding industrial conditions, ensuring seamless integration with other HIMA safety controllers and automation systems.
Product Specifications
The table below provides a comprehensive overview of the key technical specifications of the HIMA F3108 Relay Amplifier Module:
| Specification | Details |
|---|---|
| Manufacturer | HIMA |
| Model | F3108 |
| Function | Relay Amplifier Module |
| Number of Channels | Multiple (varies based on configuration) |
| Relay Type | Electromechanical |
| Operating Voltage | 24V DC (Nominal) |
| Current Consumption | ≤ 50mA |
| Contact Rating | Up to 250V AC, 5A |
| Response Time | ≤ 10ms |
| Insulation Resistance | ≥ 100MΩ at 500V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10% – 95% RH (non-condensing) |
| Vibration Resistance | 5g, 10Hz – 150Hz |
| Shock Resistance | 15g, 11ms |
| Mounting Type | DIN Rail |
| Dimensions (W x H x D) | 100 x 25 x 120 mm |
| Weight | 0.15 kg |
| Certifications | SIL 3, IEC 61508, CE, ATEX |
Product Applications
The HIMA F3108 is widely used in industries requiring high reliability and safety. Its primary applications include:
- Industrial Automation: Enhances the reliability of automation systems in hazardous environments.
- Process Control Systems: Used in chemical, oil & gas, and power generation facilities for secure relay amplification.
- Safety Instrumented Systems (SIS): Provides fail-safe signal transmission in critical safety loops.
- Emergency Shutdown Systems (ESD): Ensures quick response in case of system failures or emergency situations.
- Railway & Transportation Systems: Supports safety and signaling applications in railway automation.
- Nuclear Power Plants: Provides robust isolation and signal amplification in nuclear power safety circuits.
Product Advantages
The HIMA F3108 Relay Amplifier Module offers numerous benefits that make it a preferred choice for safety-critical applications:
- High Reliability – Engineered for mission-critical safety applications with SIL 3 certification.
- Fast Response Time – Ensures timely signal transmission for safety and automation processes.
- Robust Build Quality – Designed to withstand harsh industrial conditions, including high vibration and temperature variations.
- Efficient Power Consumption – Low energy usage while maintaining high-performance signal amplification.
- Seamless System Integration – Fully compatible with HIMA safety controllers and third-party automation systems.
- Enhanced Electrical Isolation – Prevents interference and ensures signal integrity across connected circuits.
- Compact & Space-Saving Design – Optimized for easy installation on DIN rail mounts.
- Long Service Life – Durable components and solid-state relay technology enhance longevity.
- Comprehensive Safety Compliance – Certified according to SIL 3 (IEC 61508), ATEX, and other industry standards.
- Flexible Applications – Suitable for a wide range of industries, including oil & gas, power generation, and transportation.
Latest News
- “HIMA Enhances Safety with New Relay Amplifier Technology in F3108”
- “F3108 Relay Module Achieves SIL 3 Certification for Critical Safety Applications”
- “How HIMA’s F3108 Module is Transforming Industrial Process Safety”
- “Advanced Relay Technology: The Key Features of the HIMA F3108 Module”
- “HIMA Expands Safety Automation Portfolio with the F3108 Relay Amplifier”
Frequently Asked Questions (FAQ)
-
What is the primary function of the HIMA F3108 Relay Amplifier Module?
The F3108 amplifies and isolates signals within safety-critical automation systems. -
What voltage does the F3108 module operate on?
It operates on a nominal 24V DC power supply. -
Is the HIMA F3108 SIL-certified?
Yes, the module is SIL 3 certified under IEC 61508 safety standards. -
What type of relay does the F3108 use?
The module employs electromechanical relays for signal amplification. -
What are the key industries using the HIMA F3108?
It is widely used in oil & gas, power generation, transportation, and industrial automation. -
Can the F3108 be used in extreme temperatures?
Yes, it has an operating temperature range of -20°C to +60°C. -
How is the module installed?
The F3108 is DIN rail-mounted for easy installation in control cabinets. -
What is the weight of the F3108 module?
It weighs 0.15 kg. -
Is the F3108 compatible with other HIMA controllers?
Yes, it is designed to integrate seamlessly with HIMA safety systems. -
Does the module have shock and vibration resistance?
Yes, it is tested for vibration (5g, 10-150Hz) and shock (15g, 11ms) resistance.
10 Related Models
| Model | Function | Voltage | SIL Certification |
|---|---|---|---|
| HIMA F3113 | Relay Output Module | 24V DC | SIL 3 |
| HIMA F3114 | Digital Input Module | 24V DC | SIL 3 |
| HIMA F3115 | Analog Input Module | 24V DC | SIL 3 |
| HIMA F3126 | Safety Relay Module | 24V DC | SIL 3 |
| HIMA F3330 | CPU Module | 24V DC | SIL 3 |
| HIMA F3322 | Communication Module | 24V DC | SIL 3 |
| HIMA F3421 | Power Supply Module | 24V DC | SIL 3 |
| HIMA F7131 | Signal Converter Module | 24V DC | SIL 3 |
| HIMA F7553 | Processor Module | 24V DC | SIL 3 |
| HIMA F8627X | Digital Output Module | 24V DC | SIL 3 |
10 Popular Models
| Model | Function | Voltage | SIL Certification |
|---|---|---|---|
| HIMA F8627 | CPU Module | 24V DC | SIL 3 |
| HIMA F3331 | Analog Output Module | 24V DC | SIL 3 |
| HIMA F7126 | Digital Input Module | 24V DC | SIL 3 |
| HIMA F7130 | Communication Module | 24V DC | SIL 3 |
| HIMA F8628 | Redundant CPU Module | 24V DC | SIL 3 |
| HIMA F3350 | Analog Input Module | 24V DC | SIL 3 |
| HIMA F6205 | Power Supply Unit | 24V DC | SIL 3 |
| HIMA F3220 | Safety PLC Module | 24V DC | SIL 3 |
| HIMA F7101 | I/O Module | 24V DC | SIL 3 |
| HIMA F7551 | Relay Module | 24V DC | SIL 3 |
