Product Overview

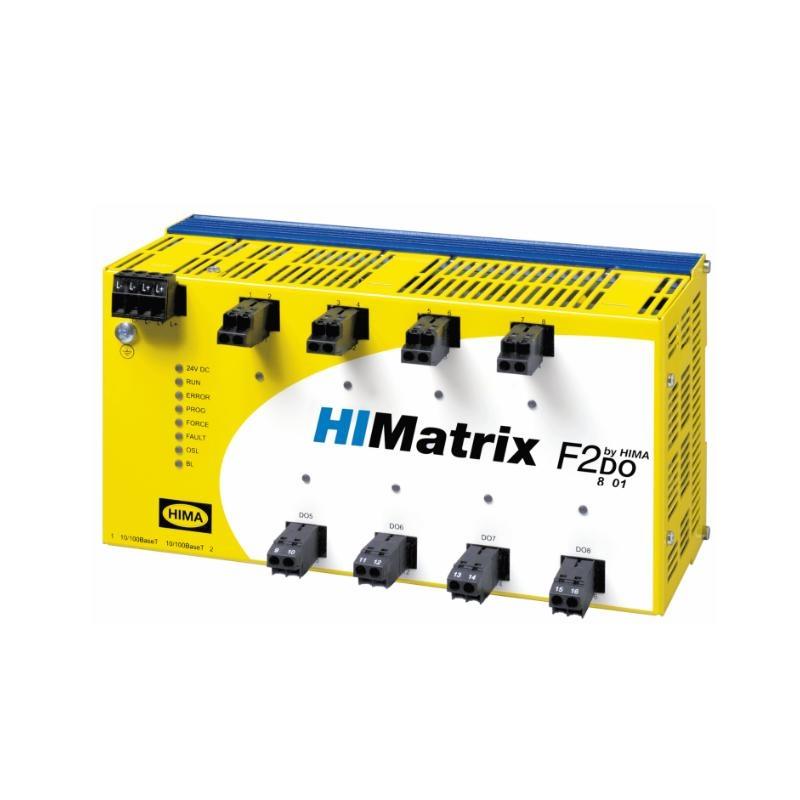

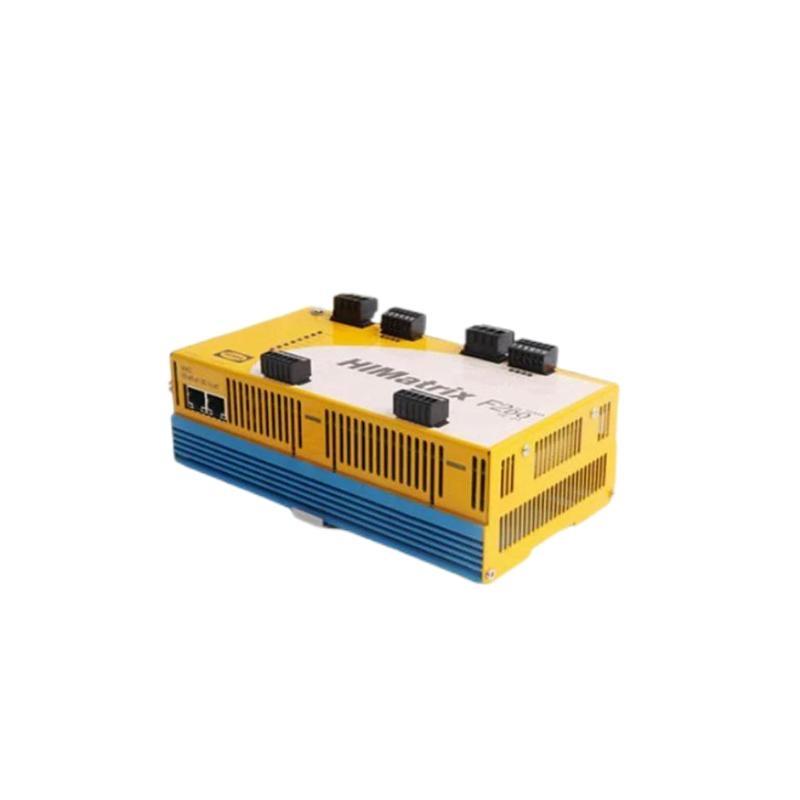

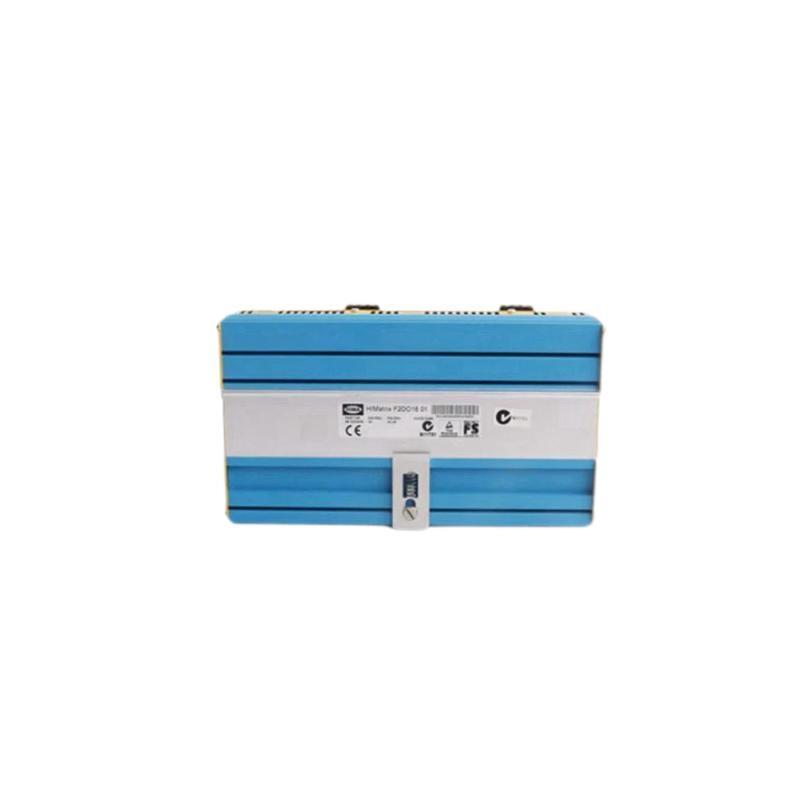

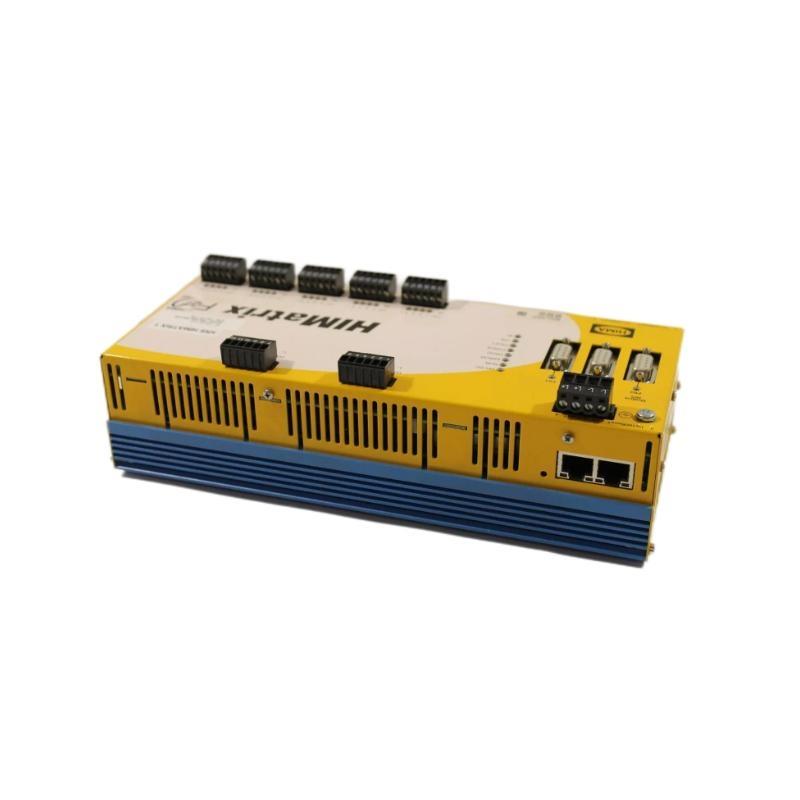

The HIMA F2 DO 8 01 is an advanced Safety Related Controller designed for high-reliability industrial automation and safety applications. Manufactured by HIMA, a globally recognized leader in safety and automation systems, this module provides eight digital outputs, ensuring precise and reliable control of external devices such as actuators, indicators, and relays.
This model is part of the HIMA HIMatrix series, which is known for its compact, modular design, making it ideal for distributed control and safety-critical applications. The F2 DO 8 01 ensures high-speed signal transmission and meets the SIL 3 safety standard, making it suitable for industries such as oil & gas, chemical processing, and power generation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | HIMA |
| Model | F2 DO 8 01 |
| Series | HIMatrix |
| Type | Safety Related Controller |
| Number of Outputs | 8 Channels |
| Output Type | Digital, potential-free |
| Voltage Range | 24V DC |
| Current per Output | Up to 2A per channel |
| Response Time | < 1 ms |
| Safety Standard | SIL 3, IEC 61508 |
| Communication | PROFIBUS, Modbus, Ethernet |
| Temperature Range | -25°C to +70°C |
| Power Consumption | Low power design |
| Dimensions (mm) | 207 x 114 x 86 mm |
| Weight | 1.3 kg |
| Mounting | DIN Rail Mounting |
| Protection Rating | IP20 |
Key Advantages of HIMA F2 DO 8 01
- High Safety Certification (SIL 3): Meets the strictest safety requirements for industrial automation and safety-critical systems.
- Reliable Digital Outputs: Each of the 8 outputs can control actuators and other devices with high-speed response.
- Compact and Modular Design: Optimized for space-saving installations in control cabinets.
- Fast Response Time (<1 ms): Ensures accurate and real-time control of critical processes.
- Flexible Communication Protocols: Supports PROFIBUS, Modbus, and Ethernet, allowing seamless integration into various automation environments.
- Energy Efficient: Designed to minimize power consumption while maintaining high performance.
- Industrial Durability: Wide temperature range (-25°C to +70°C) and IP20 protection ensure operation in harsh industrial environments.
- Easy Installation & Maintenance: DIN rail mounting simplifies installation, and the modular structure allows quick replacements if needed.
Latest News & Updates on HIMA F2 DO 8 01
- HIMA Expands HIMatrix Series: New updates focus on improved safety integration and network compatibility.
- SIL 3 Standardization Enhancements: HIMA has recently upgraded compliance features to align with updated IEC 61508 standards.
- Increased Demand in the Oil & Gas Sector: Growing demand for safety automation in critical industries boosts adoption.
- New Firmware Updates for Enhanced Functionality: The latest firmware release includes enhanced diagnostics and self-monitoring capabilities.
- Partnership with Leading Industrial Automation Providers: HIMA collaborates with major automation companies to improve integration.
- Energy-Efficient Safety Solutions Initiative: Focus on reducing power consumption while maintaining safety.
- HIMA Strengthens Global Support Network: Additional service centers for improved customer support and system maintenance.
- Adoption in Smart Factories & Industry 4.0: Increased use in digital twin environments and predictive maintenance strategies.
- Cybersecurity Enhancements: Improved network security protocols to protect against industrial cyber threats.
- Case Study: Successful Deployment in Chemical Processing Plant: Demonstrates high reliability and compliance in hazardous environments.
Frequently Asked Questions (FAQ)
-
What is the function of the HIMA F2 DO 8 01 module?
The F2 DO 8 01 is an 8-channel Safety Related Controller used for controlling actuators and external devices in safety-critical systems. -
Does this module comply with SIL 3 standards?
Yes, the HIMA F2 DO 8 01 is certified for SIL 3, meeting the highest industrial safety standards. -
What industries commonly use the HIMA F2 DO 8 01?
It is widely used in oil & gas, chemical processing, power plants, and industrial automation. -
What communication protocols does it support?
This module supports PROFIBUS, Modbus, and Ethernet for easy integration into automation networks. -
What is the maximum output current per channel?
Each digital output can handle up to 2A per channel. -
What are the power requirements?
The module operates on 24V DC power supply. -
Is it easy to install?
Yes, it features DIN rail mounting, making installation quick and simple. -
Can this module operate in extreme temperatures?
Yes, it is designed for temperatures ranging from -25°C to +70°C. -
What protection rating does it have?
It has an IP20 protection rating, suitable for industrial control cabinet environments. -
Is the module compatible with other HIMatrix products?
Yes, it is fully compatible with other HIMA HIMatrix components for seamless system expansion.
Related Models in the HIMatrix Series
| Model | Description | Key Features |
|---|---|---|
| F2 DO 16 01 | 16-channel Digital Output Module | High-density, SIL 3 |
| F2 DO 16 02 | 16-channel Digital Output Module | Extended diagnostics |
| F2 AI 8 01 | 8-channel Analog Input Module | Precise signal acquisition |
| F2 AI 16 01 | 16-channel Analog Input Module | SIL 3 certified |
| F2 DI 16 01 | 16-channel Digital Input Module | High-speed input detection |
| F2 DI 32 01 | 32-channel Digital Input Module | Space-saving, compact |
| F2 AIO 8 01 | 8-channel Analog I/O Module | Dual-mode inputs/outputs |
| F2 AIO 16 01 | 16-channel Analog I/O Module | Industrial-grade accuracy |
| F3 CPU 01 | HIMatrix Compact CPU | High-speed processing |
| F3 DIO 32 01 | 32-channel Digital I/O Module | SIL 3, PROFIBUS support |
Popular HIMA Models
| Model | Description | Key Features |
|---|---|---|
| F3-20 | Process Control System | Modular, SIL 3 |
| F3-40 | Safety Control System | SIL 3, Flexible I/O |
| F3-60 | Advanced Safety System | High-Performance CPU |
| F3-70 | High Availability System | Redundant Architecture |
| F3-100 | Fully Redundant System | Ethernet, SIL 3 |
| F4-20 | Digital I/O System | SIL 3, Modbus |
| F4-40 | Analog I/O System | SIL 3, Accurate Inputs |
| F5-50 | Fieldbus I/O System | HART, SIL 3 |
| F6-60 | Wireless I/O System | High Scalability |
| F7-70 | Safety I/O System | Compact Design |
