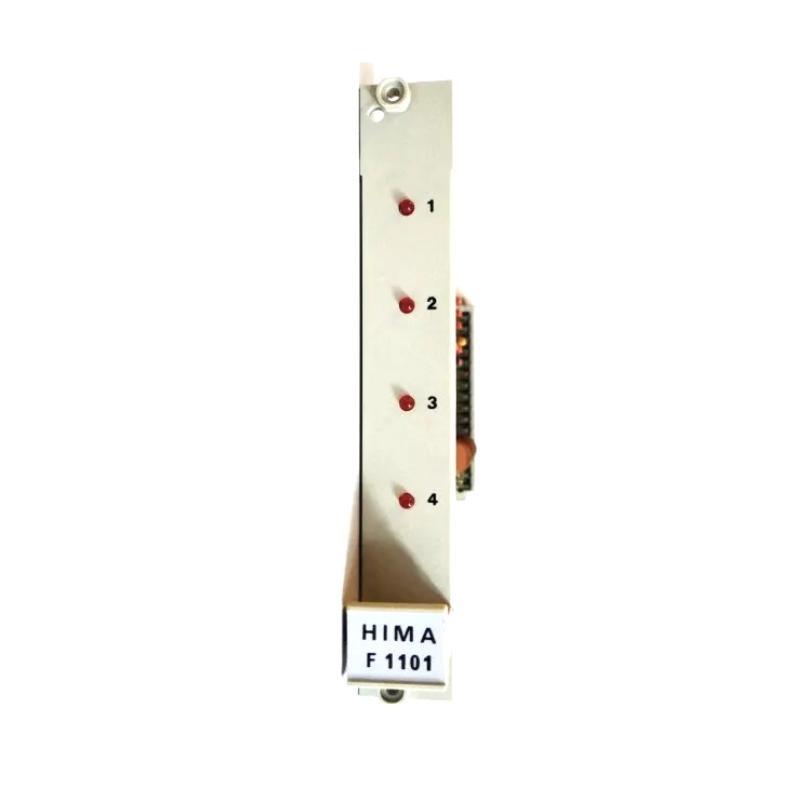

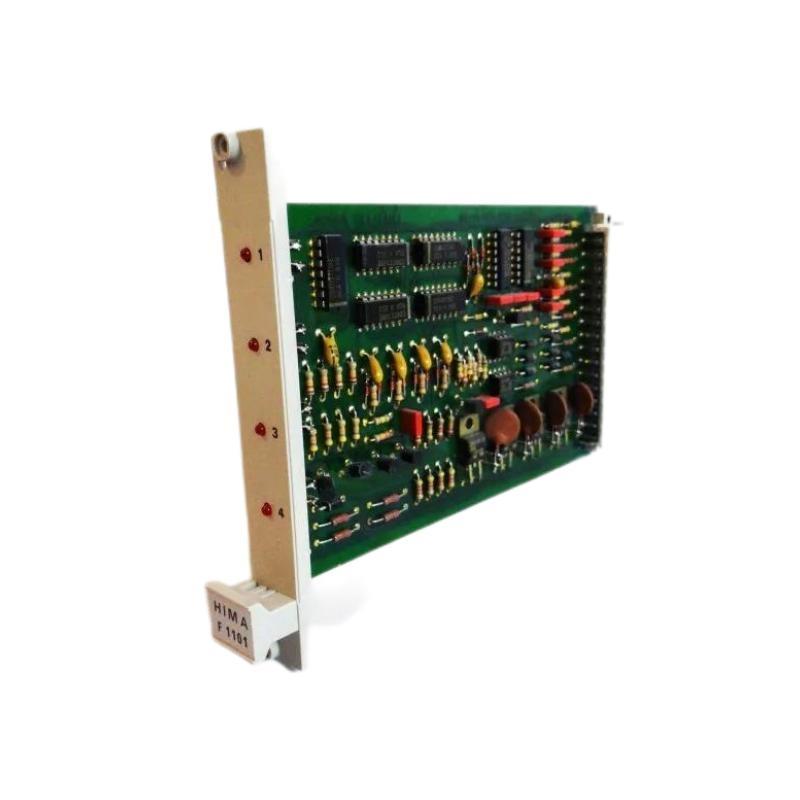

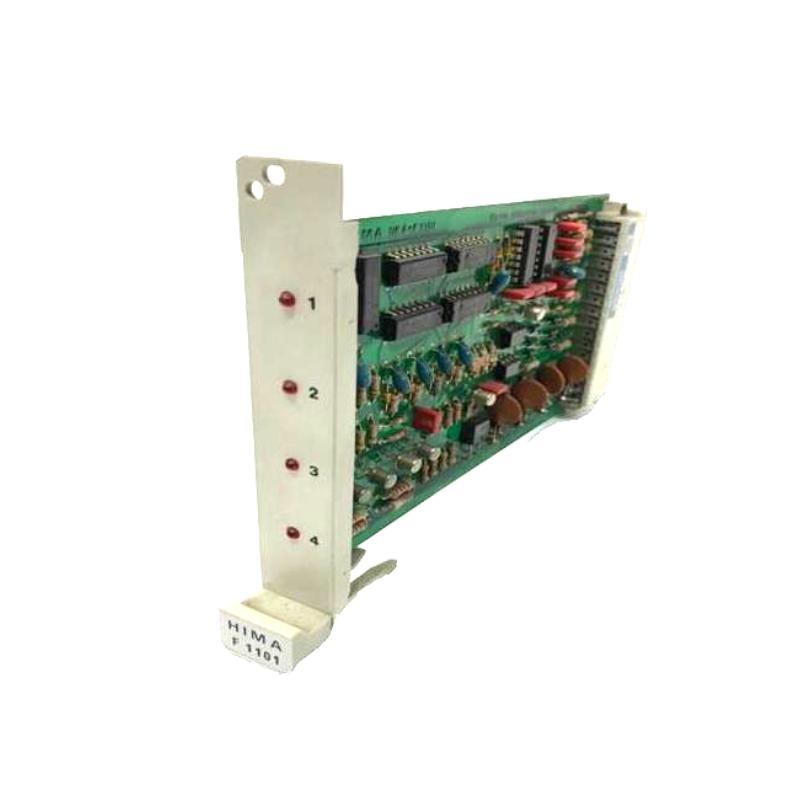

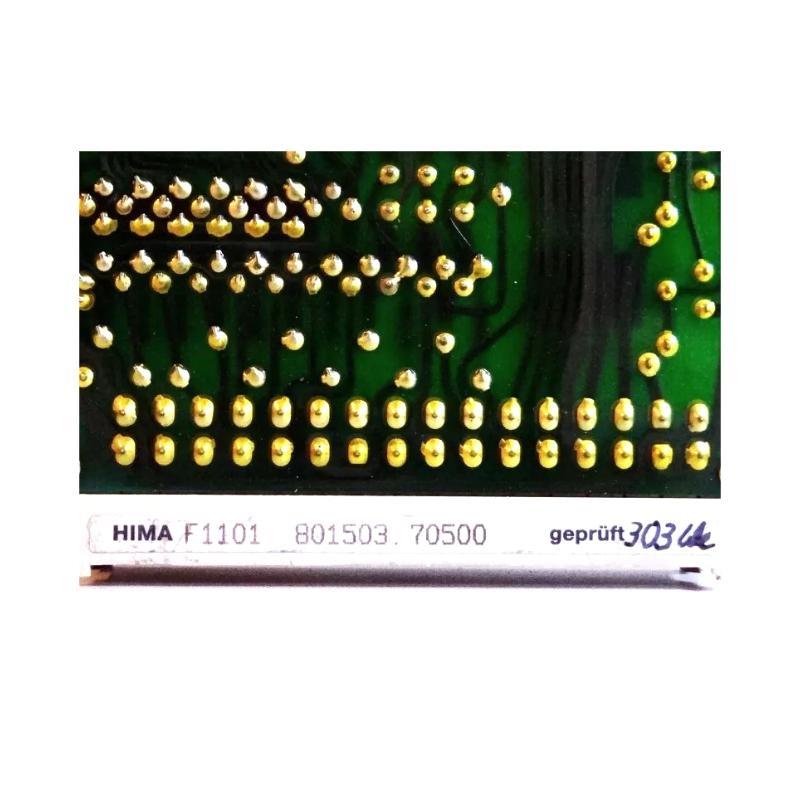

HIMA F1101 Product Overview
The HIMA F1101 is a high-performance safety I/O module designed for use in industrial automation systems. It integrates with HIMA’s safety control systems to monitor and control a variety of field devices with superior reliability and precision. This module is particularly suited for safety-critical applications, where operational safety is paramount. The F1101 supports digital and analog I/O operations and offers excellent flexibility in a wide range of industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | HIMA F1101 |
| Module Type | Safety I/O Module |
| Input Channels | 8 Digital Inputs, 4 Analog Inputs |
| Output Channels | 8 Digital Outputs, 4 Analog Outputs |
| Input Type | Digital (24V DC), Analog (4-20 mA) |
| Input Voltage Range | 19.2V DC – 30V DC (Digital) |
| Output Voltage Range | 19.2V DC – 30V DC (Digital) |
| Analog Input Range | 0-10 V, 4-20 mA |
| Analog Output Range | 0-10 V, 4-20 mA |
| Power Supply | 24V DC ±20% |
| Power Consumption | 6 W |
| Dimensions (HxWxD) | 152 x 120 x 75mm |
| Weight | 0.9kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Protection Class | IP20 |
| Certification | CE, UL, SIL 3 |
Product Description
The HIMA F1101 is designed to offer high functionality in the most demanding industrial applications. Its ability to handle both digital and analog inputs and outputs makes it highly adaptable to a wide range of control systems. This module can be used for real-time monitoring, data collection, and operational control in safety-critical processes. The F1101’s SIL 3 certification ensures it meets the highest safety standards, making it a reliable choice for industries such as oil and gas, power generation, and chemical processing.
Applications
The HIMA F1101 is typically used in the following industrial settings:
- Process Safety Systems: For ensuring safety in processes that are prone to hazardous conditions.
- Machine Control Systems: To monitor and control machine operations in automated environments.
- Safety Instrumented Systems (SIS): Provides essential feedback to safety controllers in critical processes.
- Fire and Gas Detection Systems: Used to input signals from fire and gas detection devices to safety systems.
- Energy and Power Generation: For controlling and monitoring critical equipment in power plants.
- Transportation Systems: Integrated into safety systems for monitoring transport and handling equipment.
- Chemical Manufacturing: To monitor and control chemical processing equipment and ensure safety standards are met.
Product Advantages
- High Safety Standards: Certified for SIL 3, making it suitable for the most safety-critical applications.
- Flexible I/O Handling: Capable of processing both digital and analog signals, enhancing system versatility.
- Compact and Robust: Its compact size allows for easy installation in confined spaces, while its robust design ensures reliable operation in harsh industrial environments.
- Wide Operating Range: It can function within a wide temperature range of -20°C to +60°C, suitable for both indoor and outdoor use.
- Easy Integration: Seamlessly integrates into existing HIMA safety control systems, reducing setup time and complexity.
- Cost-Effective: Provides high performance at a competitive price point, reducing the total cost of ownership for industrial safety systems.
- High Precision: Offers precise measurement and control for both digital and analog signals, ensuring high-quality operations.
Latest Reports and News
- Title: “HIMA F1101 Module: Delivering High Safety Standards for Industrial Automation”
- Title: “HIMA Expands Portfolio with F1101 I/O Module for Critical Applications”
- Title: “New HIMA F1101 Ensures Seamless Integration in Safety Instrumented Systems”
- Title: “HIMA’s F1101: A Cost-Effective Solution for High-Performance Safety I/O”
- Title: “HIMA F1101 Module Revolutionizes Safety for Oil and Gas Industry”
Frequently Asked Questions (FAQ)
-
What type of inputs and outputs does the HIMA F1101 support?
- The F1101 supports 8 digital inputs, 4 analog inputs, 8 digital outputs, and 4 analog outputs.
-
What is the SIL rating of the HIMA F1101?
- The HIMA F1101 is certified for SIL 3, meeting high safety integrity requirements.
-
What is the operating temperature range for the HIMA F1101?
- The module operates within a temperature range of -20°C to +60°C.
-
How much does the HIMA F1101 weigh?
- The module weighs 0.9kg.
-
What power supply does the HIMA F1101 require?
- It requires a 24V DC power supply with a tolerance of ±20%.
-
What industries use the HIMA F1101?
- The F1101 is used in industries such as oil and gas, chemical manufacturing, power generation, and transportation.
-
What certifications does the HIMA F1101 have?
- The module is CE and UL certified and complies with SIL 3 safety standards.
-
Can the HIMA F1101 be used in outdoor applications?
- Yes, the module is designed to withstand a wide range of environmental conditions and can be used outdoors.
-
How many channels of digital and analog signals can the F1101 handle?
- The module can handle 8 digital inputs, 4 analog inputs, 8 digital outputs, and 4 analog outputs.
-
Is the HIMA F1101 easy to integrate with other HIMA systems?
- Yes, it is designed for seamless integration into existing HIMA safety control systems.
