Product Introduction

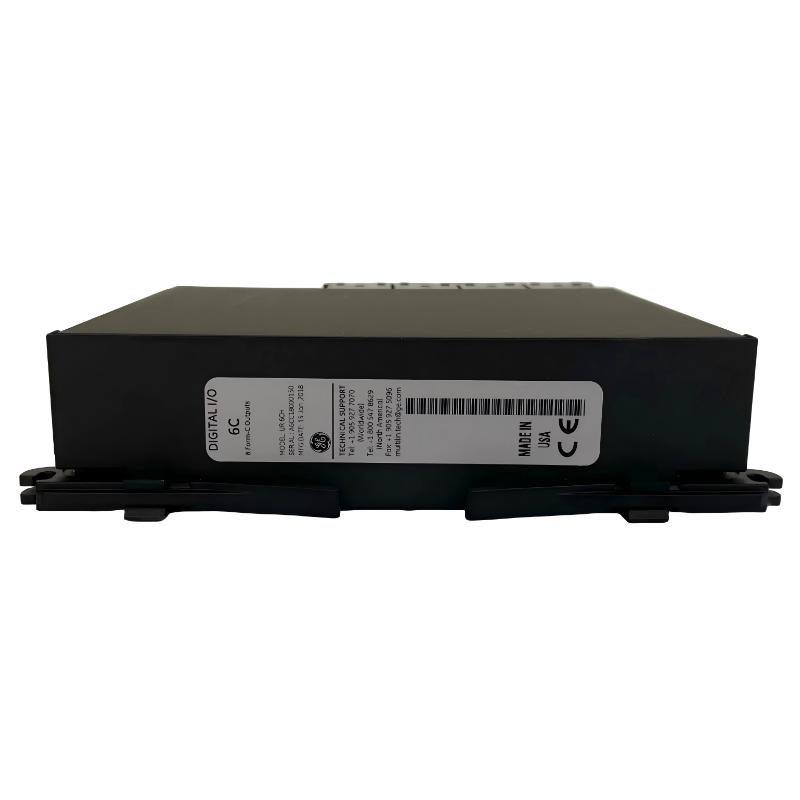

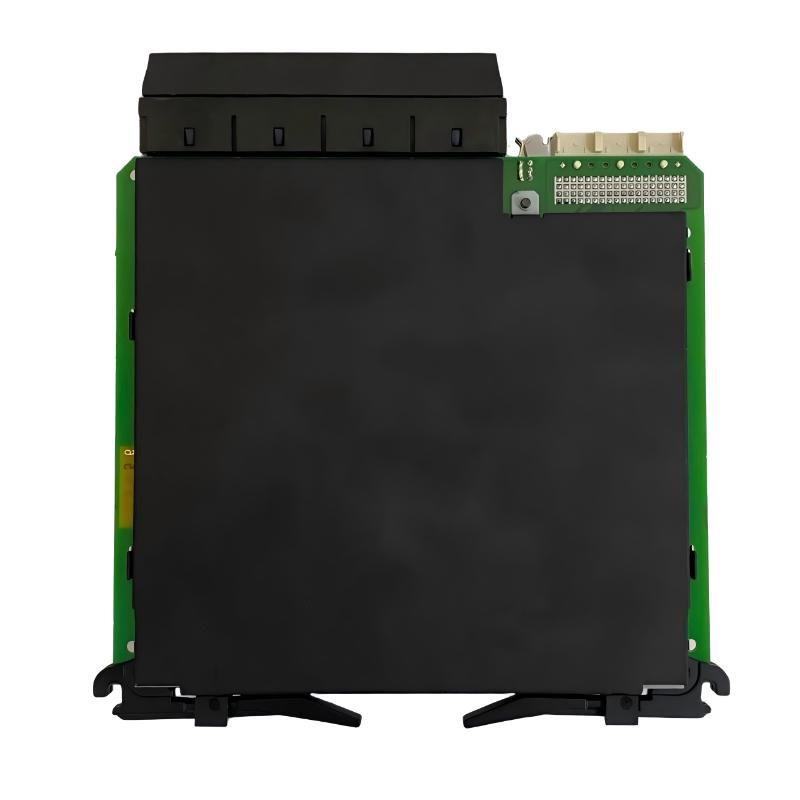

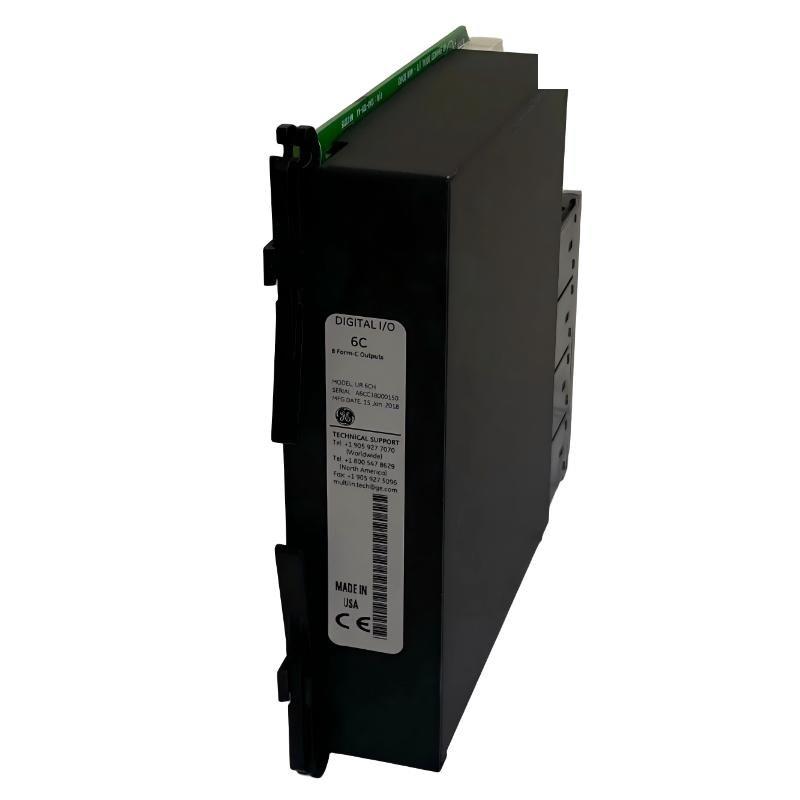

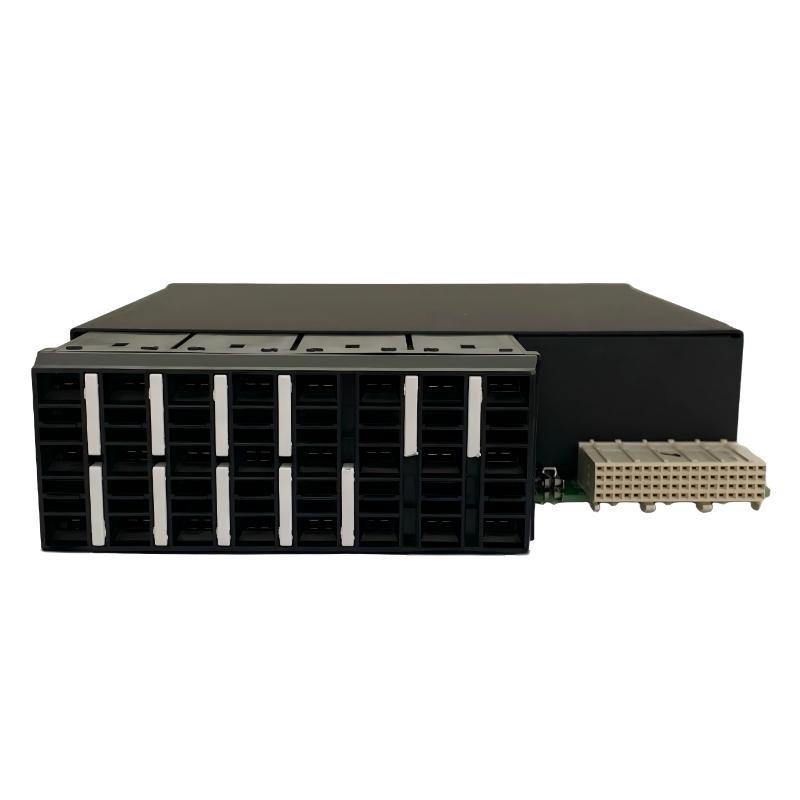

The GE UR 6CH Digital I/O Module is a specialized output-focused interface designed for GE UR Series Horizontal Unit control systems. It is primarily used to provide multiple relay-based control outputs, enabling the system to execute switching commands for field devices such as breakers, alarms, and actuators.
With 9 Form C relay outputs, the UR 6CH offers high flexibility through changeover contacts, making it suitable for complex control logic and interlocking applications. Its robust construction ensures reliable performance in demanding environments such as power generation, substations, and industrial automation systems. The compact horizontal unit design allows easy integration into control racks while maintaining efficient wiring and operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | UR 6CH |
| Product Type | Digital Output Module |
| Series | GE UR Horizontal Unit Series |
| Function | Relay-based output control |
| Digital Inputs | None |
| Digital Outputs | 9 Form C relay outputs |
| Output Type | Electromechanical relay (Form C, changeover) |
| Contact Type | SPDT (Single Pole Double Throw) |
| Response Time | Fast relay switching |
| Isolation | Industrial-grade electrical isolation |
| Mounting Type | Horizontal unit rack-mounted |
| Operating Environment | Industrial automation and power systems |
| Dimensions | 120 × 30 × 100 mm |
| Weight | 0.92 kg |
Applications
• Breaker Control Systems:
Controls circuit breakers and switching devices, enabling reliable system operation.
• Protection and Interlocking Systems:
Used in complex relay logic where changeover contacts are required.
• Turbine Control Systems:
Provides output control for alarms, trips, and actuator commands.
• Substation Automation:
Interfaces with switchgear and protection systems for output execution.
• Industrial Automation:
Supports relay-based control of machinery and process equipment.
Advantages
• High Output Density:
Provides 9 Form C relay outputs, enabling multiple control functions in one module.
• Flexible Changeover Contacts:
Form C outputs allow more complex switching logic compared to standard outputs.
• Reliable Relay Operation:
Ensures stable and durable performance in industrial applications.
• Fast Switching Response:
Supports quick execution of control commands.
• Robust Industrial Design:
Built for continuous operation in harsh environments.
• Seamless UR Integration:
Fully compatible with GE UR Horizontal Unit systems.
