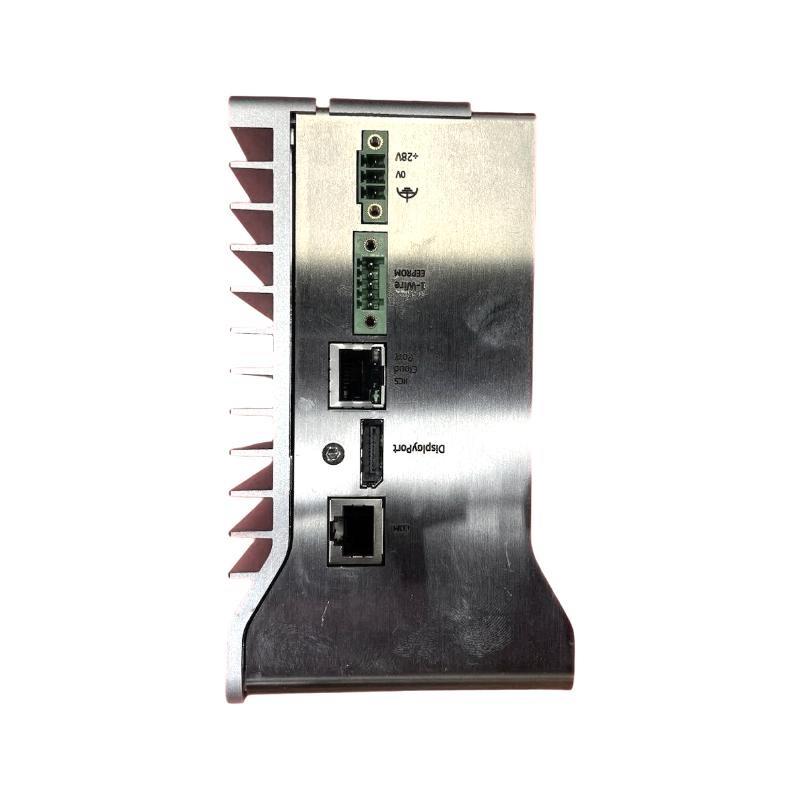

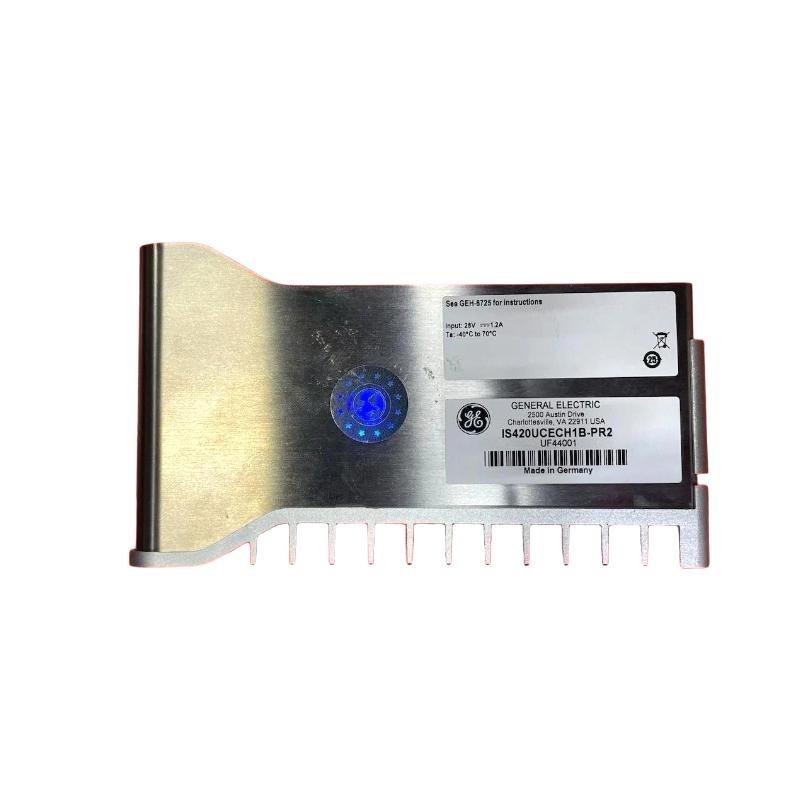

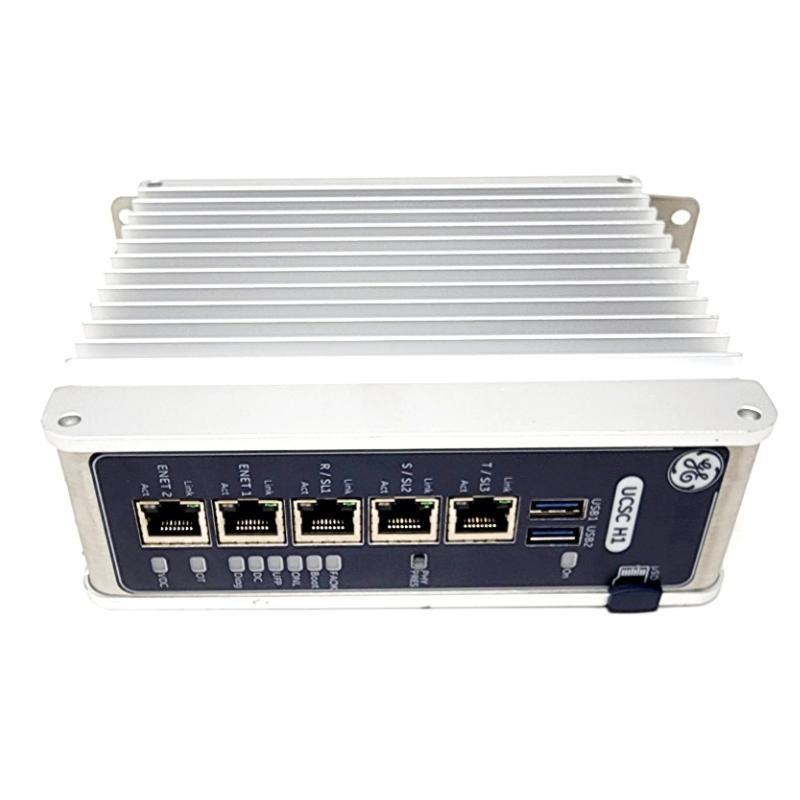

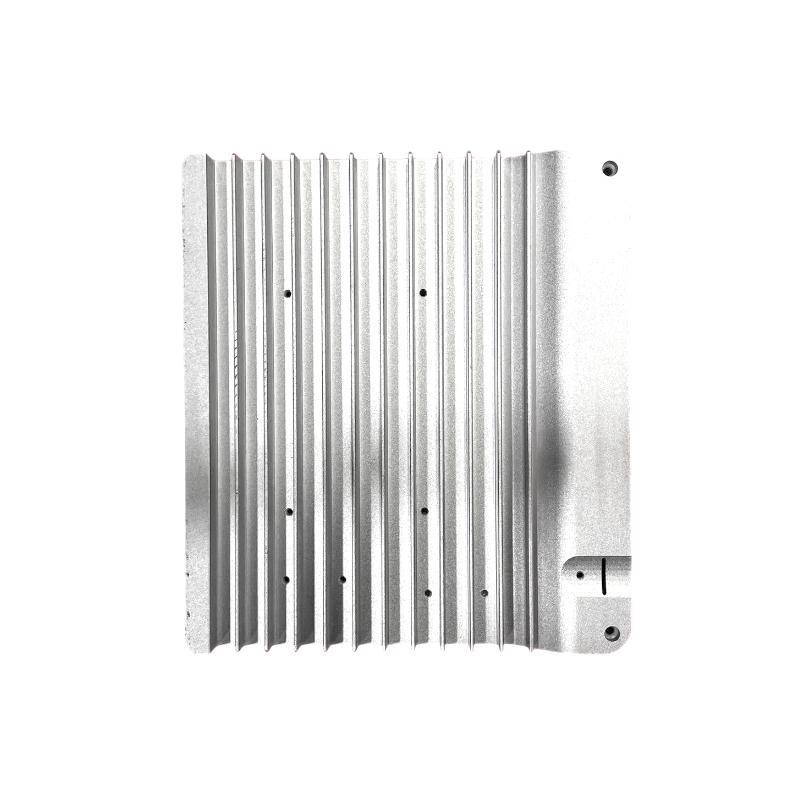

GE IS420UCSCH1C Mark VIe UCSB Controller
The GE IS420UCSCH1C Mark VIe UCSB Controller is an advanced industrial control processor for the Mark VIe distributed control system, designed to handle complex automation and safety-critical tasks in hazardous environments. It is certified for use in Class I, Division 2 and ATEX Zone 2 locations, ensuring reliable operation in demanding industrial settings.
Technical Specifications
| Parameter | Value |
|---|---|
| Processor Type | Quad-core AMD G-Series |
| Clock Frequency | 1.2 GHz |
| Input Voltage Range | 18–30 VDC |
| Nominal Voltage | 24/28 VDC |
| Maximum Current | 1.1 A DC |
| Dimensions (W×H×D) | 168 × 150 × 55 mm |
| Weight | 1.327 kg |
| Certifications | Class I Div 2, ATEX Zone 2 |
| Operating Temperature | -30°C to +65°C |
Applications
-
Gas and steam turbine control
-
Power plant automation
-
Process industry control in hazardous zones
-
Safety-critical systems (in combination with VIeS Safety)
-
Data acquisition and supervisory control
Advantages
-
Certified for hazardous location installation
-
Compact and lightweight design for panel mounting
-
High processing power for real-time control
-
Redundant power and communication options
-
Easy integration with Mark VIe and VIeS systems
-
Long-term product support and reliability from GE
Frequently Asked Questions (FAQ)
Q1: What power supply voltage is required for IS420UCSCH1C?
A1: It requires 24 VDC nominal, with an operating range of 18–30 VDC.
Q2: Can it be installed in hazardous environments?
A2: Yes, it is certified for Class I, Division 2 and ATEX Zone 2 environments.
Q3: Does it support redundant configurations?
A3: Yes, it can be used in redundant control architectures for high availability.
Q4: What is its primary application?
A4: It is used in Mark VIe control systems for power generation and industrial automation.
Q5: Is it compatible with Mark VIeS safety systems?
A5: Yes, it integrates seamlessly with Mark VIeS safety controllers.
Q6: What processor does it use?
A6: It uses a quad-core AMD G-Series processor at 1.2 GHz.
Q7: What is the weight of the unit?
A7: The unit weighs approximately 1.327 kg.
Q8: What communication options are available?
A8: It supports Ethernet-based communication with integrated ports.
Q9: What is the ambient temperature rating?
A9: It operates in ambient temperatures from -30°C to +65°C.
Q10: Does it require a specific enclosure?
A10: Yes, it must be installed in an appropriately rated enclosure for the classified location.
Recommended Related or Same-Series Models
| Model | Processor Type | Clock Speed | Voltage | Weight |
|---|---|---|---|---|
| IS420UCSCH2 | Dual-core AMD G-Series | 1.6 GHz | 24 VDC | 1.3 kg |
| IS420UCSCS2 | Dual-core AMD G-Series | 1.6 GHz | 24 VDC | 1.3 kg |
| IS420UCSDH1 | Quad-core AMD V1000 | 1.6 GHz | 24 VDC | 1.35 kg |
| IS420UCSDS1 | Quad-core AMD V1000 | 1.6 GHz | 24 VDC | 1.35 kg |
| IS420UCECH1 | UCSCH1 + expansion | 1.2 GHz | 24 VDC | 1.4 kg |
| IS420UCSAH1A | PowerQUICC Freescale | 667 MHz | 24 VDC | 1.2 kg |
Recommended Popular GE Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| IS420ESWAH1A | Industrial Ethernet Switch (8 port) | 168×150×55 | 1.0 kg |
| IS420PAICH1B | Analog Input Module | 168×150×55 | 1.2 kg |
| IS420PDOAH1B | Discrete Output Module | 168×150×55 | 1.2 kg |
| IS420PVIBH1B | Vibration Monitor Module | 168×150×55 | 1.2 kg |
| IS420PPDAH1B | Power Distribution Diagnostic | 168×150×55 | 1.3 kg |
| IS420PSCAH1B | Serial Communications Module | 168×150×55 | 1.2 kg |
