Product Introduction

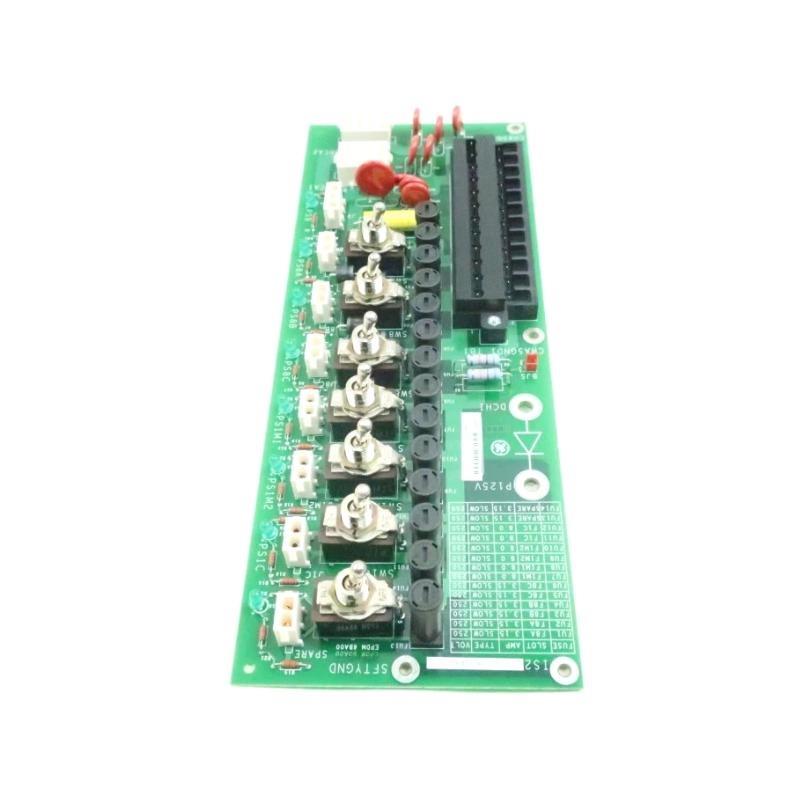

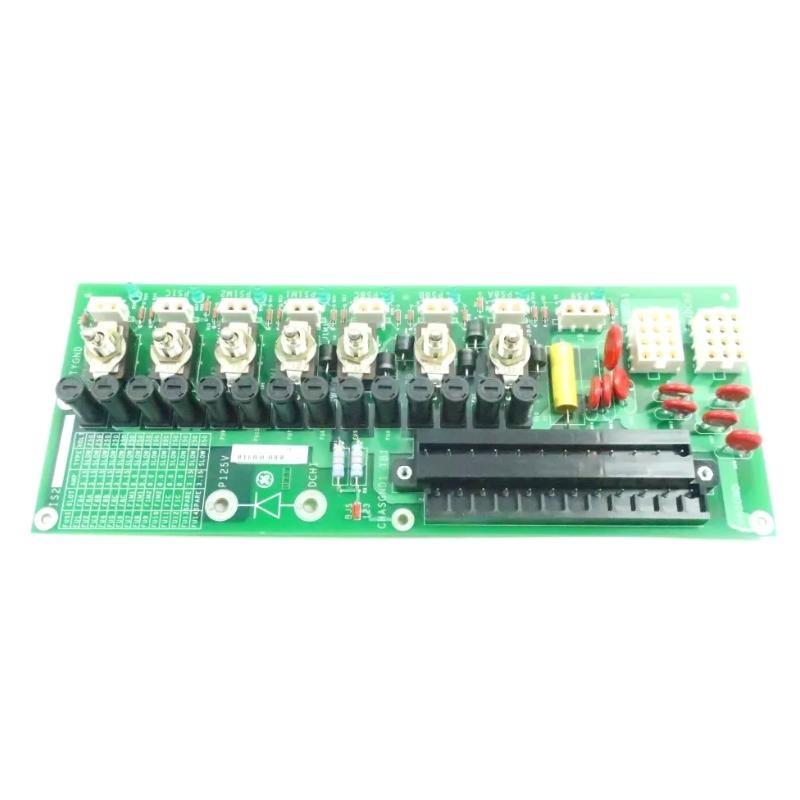

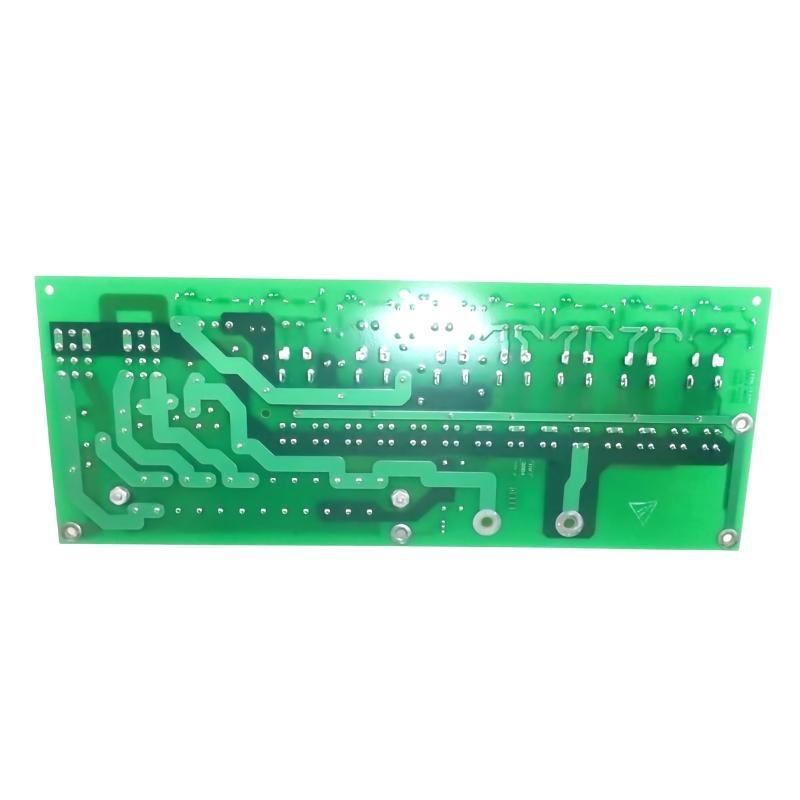

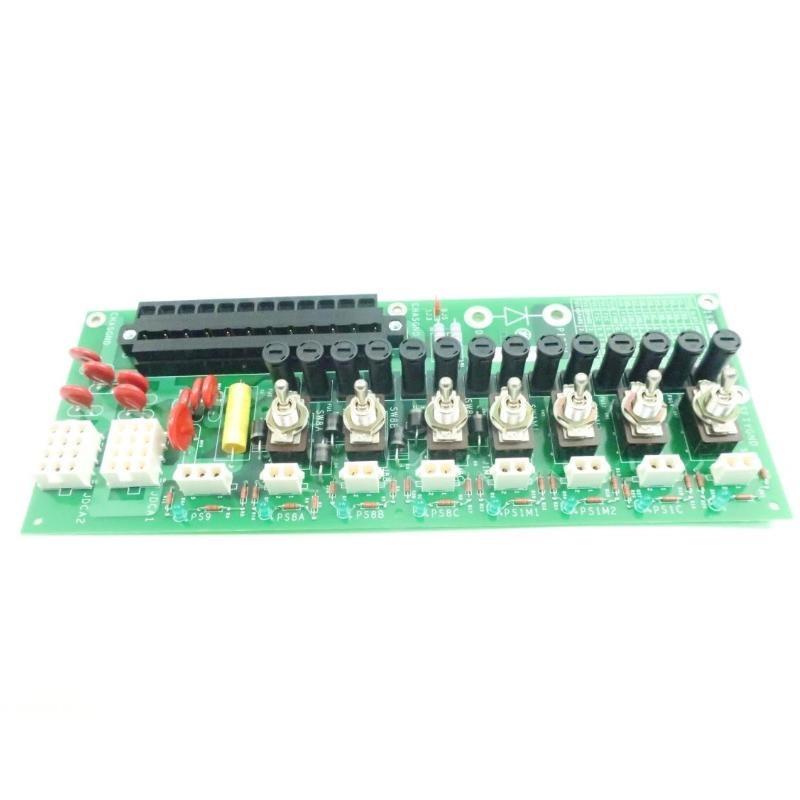

The GE IS200EPDMG1A is an Exciter Power Distribution Module engineered to manage and distribute power within GE’s Mark VI and Mark VIe excitation systems. This board acts as the primary electrical hub that delivers controlled and conditioned power to various modules and subsystems inside the exciter cabinet. It ensures secure operation of the excitation system by managing power input routing, fuse protection, and output distribution.
The IS200EPDMG1A is designed with industrial reliability in mind, offering a compact and structured solution that integrates easily into GE excitation systems. This board helps simplify cabinet wiring and reduces installation time and errors by centralizing the distribution and fusing of power circuits, including AC, DC, and control supply lines.
Its robust PCB construction, conformal coating, and terminal accessibility ensure performance under harsh conditions typically found in turbine-generator and industrial control rooms. This module is a key part of maintaining continuous and fault-protected power delivery to control and feedback components.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IS200EPDMG1A |
| Manufacturer | General Electric (GE) |
| Product Type | Exciter Power Distribution Module |
| System Compatibility | GE Mark VI, Mark VIe Excitation Control Systems |
| Input Voltage Range | 24 VDC / 125 VDC / 240 VAC (varies by application circuit) |
| Fuse Protection | Multiple field-replaceable fuses for output circuits |
| Power Distribution | Distributes regulated power to exciter I/O and processor boards |
| Terminal Type | High-retention screw clamp terminals |
| Mounting Configuration | Vertical cabinet mount (panel-mount) |
| PCB Coating | Conformal coated for environmental protection |
| Status Indicators | None (passive board) |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Storage Temperature | -55°C to +85°C (-67°F to 185°F) |
| Shock Resistance | 15 g (per IEC 60068-2-27) |
| Vibration Resistance | 2 g, 10–500 Hz (per IEC 60068-2-6) |
| Humidity Range | 5–95% RH, non-condensing |
| Dimensions (L×W×H) | 279.4 × 215.9 × 50.8 mm |
| Weight | 0.8 kg |
| Certifications | UL, CE, RoHS compliant |
Product Applications
The IS200EPDMG1A is utilized in various critical power management roles in industrial and utility environments:
-
Generator Excitation Cabinets
As the main power distribution node, it feeds reliable, fused power to controller, I/O, and monitoring components in synchronous generator exciter panels. -
Turbine Control Systems
Provides structured power flow and protection for control boards in steam, gas, and hydro turbine systems. -
Industrial Process Power Systems
Used in chemical, petrochemical, and energy sector installations for internal power routing within control enclosures. -
Retrofit of Legacy GE Systems
Serves as a replacement for aging distribution modules, offering upgraded durability and compatibility with newer boards. -
Modular Subsystem Distribution
Divides incoming AC and DC power among modules like feedback processing, terminal boards, and digital interfaces.
Product Advantages
-
Centralized Power Control
Efficiently manages and routes all necessary power inputs and outputs from a single point, streamlining cabinet wiring. -
Built-in Fuse Protection
Individual fuses offer short-circuit protection for each output line, enhancing reliability and safety. -
Robust Industrial Design
Engineered to withstand harsh operating conditions including temperature extremes, vibration, and dust exposure. -
Easy Integration
Seamlessly installs in GE Mark VI and VIe systems, reducing setup complexity and wiring confusion. -
Passive Component Simplicity
As a passive module, there are no firmware or software updates required—less risk of electronic failure. -
Long Service Life
Quality materials, GE reliability standards, and a conformal coating ensure longevity with minimal maintenance. -
Flexible Input/Output Options
Supports both AC and DC lines with varying voltages, adaptable to different exciter cabinet layouts.
Frequently Asked Questions (FAQ)
1. What is the primary purpose of the IS200EPDMG1A?
It distributes regulated and fused power to internal exciter system components in GE Mark VI/VIe control systems.
2. Is this board programmable or active?
No. It is a passive power distribution module with no active electronics or programmable elements.
3. What voltages can it distribute?
It can manage 24VDC, 125VDC, and 240VAC lines depending on configuration and fuse setup.
4. Does it come with pre-installed fuses?
Yes, the board includes field-replaceable fuses installed on its circuits.
5. Can it operate in high-temperature environments?
Yes. It is rated for operation from -40°C to +70°C, suitable for industrial enclosures.
6. How do I mount the EPDMG1A?
It mounts vertically on panels or frames inside GE exciter cabinets.
7. What systems is it compatible with?
The IS200EPDMG1A is compatible with GE Mark VI and Mark VIe Excitation Control Systems.
8. Does it support both AC and DC power distribution?
Yes, it can distribute both AC and DC power via its dedicated circuits and terminals.
9. Is there onboard monitoring or LEDs?
No, this module has no indicators or monitors—diagnostics must be done externally.
10. Can this module be replaced without system recalibration?
Yes. Being a passive device, it does not affect calibration when replaced.
Related Models (Same Series or Function)
| Model Number | Description | Function | System Compatibility |
|---|---|---|---|
| IS200EPDMG1A | Exciter Power Distribution Module | Power routing and fusing | GE Mark VI / VIe |
| IS200EPCTG1A | Exciter PT/CT Terminal Board | Voltage/current signal routing | GE Mark VI / VIe |
| IS200EPBPG1A | Exciter Power Backplane Board | Backplane for power and signal | GE Exciter Systems |
| IS200EDCFG1A | Exciter DC Feedback Board | DC signal feedback | GE Mark VI / VIe |
| IS200EDEXG1A | Exciter Digital Extender Board | Digital signal expansion | GE Mark VI |
| IS200ERIOH1A | Exciter Remote I/O Board | Remote I/O interface | GE Mark VIe Exciter |
Popular GE Models (Same Brand)
| Model Number | Part Number | Description | Application |
|---|---|---|---|
| IS200TRLYH1A | IS200TRLYH1A | Relay Output Module | GE Mark VI |
| IS200DSPXH1A | IS200DSPXH1A | Digital Signal Processor Board | GE Mark VIe |
| IS200STAIH2A | IS200STAIH2A | Analog Input Terminal Board | GE Mark VI / VIe |
| IS200TREGH1B | IS200TREGH1B | Trip Relay Terminal Board | GE Turbine Systems |
| IS200VCRCH1B | IS200VCRCH1B | VME Control Rack Board | GE Control Cabinets |
| IS200AEBMG1A | IS200AEBMG1A | Auxiliary Exciter Board | GE Exciter |
