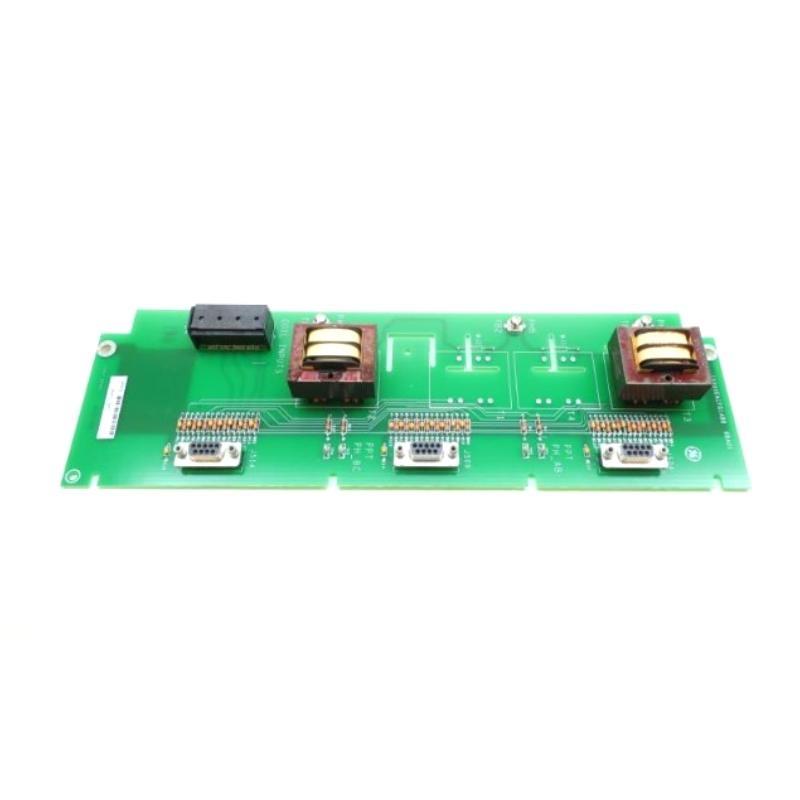

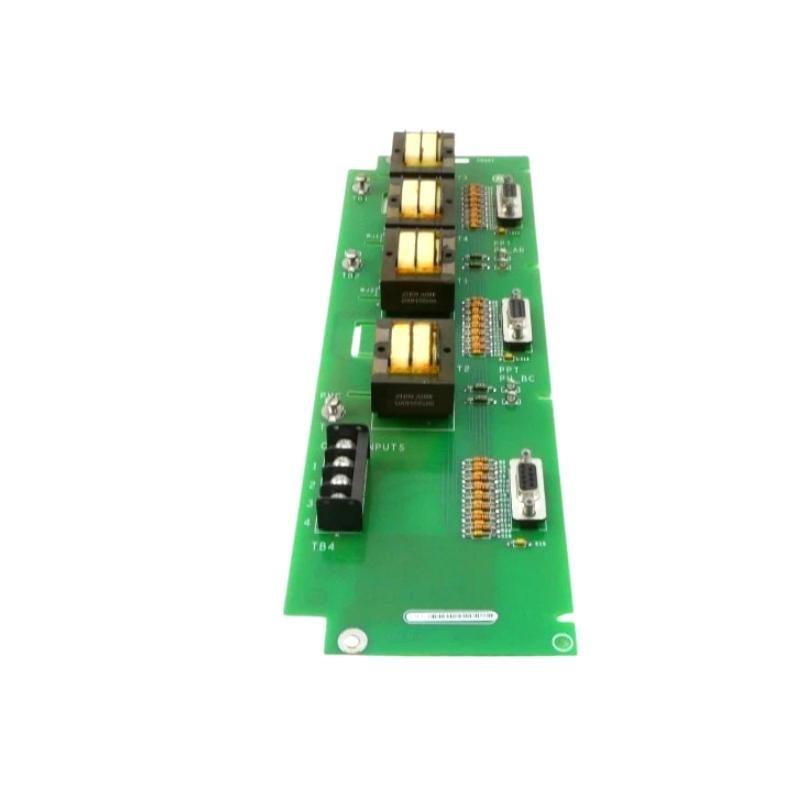

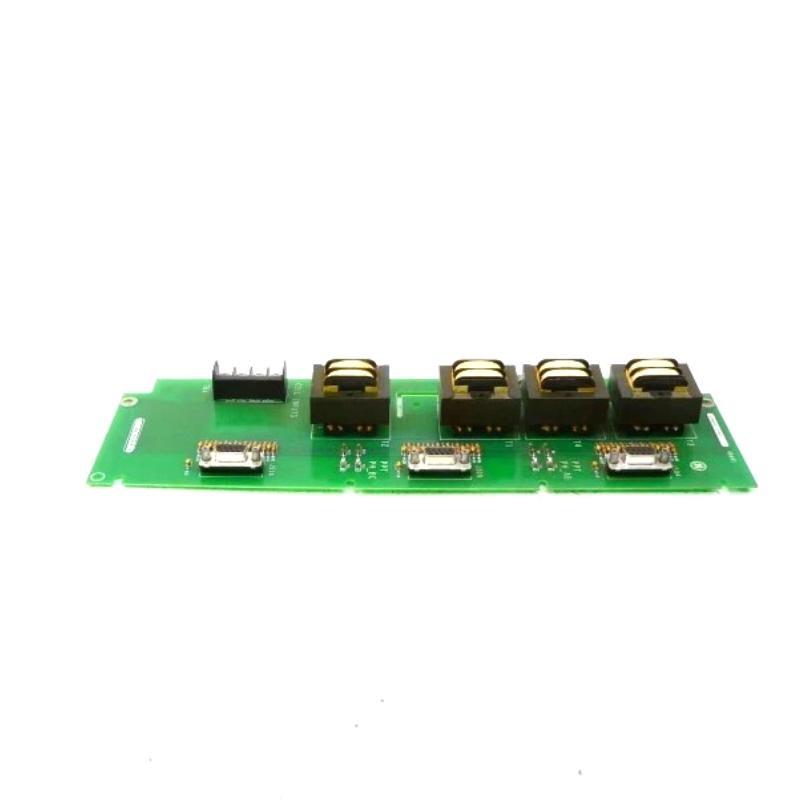

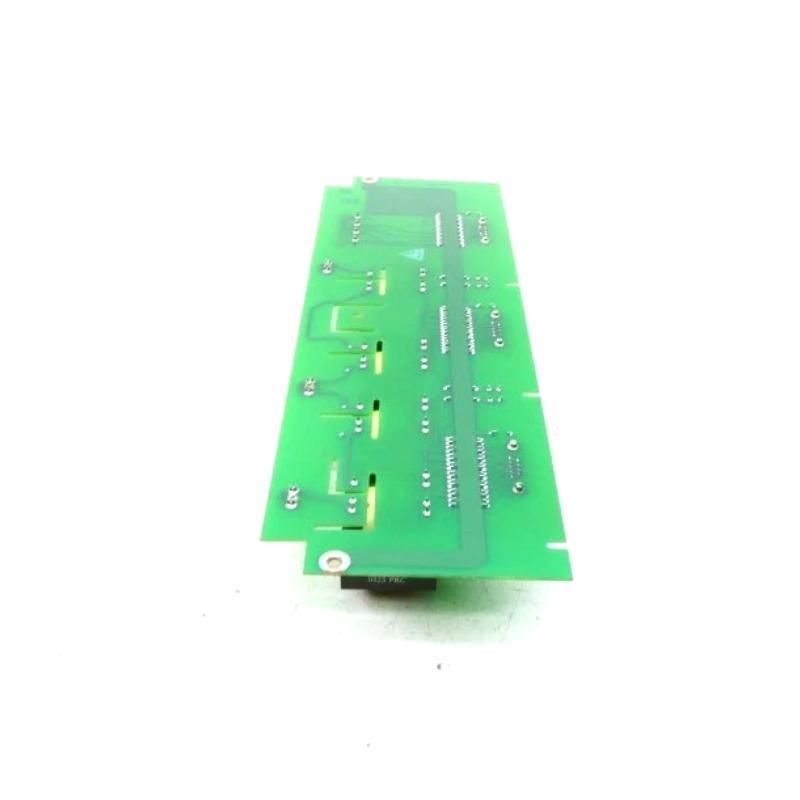

GE IS200EACFG2A Mark VI Series Printed Circuit Board
The GE IS200EACFG2A is a high-reliability printed circuit board (PCB) designed for the Mark VI turbine control system. It serves as an essential component for signal acquisition, conditioning, and processing within industrial automation and power generation applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IS200EACFG2A |
| Series | Mark VI |
| Type | Printed Circuit Board |
| Function | Signal Acquisition & Conditioning |
| Dimensions | 110 × 60 × 67 mm |
| Weight | 0.14 kg |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | Rack Mount / Chassis Slot |
| Compatibility | Mark VI Control Systems |
Applications
-
Gas and steam turbine control systems
-
Industrial process automation
-
Power plant monitoring and protection
-
Signal processing in critical systems
-
Data acquisition and conditioning for control loops
Advantages
-
Compact and lightweight for easy integration
-
High signal accuracy and stability
-
Proven compatibility with Mark VI systems
-
Durable construction for harsh environments
-
Easy maintenance and replacement design
FAQ
Q1: What is the main function of the IS200EACFG2A?
A1: It performs signal acquisition and conditioning for turbine control systems.
Q2: Is the IS200EACFG2A compatible with Mark VIe systems?
A2: No, it is specifically designed for Mark VI systems.
Q3: Can the board operate in high-temperature environments?
A3: Yes, it operates up to +65°C and can be stored up to +85°C.
Q4: What is the typical application of this PCB?
A4: It is used in power plants for gas or steam turbine control.
Q5: How is it installed?
A5: It mounts into a designated chassis slot or rack.
Q6: Is it a field-replaceable unit?
A6: Yes, it is designed to be easily replaced on-site.
Q7: What are its physical dimensions?
A7: 110 × 60 × 67 mm.
Q8: How much does the board weigh?
A8: It weighs 0.14 kg.
Q9: Does it require calibration after installation?
A9: Typically, no calibration is needed when installed correctly.
Q10: Is it resistant to industrial environmental conditions?
A10: Yes, it is built to withstand demanding industrial settings.
