Observations from Site Installations

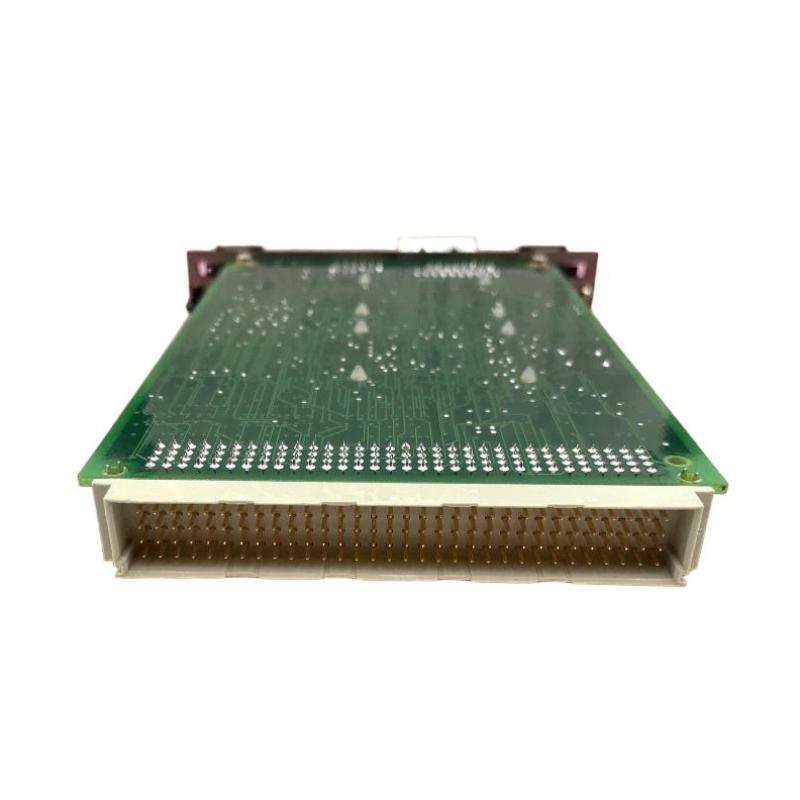

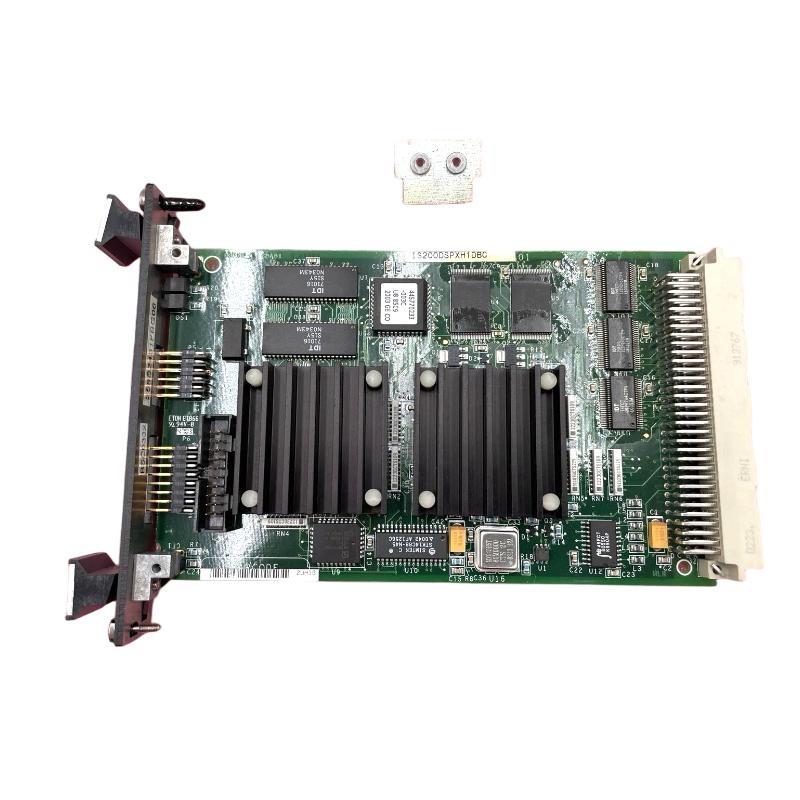

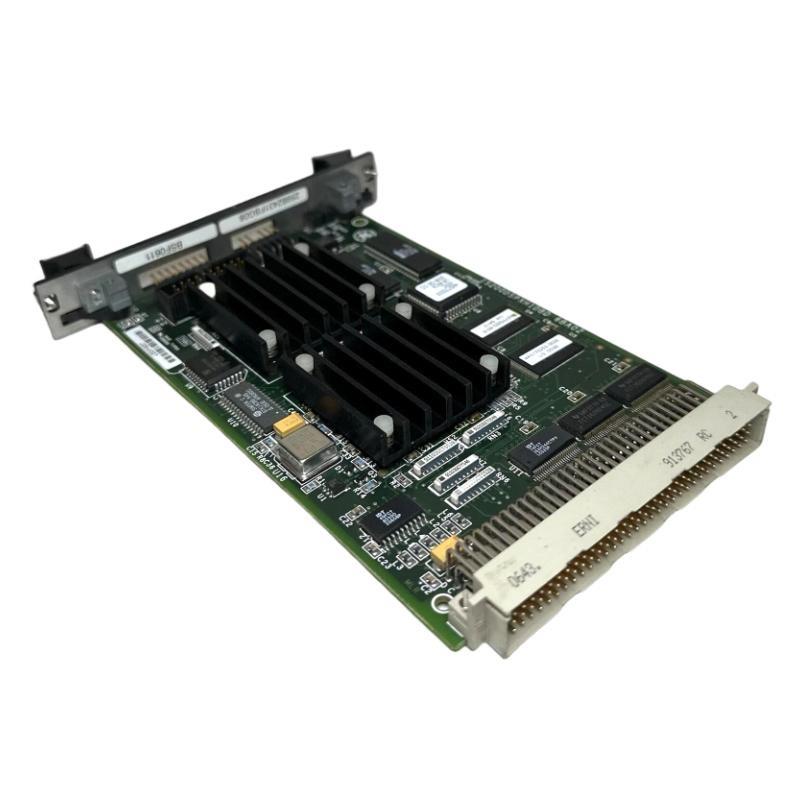

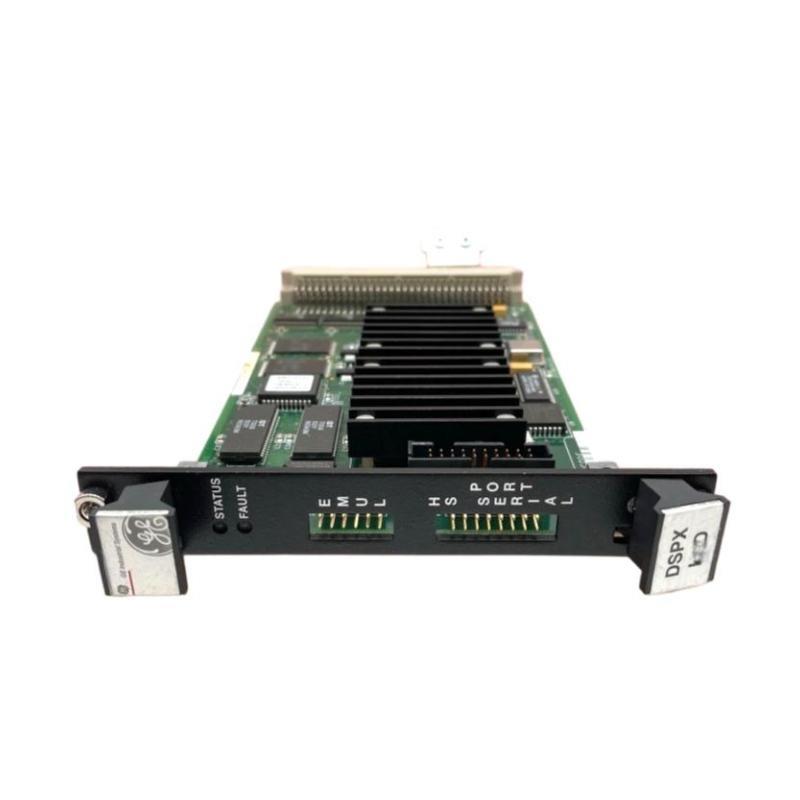

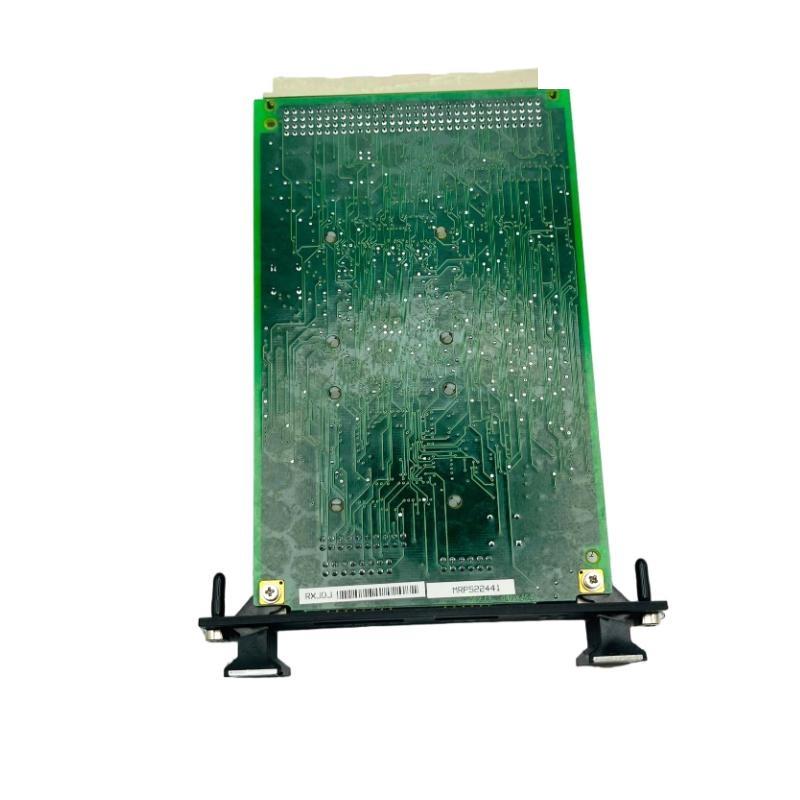

The IS200DSPXH2DBD is a discrete signal processing module often found in dense control panels where quick response times are essential. During field inspections, this module shows excellent stability, even when the cabinet experiences electrical noise or high operational loads. Maintenance teams appreciate its robust connectors and clear LED diagnostics, which simplify troubleshooting without needing advanced testing equipment.
Module Specifications and Physical Attributes
| Feature | Details |
|---|---|
| Brand | GE |
| Module Type | Discrete Signal Processing Module |
| Input Voltage | 24V DC |
| Discrete Channels | 16 channels |
| Maximum Current per Channel | 0.5A |
| Response Time | <1.5 ms |
| Dimensions (L × W × H) | 135 mm × 88 mm × 52 mm |
| Weight | 0.72 kg |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Certifications | UL, CE, RoHS |
Field Usage Notes
In real-world deployments, this module is responsible for:
-
Rapid switching and monitoring of discrete inputs.
-
Ensuring reliable output to actuators, valves, and alarms.
-
Protecting upstream CPUs from electrical noise with built-in isolation.
-
Providing immediate visual status feedback via LEDs, which is invaluable during maintenance rounds.
Technicians often report that identifying a single failing channel is straightforward thanks to the LED layout.
Common Maintenance Insights
-
Installation checks: Ensure DIN rail or panel mounting is secure; loose seating is a common source of intermittent faults.
-
Power connections: Stable 24V DC supply is critical; voltage dips can trigger communication alarms.
-
Temperature awareness: Keep cabinets ventilated; the module is stable up to 65°C but benefits from airflow in dense panels.
-
Cable management: Proper routing of input/output cables reduces EMI and cross-talk between channels.
-
Routine LED observation: Changes in blinking patterns often indicate upcoming channel issues before they affect operations.
