Product Introduction

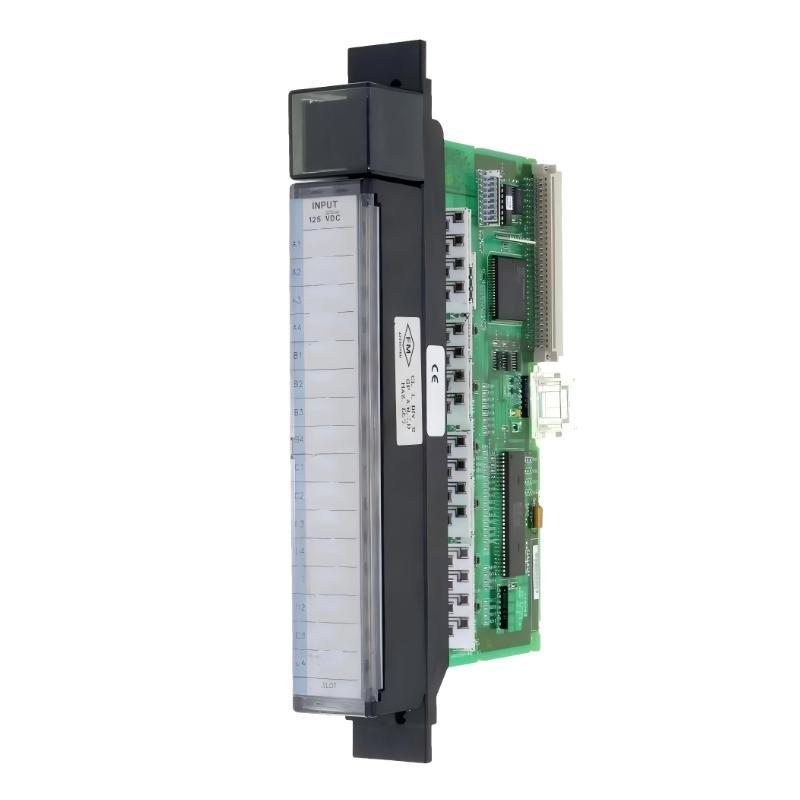

The GE IC697MDL640 Discrete Input Module is a high-performance industrial input module designed for the GE Fanuc Series 90-70 PLC system. This module is engineered to handle 125V DC discrete input signals and provides 16 input points, organized into four isolated groups of four points each. It supports both positive and negative logic, making it highly versatile for integration into a wide range of industrial control systems.
The IC697MDL640 ensures reliable signal detection and noise immunity in harsh industrial environments. Each input channel is individually optically isolated to prevent cross-interference and to enhance electrical safety. With its modular design, it offers easy installation and replacement within Series 90-70 racks, enabling efficient system maintenance and scalability.
This module is typically used in industrial automation, power generation, process control, and manufacturing plants where robust digital input processing is required. Its high voltage tolerance and isolation features make it ideal for mission-critical control applications that demand consistent performance and long-term reliability.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | GE Fanuc (General Electric) |
| Product Model | IC697MDL640 |
| Product Type | Discrete Input Module |
| System Series | Series 90-70 |
| Input Type | DC Discrete Input |
| Input Voltage Range | 125V DC (Nominal) |
| Logic Type | Positive/Negative selectable logic |
| Number of Input Points | 16 points total |
| Input Grouping | 4 isolated groups of 4 points each |
| Input Current (Typical) | 6 mA at 125V DC |
| Input Impedance | 20 kΩ nominal |
| Isolation Voltage | 1500V RMS (channel to channel and channel to ground) |
| Response Time (ON/OFF) | ≤ 10 ms typical |
| Indicators | Individual LED per input point |
| Power Consumption | 1.5 W typical |
| Backplane Current | 70 mA at 5V DC |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 5%–95% non-condensing |
| Mounting Type | DIN rail or rack-mounted |
| Dimensions (W × H × D) | 200 × 45 × 145 mm |
| Weight | 0.6 kg |
| Compliance | CE, UL, and CSA certified |
Product Applications
The GE IC697MDL640 Discrete Input Module finds applications in a wide variety of industrial control systems that require precise and reliable signal acquisition. Common areas of use include:
-
Power Generation Plants: For monitoring high-voltage switchgear and control panels.
-
Oil and Gas Processing: Used for detecting valve positions, sensor feedback, and process status signals.
-
Factory Automation: Ideal for reading discrete inputs from limit switches, push buttons, and safety interlocks.
-
Water and Wastewater Treatment: Suitable for monitoring pumps, flow sensors, and pressure switches.
-
Chemical and Petrochemical Industries: Used in distributed control systems (DCS) for process input monitoring.
-
Transportation and Infrastructure: Applied in railway and tunnel control systems for digital signal processing.
Product Advantages
The IC697MDL640 offers several advantages that make it a dependable choice for critical control operations:
-
High Voltage Compatibility: Supports 125V DC inputs for heavy industrial systems.
-
Flexible Logic Options: Allows selection between positive and negative logic for system design flexibility.
-
Superior Isolation: Optical and galvanic isolation ensures robust signal integrity and prevents electrical noise.
-
Group Isolation Design: Divides input points into four isolated groups, enhancing system reliability and safety.
-
Compact Modular Form: Fits seamlessly into GE 90-70 racks with minimal space requirements.
-
LED Diagnostics: Built-in LED indicators simplify status monitoring and troubleshooting.
-
High Noise Immunity: Designed to operate reliably in electrically noisy environments.
-
Durable Construction: Built for long-term operation under industrial conditions.
-
Easy Maintenance: Hot-swappable design allows module replacement without shutting down the system.
-
Proven Compatibility: Fully compatible with the Series 90-70 PLC ecosystem, ensuring smooth system integration.
FAQ
-
What type of input signal does the IC697MDL640 accept?
The module accepts discrete DC input signals with a nominal voltage of 125V DC. -
How many input points are available on the module?
It provides 16 input points divided into four isolated groups of four points each. -
Can the logic type be configured?
Yes, it supports both positive and negative logic configurations. -
What is the isolation level between groups?
Each group is isolated from others by 1500V RMS, ensuring strong electrical separation. -
How fast can the module detect input signal changes?
The typical ON/OFF response time is less than 10 milliseconds. -
Does the module include built-in status indicators?
Yes, each input point has a dedicated LED indicator for real-time status monitoring. -
What is the module’s input impedance?
The typical input impedance is approximately 20 kΩ. -
How much current does each input draw?
Each input typically draws around 6 mA at 125V DC. -
Can this module be used with other voltage levels?
It is optimized for 125V DC but can tolerate typical industrial voltage variations. -
Is the IC697MDL640 compatible with other GE Series 90-70 modules?
Yes, it is fully compatible and can operate alongside analog, output, and communication modules within the same rack.
