Product Introduction

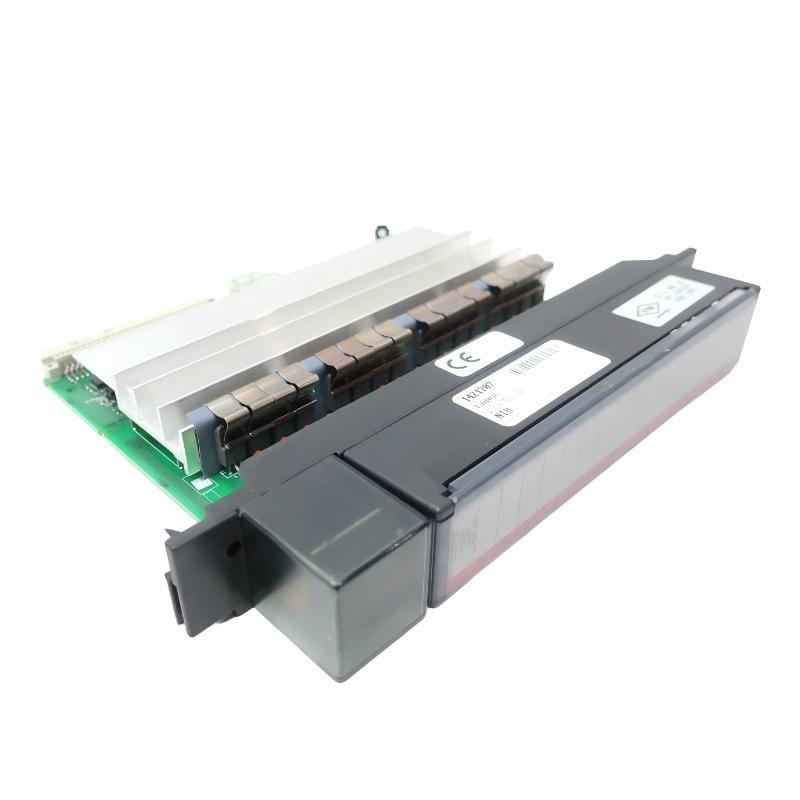

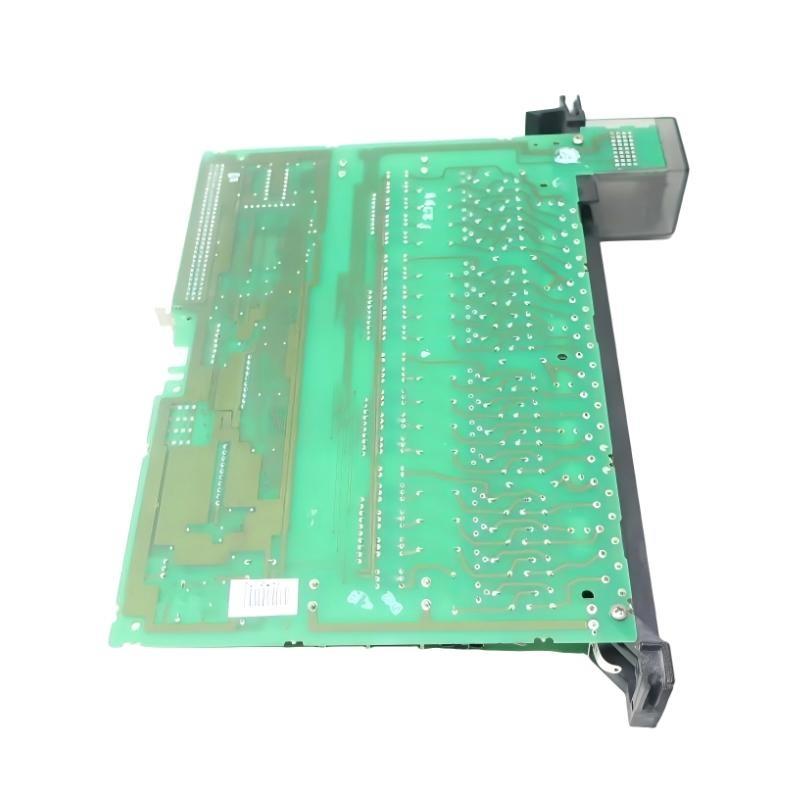

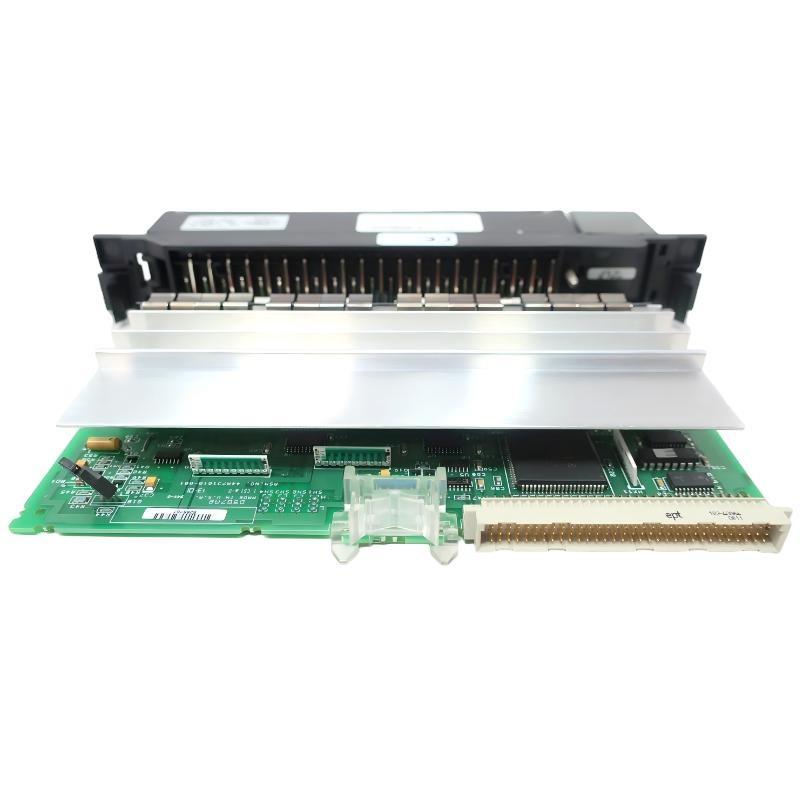

The GE IC697MDL340 Discrete Output Module is a robust, high-performance output module designed for the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) system. This module provides 16 discrete output points capable of switching 120 VAC loads at 50/60 Hz, making it ideal for controlling industrial actuators, relays, lamps, and solenoids. Each output point can handle up to 2 amps of continuous current and is specifically designed to tolerate high inrush currents up to 10 times the rated load current, ensuring stable operation even during startup surges of inductive loads.
The IC697MDL340 incorporates advanced circuit protection, including optical isolation and fuse protection for each group, ensuring reliability and safeguarding the control system from voltage transients and overloads. Built for industrial durability, this module combines performance, safety, and long-term reliability, meeting the demands of modern automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC697MDL340 |
| Product Type | Discrete Output Module |
| Series | GE Fanuc Series 90-70 |
| Number of Output Points | 16 channels |
| Output Voltage Range | 85–132 VAC, 50/60 Hz |
| Rated Output Voltage | 120 VAC |
| Output Current (per point) | 2 A continuous |
| High Inrush Capacity | Up to 10× rated current (for 0.5 sec) |
| Output Type | Triac output |
| Output Grouping | 2 groups of 8 outputs each |
| Isolation Voltage | 1500 VAC group-to-group and group-to-ground |
| On-State Voltage Drop | < 1.5 V at rated load |
| Off-State Leakage Current | < 2 mA at 132 VAC |
| Switching Frequency | 47–63 Hz |
| Response Time (ON/OFF) | 1 ms typical |
| Fuse Protection | 2 A per group (user replaceable) |
| Backplane Current | 90 mA at 5 VDC |
| Indicators | 16 LED status indicators (one per channel) |
| Power Dissipation | 1.5 W typical |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Shock Resistance | 10 G, 11 ms |
| Vibration | 5–500 Hz, 1 G |
| Mounting Type | Single-slot rack mount |
| Dimensions (L × W × H) | 200 × 45 × 145 mm |
| Weight | 0.649 kg |
Product Applications
The IC697MDL340 module is ideal for control systems requiring AC load switching with high reliability and isolation. It is suitable for diverse applications that involve controlling discrete devices, providing dependable interfacing between the PLC and field equipment operating on AC voltage.
Typical Applications Include:
-
Factory Automation: Switching of AC-driven devices such as indicator lights, contactors, and signal alarms.
-
Process Control Systems: Activation of solenoid valves and control relays.
-
Material Handling Systems: Motor starter and conveyor control for automated operations.
-
HVAC Control Systems: Regulation of fans, compressors, and dampers in building automation.
-
Power Distribution Panels: Interface for AC status indicators and switching loads.
-
Water and Wastewater Treatment Plants: Control of pumps, valves, and alarm circuits.
Product Advantages
-
High Inrush Capability: Handles up to 10 times rated current, ideal for inductive loads such as solenoids and relays.
-
Strong Electrical Isolation: 1500 VAC isolation ensures electrical separation between groups and system ground.
-
Robust Design: Designed for industrial environments with high resistance to noise, vibration, and electrical surges.
-
Modular Configuration: Occupies a single rack slot, simplifying system layout and maintenance.
-
Enhanced Protection: Each group is fused for overcurrent protection, increasing system safety and reliability.
-
LED Diagnostics: Individual channel indicators provide real-time output status for efficient troubleshooting.
-
Flexible Grouping: Two isolated groups allow for separate control circuits or mixed voltage systems.
-
Fast Switching Response: Rapid ON/OFF time supports high-performance control applications.
-
Low Power Loss: Efficient triac design minimizes heat generation and power consumption.
-
Compatibility: Fully compatible with all GE Fanuc Series 90-70 backplanes and CPUs.
FAQ
-
What is the main function of the IC697MDL340 module?
It controls discrete AC output devices such as relays, solenoids, and indicator lamps through the Series 90-70 PLC system. -
What type of loads can this module drive?
It is designed for 120 VAC loads, including resistive, inductive, and some motor starter circuits. -
How many output points are available on this module?
The IC697MDL340 has 16 independent AC output channels arranged in two groups of eight. -
What is the rated output current per channel?
Each channel supports 2 A continuous load current at 120 VAC. -
Can the module handle high inrush current loads?
Yes, it can tolerate inrush currents up to 10 times its rated current for short durations. -
Does this module provide isolation between output groups?
Yes, it provides 1500 VAC isolation between groups and between groups and system ground. -
What protection mechanisms are built into the module?
The module includes per-group fuse protection and optically isolated triac outputs to prevent electrical faults. -
How does the module indicate output status?
Each output channel is equipped with an LED indicator showing ON/OFF state for monitoring and troubleshooting. -
Can this module operate in mixed-voltage output systems?
Yes, because of group isolation, each group can be powered from a different AC source if required. -
Is the IC697MDL340 compatible with older Series 90-70 PLC racks?
Yes, it is fully backward-compatible with all standard GE Fanuc Series 90-70 racks and CPUs.
Related Models (Same Series)
| Model Number | Description |
|---|---|
| IC697MDL341 | 120 VAC Output Module, 32 Points |
| IC697MDL342 | 240 VAC Output Module, 16 Points |
| IC697MDL350 | 24 VDC Output Module, Positive Logic |
| IC697MDL240 | 120 VAC Input Module, 16 Points |
| IC697MDL251 | 24 VDC Input Module with Isolated Groups |
| IC697MDL252 | 48 VDC Isolated Input Module |
Popular Models from GE Fanuc Series 90-70
| Model Number | Description |
|---|---|
| IC697CPU781 | Standard Central Processing Unit |
| IC697CPU782 | High-Performance CPU with Floating-Point Processing |
| IC697CPX772 | 32-bit Single Slot CPU Module |
| IC697ALG230 | 8-Channel Analog Input Module |
| IC697GDC701 | DSP Co-Processor for Complex Control |
| IC697MDL740 | 24 VDC Output Module, 16 Points |
