Product Introduction

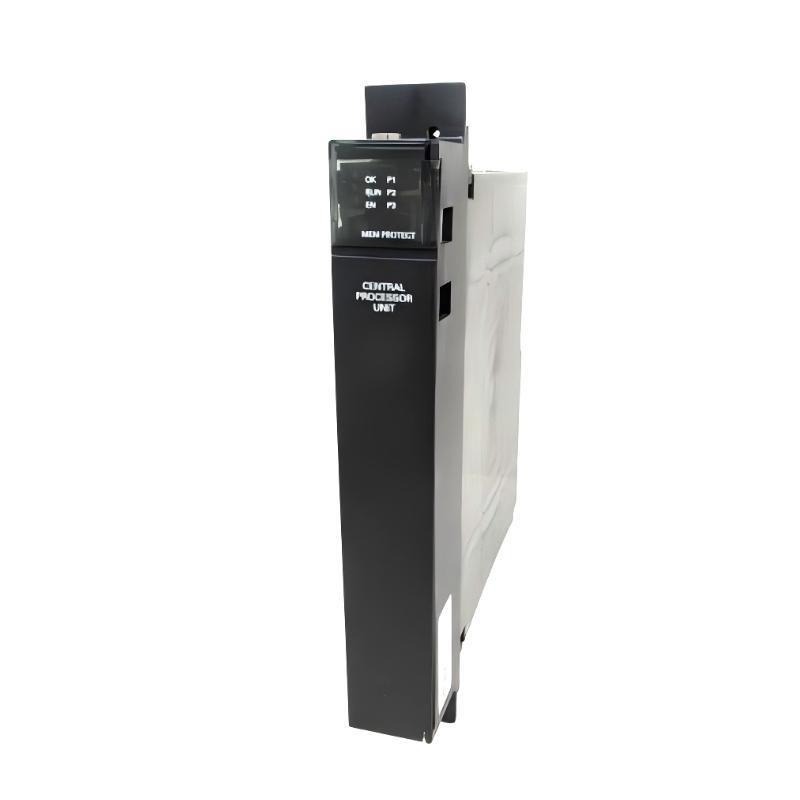

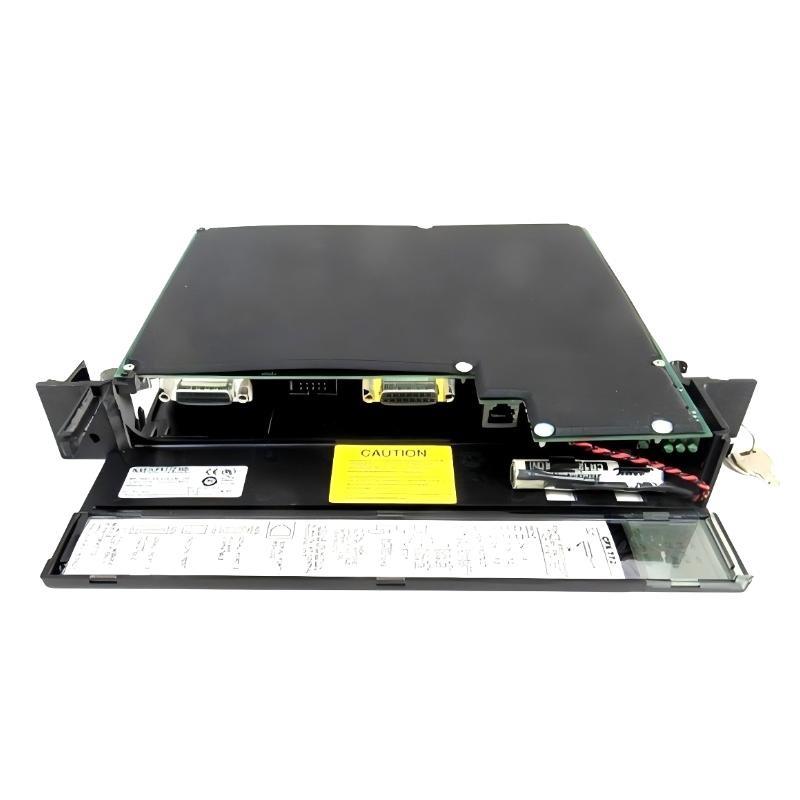

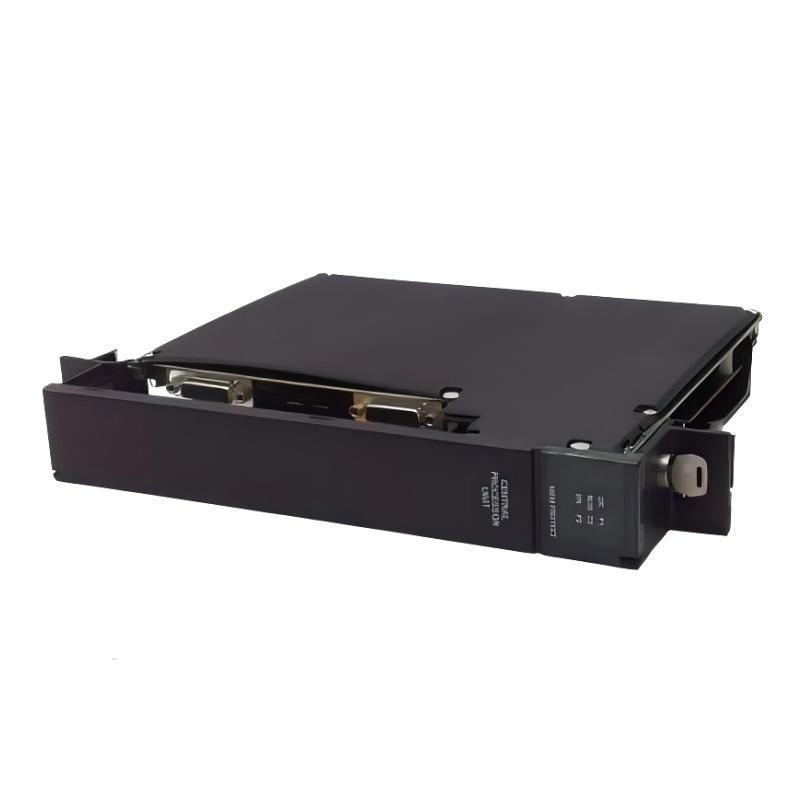

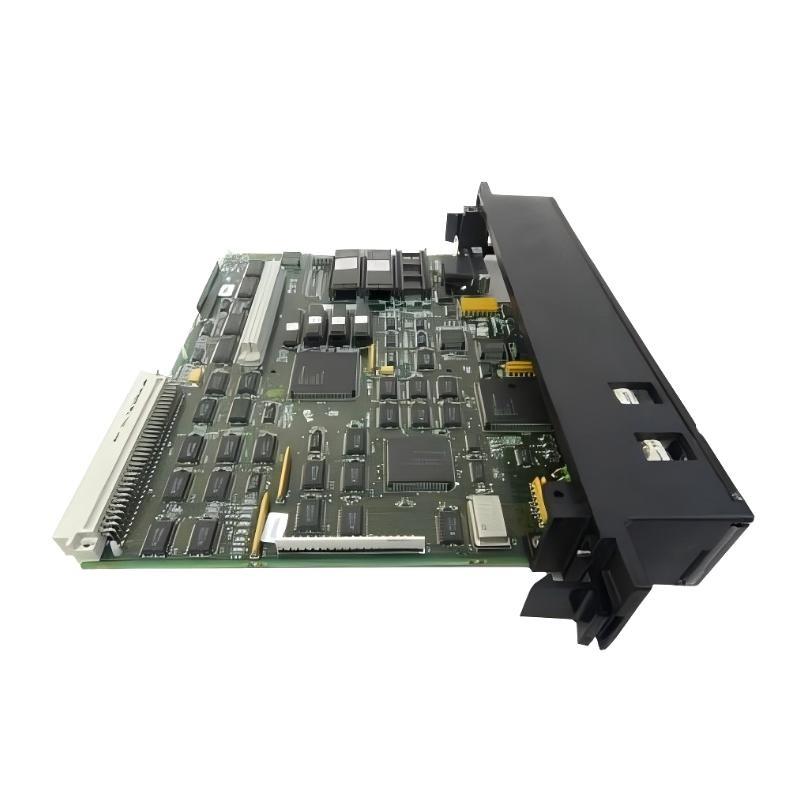

The GE IC697GDS701 Processor Module is a specialized digital signal processor module designed for the Series 90-70 PLC system, intended to augment the computational power of the main CPU in industrial automation applications. This module is engineered to offload complex mathematical operations, real-time signal processing, and high-speed control tasks, providing increased system responsiveness and reliability.
The IC697GDS701 incorporates a dedicated coprocessor for advanced signal processing and control algorithms. It is particularly effective in applications requiring precision data acquisition, fast analog/digital signal processing, and high-speed loop control. Designed for easy integration into Series 90-70 racks, the module enhances the system’s computational capabilities without requiring additional space or major system modifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC697GDS701 |
| Module Type | Processor Module / DSP Coprocessor |
| Processor Type | Digital Signal Processor with control logic acceleration |
| Memory | High-speed internal RAM for real-time operations |
| Integration | Compatible with Series 90-70 CPU modules |
| I/O Support | Works with host CPU I/O expansion modules |
| Communication | Backplane interface for Series 90-70 system |
| Processing Features | High-speed calculations, FFT, PID, filtering, and multivariable control |
| Power Supply | 5 V DC via backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Single-slot installation in Series 90-70 rack |
| Dimensions (L×W×H) | 210 × 50 × 130 mm |
| Weight | 0.43 kg |
| Diagnostics | Status LEDs for module activity and error detection |
Product Applications
The IC697GDS701 is used in industrial automation environments where rapid, precise data processing and control is essential.
Key Applications Include:
-
Advanced Process Control: Supports multiple simultaneous PID loops and high-speed algorithms.
-
Real-Time Signal Processing: Analyzes analog and digital input signals in real time.
-
Vibration and Condition Monitoring: Processes data for machinery health and performance.
-
Motor and Drive Control: Provides precise, fast control for AC/DC drives and rotating machinery.
-
Energy and Power Management: Enhances control and monitoring in power generation and distribution.
-
SCADA and HMI Integration: Supplies pre-processed data to supervisory control systems efficiently.
Product Advantages
-
High-Performance DSP: Handles complex computational tasks to reduce CPU load.
-
Real-Time Processing: Supports PID, FFT, filtering, and multivariable control loops.
-
Compact Design: Single-slot module saves space in Series 90-70 racks.
-
Seamless Integration: Compatible with all Series 90-70 CPUs and I/O modules.
-
System Optimization: Improves overall response times and control precision.
-
Robust Diagnostics: Provides LEDs for activity and fault indication.
-
Industrial Reliability: Operates across standard industrial temperature and humidity ranges.
-
Flexible Application: Suitable for advanced automation, condition monitoring, and power management.
-
Efficient Backplane Communication: Ensures stable data transfer between CPU and module.
-
Scalable Performance: Enables system expansion for complex industrial automation needs.
FAQ
-
What type of processor is included in the IC697GDS701?
It contains a high-speed digital signal processor designed for real-time calculations and control logic acceleration. -
Does the module operate independently of the CPU?
No, it functions as a coprocessor and must be integrated with a Series 90-70 CPU module. -
What types of tasks can this module handle?
It supports FFT, PID control, filtering, multivariable control loops, and other high-speed signal processing tasks. -
Is the module compatible with all Series 90-70 racks?
Yes, it can be installed in standard Series 90-70 racks alongside compatible CPU and I/O modules. -
Does the module require an external power source?
No, it draws 5 V DC power directly from the Series 90-70 backplane. -
What environmental conditions can the IC697GDS701 operate in?
It operates reliably from 0°C to 60°C with 5% to 95% non-condensing humidity. -
Can it support multiple control loops simultaneously?
Yes, its high-speed DSP allows concurrent processing of multiple control loops in real time. -
How does this module improve overall CPU performance?
By offloading complex mathematical and signal-processing tasks, it reduces CPU load and improves system response. -
Are diagnostics provided on the module?
Yes, it features status LEDs and error detection capabilities for operational monitoring. -
Which industrial applications benefit most from this module?
It is ideal for vibration monitoring, advanced process control, motor and drive control, and real-time data acquisition.
Related Models (Same Series)
| Model Number | Description |
|---|---|
| IC697GDS700 | Standard DSP coprocessor for Series 90-70 |
| IC697GDS702 | Enhanced DSP with extended memory |
| IC697GDS703 | High-speed signal processor for multivariable control |
| IC697GDS704 | Coprocessor for vibration and condition monitoring |
| IC697GDS705 | Advanced DSP module for PID and FFT tasks |
| IC697GDS710 | High-performance processor for SCADA systems |
Popular Models from GE Series 90-70
| Model Number | Description |
|---|---|
| IC697CPU782 | Single-Slot CPU Module |
| IC697CPX772 | High-Speed 32-bit CPU |
| IC697CHS771 | 9-Slot VME Integrator Rack |
| IC697CHS782 | 17-Slot VME Integrator Rack |
| IC697MDL740 | Digital Input Module |
| IC697MDL742 | Analog Input Module |
