Product Introduction

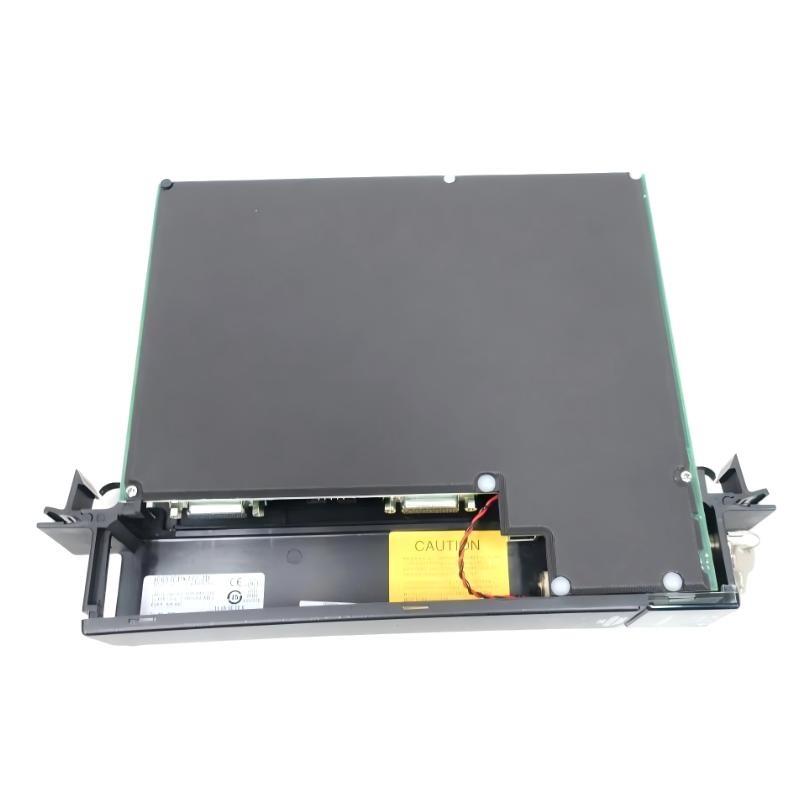

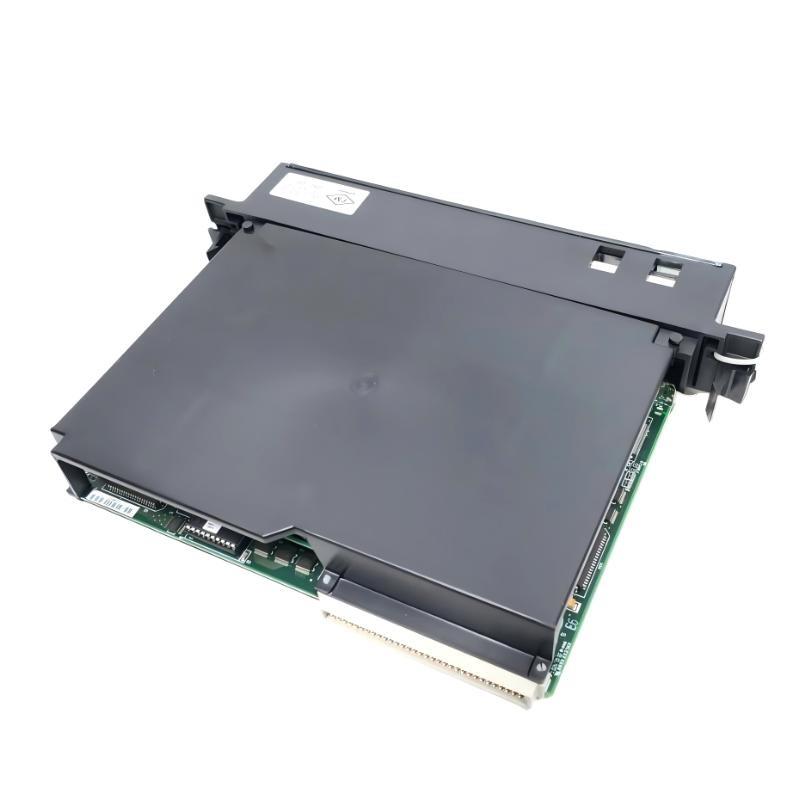

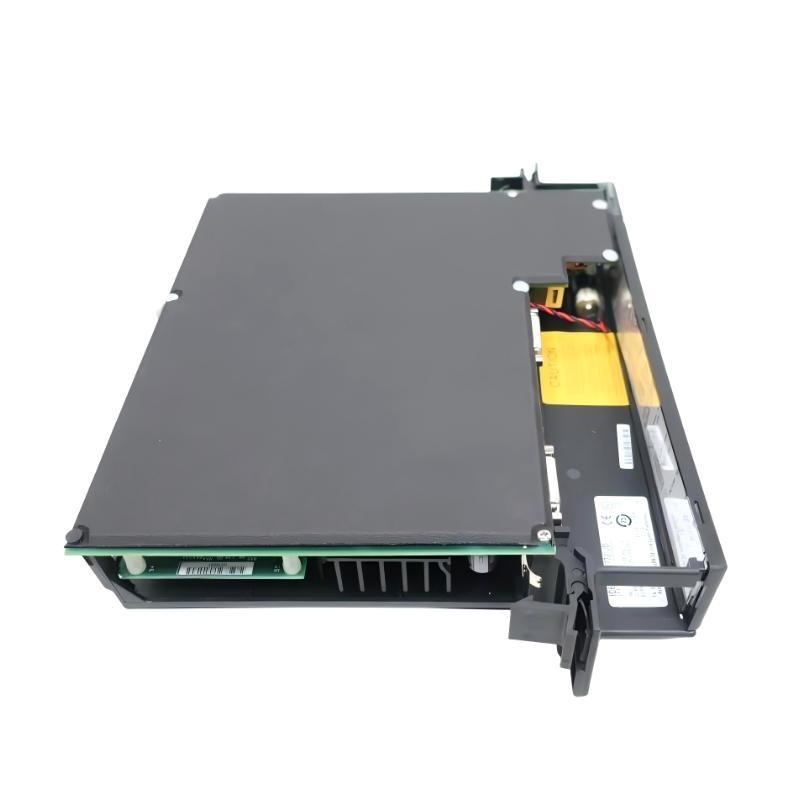

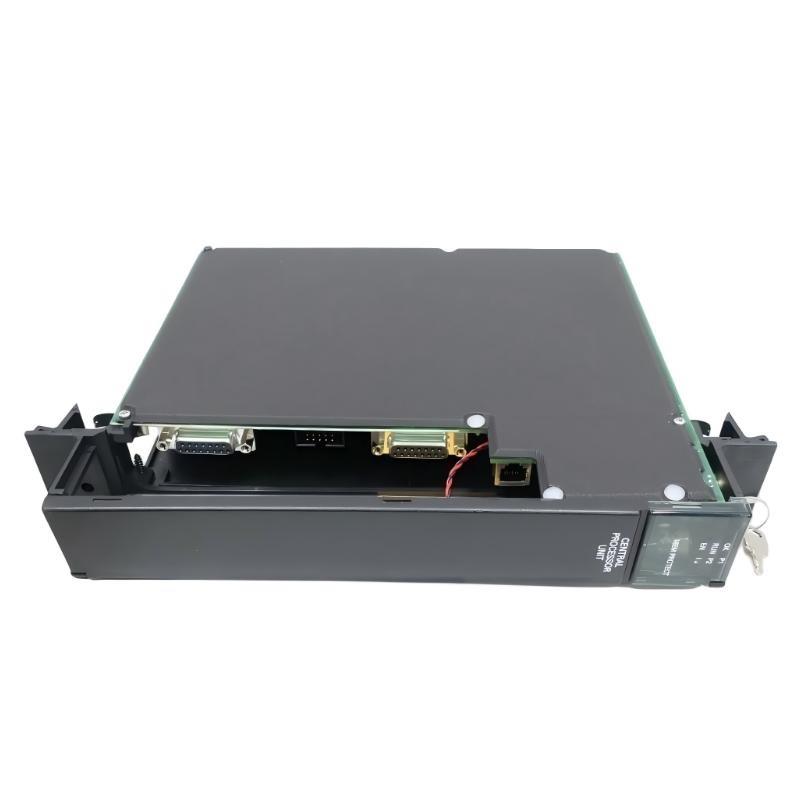

The GE IC697CPX772 Single Slot CPU Module is a high-performance processor designed for the Series 90-70 PLC system, delivering advanced automation and control capabilities in a compact, single-slot form factor. With a 96 MHz 32-bit processor, the IC697CPX772 provides exceptional speed and processing power for demanding industrial applications.
Equipped with 512 KByte of memory, this CPU module can handle large and complex control programs while maintaining fast execution times. The module supports floating-point operations for precise analog and process control, enabling accurate calculation for PID loops, multi-variable control, and high-speed data processing.
The IC697CPX772 is compatible with the full range of Series 90-70 expansion modules and supports up to 20,000 I/O points, making it suitable for large-scale automation systems. Its robust architecture ensures reliable operation in harsh industrial environments, providing both high availability and fault tolerance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC697CPX772 |
| CPU Type | Series 90-70 Single Slot CPU Module |
| Microprocessor | 96 MHz, 32-bit |
| Memory | 512 KByte standard RAM |
| Program Storage | 512 KByte standard, battery-backed |
| I/O Capacity | Up to 20,000 I/O points |
| Number of Slots Required | Single slot |
| Instruction Set | Full Series 90-70 instruction set, including floating-point operations |
| Serial Ports | RS-232/RS-485 for communication with HMIs and SCADA |
| Processing Speed | Typical scan time < 0.5 ms for 1,000 instructions |
| Communication Protocols | Modbus RTU, DNP3 (optional), Series 90-70 proprietary protocol |
| Power Supply | 5 V DC via rack backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Single-slot installation in Series 90-70 rack |
| Dimensions (L×W×H) | 180 × 50 × 100 mm |
| Weight | 0.721 kg |
| Diagnostics | Built-in self-test, status LEDs, and error detection |
Product Applications
The IC697CPX772 CPU Module is ideal for high-speed, high-capacity industrial control systems where precision and reliability are critical.
Typical Applications Include:
-
Power Generation: Control and monitoring of turbines, generators, and auxiliary systems.
-
Oil and Gas Industry: Pump stations, compressors, and pipeline automation.
-
Chemical and Petrochemical Plants: Multi-variable process control and chemical reaction monitoring.
-
Water and Wastewater Treatment: Supervisory control of filtration, chemical dosing, and pumping operations.
-
Manufacturing and Assembly Lines: Robotics, high-speed automation, and large-scale production systems.
-
SCADA and Remote Monitoring: Integration with human-machine interfaces and supervisory control systems.
Product Advantages
-
High-Speed Processing: 96 MHz 32-bit processor delivers rapid execution of complex programs.
-
Large Memory Capacity: 512 KByte RAM allows for extensive program storage and fast processing of multiple tasks.
-
Single-Slot Design: Simplifies installation while maintaining high performance and flexibility.
-
Floating-Point Support: Enables precise analog control, multi-variable loops, and advanced process calculations.
-
Extensive I/O Support: Can manage up to 20,000 I/O points for large industrial systems.
-
Robust Diagnostics: Built-in self-tests and error detection ensure operational reliability.
-
Industrial Reliability: Designed to function effectively in 0°C to 60°C environments and 5%-95% humidity.
-
Seamless Integration: Fully compatible with Series 90-70 expansion modules and racks.
-
Communication Ready: Supports standard industrial protocols and serial communication with SCADA/HMI systems.
-
High Availability: Optimized for mission-critical applications requiring fast, accurate, and continuous control.
FAQ
-
What is the processing speed of the IC697CPX772?
The module operates at 96 MHz with a 32-bit processor, enabling rapid execution of control instructions and complex computations. -
How much memory does the CPU module have?
It includes 512 KByte of standard RAM and program storage, supporting large and complex automation programs. -
Does the CPU support floating-point operations?
Yes, it supports full floating-point arithmetic for precise analog calculations and process control. -
How many I/O points can this CPU handle?
The IC697CPX772 supports up to 20,000 I/O points, suitable for extensive industrial automation systems. -
Can this module communicate with SCADA or HMI systems?
Yes, it features RS-232/RS-485 serial ports compatible with SCADA, HMI, and other supervisory systems. -
Is the CPU module compatible with other Series 90-70 modules?
Yes, it integrates seamlessly with all standard Series 90-70 expansion modules and racks. -
What type of diagnostics are available?
Built-in self-tests, status LEDs, and error detection provide real-time monitoring and operational reliability. -
Can this CPU handle multi-variable control applications?
Yes, its high-speed processing and floating-point support allow for advanced PID loops and multi-variable process control. -
What is the typical program scan time?
For 1,000 instructions, the scan time is typically less than 0.5 milliseconds, ensuring fast response for real-time control. -
Is the module suitable for industrial environments?
Yes, it operates reliably from 0°C to 60°C and in 5%-95% non-condensing humidity, making it suitable for harsh industrial conditions.
Related Models (Same Series)
| Model Number | Description |
|---|---|
| IC697CPX770 | Single Slot CPU with 64 MHz processor |
| IC697CPX771 | High-speed 80 MHz CPU module |
| IC697CPX773 | CPU module with 128 KByte memory and advanced communication |
| IC697CPX774 | CPU optimized for floating-point applications |
| IC697CPX775 | CPU for high-speed manufacturing automation |
| IC697CPU788 | High-performance Series 90-70 CPU module |
Popular Models from GE Series 90-70
| Model Number | Description |
|---|---|
| IC697MDL740 | Digital Input Module |
| IC697MDL741 | Digital Output Module |
| IC697MDL742 | Analog Input Module |
| IC697MDL745 | Analog Output Module |
| IC697CHS771 | VME Integrator Rack |
| IC697CHS782 | 17-Slot VME Integrator Rack |
