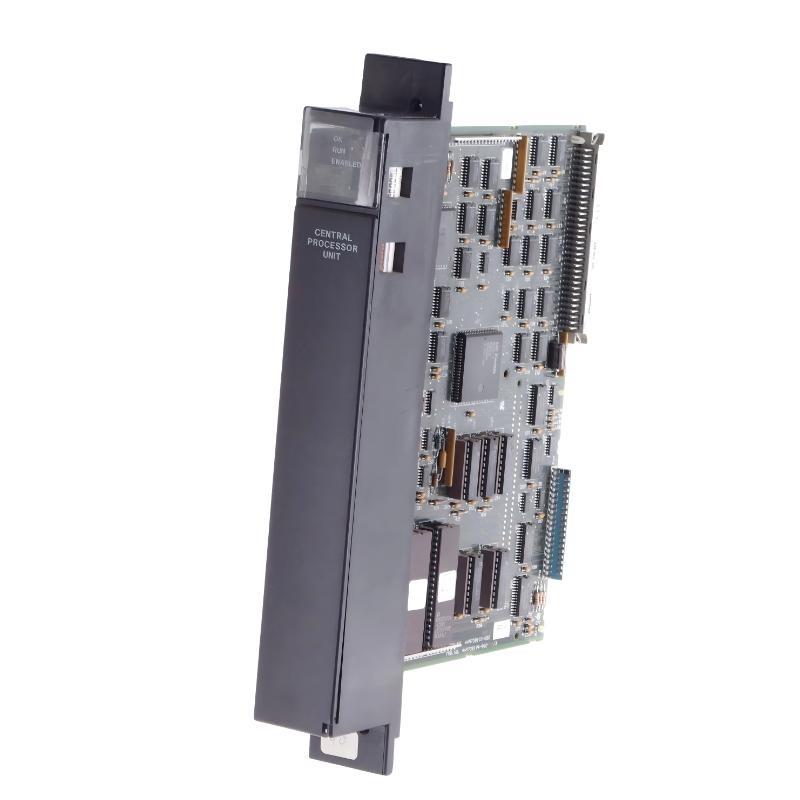

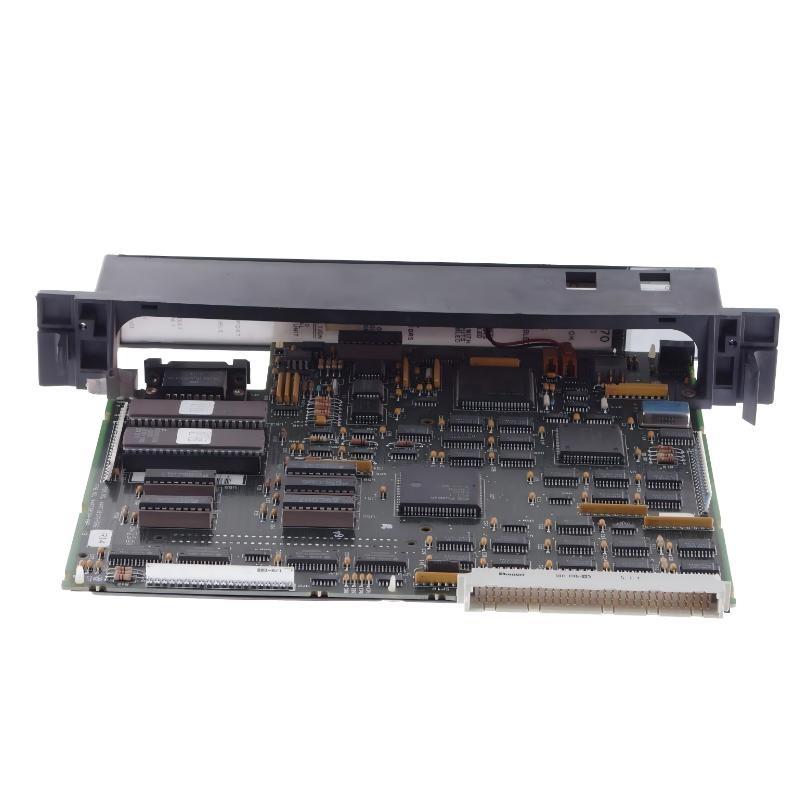

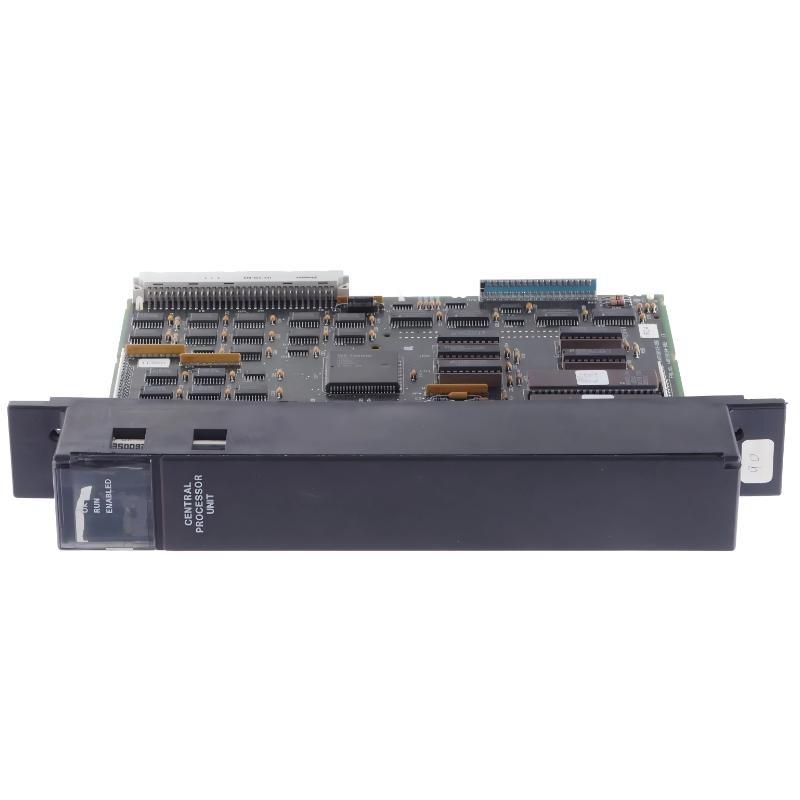

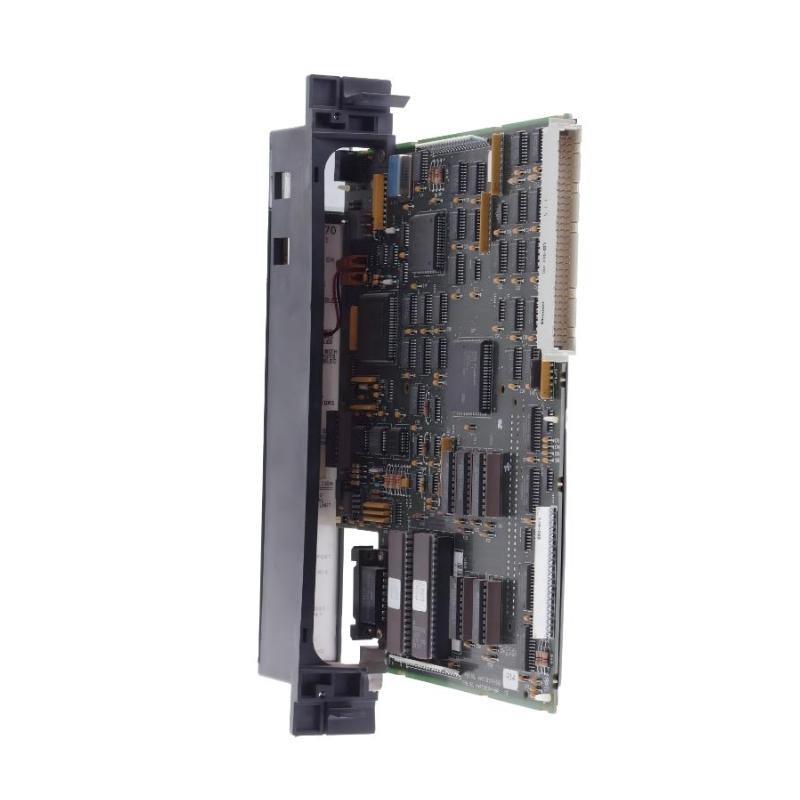

GE IC697CPU731 Central Processor Unit

Product Introduction

The GE IC697CPU731 Central Processor Unit (CPU) is a compact, reliable, and high-performance control module specifically designed for the GE Series 90-70 Programmable Logic Controller (PLC) family. Operating at 12 MHz, this CPU is engineered to deliver stable and deterministic control performance for medium-scale automation and process applications.

The IC697CPU731 features fixed 32K bytes of user memory and supports up to 512 discrete I/O points, making it suitable for small to mid-sized control systems where predictable operation, fast response, and cost efficiency are essential. The CPU executes user logic, handles data communications, and manages I/O updates through the Series 90-70 backplane.

Equipped with robust real-time control capability and built-in diagnostics, this CPU ensures reliable operation in demanding industrial environments. Its single-slot design reduces space requirements while maintaining compatibility with all standard GE 90-70 I/O and communication modules.

The IC697CPU731 is widely used in process automation, discrete manufacturing, utilities, and energy systems where a balance of performance, reliability, and simplicity is required.

Technical Specifications

Applications

The IC697CPU731 CPU module provides dependable automation control across a range of industrial environments and process applications.

• Manufacturing Automation: Controls assembly lines, packaging systems, and automated material handling units requiring up to 512 discrete I/O points.

• Process Control Systems: Ideal for small-scale continuous control processes such as water treatment, chemical batching, and temperature regulation.

• Power Generation and Utilities: Used for substation automation, pump control, and turbine auxiliary system management.

• Machine Control: Supports motion control, safety interlocking, and coordinated control functions in standalone machinery.

• Infrastructure and Facility Systems: Efficiently manages HVAC, lighting, and environmental monitoring in large buildings or industrial complexes.

• Data Acquisition and Monitoring: Performs real-time data collection and supervisory control in compact automation networks.

Advantages

1. Stable Performance: 12 MHz processing speed provides consistent and reliable control for small to mid-range automation tasks.

2. Fixed 32K Memory: Simplifies configuration and ensures reliable data handling without dynamic allocation.

3. Moderate I/O Capacity: Supports up to 512 discrete I/O points, sufficient for standard control systems.

4. Compact Design: Occupies a single rack slot, conserving valuable panel space.

5. Built-in Diagnostics: Includes automatic system and communication health checks for preventive maintenance.

6. Communication Flexibility: Integrated RS-232/RS-485 port allows direct connection with HMIs, operator panels, or external devices.

7. Easy Integration: Fully compatible with GE Series 90-70 backplanes, I/O modules, and power supplies.

8. Deterministic Execution: Provides predictable response times for mission-critical processes.

9. Industrial Reliability: Designed for long-term stability in high-temperature and high-vibration environments.

10. Maintenance Simplicity: Fixed configuration and self-diagnostics reduce setup and service time.

FAQ

1. What processor speed does the IC697CPU731 operate at?
   The module operates at a fixed 12 MHz clock speed, offering dependable performance for deterministic control applications.

2. How much user memory is provided in this CPU?
   It comes with a fixed 32K bytes of user memory for logic, data, and control tasks.

3. What is the maximum I/O capacity supported?
   The CPU can handle up to 512 discrete I/O points, suitable for compact and mid-range automation systems.

4. Does the CPU support serial communication?
   Yes, it includes a single RS-232/RS-485 serial port for programming, HMI communication, or device integration.

5. What type of PLC system is the IC697CPU731 used with?
   It is designed for the GE Series 90-70 PLC family, compatible with standard I/O and communication modules.

6. Does the CPU support floating-point operations?
   No, this model primarily handles integer and bit-level operations; floating-point is supported in higher models like the IC697CPM914 or IC697CPM915.

7. Is the CPU equipped with self-diagnostic features?
   Yes, it includes power-up self-tests, memory integrity checks, and continuous I/O communication monitoring.

8. Can the IC697CPU731 communicate with other controllers?
   Yes, through its serial interface or with optional communication modules such as the IC697CMM712.

9. How is the CPU powered within the system?
   It receives 5V DC power directly from the backplane, consuming approximately 6 watts during operation.

10. What programming tools are compatible with this CPU?
    It can be programmed using GE Fanuc programming software designed for Series 90-70, such as Logicmaster 90 or equivalent.
