Product Introduction

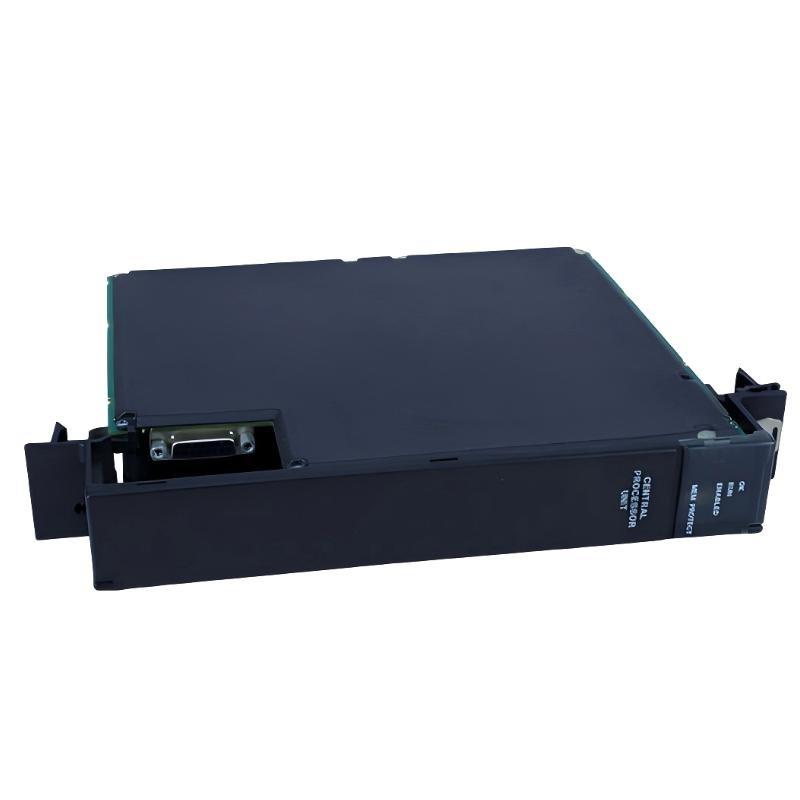

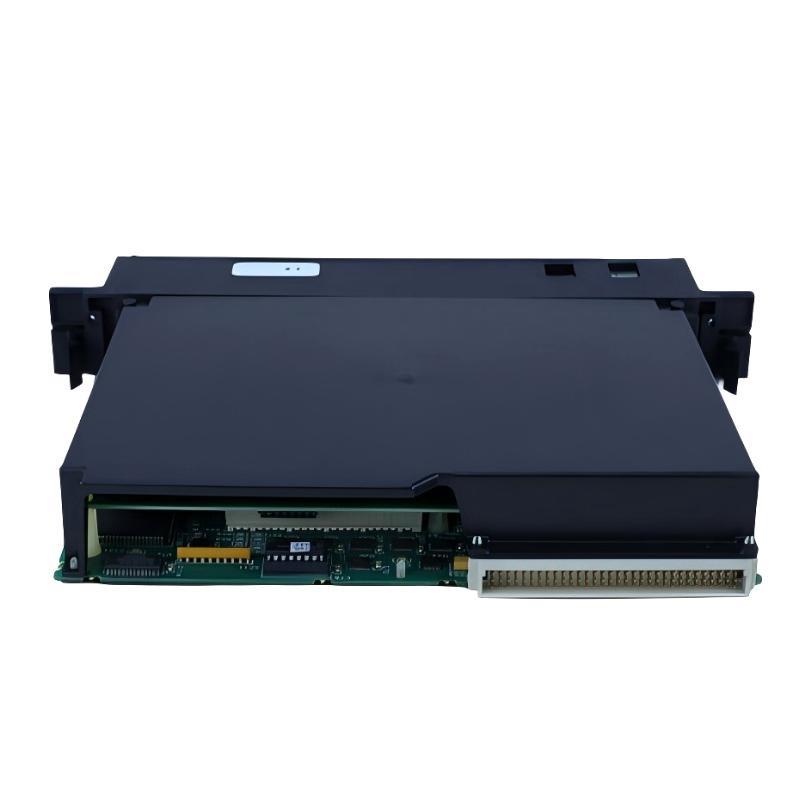

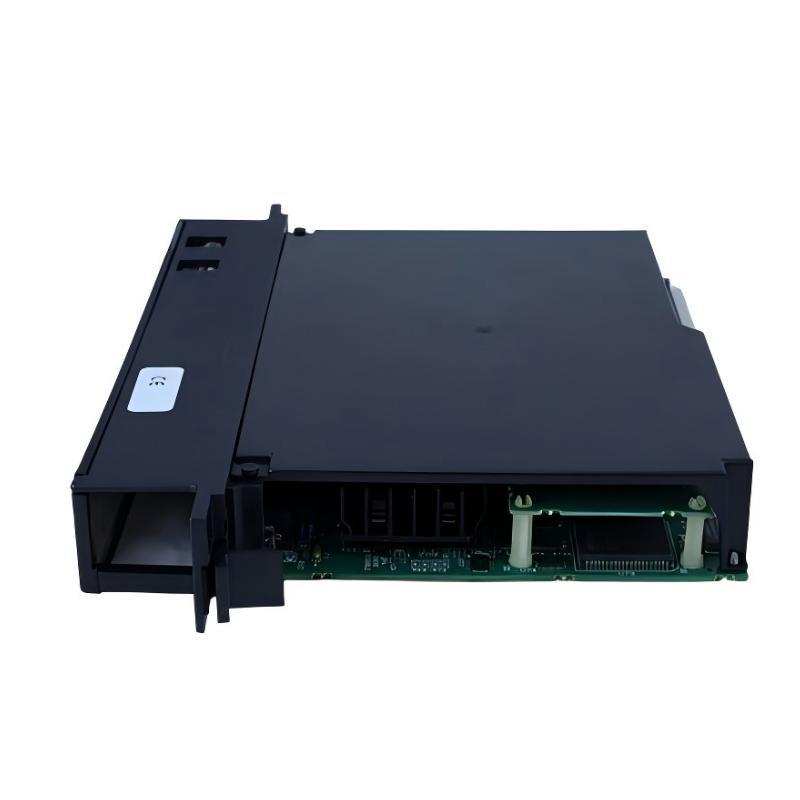

The GE IC697CPM925 Central Processor Unit (CPU) is a high-performance, floating point CPU module designed for the Series 90-70 PLC system. Operating at 64 MHz with a 32-bit floating point architecture and 1 MByte of memory, this CPU is engineered to handle up to 12,000 discrete I/O points, making it ideal for large-scale industrial automation and process control applications.
The IC697CPM925 provides deterministic control, fast task execution, and reliable serial communication, supporting a wide range of IC660 and IC661 I/O modules. Its high-speed floating point processing allows precise control, real-time calculations, and complex data handling in demanding industrial environments.
This CPU module is widely used in manufacturing, energy, process industries, transportation, and utilities, where high-speed computation, large I/O capacity, and reliable operation are critical. The module is designed for single-slot installation, minimizing space while providing robust computational capabilities and advanced diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC697CPM925 |
| Module Type | Floating Point CPU Module |
| Slot Type | Single Slot |
| Processor Speed | 64 MHz |
| Architecture | 32-bit Floating Point |
| Memory | 1 MByte User Memory |
| Discrete I/O Support | Up to 12,000 points |
| Serial Port | 1 RS-232/RS-485 compatible port |
| I/O Compatibility | Supports IC660 and IC661 modules |
| Power Consumption | 8 W typical |
| Operating Voltage | 5V DC from backplane |
| Operating Temperature | 0–70 °C |
| Storage Temperature | -40–85 °C |
| Humidity | 5–95% non-condensing |
| Diagnostics | CPU error, communication error, I/O error monitoring |
| Dimensions (H x W x D) | 180 x 50 x 105 mm |
| Weight | 0.55 kg |
Applications
The IC697CPM925 CPU Module is used in large-scale industrial automation and process control environments:
-
Manufacturing Automation: Controls complex production lines, multi-robot cells, and machinery with up to 12,000 discrete I/O points.
-
Process Control: Performs high-speed floating point calculations for temperature, pressure, flow, and level control in chemical, pharmaceutical, and food processing plants.
-
Energy and Utilities: Monitors and controls power substations, energy distribution, and grid management systems.
-
Transportation Systems: Automates traffic control networks, airport baggage handling, and logistics sorting systems.
-
Remote Monitoring and Data Acquisition: Provides real-time communication with HMIs, SCADA systems, and remote I/O devices.
-
Data-Intensive Control Applications: Supports high-speed floating point processing for complex calculations and simultaneous management of large I/O networks.
Advantages
-
High-Performance CPU: 64 MHz processor delivers fast and deterministic control for large systems.
-
Floating Point Architecture: 32-bit floating point design enables precise and complex computations.
-
Large I/O Capacity: Supports up to 12,000 discrete I/O points using IC660 and IC661 modules.
-
Ample Memory: 1 MByte user memory for program storage, floating point calculations, and data management.
-
Serial Communication: Provides one serial port for connecting HMIs, operator panels, or other serial devices.
-
Single-Slot Compact Design: Saves panel space while delivering full CPU functionality.
-
Advanced Diagnostics: Monitors CPU, communication, and I/O errors for efficient troubleshooting.
-
Robust Industrial Operation: Operates reliably across 0–70 °C and 5–95% non-condensing humidity.
-
Flexible I/O Integration: Compatible with IC660 and IC661 digital and analog modules for versatile system design.
FAQ
-
What type of CPU architecture does the IC697CPM925 use?
It uses a 32-bit floating point architecture, capable of performing high-speed arithmetic and complex calculations for industrial automation applications. -
How fast is the processor?
The module operates at 64 MHz, providing deterministic control and rapid program execution. -
What is the memory capacity of this CPU?
It provides 1 MByte of user memory for program storage, data handling, and floating point calculations. -
How many discrete I/O points can the IC697CPM925 support?
The CPU supports up to 12,000 discrete I/O points when used with compatible IC660 and IC661 I/O modules. -
Does the CPU provide serial communication?
Yes, it features one serial port compatible with RS-232 and RS-485 protocols for connecting HMIs, operator panels, or other serial devices. -
Which I/O modules are compatible with this CPU?
The IC697CPM925 is fully compatible with IC660 and IC661 digital and analog modules. -
Does the CPU include diagnostic capabilities?
Yes, it monitors CPU errors, communication faults, and I/O errors to facilitate troubleshooting and system maintenance. -
Can the CPU handle real-time floating point calculations?
Yes, the 32-bit floating point architecture enables high-speed real-time computation for precise process control. -
What are the operating temperature and humidity ranges?
The CPU operates between 0–70 °C with 5–95% non-condensing humidity, ensuring reliable performance in industrial environments. -
What is the typical power consumption, and will it affect other modules?
The IC697CPM925 consumes approximately 8 W from the backplane, allowing multiple modules to operate without overloading the PLC system.
