Product Introduction

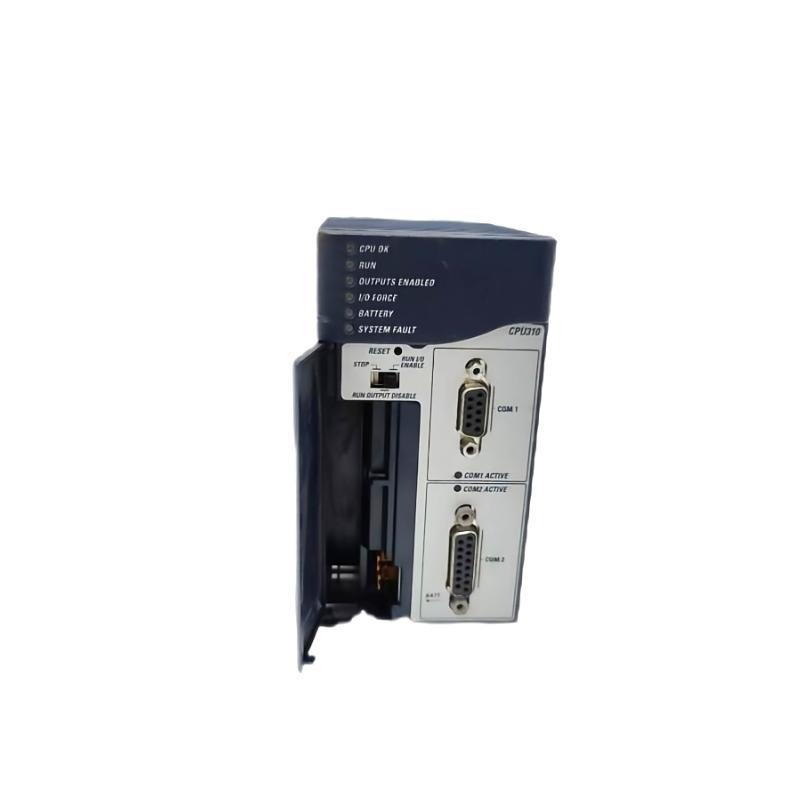

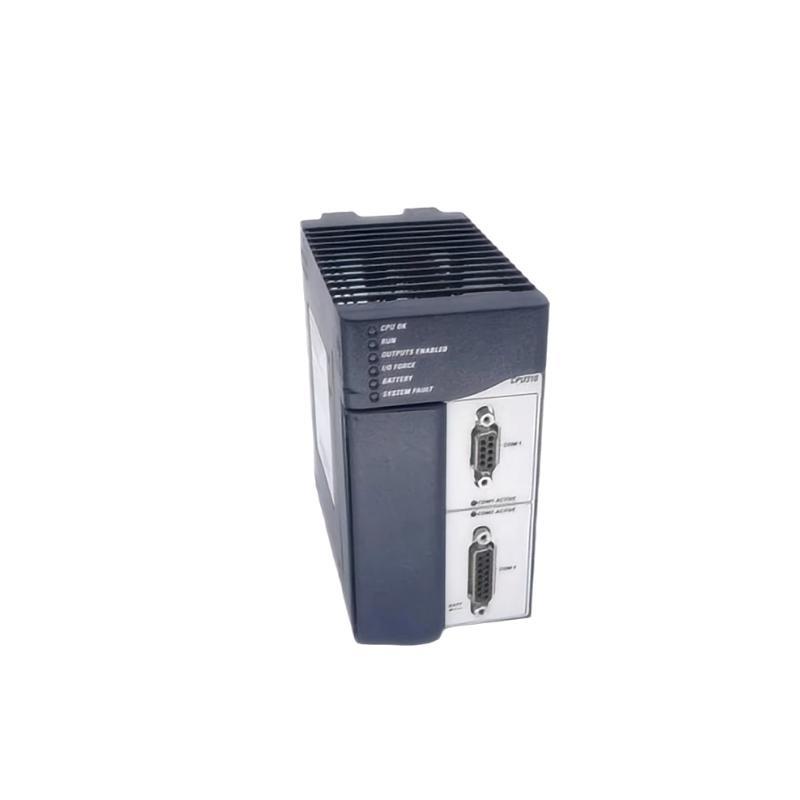

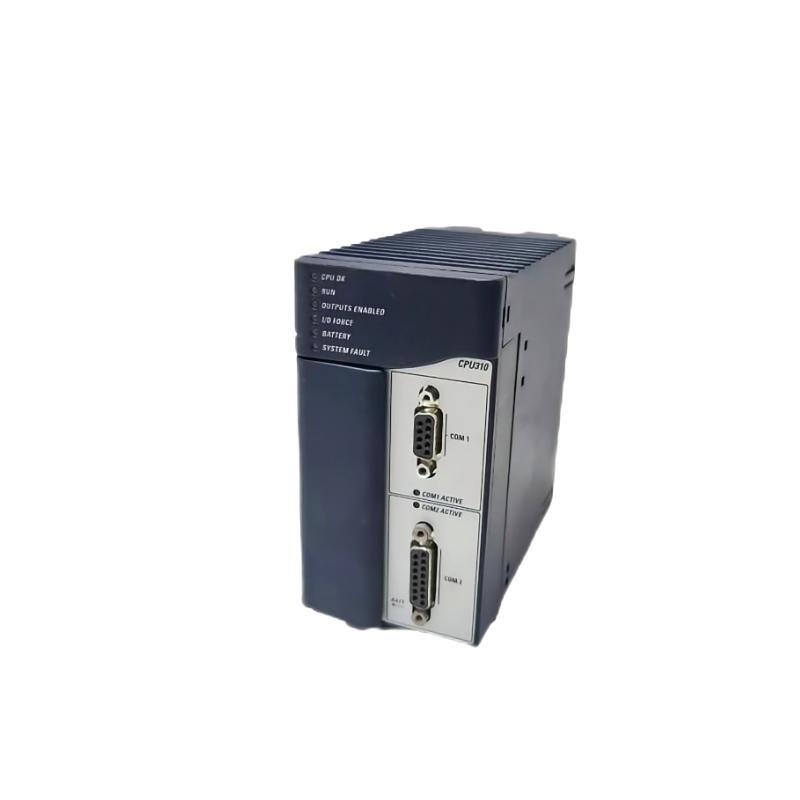

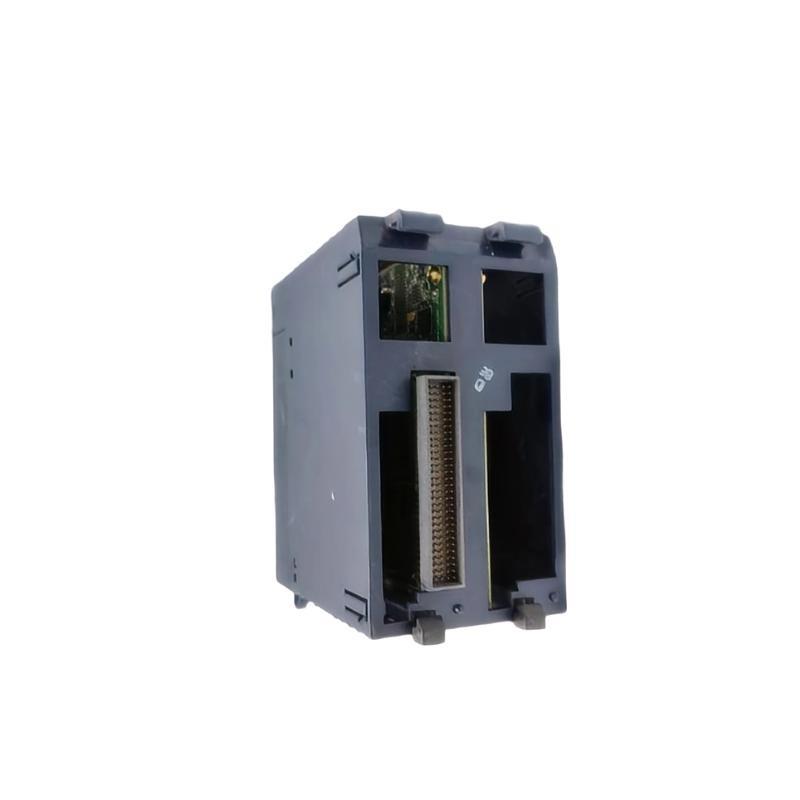

The GE IC695CMU310 is a high-performance CPU redundancy module specifically designed for GE’s PACSystems RX3i platform. It provides hot-standby redundancy, meaning that if the primary CPU fails, the backup CPU automatically and seamlessly takes over control with no loss in system operation. This module plays a critical role in mission-critical automation systems where system downtime is unacceptable.
The IC695CMU310 ensures high availability in industrial automation environments by supporting full redundancy, real-time synchronization between CPUs, and deterministic control. Built with robust and industrial-grade components, this CPU module is an ideal choice for users who require uninterrupted processing capabilities in sectors like power generation, oil & gas, water treatment, transport, and manufacturing automation.
With a modular design, the IC695CMU310 integrates easily with the RX3i system and supports scalable configurations for both small and large applications. It delivers exceptional speed, memory, and communication capabilities in a compact footprint.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IC695CMU310 |
| Product Type | Hot-Standby Redundancy CPU Module |
| Platform | PACSystems RX3i |
| Processor Architecture | Dual-core ARM Cortex-A53 |
| Clock Speed | 300 MHz |
| User Memory (RAM) | 10 MB battery-backed SRAM |
| Flash Memory | 10 MB for user application |
| Program Block Capacity | Up to 512 blocks, 128 KB per block |
| I/O Compatibility | Compatible with RX3i I/O and Series 90-30 modules |
| Communication Ports | 2 x Serial Ports (RS-232/RS-485), Ethernet via expansion |
| Supported Protocols | Modbus RTU Slave, Serial I/O, SNP |
| Backplane Bus | Dual: RX3i PCI and 90-30-style serial |
| Redundancy Functionality | Full Hot-Standby Synchronization |
| Diagnostics | Built-in system diagnostics and fault logging |
| Power Supply Requirement | +5 VDC @ 1.0A; +3.3 VDC @ 1.25A |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 120 x 50 x 110 mm |
| Weight | 0.399 kg |
| Certifications | UL, CE, RoHS compliant |
| Country of Origin | United States |
Product Applications
The GE IC695CMU310 is built to support a broad range of high-availability automation systems. Common applications include:
-
Power Generation Facilities – For uninterrupted turbine and boiler control.
-
Oil & Gas Operations – Ensures consistent control of pipelines, refineries, and offshore platforms.
-
Water & Wastewater Treatment Plants – Maintains redundancy in critical water control systems.
-
Manufacturing Automation – Enables fault-tolerant production line control.
-
Transportation Systems – Used in railway and traffic signal systems requiring constant uptime.
-
Pharmaceutical Production – Prevents process interruption in GMP-critical applications.
Product Advantages
-
True Hot-Standby Redundancy
Enables seamless failover to a backup CPU, ensuring no interruption in control or data loss. -
Real-Time Synchronization
Maintains mirrored application data and system states between primary and backup CPUs. -
Modular & Scalable
Easily integrates into existing RX3i systems, with support for expansion as needs grow. -
Industry-Proven Reliability
Used in high-demand industries, backed by GE’s reputation for robust automation solutions. -
Comprehensive Diagnostics
Built-in fault detection and logging help in predictive maintenance and fast troubleshooting. -
Flexible Communication
Multiple protocols and ports allow easy connection with SCADA, HMIs, and third-party devices.
Frequently Asked Questions (FAQ)
-
What does hot-standby redundancy mean in IC695CMU310?
It refers to the automatic switching from a failed primary CPU to a backup CPU with no system interruption. -
Can this module be used in a non-redundant setup?
No, it is designed specifically to function as part of a hot-standby redundant CPU pair. -
How do you synchronize data between primary and backup CPUs?
The module handles synchronization automatically via the PACSystems redundancy firmware. -
What happens to I/O modules during CPU switchover?
The switchover is seamless, and all I/O operations continue without disruption. -
Is IC695CMU310 compatible with legacy GE modules?
Yes, it supports RX3i modules and is backward-compatible with Series 90-30 I/O. -
What kind of memory is used in the CPU?
It uses battery-backed SRAM for volatile memory and flash for user application storage. -
Can I use Ethernet protocols with this CPU module?
Yes, but via Ethernet-enabled modules such as CPE305 or CPE310 paired with the CMU310. -
What tools are used to program the IC695CMU310?
GE’s Proficy Machine Edition (PME) is used for programming and configuration. -
What diagnostic tools are available?
The module includes onboard diagnostic LEDs, error logs, and can report faults to PME. -
Where is the IC695CMU310 manufactured?
It is manufactured in the United States and complies with international certifications.
