Product Introduction

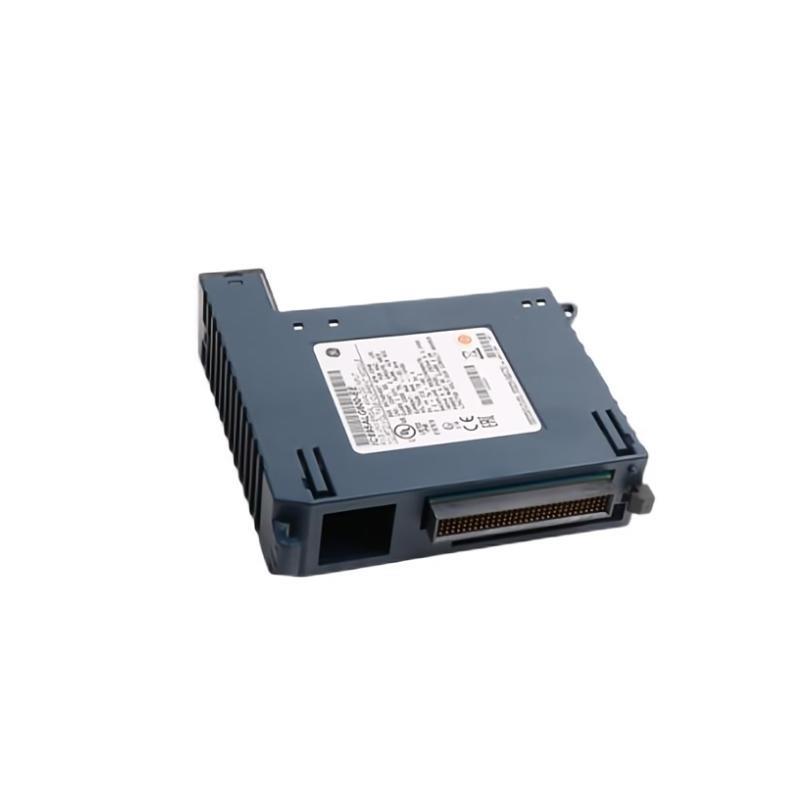

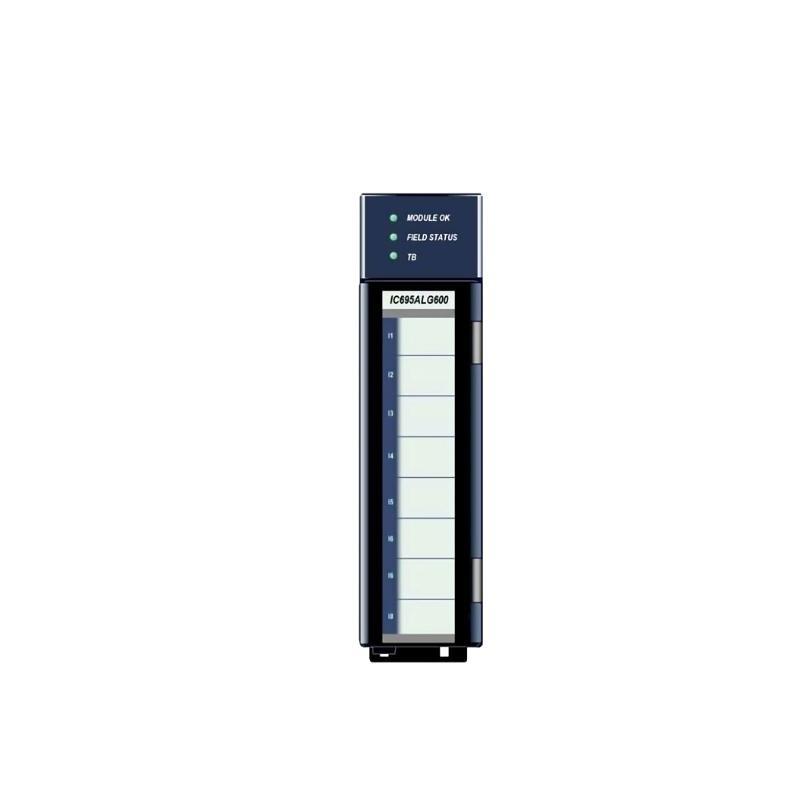

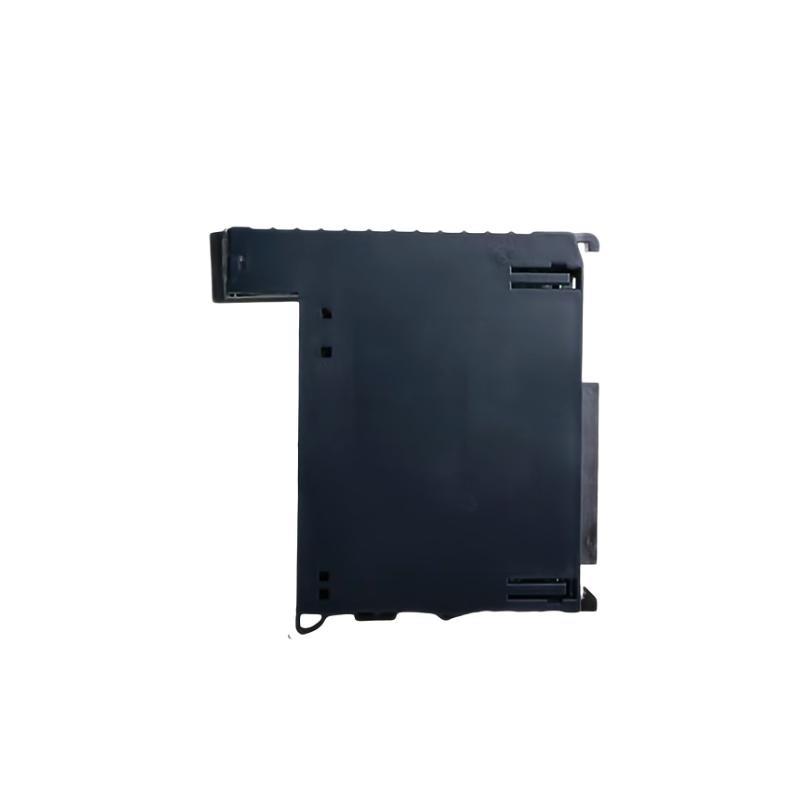

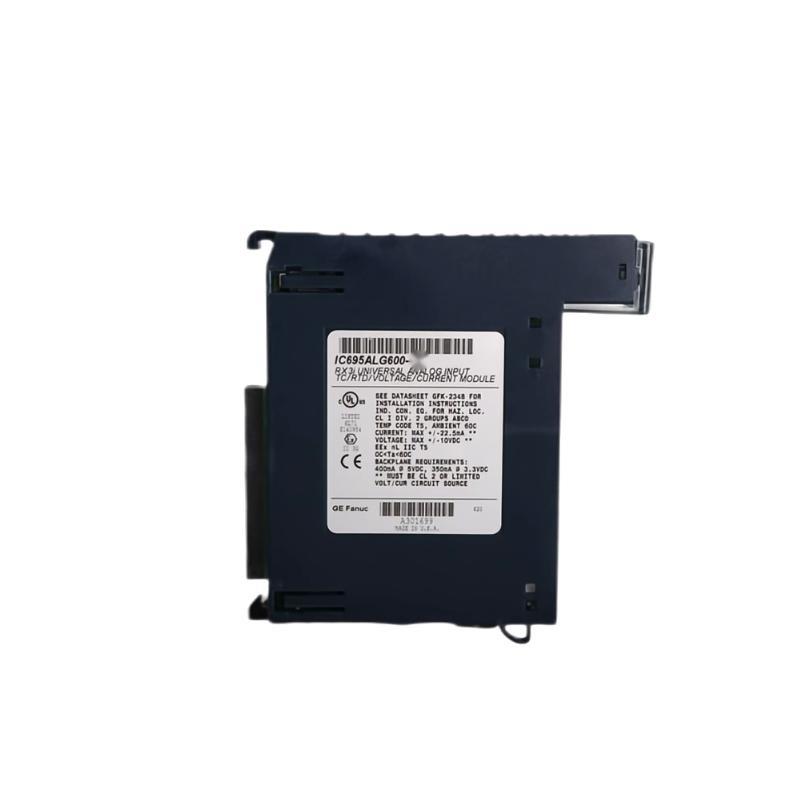

The GE IC695ALG600 is a Universal Analog Input Module designed for the RX3i PACSystems series by GE Automation & Controls. As part of GE’s high-performance control platform, this module offers advanced analog signal processing capabilities with exceptional reliability and accuracy. It is engineered to support a broad range of input types, including voltage and current signals, making it suitable for various industrial measurement and monitoring applications.
The IC695ALG600 offers high-resolution data acquisition, robust input protection, and field-configurable channels, making it a flexible solution for both centralized and distributed I/O architectures. Built for compatibility with the RX3i modular backplane, the module provides seamless integration into industrial control systems where precision and durability are key.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Automation & Controls |
| Series | RX3i PACSystems |
| Module Type | Universal Analog Input Module |
| Part Number | IC695ALG600 |
| Number of Channels | 16 single-ended or 8 differential |
| Input Signal Types | ±10V, 0–10V, 4–20mA, 0–20mA |
| Resolution | 16-bit |
| Input Impedance | Voltage: >100kΩ, Current: 250Ω |
| Isolation | 250V channel-to-backplane, channel-to-channel |
| Update Rate | Configurable; typically 5 ms per channel |
| Input Range | Configurable per channel |
| Diagnostics | Open wire detection for 4–20mA signals |
| Calibration | Factory calibrated; no field calibration required |
| LED Indicators | Module status and channel status |
| Configuration | Via PAC Machine Edition (Proficy Logic Developer) |
| Power Consumption | 130 mA @ 5VDC, 180 mA @ 3.3VDC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5–95% non-condensing |
| Dimensions (W x H x D) | 34 x 140 x 145 mm |
| Weight | 0.227 kg |
| Mounting Type | DIN rail or panel mount (via RX3i baseplate) |
| Compliance/Certifications | CE, UL, cUL, ATEX (when used with approved systems) |
Applications
The GE IC695ALG600 is used across a wide array of industries that require reliable and precise analog signal acquisition. Typical applications include:
-
Power Generation: Monitoring voltage and current signals in turbine control systems.
-
Water & Wastewater Treatment: Measuring levels, flows, and pressure with analog transmitters.
-
Oil & Gas: Real-time analog data acquisition in drilling and processing operations.
-
Manufacturing & Industrial Automation: Supervisory control of analog processes, including temperature, flow, and pressure loops.
-
Chemical Processing: Monitoring pH levels, tank levels, and dosing systems.
-
Building Automation: HVAC control systems requiring accurate analog input data.
Product Advantages
-
Versatility in Input Types: Supports multiple analog formats (voltage and current) on the same module.
-
High Accuracy and Resolution: 16-bit resolution ensures precise data acquisition for critical control loops.
-
Flexible Channel Configuration: Individual channels can be configured independently, enhancing customization.
-
Robust Electrical Isolation: Protects system from signal interference and damage.
-
Seamless Integration: Fully compatible with GE RX3i series backplane and PAC Machine Edition software.
-
Factory-Calibrated: Reduces maintenance overhead and eliminates the need for user calibration.
-
Comprehensive Diagnostics: Real-time fault detection ensures reliability in harsh industrial environments.
-
Compact Design: Space-saving form factor ideal for high-density installations.
Frequently Asked Questions (FAQ)
-
Q: What types of signals can the IC695ALG600 handle?
A: It supports both voltage (±10V, 0–10V) and current (0–20mA, 4–20mA) inputs. -
Q: Is this module hot-swappable?
A: No, the IC695ALG600 is not hot-swappable. Power must be removed before installation or removal. -
Q: How many channels does the IC695ALG600 provide?
A: It provides 16 single-ended or 8 differential channels. -
Q: Can each channel be configured independently?
A: Yes, each channel can be set independently for different signal types. -
Q: What software is used to configure the module?
A: GE Proficy Machine Edition (Logic Developer) is used for configuration. -
Q: Does the module provide any diagnostic features?
A: Yes, it includes open wire detection and LED indicators for diagnostics. -
Q: What level of isolation is provided between channels?
A: Channel-to-channel and channel-to-backplane isolation is rated at 250V. -
Q: What industries commonly use this module?
A: It’s widely used in power generation, oil & gas, water treatment, and manufacturing. -
Q: What is the resolution of the analog inputs?
A: The module has a 16-bit resolution for all channels. -
Q: Is additional calibration required in the field?
A: No, the module is factory-calibrated and does not require field calibration.
Related Models (Same Series / Similar Function)
| Model Number | Description | Channels | Signal Type | Special Features |
|---|---|---|---|---|
| IC695ALG608 | Analog Input Module | 8 | Voltage/Current | High accuracy, 16-bit resolution |
| IC695ALG616 | Universal Analog Input Module | 16 | Voltage/Current | Similar to IC695ALG600, larger support |
| IC695ALG728 | Analog Output Module | 8 | Voltage/Current (Output) | High-speed analog output, 16-bit DAC |
| IC695ALG324 | Isolated Analog Input Module | 4 | Voltage | Per-channel isolation, ideal for noise |
| IC695ALG704 | Analog Output Module with Diagnostics | 4 | Voltage/Current (Output) | Built-in diagnostics and fault detection |
| IC695ALG628 | Mixed Analog I/O Module | 4 In / 4 Out | Voltage/Current | Compact design with dual functionality |
Popular GE Models (Same Brand)
| Model Number | Description | Module Type | Compatibility | Key Features |
|---|---|---|---|---|
| IC695CPU320 | RX3i High-Performance CPU | Controller/CPU | RX3i | 1GHz processor, 64MB memory, logic & motion |
| IC695PSA140 | RX3i Power Supply, 120/240VAC | Power Supply Module | RX3i | 40W output, redundant capable |
| IC695ETM001 | Ethernet Interface Module | Communication Module | RX3i / RX7i | Dual Ethernet ports, real-time networking |
| IC695CMX128 | Serial Communications Module | Communication Expansion | RX3i | Supports Modbus, serial protocols |
| IC695CHS012 | RX3i 12-Slot Universal Baseplate | Rack / Backplane | RX3i | Modular expansion, DIN rail mountable |
| IC695RMX128 | Redundancy Module for RX3i | Redundancy Controller | RX3i | Enables high availability configurations |
