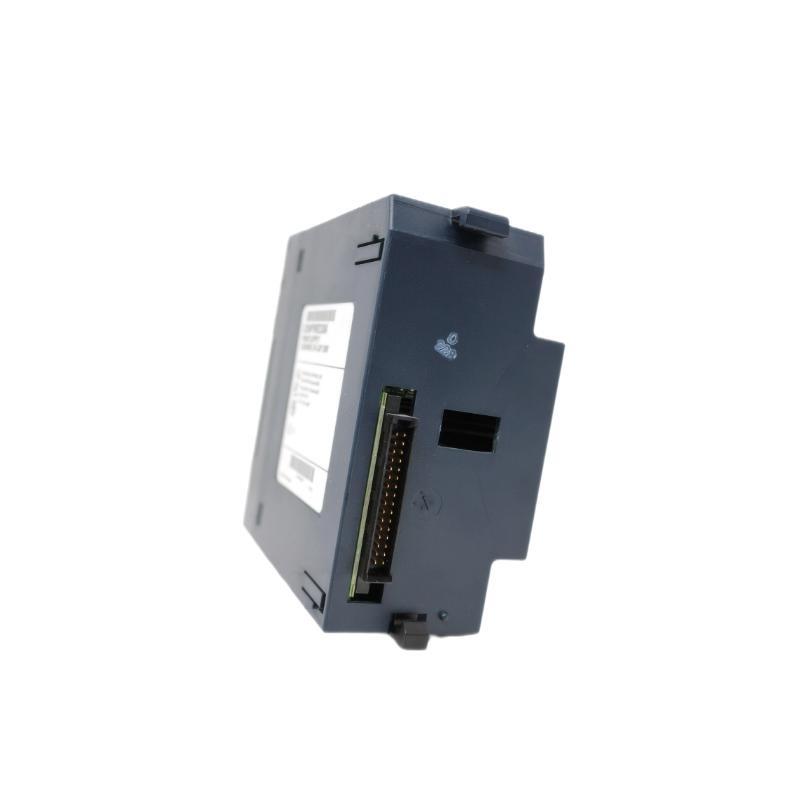

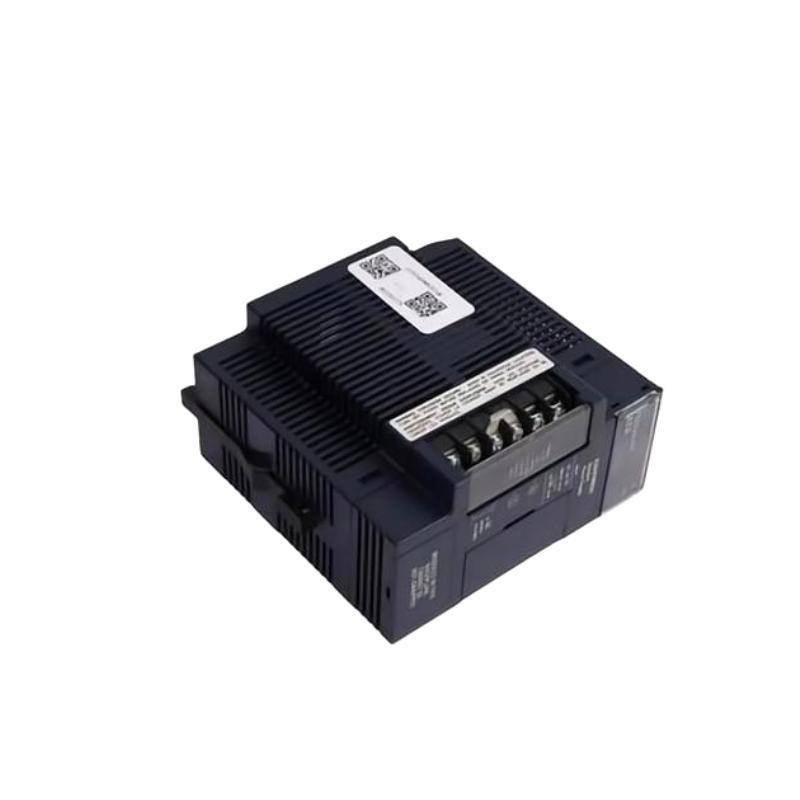

Product Overview:
The GE IC694PWR321 is a high-performance power supply module designed for use with GE’s RX3i PACSystems series of programmable automation controllers (PACs). It provides reliable and regulated power to the CPU, I/O modules, and other components in the RX3i backplane. With robust performance and multiple protection features, the IC694PWR321 ensures stable system operation in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC694PWR321 |
| Manufacturer | GE Fanuc |
| Product Type | Power Supply Module |
| Series | RX3i PACSystems |
| Input Voltage Range | 85 to 264 VAC / 100 to 300 VDC |
| Input Voltage Nominal | 120/240 VAC / 125 VDC |
| Input Power | 90 VA (AC) / 50 W (DC) |
| Output Voltages | +5 VDC, +24 VDC Relay, +24 VDC Isolated |
| Output Power Capacity | 30 Watts total |
| Current Rating | 2 Amps |
| Installation Slot | Leftmost slot of the PLC’s serial backplane |
| Load-Sharing Redundancy | Not Supported |
| LED Indicators | PWR, OK, RUN |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H x W x D) | 100 x 50 x 120 mm |
| Weight | 0.3 kg |
| Country of Origin | United States |
Applications
The GE IC694PWR321 power supply module is utilized in various industrial sectors, including:
-
Manufacturing: Powers automation systems in assembly lines and robotic cells.
-
Energy: Supports control systems in power generation and distribution.
-
Water Treatment: Ensures reliable operation of water and wastewater management systems.
-
Transportation: Provides consistent power for railway and airport control systems.
-
Oil & Gas: Enhances reliability in exploration, drilling, and refining processes.
Its compatibility with both AC and DC input voltages makes it suitable for diverse industrial environments.
Advantages
-
Flexible Input Voltage: Supports a wide range of AC and DC input voltages, accommodating various power sources.
-
Multiple Output Voltages: Provides +5 VDC, +24 VDC Relay, and +24 VDC Isolated outputs to meet different system requirements.
-
Compact Design: Fits into the leftmost slot of the PLC’s serial backplane, saving space in control cabinets.
-
LED Indicators: Equipped with PWR, OK, and RUN LEDs for easy monitoring of power and system status.
-
Reliable Performance: Designed to operate in industrial environments with temperatures ranging from 0°C to 60°C.
-
Ease of Installation: Simple integration into existing RX3i PACSystems PLC setups.
Frequently Asked Questions (FAQs)
-
What is the primary function of the IC694PWR321 module?
It supplies power to the CPU and I/O modules in the RX3i PACSystems PLC. -
Which systems are compatible with this module?
It is compatible with GE Fanuc RX3i PACSystems PLC series. -
What input voltages does the module support?
It supports 85 to 264 VAC and 100 to 300 VDC input voltages. -
What are the output voltages provided by the module?
It provides +5 VDC, +24 VDC Relay, and +24 VDC Isolated outputs. -
What is the total power output capacity?
The module can supply up to 30 Watts of power. -
Does the module support load-sharing redundancy?
No, load-sharing redundancy is not supported. -
Where is the module installed within the PLC system?
It is installed in the leftmost slot of the PLC’s serial backplane. -
What are the operating temperature limits?
The module operates reliably between 0°C and 60°C. -
What are the dimensions and weight of the module?
The module measures 100 x 50 x 120 mm and weighs 0.3 kg. -
What LED indicators are available on the module?
The module features PWR, OK, and RUN LEDs to indicate power and system status.
Related Models from the Same Series or Application
| Model Number | Description | Compatibility | Key Feature |
|---|---|---|---|
| IC694PWR330 | High-Capacity Power Supply Module | RX3i PACSystems | Provides 60W power output |
| IC694PWR331 | High-Capacity Power Supply Module | RX3i PACSystems | Offers 60W power with 24 VDC input |
| IC694PWR332 | High-Capacity Power Supply Module | RX3i PACSystems | 60W power with 12 VDC input |
| IC694PWR333 | Redundant Power Supply Module | RX3i PACSystems | Supports power redundancy |
| IC694PWR334 | High-Capacity Power Supply Module | RX3i PACSystems | Enhanced power output for large systems |
| IC694PWR335 | High-Capacity Power Supply Module | RX3i PACSystems | Designed for high-demand applications |
